Customized Design Space-Saving Metal Hangers Painting Booth, Painting Powder Coating System*
1 set
$60,0001 set
$200,000Product information
High-quality Customized Design Space-Saving Metal Hangers Painting Booth, Painting Powder Coating System* supplied by Wuxi Longterm Machinery Technologies Co., Ltd.. Bulk wholesale pricing ranges from $60,000 to $200,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Speed Adjust Range:
0.5-3.0m/Min
Capacity:
2.0m/Min(Customized)
Production Capacity:
400sets/Year
HS Code:
8424899990
Method Type:
Automatic
Advantage:
Automatic and High Efficiency
Workpiece Weight:
Below to 100kg
Origin:
China Jiangsu
Specifications
Speed Adjust Range:
0.5-3.0m/Min
Capacity:
2.0m/Min(Customized)
Production Capacity:
400sets/Year
HS Code:
8424899990
Method Type:
Automatic
Advantage:
Automatic and High Efficiency
Workpiece Weight:
Below to 100kg
Origin:
China Jiangsu
Energy:
Electric, LPG or LNG
Type:
Electrostatic Spraying Equipment
Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW
Model NO.:
HLT
Trademark:
HLT
Application Industrial:
Hardware Metal Sheet Manufacturing Factory
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Specification:
LTM
Name:
Metal Hangers Painting Booth
Condition:
New
Control System:
PLC+Touch Screen Automatic
Coating:
Powder
Port Of Loading:
Shanghai, Ningbo
Suspension Way:
Single or Double Point Hanging, with C - Type Hang
Transport Package:
Standard Seaworthy Package
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2003-07-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW
Port Of Loading:
Shanghai, Ningbo
Certificates:
CE, CE of hydraulic pressure testing machine scale, CE of residual liquid removal machine, FACTORY ACCEPTANCE INSPECTION CERTIFICATE, intertek_1, intertek_2, ISO9001:2000 Quality Management Certificates, PRE-SHIPMENT INSPECTION CERTIFICATE, pressure parts safety registration, pressure vessel manufacturing license
Product descriptions from the supplier
Customized Design Space-Saving Metal Hangers Painting Booth, Painting Powder Coating System
The spraying line is composed of surface joint pre-processor, drying oven, powder spraying, curing oven,hanging conveyor, electrical control system and other parts.

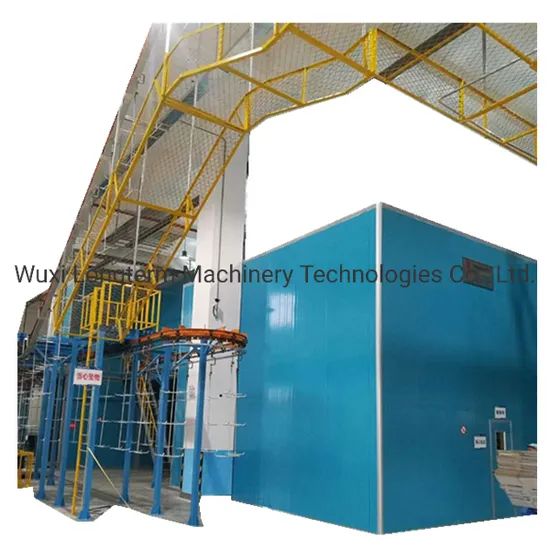

Powder spraying line detail pictures:
Technical Parameters
The spraying line is composed of surface joint pre-processor, drying oven, powder spraying, curing oven,hanging conveyor, electrical control system and other parts.
Powder spraying line detail pictures:
Technical Parameters
| Item | Name | Design | ||
| 1 | Porduct name | Metal Sheets/Hardware | ||
| 2 | Product material | Cold rolled plate (no rust, no oxide) (plate thickness 0.5-5mm) | ||
| 3 | Workpiece size | L2000W700 H1700(mm). Double point hanging | ||
| 4 | Wire speed through size | L2000W700 H1800(mm). (front high rear low hanging method) | ||
| 5 | Suspension way | Single or double point hanging, with C - type hanging and beam hanging | ||
| 6 | Suspension chain | Qxt250/50kg, | ||
| 7 | Maximum workpiece weight | Single point hanging ≤100Kg | ||
| 8 | Production line capacity | 2.0m/min (customized by the buyer), Note: the thick workpiece shall be slowed down | ||
| 9 | Speed adjust range | 0.5-3.0m/min | ||
| 10 | Heating energy | Nature gas | ||
Process Flow
| Item | Process | Time (s) | Temperature(ºC) | Remark | Effect time (seconds) |
| 1 | Loading | / | Manually | ||
| 2 | Pre degrease | 60 | 50~55 | Heating by hot water | 60 |
| 3 | Main degrease | 120 | 50~55 | Heating by hot water | 120 |
| 4 | Water washing1 | 60 | R.T | 45 | |
| 5 | Pure water washing1 | 60 | R.T | Into the water washing1 | 45 |
| 6 | Pure water spraying1 | R.T | Into the pure water washing1 | ||
| 7 | Silicane | 90 | 15-30 | Hot water heating | 90 |
| 8 | Pure water washing2 | 60 | R.T | 45 | |
| 9 | Pure water washing3 | 60 | R.T | Into the pure water washing2 | 45 |
| 10 | Pure water spraying2 | R.T | Into the pure water washing3 | ||
| 11 | Drying | 600 | 130~170 | Temperature is adjustable(Natural gas direct heating) | 360-420 |
| 12 | Cooling | 600 | Natural cooling | 600 | |
| 13 | Powder coating | / | / | Automatic+Manually | |
| 14 | Powder curing | 1320 | 180~200 | Temperature is adjustable(Natural gas direct heating)heated air circulation | 1020 |
| 15 | Cooling | 600 | Natural cooling | 600 | |
| 16 | Unloading | Manually |
Company Introduction
Wuxi Longterm Machinery Technologies Co.,Ltd is professional manufacturer of all coating/spraying lines in different industrials,such as Auto Parts Industry,Environmental Protection Equipment,Electrical Appliance etc.
Our spraying lines are sold to domestic and international famous enterprises:Cheetah car etc., JinGu\Jinfei car parts, Yueling car parts,Electrolux, Siemens, Philip , Atlas,WAM and domestic Launch Vehicle, Haier, Hisense,and exported to Russia, Vietnam, India, Syria , Pakistan, Mexico and more than 20 countries, while is the coating supplier for China Business Aircraft Group in 2009.
Patent And Enterprise Certificate.
Wuxi Longterm coating is national hi-tech company, and has been awarded several honorary title by national and provincial government
RFQ
Enable us to give you competitive price for correct items,could you please answer below question:
1.Workpiece size/specification,weight and process requirements(Powder coating or painting? )
2.Plant foundatation drawing,including plant height(the height between factory beam to the ground) and loading&unloading position
3.Heating energy:Electric,LPG or LNG?
4.The environmental requirements of your local government
5.Voltage
6.Daily and annual capacity
2.Plant foundatation drawing,including plant height(the height between factory beam to the ground) and loading&unloading position
3.Heating energy:Electric,LPG or LNG?
4.The environmental requirements of your local government
5.Voltage
6.Daily and annual capacity
