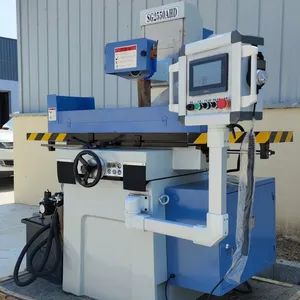

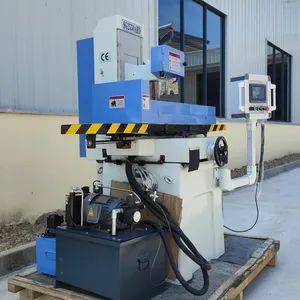

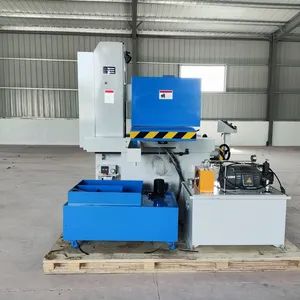

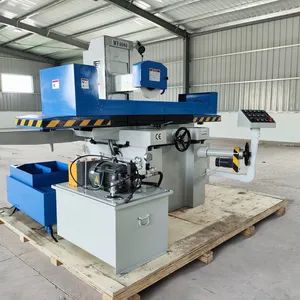

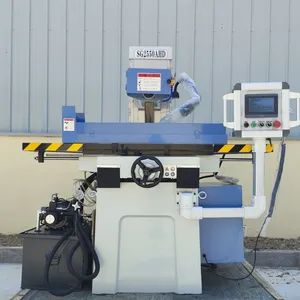

Electric Surface Grinding Machine
1.The main casings of this machine are made of cast iron.After annealing,the internal stress is eiminated to ensure high precision, high rigidity, and prolong the life of the machine.
2.Wear-resistant resin sheet is affixed to the slideway of the machine, and after precision scooping, it not ony sides smoothly and is wear-resistant.it is most sutiable for molding and grinding.
3.This machine adopts Taiwan's direct-coupled spindle and P4 grade super-precision roller bearings. high vibration and high torgue at high speeds. it is most suitable for molding and grinding
1:Guide way is coated with Turcite and precision hand scraped,move smoothly and keep the accuracy long life.

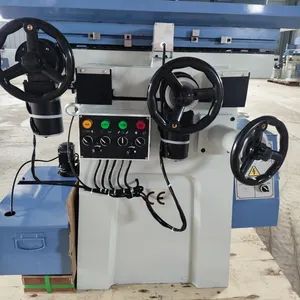

2:Well-designed control panel with two-way rotate structure,make the operator getting suitable operating position very easy,improve work efficiency.
3:The grinder is standard equipped with auto down feed AC servo motor,and controlled by PLC and HMI,to realize auto grinding,then to realize auto grinding.
4:For the control panel is equipped with HMI,by which the operator can easy operating on the machine to realize auto working
5:The manual surface grinding machine adopt the V-type guide, bring transmission by synchronous belt.
6:Meanwhile, the machine adopt the exceeding precise P4 level ball bearing for spindle, having complete attachment with electromagnetic chuck or the dense chuck of permanent magnetism.
7:The small surface grinding machine have the simple and convenient operation, low noise, high precision for processing, steady mechanical performance, reliable hydraulic system of table longitudinal movement.
Product Parameters
| item |
value |
| CNC or Not |
CNC |
| Condition |
New |
| Grinding Length(mm) |
500 |
| Wheel Size(mm) |
500 |
| Surface Roughness(μm) |
0.32μm |
| Table Size(mm) |
500*250 |
| Table Travel (X) (mm) |
520 |
| Table Travel (Y) (mm) |
275 |
| Place of Origin |
China |
| Dimension(L*W*H) |
1.75m*1.35m*1.96 |
| Weight (KG) |
900 |
| Power (kW) |
1.1 |
| Warranty |
1 Year |
| Key Selling Points |
Multifunctional |
| Showroom Location |
None |
| Marketing Type |
Ordinary Product |
| Machinery Test Report |
Provided |
| Video outgoing-inspection |
Provided |
| Warranty of core components |
1 Year |
| Core Components |
Motor |
| Applicable Industries |
Manufacturing Plant, Building Material Shops |
| Name |
surface grinding machine |
| Type |
MY250 |
| Table travel (x) |
520mm |
| Table travel (y) |
275mm |
| Usage |
General |
| Layout form |
vertical type |
| Main motor power |
1.1kw |
| Voltage |
220v/380v 25Hz |
| Core components |
motor |
| Function |
Automatic Surface Grinder |
