Customized Metal Corrugated Trapezoid Glazed Tile Roll Forming Machine
1 Piece
$9,5001 Piece
$6,500Product information
High-quality Customized Metal Corrugated Trapezoid Glazed Tile Roll Forming Machine supplied by Cangzhou Dixin Roll Forming Machine Co., Ltd.. Bulk wholesale pricing ranges from $6,500 to $9,500 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Feeding Thickness:
0.25-0.7mm Thickness
Feeding Width:
1000mm
Warranty:
12 Months
Weight:
2.5 Tons
Package Gross Weight:
3000.000kg
Production Speed:
4-6m/Min
Production Capacity:
50 Sets Per Year
Package Size:
5600.00cm * 120.00cm * 120.00cm
Specifications
Feeding Thickness:
0.25-0.7mm Thickness
Feeding Width:
1000mm
Warranty:
12 Months
Weight:
2.5 Tons
Package Gross Weight:
3000.000kg
Production Speed:
4-6m/Min
Production Capacity:
50 Sets Per Year
Package Size:
5600.00cm * 120.00cm * 120.00cm
Size:
6500mm*1500mm*1500mm
Roll Forming Speed:
8-12m/Min
HS Code:
84552210
Feature:
Automation
Certification:
CCC, ISO9001, CE
Specification:
CE SGS ISO
Origin:
China, Hebei
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trademark:
DIXIN
Advantage:
Easy to Maintenance
Power Source:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Auto:
Fully Automatic
Mode:
Galvanized Roof Sheet Making Machine
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Feeding Material:
Metal Coil
Forging Forming Method:
Mold Forging
Condition:
New
Control System:
PLC Computer Control with Inverter
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port, Qingdao port
Transport Package:
Waterproof Package
Model NO.:
glazed tile roof roll forming machine
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-05-31
Annual Revenue Amount:
Not specified
Numbers Of Employees:
48
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port, Qingdao port
Certificates:
BV Agreement Manufacture, German BV Assessed Supplier, German TUV Assessed Factory, GOV Agreement of Operate factory, GOV Tax No., Italy CE, Made-in China Sales Agreement, SGS Agreement, SGS Audited Supplier, SGS Paper Books, SGS Production Capacity&Workflow, SGS Supplier Assessment Report, SGS Working Building, SGS Workshop Building
Product descriptions from the supplier

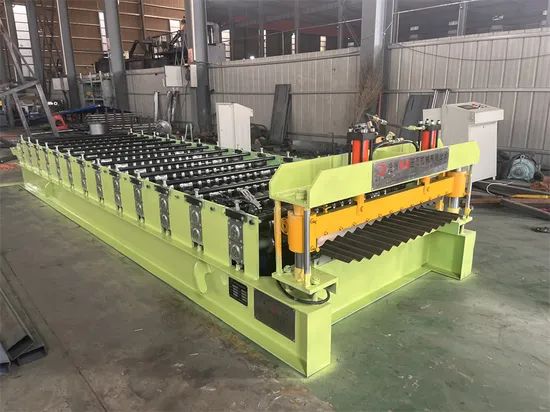

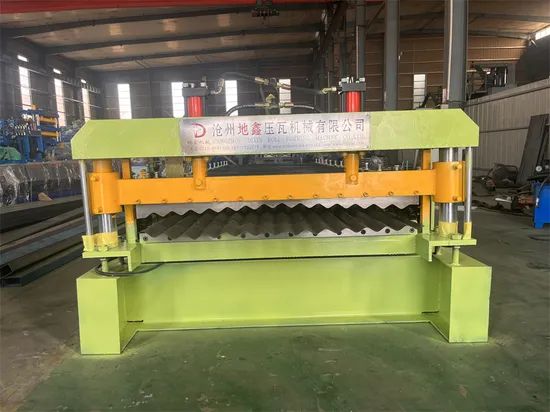

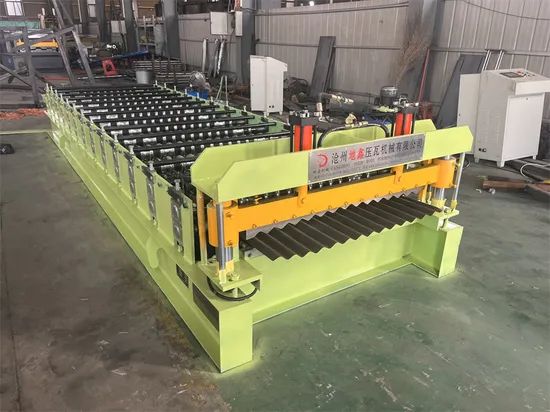

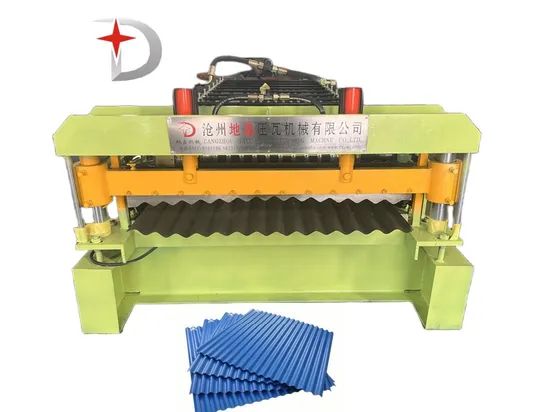

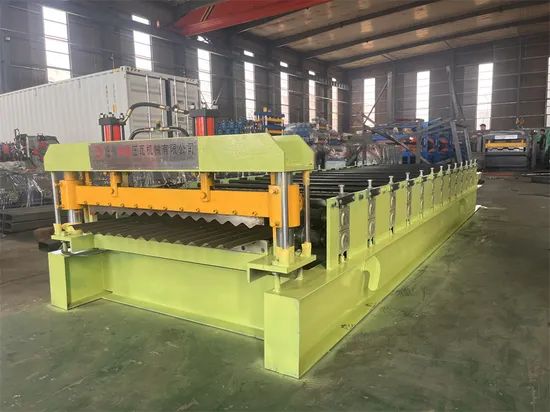

Customized Metal Corrugated Trapezoid Glazed Tile Roll Forming Machine
Glazed tile produced by this kind of machine are looked beautiful, elegant and noble. It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on.
Glazed tile produced by this kind of machine are looked beautiful, elegant and noble. It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on.
It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, glazed tile roll forming machine, high precision counter and so on.
|
Suitable material |
PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
|
Thickness of coil sheet |
0.3-0.8mm or as your need |
|
Coil width |
1000mm |
|
Effective width |
828mm |
|
Material of main frame |
400H steel |
|
Diameter of Soild shaft |
70mm, high grade 45# steel |
|
Roller |
High grade 45# steel, quenched and tempered treatment, hard chrome plated 0.05-0.07mm |
|
Thickness of middle plate |
16mm, 45# steel plate |
|
Forming station |
11rows |
|
Drive type |
By chain(1.0 inch), link bearing model 6210 |
|
Power of main motor |
4kw, servo motor |
|
Sidewall connection bar |
25mm, zinc plated |
|
Forming speed |
About 8-12m/min |
|
Hydraulic pump station |
11 kw, 40# hydraulic oil |
|
Material of razor blades |
Cr 12 |
Usually the roof sheet roll forming machine can be packed into one 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
Terms of payment
1) Payment: 30% T/T prepaid, and pay the balance before shipping.
2) Delivery time: 30 working days.
3) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
4) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
5) Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and CD to teach you to install and operate.
c. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 80 one man one day). To the seller's appointed account by T/T before the seller's technicians go to the buyer's factory. The buyer pays the seller's technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
Q:What's your Warranty
12 months, during which all parts damaged because of quality problem will be changed for free.
Q: What's your delivery Time:
within 30-45 days after receiving prepaid. Some machines in stock, can be delivered at any time.
Q: What's your payment terms:
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What's you after-sale service:
Q: How to place order
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
Q: How to visit our company
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
