Customized Pill Film Coating Equipment to Meet Specific Requirements
1 Set
$40,0001 Set
$30,000Product information
High-quality Customized Pill Film Coating Equipment to Meet Specific Requirements supplied by Zhejiang Jiangnan Pharmaceutical Machinery Co., Ltd.. Bulk wholesale pricing ranges from $30,000 to $40,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Warranty:
1 Year
Quality:
100% Inspection
Production Capacity:
50 Units/Year
OEM:
Available
Model NO.:
BG-80E
Certification:
CE Certified, GMP Compliant, ISO Certified
Specification:
CE, GMP, ISO,
Transport Package:
Export-Standard and Sea-Worthy Wooden Case
Specifications
Warranty:
1 Year
Quality:
100% Inspection
Production Capacity:
50 Units/Year
OEM:
Available
Model NO.:
BG-80E
Certification:
CE Certified, GMP Compliant, ISO Certified
Specification:
CE, GMP, ISO,
Transport Package:
Export-Standard and Sea-Worthy Wooden Case
Trade Term:
FOB, CIF, CFR
Precision:
High Precision
Payment Term:
LC, T/T, D/P
Condition:
New
Port Of Loading:
Ningbo Port
Tablet Shape:
Oval, Rectangular, Round
Type:
Pharmaceutical Packaging Machinery
Origin:
Ruian City, Zhejiang Province, China
Finished Dosage Form:
Tablet
Name:
Tablets Film Coating Machine
Trademark:
Zhejiang Jiangnan
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
1997-10-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Ningbo Port
Certificates:
CE
Product descriptions from the supplier
The efficient coating machine consists of major machine, slurry spraying system, hot-air cabinet, exhaust cabinet, feed and discharge device, and computer programming control system.
Used for coating various tablets, pills and bubble candies with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-solublefilm and sugar film etc. in such fields as of pharmaceutical, food and biologicalline.
| Main Technical Parameters
|
|||||||||
| Model Items |
BG1000E | BG600E | BG400E | BG260E | BG150E | BG80E | BG40E | BG10E | |
| Load capacity | 1000L | 600L | 400L | 260L | 150L | 80L | 40L | 10L | |
| Rotation speed of coating pan (R/M) | 0-12RPM | 1-12RPM | 1-13RPM | 1-16RPM | 1-16RPM | 1-19RPM | 1-21RPM | 1-25RPM | |
| Power of main machine | 7.5kw | 5.5kw | 3kw | 2.2kw | 2.2kw | 1.5kw | 1.1kw | 0.55kw | |
| Diameter of coating pan | Φ1580mm | Φ1580mm | Φ1580mm | Φ1360mm | Φ1200mm | Φ930mm | Φ750mm | Φ500mm | |
| Motor of air exhaust cabinet | 22kw | 11kw | 7.5kw | 5.5kw | 5.5kw | 3kw | 2.2kw | 0.75kw | |
| Air exhaust flow | 20000m^3/h | 15450m^3/h | 10000m^3/h | 7419m^3/h | 7419m^3/h | 5268m^3/h | 3517m^3/h | 1285m^3/h | |
| Motor power of hot air cabinet | 7.5kw | 5.5kw | 3kw | 2.2kw | 1.5kw | 1.1kw | 0.75kw | 0.37kw | |
| Hot air motor air flow | 10000m^3/h | 7419m^3/h | 5200m^3/h | 3517m^3/h | 2356m^3/h | 1685m^3/h | 1285m^3/h | 816m^3/h | |
| Weight of main machine | 4000kg | 2800kg | 1562kg | 1300kg | 1020kg | 684kg | 500kg | 200kg | |
| Clean air | Pressure | >=0.4Mpa | >=0.4Mpa | >=0.4Mpa | >=0.4Mpa | >=0.4Mpa | >=0.4Mpa | >=0.4Mpa | >=0.4Mpa |
| Air comsumption | 3.5m^3/min | 2m^3/min | 1.5m^3/min | 1.2m^3/min | 1m^3/min | 0.4m^3/min | 0.4m^3/min | 0.3m^3/min | |
| Machine dimension | Main machine | 2500*3100*2800mm | 2000*2277*2660mm | 2000*1670*2660mm | 1730*1440*2470mm | 1570*1260*2250mm | 1210*1000*1900m | 1000*800*1900mm | 900*620*1800mm |
| Hot air cabinet | 1700*1200*2600mm | 1600*1100*2350mm | 1000*900*2300mm | 1000*900*2300mm | 1000*900*2300mm | 900*800*2050mm | 900*800*2050mm | 800*650*1600mm | |
| Air exhaust cabinet | 3000*1115*2400mm | 1050*1000*2470mm | 1050*1050*2330mm | 1050*1050*2330mm | 950*950*2245mm | 900*820*2130mm | 820*720*1750mm | ||
| Steam heating power | 40Kw | 29Kw | 18Kw | 14Kw | 14Kw | 10Kw | 9Kw | ||
| Electric heating power | 120Kw | 79Kw | 61Kw | 48Kw | 42Kw | 30Kw | 24Kw | 12Kw | |
| Performance and Characteristics: |
1.All operations can be finished through pushing the touch key on the computer-controlled panel. The operational panel is a full-sealed slight touch film interface. The main machine as reliable and stable performance.
2.The streamline guiding-type mixer drives tablets to make easy and smooth rotation without fragment and chipped edge, which improves the quality of finished products.
3.Automatic feeding device stopped the cross pollution , convenient to feed, with high efficiency and full direction.
4.The coating boiler equipped in the high pressure spray gun, which can rotate 180ºC, there set a cleaning sprayer at the air exhaust exit and hot air mouth, which can be rotated in automatic and full direction ,without dead corner more convenient to clean.
2.The streamline guiding-type mixer drives tablets to make easy and smooth rotation without fragment and chipped edge, which improves the quality of finished products.
3.Automatic feeding device stopped the cross pollution , convenient to feed, with high efficiency and full direction.
4.The coating boiler equipped in the high pressure spray gun, which can rotate 180ºC, there set a cleaning sprayer at the air exhaust exit and hot air mouth, which can be rotated in automatic and full direction ,without dead corner more convenient to clean.
5.Select the imported spray gun. It's convenient to operate and easy to master and flexible controlled technological requirement. The spray gun head requirement must keep in the range of 0.29 Mpa to 0.39 Mpa. Angle and sector can be adjustable , uniform density and particle in spray pressure and 0.4-0.5Mpa in atomization pressure that avoid the dropping leakage and blockage phenomenon of size, uniform atomization and large spray area, practical to adjust flow, free leakage and blockage, angle and sector.
6.Film coating machine contains the mechanical device of cauldron wraping little material can coat at least 20kg plain pills in 150 type coating machine, regulate through it inherent machinery, make a small mount of medium coat in cauldron and will not cause the wasted of dressing and greatly improve the scope of appliance.

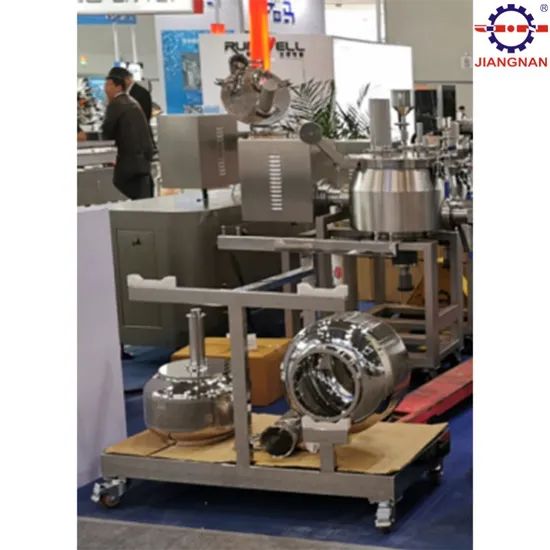

7.Experimental type machine has 10KG, 40KG, 80 KG replaceable coating pan, suitable for trial-producing of small quantities of drugs or exploring of coating process.
6.Film coating machine contains the mechanical device of cauldron wraping little material can coat at least 20kg plain pills in 150 type coating machine, regulate through it inherent machinery, make a small mount of medium coat in cauldron and will not cause the wasted of dressing and greatly improve the scope of appliance.
7.Experimental type machine has 10KG, 40KG, 80 KG replaceable coating pan, suitable for trial-producing of small quantities of drugs or exploring of coating process.
| Experimentaltype | ||||
| Model Items |
BG80H | BG20H | BG5H | |
| Load capacity | 80L | 20L | 5L | |
| Rotation speed of coating pan (R/M) | 1-30RPM | 1-25RPM | 1-30RPM | |
| Power of main machine | 1.5kw | 0.75kw | 0.37kw | |
| Diameter of coating pan | Φ930mm | Φ680mm | Φ480mm | |
| Motor of air exhaust cabinet | 3kw | 2.2kw | 1.1kw | |
| Air exhaust flow | 5268m^3/h | 3517m^3/h | 2500m^3/h | |
| Motor power of hot air cabinet | 1.1kw | 0.75kw | 0.25kw | |
| Hot air motor air flow | 1685m^3/h | 1200m^3/h | 504m^3/h | |
| Weight of main machine | 1023kg | 625kg | 750kg | |
| Total power | Steam Heating | 14Kw | ||
| Electric heating | 34Kw | 14Kw | 10Kw | |
| Machine dimension | Main machine | 1300*1315*2220mm | 1050*960*1800mm | 1300*960*1600mm |
| Hot air cabinet | 900*820*2130mm | |||
| Air exhaust cabinet | 900*820*2130mm | 650*600*1860mm | ||
The tablets make complicated and constant track movement with easy and smooth turn frequent exchanging in a clean and closed drum of the film coating machine. The coating mixed round in the mixing drum are sprayed on tablets through the spray gun at the inlet unaction of the peristaltic pump. Meanwhile under the action of air exhaust and negative pressure 100,000 clean hot air supplied by the air exhaust cabinet is exhausted from the fan at the sieve meshes through tablets. So these coating mediums on the surface of tablets get dry forming a coat of firm, fine and smooth film. The whole process is finished under the control of PLC.
We mainly produce high-tech products in the field of pharmaceutical and packaging machinery. Products include: softgel production line, high-efficiency intelligent tablets coating machine, high speed cartoning machine, automatic production line for pharmaceutical packaging, aluminum-plastic (aluminum/aluminum) blister packaging machine, wet granulator and etc. series of products.
Zhejiang Jiangnan Pharmaceutical Machinery Co.,Ltd. is a technology-based company integrating R&D, manufacturing, sales and service. Our company was established in 1997 and is located at Xinbu Road, Economic Development Zone, Ruian city. Our company has a construction area of 14,000 square meters.
We have a municipal-level technology research and development center and has obtained 43 national patent technologies, including 4 invention patents. Also have more than 70 sets of various high-end processing and testing equipment to provide quality assurance for product quality.
We also have the right to self-operate export, and our products are exported to more than 80 countries and regions in Asia, Europe, Africa, South America, North America, and Oceania.
