Cvr Dual 8 Inch Line Array System
2 Piece
$10,000Product information
High-quality Cvr Dual 8 Inch Line Array System supplied by CVR PRO AUDIO CO.,LTD. Bulk wholesale pricing is $10,000 per Piece with a minimum order of 2 Piece. Inquiry for latest prices.
Production Capacity:
10000 PCS/Month
Power Hf:
100W
Nominal Impedance:
16 Ohm
Warranty:
2 Years
Net Weight:
25.5kg
Gross Weight:
28.5kg
Power Lf:
400W
Power Sub:
600W
Specifications
Production Capacity:
10000 PCS/Month
Power Hf:
100W
Nominal Impedance:
16 Ohm
Warranty:
2 Years
Net Weight:
25.5kg
Gross Weight:
28.5kg
Power Lf:
400W
Power Sub:
600W
Frequency:
70Hz-20kHz
Specification:
8 inch
HS Code:
815200
THD:
<0.005%
Activity:
Active
Certification:
CE, RoHS, CCC, FCC, ETL, MET
Trademark:
CVR
Transport Package:
Carton Box and Flight Case
Origin:
China
Application:
Commercial
Trade Term:
FOB, EXW, CFR, CIF
Type:
Line Array Sub-Bass System(W-115A)
Monitor:
No
Speaker System:
Optional Combination
Array Design:
Provide Poor Dispersion Control
Payment Term:
T/T, Western Union, Money Gram
Model NO.:
W-208 & W-18/W-208P & W-18P
Operation Mode:
Wire / Remote Control
Speaker Material:
Wood
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2005-10-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, Western Union, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Not specified
Certificates:
ce, certifictes
Product descriptions from the supplier
DESCRIPTION and APPLICATIO

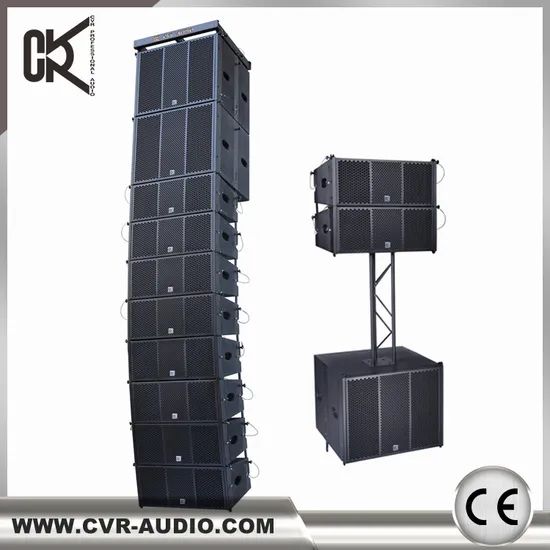

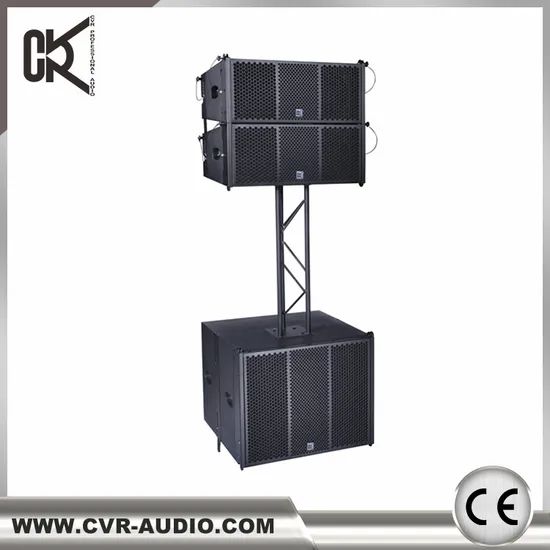

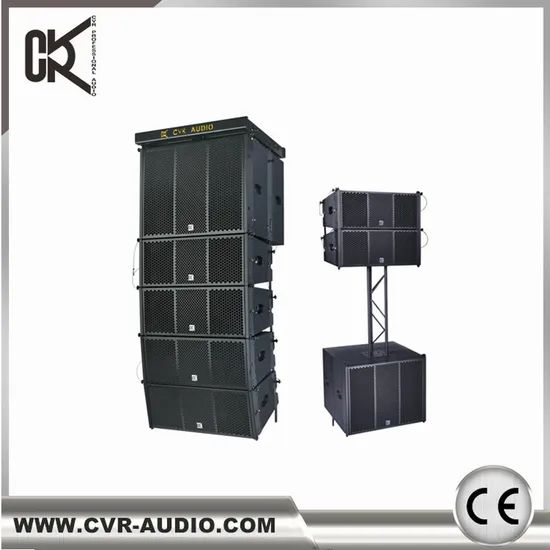

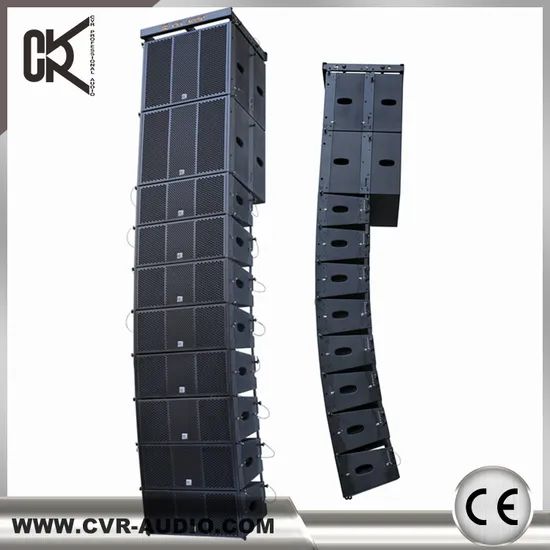

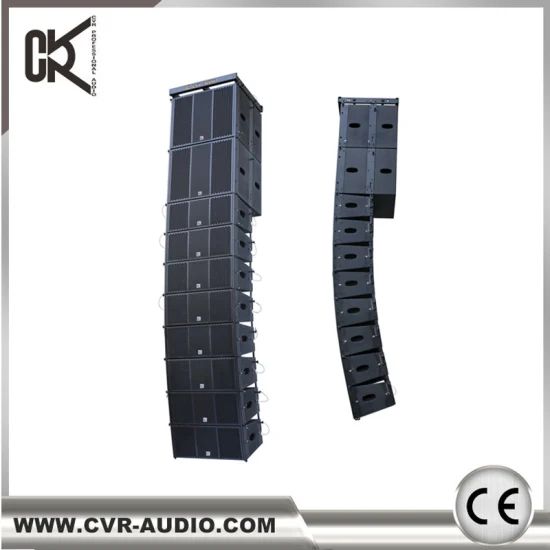

W-208&W-208P is a line array system which is made of two 8" neodymium woofers, one 2.5" titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-208&W-208P will integrate seamlessly with W-18&W-18P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-208&W-208P is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
| Model | W-208 & W-208P(Active) |
| Type | Two-way line array system |
| Frequency Response | 70Hz-20KHz±3dB |
| Power handling | LF 400W(RMS)1600W(PEAK) |
| HF 90W(RMS)360W(PEAK) | |
| Sensitivity | LF 100dB(1W@1M) |
| HF 101dB(1W@1M) | |
| Max SPL | LF 125dB(PEAK/1M) |
| HF 128dB(PEAK/1M) | |
| Drivers | LF 2×8"(210mm) neodymium woofer 65mm (2.5in)coil |
| HF 1×2.5" neodymium compression driver with 65mm titanium diaphragm | |
| Nominal impedance | LF 16 ohm |
| HF 16 ohm | |
| Coverage | 110°H×10°V |
| Connections | LF 1(+)1(-) HF 2(+)2(-) |
| Connectors | 2×NL4MP speakon |
| Finish | Textured high-density polyurethane coating |
| Enclosure Material | Birch Plywood |
| Crossover | LF 70Hz-2KHz HF 2KHz-20KHz |
| Dimensions | 640×261×380mm(W×H×D) |
| Packing Dimensions | 745×370×455mm(W×H×D)0.10cbm |
| Net weight | 23.5kg (W-208) 25.5kg(W-208P) |
| Gross weight | 26.5kg (W-208) 28.5kg(W-208P) |
W-18/W-18P is dedicated high performance sub-bass system designed to augment the low frequency output of the W-208&W-208P, W-18&W-18P is a sub-bass enclosure which must be flown with W-208&W-208P. So its physical dimensions are identical to the W-208&W-208P and it is equipped with the same proprietary rigging system. It features with one 18" woofers with magnet structure and suspensions engineered for maximum linear excursion.
| Model | W-18 & W-18P(Active) |
| Type | Sub-bass system |
| Frequency Response | 40Hz-500Hz±3dB |
| Power handling | 800W(RMS)3200W(PEAK) |
| Sensitivity | 101dB(1W@1M) |
| Max SPL | 129dB(PEAK/1M) |
| Driver | 1×18"(460mm) woofer 100mm(4in)coil |
| Nominal impedance | 8 ohm |
| Finish | Textured high-density polyurethane coating |
| Connectors | 2×NL4MP speakon |
| Enclosure Material | Plywood |
| Dimensions | 640×502×600mm(W×H×D) |
| Packing Dimensions | 740×590×660mm/0.27cbm |
| Net weight | 48.5kg (W-18) 50.5kg(W-18P) |
| Gross weight | 52.5kg (W-18) 54.5kg(W-18P) |
