Cy07-V1.1 Transistor IC Electronic Component Receiver Module Type Button Origin China If Band 230kHz Voltage 3.6-5.5V Universal
50 Piece
$2.350 Piece
$1.3Product information
High-quality Cy07-V1.1 Transistor IC Electronic Component Receiver Module Type Button Origin China If Band 230kHz Voltage 3.6-5.5V Universal supplied by CY Wireless Technology Limited. Bulk wholesale pricing ranges from $1.3 to $2.3 per Piece with a minimum order of 50 Piece. Inquiry for latest prices.
If Band:
230kHz
Voltage:
3.6-5.5V
Frequency:
315MHz/433.92MHz
Low Power Consumption:
4.8mA@315m,[email protected]
Specification:
42*32*21cm/CTN
Transmission Distance:
50-100m
Production Capacity::
500000PCS/Year
Type:
Button
Specifications
If Band:
230kHz
Voltage:
3.6-5.5V
Frequency:
315MHz/433.92MHz
Low Power Consumption:
4.8mA@315m,[email protected]
Specification:
42*32*21cm/CTN
Transmission Distance:
50-100m
Production Capacity::
500000PCS/Year
Type:
Button
Battery Type:
Button Battery
Model NO.:
CY07-V1.1
Transport Package:
Cartons
Origin:
China
Trade Term:
FOB, CFR, CIF, DDP, FCA, EXW
Application:
Household Appliances, LED Products, Industrial Machinery, Toys
Material:
PCB+Components
Signal Transmission:
RF Remote Control
Certification:
RoHS, FCC, CE
Port Of Loading:
SHENZHEN
Port::
Shenzhen, China
Payment Term:
T/T, PayPal, Western Union
Payment Terms::
T/T, Paypal
Universal:
Universal
High Sensitivity:
[email protected]1kbps Ber10e-2
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2006-11-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, CIF, DDP, FCA, EXW
Port Of Loading:
SHENZHEN
Certificates:
ISO 9001
Product descriptions from the supplier
Product Description

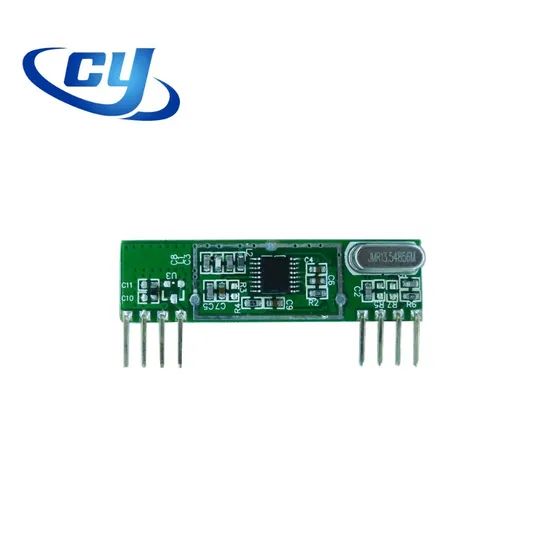

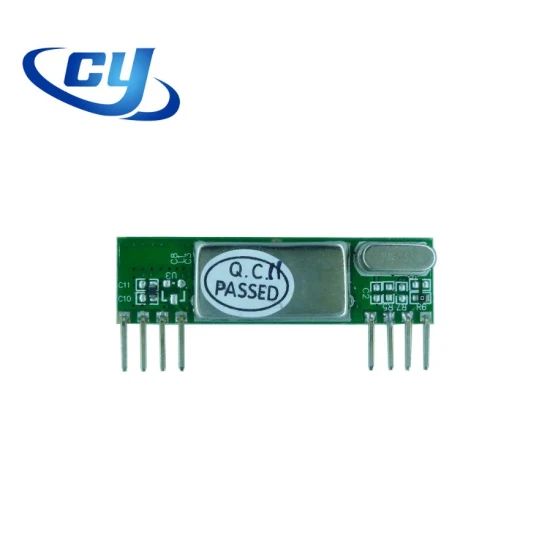

CY07-V1.1 ASK Super Heterodyne RF Wireless Receiver Module for 433mhz 315mhz 433.92mhz 868mhz
DESCRIPTION:
The CY07-V1.1 is a ASK/OOK compatible super heterodyne wireless receiving module with high performance for ISM frequency band. With the adoption of European brand RF wireless data transferring/receiver chipsets, that the model has a high receiving sensitivity and strong ability of resisting. From wireless signal input to data output can be done without any electrical circuit. User only use extra simple data decode circuit can achieve wireless products development. CY07-V1.1 is for commercial level version.
FEATURES:
- Frequency: 315MHz/433.92MHz (custom frequency is available);
- High sensitivity -110dBm@433.92 1kbps BER10E-2;
- supply voltage: VCC= 3.6to 5.5 V;
- IF band: 230KHz;
- Low power consumption: 4.8mA@315M, 6mA@433.92M.
- Excellent selectivity and noise rejection;
APPLICATION:
- Remote gate controls
- Remote keyless entry
- Car alarm systems
- wireless security systems
- Automation systems

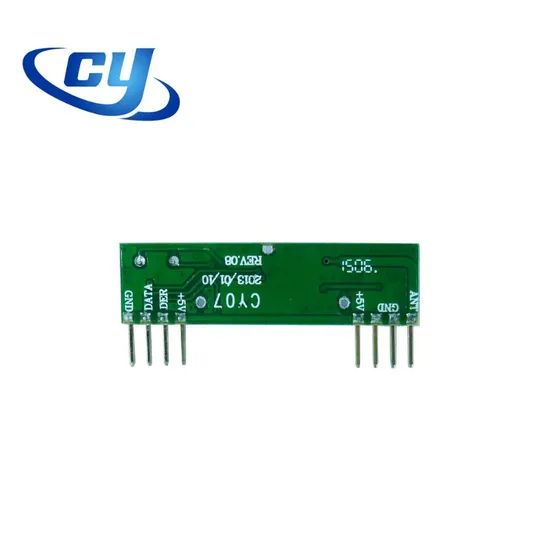

| Pin Name | Pin Definition |
| ANT | Antenna In |
| GND | Connect to negative power supply |
| GND | Connect to negative power supply |
| VCC | Connect to positive power supply |
| VCC | Connect to positive power supply |
| DER | Optional output: 1, DATA output(default setting) 2, Battery Saving Mode (Working mode in low level input) (Sleeping mode in high level input) |
| DATA | Data Output |
| GND | Connect to negative power supply |
