DIN1.2363 Cold Work Tool Steel MOQ 1t Alloy Alloy Origin China Trademark FUSHUN HS Code 7228600000 Technique Hot Rolled Special Use Mold
1 Ton
$6,0001 Ton
$2,000Product information
High-quality DIN1.2363 Cold Work Tool Steel MOQ 1t Alloy Alloy Origin China Trademark FUSHUN HS Code 7228600000 Technique Hot Rolled Special Use Mold supplied by Hunan Fushun Metal Co., Ltd.. Bulk wholesale pricing ranges from $2,000 to $6,000 per Ton with a minimum order of 1 Ton. Inquiry for latest prices.
MOQ:
1t
Production Capacity:
500tons Per Month
HS Code:
7228600000
Alloy:
Alloy
Delivery Condition:
Annealed , Quenched + Tempered
Surface Condition:
Black, Grinded, Peeled, Rough Turned, Polished
Surface Treatment:
Black, Grinded, Rough Turned,Peeled, Polished
Origin:
China
Specifications
MOQ:
1t
Production Capacity:
500tons Per Month
HS Code:
7228600000
Alloy:
Alloy
Delivery Condition:
Annealed , Quenched + Tempered
Surface Condition:
Black, Grinded, Peeled, Rough Turned, Polished
Surface Treatment:
Black, Grinded, Rough Turned,Peeled, Polished
Origin:
China
Specification:
DIN1.2363, SKD 12, X100CrMoV5, AISI A2
Model NO.:
DIN1.2363, SKD 12, X100CrMoV5, AISI A2
Similar Grades:
DIN1.2363, SKD 12, X100crmov5, AISI A2
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Trademark:
FUSHUN
Technique:
Hot Rolled
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Special Use:
Mold Steel
Transport Package:
Seaworthy Packing
Application:
Structural Steel Bar
Port Of Loading:
wuhan, huangshi, shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2005-08-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Port Of Loading:
wuhan, huangshi, shanghai
Certificates:
ISO NQA 9001, TUV
Product descriptions from the supplier

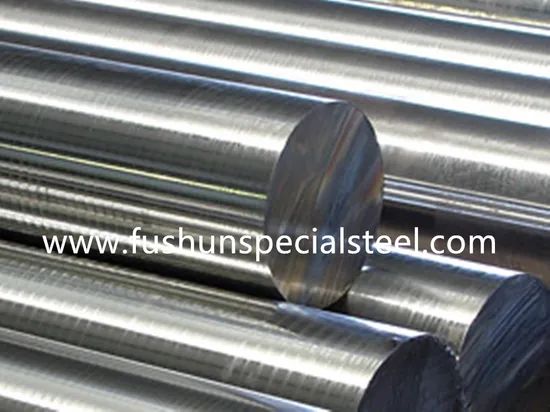

1.2363, SKD 12, X100CrMoV5, AISI A2 Tool Steel Bar
Similar Grade: 1.2363, SKD 12, X100CrMoV5, AISI A2
Shape: round, flat, square.
Size Range:
Steel-making Condition: EF, EF/EAF+LF+VD, EF/EAF+ESR
Delivery Condition:
Annealed , Quenched + Tempered
Surface Condition:
Black, Grinded, Peeled, Rough turned, Polished
Features:
1. Competitive price
2. Immediate delivery
3. Premium quality
4. Reliable service
Chemical Composition:
Heat Treatment:
Forging: Heat slowly to 700°C then more rapidly to 1050-1100°C. Avoid working below 900°C. Reheat as often as necessary to maintain proper forging temperature. After forging cool very slowly. Heat slowly and uniformly. Cool in vermiculite or in other insulating media. Anneal after forging.
Annealing: Soak thoroughly at 840-850°C, then slow furnace cool at a rate of not more than 20°C per hour. After annealing 1.2363 tool steel a maximum hardness of 215 Brinell may be achieved.Protect against surface decarburization using controlled atmosphere or by pack-annealing.
Hardening: Pre heat slowly to 600-700°C and soak. Continue heating to the final hardening temperature of 950/980°C and allow the component to equalise. Quench in oil or cool in air.Temper immediately after hardening. Allow to cool to 125-150° F before tempering. Soak time is 15 minutes per inch of thickness. Minimum of 30 minutes.
Tempering: Heat uniformly and thoroughly to the desired temperature and hold for 25 minutes per cm of thickness. 1.2363 tool steel can be double tempering, after intermediate cooling to room temperature. Temper at 200°C for a balance of hardness and strength or 350°C where strength is more important than hardness.Complete equalization of temperature throughout the tools is essential for good results. Double temper. Recommended temperature is 400-1000° F.
Application:
For cutting operations the good toughness of 1.2363 tool steel gives excellent resistance to chipping of the cutting edge. In many cases tools made from this steel have given better tooling economy than high-carbon, high-chromium steels of the D3/W.-Nr. 1.2080 type.
DIN1.2363 tool steel has much better machining and grinding properties.It can be used to make Bending Dies, Blanking Dies, Block Gauges, Cams, Coining Dies, Cold Forming Dies, Cold Shears, Cold Trimming Dies, Forming Dies, Knurls, Machine Parts, Mandrels, Plastic Mold Dies, Punch Plates, Punchers, Reamers, Ring Gauges, Roll Threading Dies, Rolls, Shear Blades, Slitters, Stamping Dies, Threading Taps, Trimming Dies, etc.
Product Description:
DIN1.2363 Tool Steel Bar, with maximum dimensional stability during heat treatment, offering high abrasion resistance and good toughness. Generally supplied annealed to HB 231 max. 1.2363 tool steel is an air hardening, cold work tool steel. A 5% Chromium steel which provides high hardness after heat treatment with good dimensional stability. It is heat treatable and will offer a hardness in the range 57-62 HRC.
Similar Grade: 1.2363, SKD 12, X100CrMoV5, AISI A2
Shape: round, flat, square.
Size Range:
| Diameter(mm) | Thickness (mm) | Width (mm) | Length(mm) | |
| Round | 10-420 | - | - | 2000-5800 |
| Square | 10-420 | - | - | 2000-5800 |
| flat | - | 20-50 | 80-600 | 2000-5800 |
Steel-making Condition: EF, EF/EAF+LF+VD, EF/EAF+ESR
Delivery Condition:
Annealed , Quenched + Tempered
Surface Condition:
Black, Grinded, Peeled, Rough turned, Polished
Features:
1. Competitive price
2. Immediate delivery
3. Premium quality
4. Reliable service
| Packing details | In seaworthy packing, as your requirement. |
| Delivery details | within 30-50 days |
Chemical Composition:
| Grade | C | Mn | P | S | Si | Cr | Mo | V |
| DIN1.2363 | 0.95-1.05 | 0.40-1.00 | 0.030 max | 0.030 max | 0.10-0.50 | 4.75-5.50 | 0.90-1.40 | 0.15-0.50 |
Heat Treatment:
Forging: Heat slowly to 700°C then more rapidly to 1050-1100°C. Avoid working below 900°C. Reheat as often as necessary to maintain proper forging temperature. After forging cool very slowly. Heat slowly and uniformly. Cool in vermiculite or in other insulating media. Anneal after forging.
Annealing: Soak thoroughly at 840-850°C, then slow furnace cool at a rate of not more than 20°C per hour. After annealing 1.2363 tool steel a maximum hardness of 215 Brinell may be achieved.Protect against surface decarburization using controlled atmosphere or by pack-annealing.
Hardening: Pre heat slowly to 600-700°C and soak. Continue heating to the final hardening temperature of 950/980°C and allow the component to equalise. Quench in oil or cool in air.Temper immediately after hardening. Allow to cool to 125-150° F before tempering. Soak time is 15 minutes per inch of thickness. Minimum of 30 minutes.
Tempering: Heat uniformly and thoroughly to the desired temperature and hold for 25 minutes per cm of thickness. 1.2363 tool steel can be double tempering, after intermediate cooling to room temperature. Temper at 200°C for a balance of hardness and strength or 350°C where strength is more important than hardness.Complete equalization of temperature throughout the tools is essential for good results. Double temper. Recommended temperature is 400-1000° F.
Application:
For cutting operations the good toughness of 1.2363 tool steel gives excellent resistance to chipping of the cutting edge. In many cases tools made from this steel have given better tooling economy than high-carbon, high-chromium steels of the D3/W.-Nr. 1.2080 type.
DIN1.2363 tool steel has much better machining and grinding properties.It can be used to make Bending Dies, Blanking Dies, Block Gauges, Cams, Coining Dies, Cold Forming Dies, Cold Shears, Cold Trimming Dies, Forming Dies, Knurls, Machine Parts, Mandrels, Plastic Mold Dies, Punch Plates, Punchers, Reamers, Ring Gauges, Roll Threading Dies, Rolls, Shear Blades, Slitters, Stamping Dies, Threading Taps, Trimming Dies, etc.
Product Description:
DIN1.2363 Tool Steel Bar, with maximum dimensional stability during heat treatment, offering high abrasion resistance and good toughness. Generally supplied annealed to HB 231 max. 1.2363 tool steel is an air hardening, cold work tool steel. A 5% Chromium steel which provides high hardness after heat treatment with good dimensional stability. It is heat treatable and will offer a hardness in the range 57-62 HRC.
