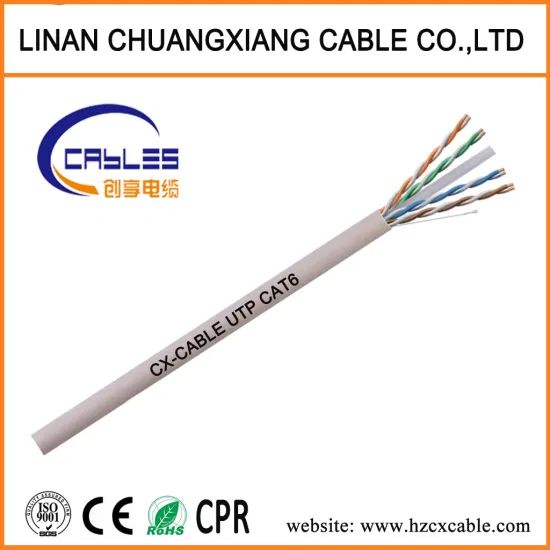

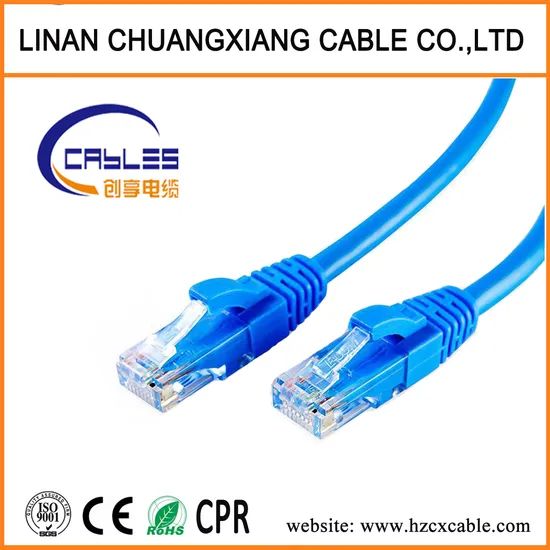

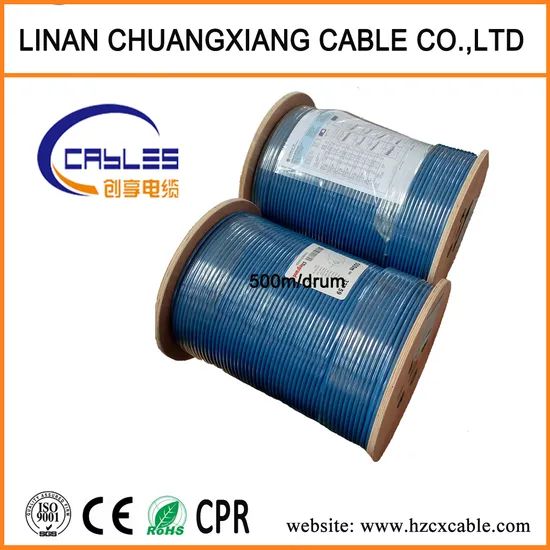

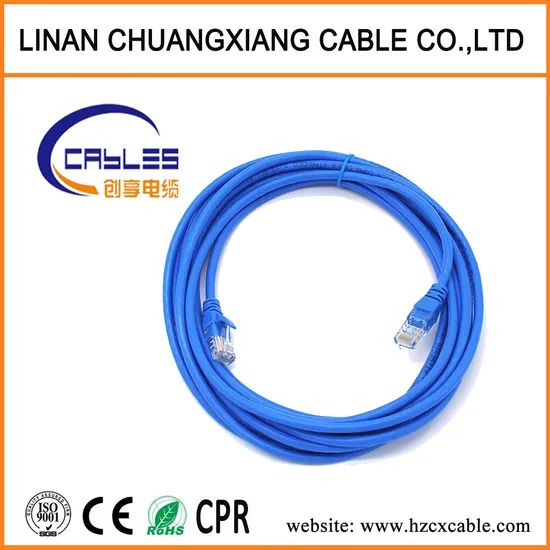

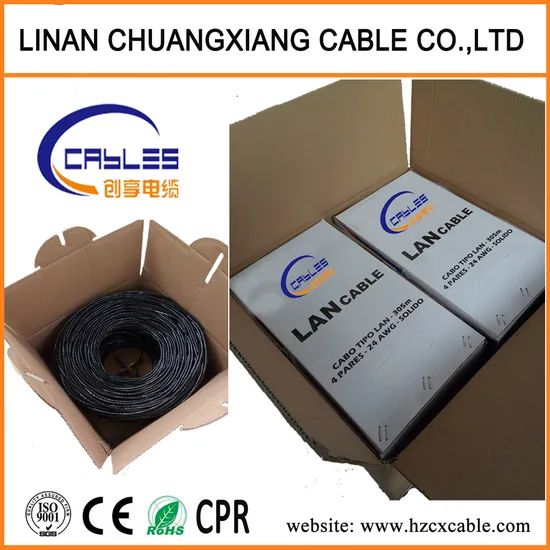

Data Cable UTP CAT6 Ethernet Patch Cord HDMI Network Cable Monitor Security System Communication Cable LAN Cable
3000 Meter
$0.033000 Meter
$0.1Product information
High-quality Data Cable UTP CAT6 Ethernet Patch Cord HDMI Network Cable Monitor Security System Communication Cable LAN Cable supplied by Hangzhou Chuangxiang Cable Co., Ltd.. Bulk wholesale pricing ranges from $0.03 to $0.1 per Meter with a minimum order of 3,000 Meter. Inquiry for latest prices.
Size Of Conductor:
25/24/23 AWG
Production Capacity:
50000boxes/Per Month
Numbers Of Conductor:
8
HS Code:
8544491100
Wire Core Material:
Bare Copper Wire
Certification:
CE, ISO, RoHS, CCC, VDE
Type:
Cat 6
Model:
Cat5e
Specifications
Size Of Conductor:
25/24/23 AWG
Production Capacity:
50000boxes/Per Month
Numbers Of Conductor:
8
HS Code:
8544491100
Wire Core Material:
Bare Copper Wire
Certification:
CE, ISO, RoHS, CCC, VDE
Type:
Cat 6
Model:
Cat5e
Transport Package:
Customized
Color:
Customized
Brand:
Cx-Cable
Trade Term:
FOB, CIF, CFR
Test:
Fluke
Insulation:
HDPE
Origin:
Hangzhou Zhejiang
Payment Term:
LC, T/T
Use For:
Network/Alarm System
Port Of Loading:
Ningbo Port, Shanghai Port
Trademark:
OEM or CX-Cable
Cover Material:
PVC
Jacket:
PVC/PE/LSZH
Material Shape:
Round Wire
Conductor Type:
Solid
Model NO.:
cat6
Specification:
customized
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-06-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
24
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
RoHS
Product descriptions from the supplier
Material Instruction:
1.CCA or 23AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.
| Type | UTP CAT6 |
| Conductor | 23/24AWG CU/CCA |
| Insulation | 1.03+/-0.2mm HDPE |
| Total number of insulated conductor | 8, twisted in 4 pairs |
| Color code | white-blue/blue,white-orange/orange, white-green/green,white-brown/brown |
| Center Cross | Yes |
| Drain wire | / |
| Outer Jacket | 6.0+/-0.2mm PVC/PE/LSZH |
Each cable is fully tested, quality inspected, and meets all TIA/EIA Cat6 standards. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels, and provides universal connectivity for LAN network components such as PCs, computer servers, printers, routers, switch boxes, network media players, NAS, VoIP phones, PoE devices, etc
| Impedance 1.0-100.0MHz (ohms) | 100±15 |
| D.C, Resistance @20ºC(ohms/km) | ≤9.5 |
| D.C. Resistance Unbalance(%) | Max 2.5 |
| Insulation Resistance | >5000MΩ*KM |
| Rated Temperature | 70ºC |
| Frequency (MHz) |
Return loss (dB) |
Attenuation (dB/100m) |
NEXT (dB) |
FEXT (dB) |
| 1 | 20.00 | 2.10 | 64 | 63.8 |
| 4 | 23.01 | 4.30 | 55 | 51.7 |
| 10 | 25.00 | 6.60 | 49 | 43.8 |
| 16 | 25.00 | 8.20 | 46 | 39.7 |
| 20 | 25.00 | 9.20 | 44 | 37.7 |
| 31.25 | 23.64 | 11.80 | 42 | 33.8 |
| 62 | 21.54 | 17.10 | 37 | 27.6 |
| 100 | 20.11 | 22.00 | 34 | 23.6 |
1,Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.
FAQ:
1.Are you the real manufacturer?
Yes. We are the real manufacturer,which is specialized in coaxial cable,lan cable and optical cable,etc.
2.Can you accept small order?
Yes,We support new project of our customers,and we know business is always from small order.
3.What is your delivery time?
Usually within 30days after we received deposit.
4.What is your payment way?
T/T, L/C,it can be negotiated.
5.Can you supply customized products and logo?
Yes. We supply OEM&ODM service.
If you were interested in our competitive products,pls call me,let's talk more!
