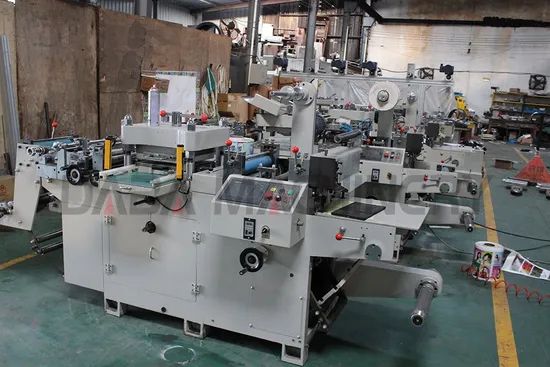

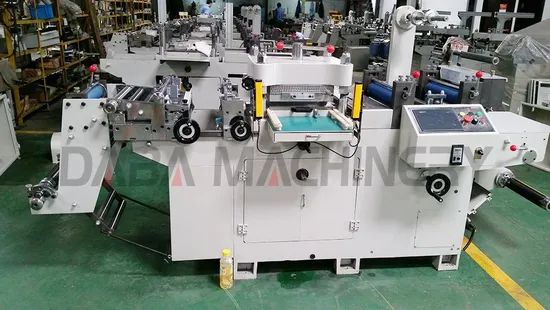

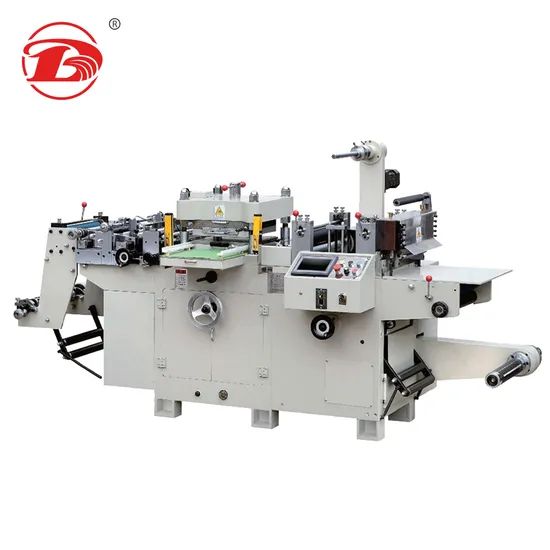

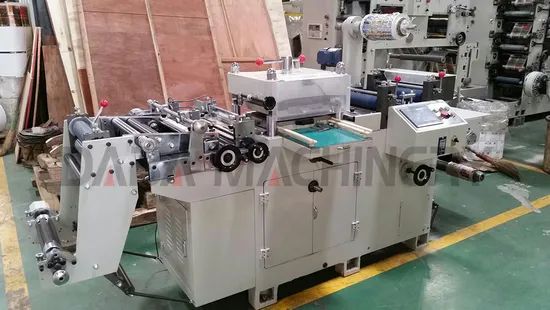

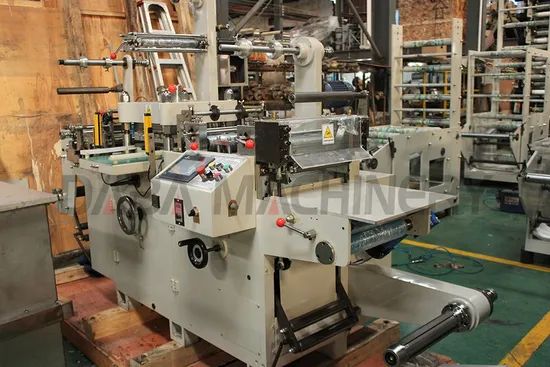

Dbmq-320A Digital Label Automatic Rotary Die Cutting Machine
1 Piece
$11,000Product information
High-quality Dbmq-320A Digital Label Automatic Rotary Die Cutting Machine supplied by Wenzhou Daba Machinery Co., Ltd.. Bulk wholesale pricing is $11,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
100set/Month
Specification:
2600x950x1400mm
HS Code:
8443160090
Automatic Grade:
Automatic
Computerized:
Computerized
Trademark:
DB
Model NO.:
DBMQ-320A
Trade Term:
FOB, CFR, CIF
Specifications
Production Capacity:
100set/Month
Specification:
2600x950x1400mm
HS Code:
8443160090
Automatic Grade:
Automatic
Computerized:
Computerized
Trademark:
DB
Model NO.:
DBMQ-320A
Trade Term:
FOB, CFR, CIF
Placing Form Of Template:
Horizontal
Payment Term:
LC, T/T, Western Union
Origin:
Ruian Zhejiang
Die Cutting Tool:
Steel Blade
Application:
Stickers Products
Transport Package:
Wooden Box
Port Of Loading:
ningbo
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-03-21
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CFR, CIF
Port Of Loading:
ningbo
Certificates:
CE Certificate of flexo printing machine, CE Certificate of mask making machine, CE Certificate of slitting rewinding machine
Product descriptions from the supplier
DBMQ-320A Automatic Sticker Adhesive label die cutting machine
The machine with flat to flat high-accuracy mould cut, tow aterial and cut into slices controlled by the computer, both sides of printing mark and its vertical is accurate to follow and make a reservation by three photoelectric eyes, mould cut, charge and abolish, cuts into slices or winding using for auto-sticking machine completed by once. It's very suitable for paper adhesive label,silk screen label,and so on.
The machine with flat to flat high-accuracy mould cut, tow aterial and cut into slices controlled by the computer, both sides of printing mark and its vertical is accurate to follow and make a reservation by three photoelectric eyes, mould cut, charge and abolish, cuts into slices or winding using for auto-sticking machine completed by once. It's very suitable for paper adhesive label,silk screen label,and so on.
1.Feature
The machine is splitted style flat to flat high precision die cutting .
Pulling materials and cutting is controlled by computer.
Two sides and a line are tracked by three photoelectric sensors.
High automation:
-Automatic webguide system
-Oil circulation lubricating system
-Tracking sensor
-Automatic waste discharge
-Fault automatic shutdown alarm and display in the computer
Video:https://youtu.be/Y2HTLIPyn50
2.Details
3.Technical Parameters
The machine is splitted style flat to flat high precision die cutting .
Pulling materials and cutting is controlled by computer.
Two sides and a line are tracked by three photoelectric sensors.
High automation:
-Automatic webguide system
-Oil circulation lubricating system
-Tracking sensor
-Automatic waste discharge
-Fault automatic shutdown alarm and display in the computer
Video:https://youtu.be/Y2HTLIPyn50
2.Details
3.Technical Parameters
| Machine Model | DBMQ-320A |
| Cutting Speed | 200pcs/min |
| Max. Unwinding Dia. | 600mm |
| Max. Web Width | 320mm |
| Max. Die Cutting Width | 310mm |
| Max. Die Cutting Length | 350mm |
| Max. Rewinding Dia. | 600mm |
| Orientation Accuracy | ±0.1mm |
| Total Power | 2.2kw |
| Power Voltage | 220V±10% |
| Machine Weight | 1700kg |
| Dimension (L*W*H) | 2600x950x1400mm |
