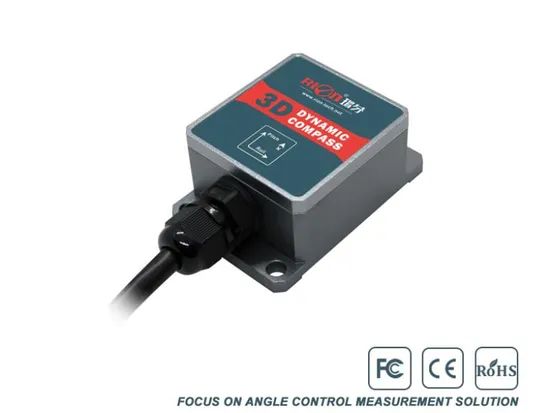

Dcm260b Industry Low Cost 3D Electronic Compass Sensor Digital Signal Output Roll Pitch Heading Angle Measuring Sensor Position Se
1 piece
$107Product information
High-quality Dcm260b Industry Low Cost 3D Electronic Compass Sensor Digital Signal Output Roll Pitch Heading Angle Measuring Sensor Position Se supplied by Shenzhen Rion Technology Co., Ltd. Bulk wholesale pricing is $107 per piece with a minimum order of 1 piece. Inquiry for latest prices.
Specification:
30g(without cable)
Production Capacity::
5000
HS Code:
9031809090
Carrying Type:
Car
Transport Package:
Carton
Origin:
China
Model NO.:
DCM260B
Display Methods:
Digital
Specifications
Specification:
30g(without cable)
Production Capacity::
5000
HS Code:
9031809090
Carrying Type:
Car
Transport Package:
Carton
Origin:
China
Model NO.:
DCM260B
Display Methods:
Digital
Trade Term:
FOB, CIF, DDP, DAP, CIP, EXW, Others
Usage:
Industry
Payment Terms::
L/C, T/T, Paypal
Payment Term:
LC, T/T, PayPal, Money Gram
Material:
Metal
Function:
Navigation
Condition:
New
Quakeproof:
Quakeproof
Trademark:
RION
Port::
Shenzhen, China
Application:
Special
Waterproof:
Waterproof
Noctilucence:
Without Noctilucence
Gender:
Woman
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-21
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Money Gram
Preferred Trade Term:
FOB, CIF, DDP, DAP, CIP, EXW, Others
Port Of Loading:
Not specified
Certificates:
FSC, IFS, OHSAS/ OHSMS 18001, ISO 9001
Product descriptions from the supplier
Product Description
DCM260B is a budget-friendly 3D electronic compass (with housing), featuring U.S. patented hard and soft magnetic calibration techniques that remove magnetic disturbances via algorithmic processing in noisy magnetic fields. It incorporates a three-axis fluxgate sensor, continuously computing direction using a central processing unit, and leverages a three-axis accelerometer to adjust heading accuracy across broad tilt ranges, maintaining precise orientation even at tilt angles up to ±85°. The compass features a high-precision MCU, supports multiple output formats, and offers standard interfaces such as RS232, RS485, and TTL, with additional communication interfaces available upon request.
DCM260B features compact design and minimal power draw, ideal for antenna stabilization, automotive applications, system integration, and additional uses; its robust construction and dependable performance ensure accurate operation in severe conditions, making it well-matched for modern compact, high-precision military measurement and integrated control systems.
FEATURES
Heading accuracy:0.8° Tilt angle measuring range :±85°
Tilt angle resolution:0.1° Tilt angle accuracy:0.2°
Wide temperature :-40ºC~+85ºC Size:L55×W37×H24mm
With hard magnetic ,soft magnetic and angle compensation DC 5V power supply
Standard RS232/RS485/TTL output interface IP67 protection class
APPLICATION
Satellite antenna search satellite Marine navigation surveying and mapping
GPS integrated navigation Antenna servo control
Gun emission system Infrared imager
Laser range finder Map for plotter
ROV underwater robot navigation Oceanography measurement instruments
Special occasion robot Unmanned aircraft
ELECTRICAL CHARACTERISTICS
| DCM260B | Technical Data | |
| Compass heading parameter | The best heading accuracy | 0.8° tilt <10° |
| 1.5° tilt <30° | ||
| 2.0° tilt <40° | ||
| 3.0° tilt <70° | ||
| Resolution | 0.1° | |
| Compass tilt parameter | Pitch accuracy | 0.1°<15°(Measuring range) |
| 0.2°<30°(Measuring range) | ||
| 0.3°<60°(Measuring range) | ||
| 0.4°<90°(Measuring range) | ||
| Pitch tilt range | ±85° | |
| Roll accuracy | 0.1°<15°(Measuring range) | |
| 0.2°<30°(Measuring range) | ||
| 0.3°<60°(Measuring range) | ||
| 0.4°<90°(Measuring range) | ||
| Roll tilt range | ±85° | |
| Resolution | 0.1° | |
| The best compensation angle range of compass tilt | <40° | |
| Calibration | Hard iron calibration | Yes |
| Soft iron calibration | No | |
| Magnetic field interference calibration method | Plane rotation in a circle (2D calibration) | |
| Physical features | RS-232/RS485/TTL interface connector | 5cable 1M direct lead line |
| Interface features | Start delay | <50MS |
| Maximum output rate | 20Hz/s | |
| Communication rate | 2400 to 19200baud | |
| Output format | Binary high performance protocol | |
| Power | Power supply | (Default)DC+5V |
| (Customized)DC9~36V | ||
| Current(Maximum) | 45mA | |
| Ideal mode | 35mA | |
| Sleep Mode | TBD | |
| Enviroment | Operating range | -40ºC~+85ºC |
| Storage temperature | -40ºC~+100ºC | |
| Resistance shock performance | 2500g | |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | |
| MTBF | ≥40000 hours/times | |
| Insulation resistance | ≥100M | |
| Shock resistance | 100g@11ms,3Times/Axis(half sinusoid) | |
| Anti-vibration | 10grms,10~1000Hz | |
| Weight | 30g(without cable) | |
ORDERING INFORMATION
E.G:DCM260B-232:3D with enclosure sealed/RS232 output
ELECTRICAL CONNECTION
| Line color function | RED | BLACK | YELLOW | GREEN |
| Vcc 5V/9-36v Power supply positive | GND Power supply negative | RS232(RXD) Or RS485(D+) | RS232(TXD) Or RS485(D-) |
