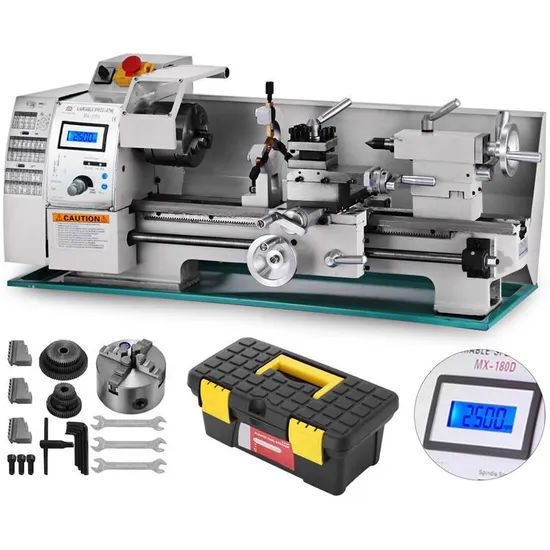

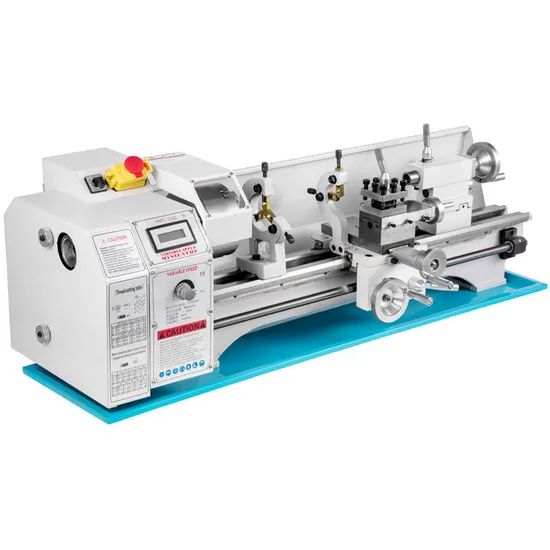

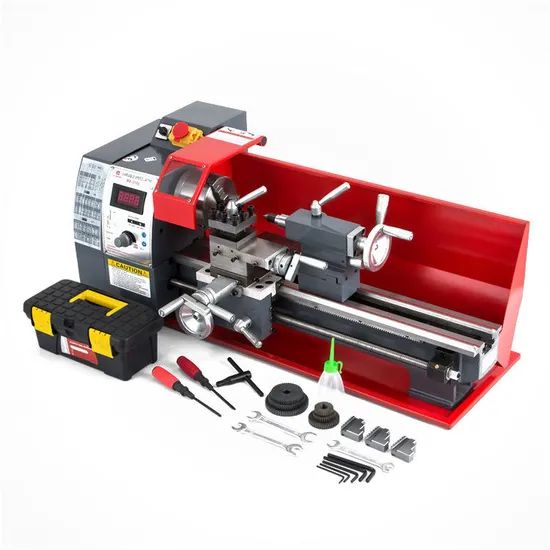

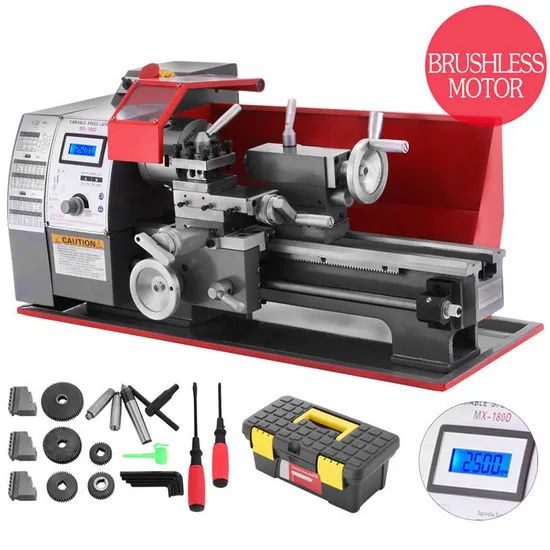

Desktop Small Metal Manual Mini Lathe
1 sets
$350Product information
High-quality Desktop Small Metal Manual Mini Lathe supplied by Shanghai Sihao Machinery Equipment Co., Ltd.. Bulk wholesale pricing is $350 per sets with a minimum order of 1 sets. Inquiry for latest prices.
Voltage:
110V60Hz
Model NO.:
3020
Range Of Spindle:
50-2250r.p.m Speed(r.p.m)
Origin:
China
Key Selling Points:
Easy to Operate
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Payment Term:
LC, T/T, D/P
Machining Capacity:
Light Duty
Specifications
Voltage:
110V60Hz
Model NO.:
3020
Range Of Spindle:
50-2250r.p.m Speed(r.p.m)
Origin:
China
Key Selling Points:
Easy to Operate
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Payment Term:
LC, T/T, D/P
Machining Capacity:
Light Duty
Max.Length Of:
Other Workpiece (mm)
Spindle Motor:
Power(Kw) 1.1kw
Video Outgoing :
Provided Inspection
Trademark:
VEVOR
Port Of Loading:
shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-07-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
31
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Port Of Loading:
shanghai
Certificates:
CE
Product descriptions from the supplier
DIY variable speed table horizontal lathe machine benchtop desktop small metal manual mini lathe
This compact bench-mounted lathe is built for precise turning of metal, wood, and jade. It's well-suited for individual tasks or small-scale manufacturing and finds application in precision component fabrication, prototyping, and design modeling across industrial settings, educational institutions, automotive repair, household repairs, and research labs. It's also an excellent choice for enthusiasts and crafters aiming to enhance the intricacy of their DIY or model-building projects.
Whether you're turning, counter facing or making bushings, spindles, prototypes or models, this precision mini lathe will meet the challenge.
If you have any question or want to get catelog for Mini Lathe ,pls contact us directly :) ← Click here

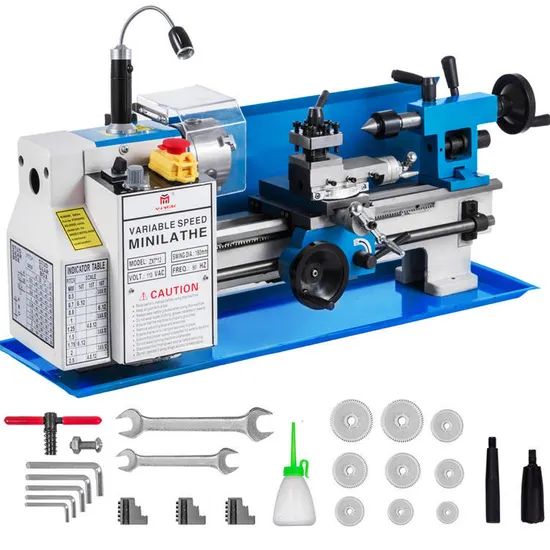

Specifications:
 |
Motor Power: 550W DC Single
phaseVariableSpeed: 50-2500PRM
Swing Over Bed: 180mm (7.09 ")
Mandrel Diameter: 100mm (3.94 ")
Distance to Centers: 350mm (13.78 ")
Spindle bore: 32mm (1.26 ")
Thread in Inches: 12-52 T.P.I.
Metric Thread: 0.5-2.5mm
Net Weight: 40 kg (88.18 lbs)
JSMNCC7X14-550W01V2
|
|
Variable Speed Gear: Plastic Nylon
Spindle Taper: MT3
Tail Stock Taper: MT2
Distance Between Centers: 14"
(350mm)
Swing Over Bed: 7" (180mm)
Chuck Diameter: 3.93" (100mm)
Spindle Bore: 0.8" (21mm)
Cross Slide Travel: 2.56" (65mm)
Top Slide Travel: 1.38" (35mm)
Range of Metric Threads: 0.5-2.5" (12-
52 T.P.I Range of Imperial Threads)
Spindle Accuracy: 0.0004" (0.01mm)
Spindle Speed: 100-2500 RPM Infinitely
Variable
Power Of Motor: 0.75HP/550W/220V
Net Weight: 50kg
Product Dimensions:
Width: 8"(203.2mm)
Length: 30.5"(774.7mm)
Height: 10.5"(266.7mm)
|
 |
 |
· Power: 600W, 110V/60Hz · Distance Between Centers: 12" (300mm) · Swing Over Bed: 7" (180mm) · Swing Over Cross Slide: 4" (95mm) · Width of Bed: 4" (100mm) · Taper of Spindle Bore: MT3 · Spindle Bore: 1inch (21mm) · Range of Spindle Speeds: 50- 1250RPM(LOW)/100-2500(HIGH) · Range of Longitudinal Feeds: 0.08- 0.16mm · Range of Threads: 10-44T.P.I (0.5- 3mm) · Top Slide Travel: 2" (55mm) · Cross Slide Travel: 3" (75mm) · Tailstock Quill Travel: 2.5" (60mm) · Taper of Tailstock Quill: MT2 · Gross Weight: 68kg (149.6lbs) · Package Dimensions: 780*480*420mm (31"*19"*17") |
|
Voltage: 220V/110V
Motor Power: 750W
Spindle Taper: MT3
Tail Stock Taper: MT2
Range of Spindle Speeds: 50-2500RPM
Distance Between Centers: 400mm
(16")
Swing Over Bed: 210mm (8")
Chuck Diameter: 125mm (5")
Hole Thru Spindle: φ21mm (0.83")
Maximum Compound Slide Travel:
55mm (2")
Maximum Cross Slide Travel: 75mm
(3")
|
 |
 |
Swing Over Bed: 8-1/4" (210 mm)
Cross Slide 4-5/8" (117 mm)
Distance Between Centers: 15-3/4" (400
mm)
Motor Power: 750W
Spindle Speed Ranges: Low 50-1250,
high 100-2500 RPM
Travel: compound rest 2-1/8" (54 mm),
cross slide 3" (76 mm)
Tailstock: Taper MT#2
Tail Sleeve: φ1" (25 mm)
Hole Thru Spindle: φ0.83" (21
mm),taper MT#3/MT#5
Feed speeds: (3) 0.0037"-0.0071"/rev
Inch Threads: 8-44 TPI
Metric Threads: 0.5-3.0 mm
Footprint: 31-1/2" x 10-1/2"
Spindle Accuracy: 0.0004-0.0012"
(0.01-0.03 mm)
Main Engine Gross Weight: 128 lbs (58
kg)
Main Engine Package Dimensions (L*
W* H): 36* 19* 17" (91* 48* 44 cm)
|
|
Motor Power: 1.1KW , 220 x 600mm
Swing Over Tower: 8.7 "/ 220mm
Pivot on Cross Carriage: 23.6 "/ 600mm
3 Jaw Chuck Diameter: 4.9 "/ 125mm
Hole Through Spindle: 1.5 "/ 38mm
Variable speed (rpm): 50-3000 ± 10%.
Range of Imperial Threads: 8 ~ 44
T.P.I.
Longitudinal Travel Range: 0.5-3mm
|
 |
 |
Motor Power: 1.1KW 220*750 mm
Phase: Single Phase
Swing Over Bed: 8.7"/220mm
Distance Between Centers:
29.5"/750mm
3-Jaw Chuck Diameter: 4.9"/125mm
Hole Through Spindle: 1.5"/38mm
Variable Speed(Rpm): 50-2250±10%
Range of Imperial Threads: 8~44 T.P.I
Range of Longitudinal Feed: 0.5-3mm
Gear Material: Metal
Weight:186lbs(84kg)
|
|

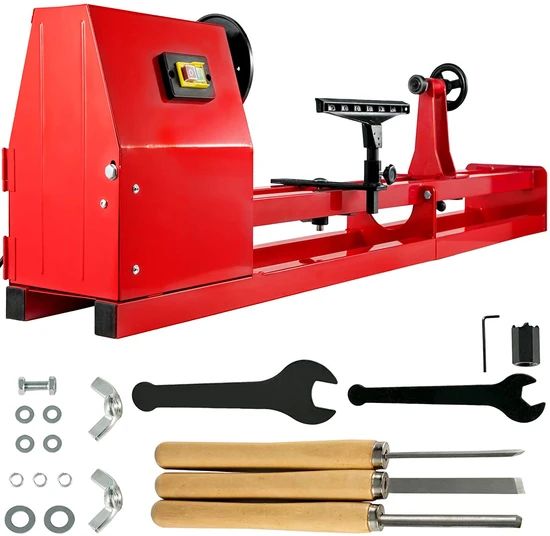

Power: 400W
Voltage: 120V 60Hz
Phase: Single
Current: 2.9 Amps
Variable Speed: 1100-3400RPM
Distance Between Centers: 40"
(1000mm)
Swing Over Bed: 14" (350mm)
Cutting Tool Height: 6.8"(175mm)
Cutting Feed Length: 40"(1000mm)
Spindle: MT 1
Type: Lathes
Siut For: Wood
MGCCMCS1000-10001V1
|
|
|
Supportive & Protective
Steady rest and follow rest for large size pieces. Two backsplash guards. |
 |
 |
Accurate Tailstock Taper in Tailstock Spindle: MT2. Adjusting set screws to make accurate operation. |
|
Variable Speed Design
Motor Power: 1.1KW, Variable Speed(Rpm): 50-2250±10%. Taper in Spindle Nose: MT5. |
 |
 |
Large Swing Range
Swing Over Bed: 8.7"/220mm, Swing Over Cross Slide: 29.5"/750mm, 3-Jaw Chuck Diameter: 4.9"/125mm. |
|
4-way Tool Rest
Offers positions of internal cutting, face cutting and bevel cutting. Heat hardening lead. |
 |
 |
Wide Application
Can be used in areas s uch as mini precision parts processing, sample processing and modeling works. |
| Company Name | Shanghai Sihao Machinery Equipment Co., Ltd. |
| Business Model | Manufacture |
| Place of Origin | Shanghai,China(Mainland) |
| Delivery Time | 5~10days |
| Minimun Order Quantity | 1 set |
| Payment | T/T ; L/C; PayPal |
| Warranty | 2 Years |
