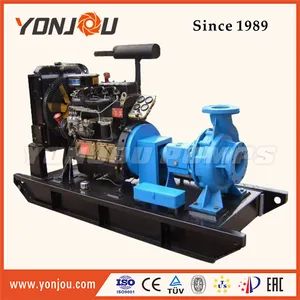

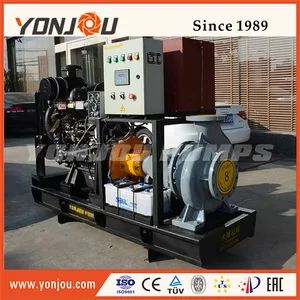

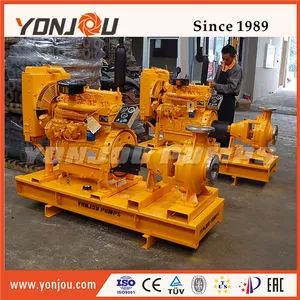

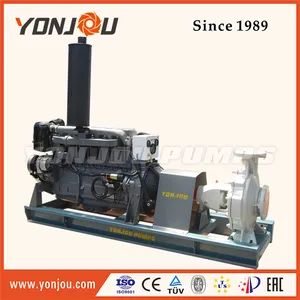

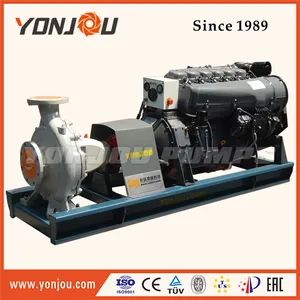

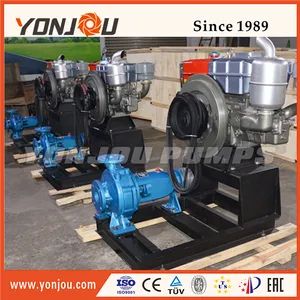

Diesel IS Ih Centrifugal Pump Single Stage Low Pressure 15D CE ISO9001
Piece
Negotiable
Product information
High-quality Diesel IS Ih Centrifugal Pump Single Stage Low Pressure 15D CE ISO9001 supplied by Zhejiang Yonjou Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
6600set/Month
HS Code:
841311000
Color:
Any
Specification:
CE ISO9001
Theory:
Centrifugal Pump
Origin:
China
Impeller:
Closed
Driving Type:
Diesel Engine
Specifications
Production Capacity:
6600set/Month
HS Code:
841311000
Color:
Any
Specification:
CE ISO9001
Theory:
Centrifugal Pump
Origin:
China
Impeller:
Closed
Driving Type:
Diesel Engine
Fuel:
Electric
Trade Term:
FOB, EXW, CIF, DDP, CIP
Position Of Pump Shaft:
Horizontal Pump
Model NO.:
IS
Model Number:
Is Ih
Payment Term:
LC, T/T, D/P, PayPal
Pressure:
Low Pressure
Working Pressure:
Low Pressure Pump
Port Of Loading:
NINGBO, SHANGHAI
Transport Package:
Plywood Case
Usage:
Pump, Pumps, Circulating Pump
Pump:
Single Stage Volute Casing Pumps
Influent Type Of Impeller:
Single Suction Pump
Structure:
Single-Stage Pump
Impeller Number:
Single-Stage Pump
Standard Or Nonstandard:
Standard
Application:
Water or Similar
Trademark:
YONJOU
Place Of Origin:
Zhejiang, China (Mainland)
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2001-02-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal
Preferred Trade Term:
FOB, EXW, CIF, DDP, CIP
Port Of Loading:
NINGBO, SHANGHAI
Certificates:
AAA Enterprise Credit, After-Sales Services of Commodity, CCCF, CE, EAC, FDA, High-Tec Enterprise, ISO14001, ISO45001, ISO9001, National Standard GB/T 13930-2024
Product descriptions from the supplier
Summarize:
Be used for industrial and urban water supplying, drainaging, also for agricultural irrigation.
Can delivery water or liquid that physical and chemical similar to water.
Liquid temperature shall not higher than 80 ºC, suction pressure not more than 0.3 Mpa.
Normally shaft seal is packing seal, mechanical seals is available for choice.
1.IR Single stage end suction HOT WATER centrifugal pump
2.Be used in metallurgy, textile, chemical, printing & dyeing and other industrial field
3.Can delivery liquid with solid impurities that volume contain no more than 0.1% and particle size not bigger than 0.2mm.
4.Liquid temperature shall not higher than 150ºC, suction pressure not more than 0.4Mpa.
5.Shaft seal is water cooling mechanical seal.
Usage:
1.Cleanout system.
2.Every series of food machining and medicine produce.
3.Environment protect system.
4.Waste water treatment for papermaking, metallurgy, galvanization, smelting, dye.
5.Electroplate and Dyeing system.
6.Industrial and chemical sump treatment.
7.Explosion proof motor for oil, alcohol and other explosive liquid.
Performance Data:
Capacity: up to 400m3/h
Diameter Inlet: 50-150 mm
Diameter Outlet: 32-125 mm
Head : up to 125 m
Turn Speed: 1450/2900 r/min
The medium shouldn't surpass 120degree Celsius.
More details can be negotiated.
| Model inlet-outlet-impeller |
Capacity | Head | Power | Effeciency |
| (mm)(mm)(mm) | (m3/h) | (m) | (kW) | (%) |
| 50-32-125 | 12.5 | 20 | 2.2 | 60 |
| 50-32-125 | 6.3 | 5 | 0.55 | 54 |
| 50-32-160 | 12.5 | 32 | 3 | 54 |
| 50-32-160 | 6.3 | 8 | 0.55 | 48 |
| 50-32-200 | 12.5 | 50 | 5.5 | 48 |
| 50-32-200 | 6.3 | 12.5 | 0.75 | 42 |
| 50-32-250 | 12.5 | 80 | 11 | 38 |
| 50-32-250 | 6.3 | 20 | 1.5 | 32 |
| 65-50-125 | 25 | 20 | 3 | 69 |
| 65-50-125 | 12.5 | 50 | 0.55 | 64 |
| 65-50-160 | 25 | 32 | 0.5 | 65 |
| 65-50-160 | 12.5 | 5 | 0.75 | 60 |
| 65-40-200 | 25 | 50 | 7.5 | 60 |
| 65-40-200 | 12.5 | 12.5 | 1.1 | 55 |
| 65-40-250 | 25 | 80 | 15 | 50 |
| 65-40-250 | 12.5 | 20 | 2.2 | 46 |
| 80-65-125 | 50 | 20 | 5.5 | 75 |
| 80-65-125 | 25 | 5 | 0.75 | 71 |
| 80-65-160 | 50 | 32 | 7.5 | 73 |
| 80-65-160 | 25 | 8 | 1.5 | 69 |
| 8050-200 | 50 | 50 | 15 | 69 |
| 80-50-200 | 25 | 12.5 | 2.2 | 65 |
| 80-50-250 | 50 | 80 | 22 | 63 |
| 80-50-250 | 25 | 20 | 3 | 60 |
| 80-50-315 | 50 | 125 | 37 | 54 |
| 80-50-315 | 25 | 32 | 5.5 | 52 |
| 100-80-125 | 100 | 20 | 11 | 78 |
| 100-80-125 | 50 | 5 | 1.5 | 75 |
| 100-80-160 | 100 | 32 | 15 | 78 |
| 100-80-160 | 50 | 8 | 2.2 | 75 |
| 100-65-200 | 100 | 50 | 22 | 76 |
| 100-65-200 | 50 | 12.5 | 4 | 73 |
| 100-65-250 | 100 | 80 | 37 | 72 |
| 100-65-250 | 50 | 20 | 5.5 | 69 |
| 100-65-315 | 100 | 125 | 75 | 66 |
| 100-65-315 | 50 | 32 | 11 | 63 |
| 125-100-200 | 200 | 50 | 45 | 81 |
| 125-100-200 | 100 | 12.5 | 7.5 | 76 |
| 125-100-250 | 200 | 80 | 75 | 78 |
| 125-100-250 | 100 | 20 | 11 | 76 |
| 125-100-315 | 100 | 32 | 15 | 73 |
| 125-100-400 | 100 | 50 | 30 | 65 |
| 150-125-250 | 200 | 20 | 18.5 | 81 |
| 150-125-315 | 200 | 32 | 30 | 79 |
| 200-150-250 | 400 | 20 | 37 | 79 |
| 200-150-315 | 400 | 32 | 45 | 79 |
| 200-150-400 | 400 | 50 | 75 | 77 |
Company information:
Zhejiang Yonjou Technology Co., Ltd stands as a top producer and exporter of industrial pumps, operating advanced manufacturing plants in mainland China. Our core expertise includes oil pumps, diaphragm pumps, diesel engine pumps, centrifugal pumps, screw pumps, and chemical pumps, among others.
