Double Flyer Rotor Copper Bobbin Coils Winding Machine
Set
Negotiable
Product information
High-quality Double Flyer Rotor Copper Bobbin Coils Winding Machine supplied by Ningbo NIDE Tech Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Input Voltage:
220V
Production Capacity:
300 Sets/Year
HS Code:
8479811000
Certification:
CE
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF
Display:
HMI
Payment Term:
LC, T/T, Western Union
Specifications
Input Voltage:
220V
Production Capacity:
300 Sets/Year
HS Code:
8479811000
Certification:
CE
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF
Display:
HMI
Payment Term:
LC, T/T, Western Union
Size:
Middle Size
Model NO.:
ND-LAW-5B2A
Trademark:
NIDE
Condition:
New
After Sales Service:
Overseas Service Center Available
Transport Package:
Ply-Wooden Case
Automatic:
Semi-Automatic
Working Station:
Single
Color:
as Per Customer Requirement
Specification:
customized
Port Of Loading:
ningbo, shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-05-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
ningbo, shanghai
Product descriptions from the supplier

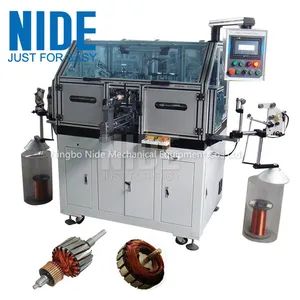

Double flyer rotor copper bobbin coil winding machine
Double flyer rotor copper bobbin coil winding machine is special designed for winding even slots armature. It is applicable for slot or hook commutator.
Working priciple:

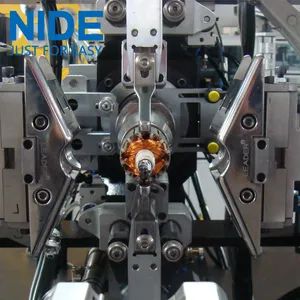

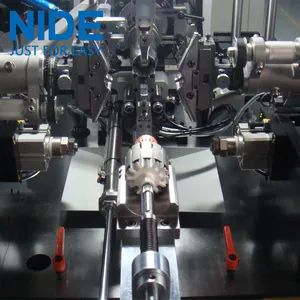

By synchronization mechanism of double flyer and 2 PCS 3 phase asynchronous motors, they could make the flyers turn opposite at the same time. While the machine running, the rotor is fixed by 2 PCS winding tools and clamping device, the wires go through wire release and tightening device into sleeve and go out by sliding wheel to wire guiding wheel, then insert to wire slot. Meanwhile, opposite winding at each side could keep the coils to be in the rotor.
Machine features
Machine operation is controlled by PLC, its automatic indexing is driven by servo system and MITSUBISHI stepless speed regulator obtains full function to convenient operator.
The fixture loading takes use of cylinder and working table concerning.
Counting signal is supervised by hall sensor.
Technical parameter:
Double flyer rotor copper bobbin coil winding machine is special designed for winding even slots armature. It is applicable for slot or hook commutator.
Working priciple:
By synchronization mechanism of double flyer and 2 PCS 3 phase asynchronous motors, they could make the flyers turn opposite at the same time. While the machine running, the rotor is fixed by 2 PCS winding tools and clamping device, the wires go through wire release and tightening device into sleeve and go out by sliding wheel to wire guiding wheel, then insert to wire slot. Meanwhile, opposite winding at each side could keep the coils to be in the rotor.
Machine features
Machine operation is controlled by PLC, its automatic indexing is driven by servo system and MITSUBISHI stepless speed regulator obtains full function to convenient operator.
The fixture loading takes use of cylinder and working table concerning.
Counting signal is supervised by hall sensor.
Technical parameter:
| Central height | 160mm |
| Max rotor OD | 60mm |
| Speed regulating mode | Stepless speed regulating |
| Main spindle speed | 0~1400r/min |
| Display | HMI |
| Start mode | Manual |
| Power | 750W 1400r/min, 50Hz/60Hz |
| Air source pressure | 0.5~0.7MPa |
| Speed-up time | 0.5s (customizable) |
| Input voltage | 220V+/-10% |
| Dimension | 1100× 500× 670 mm |
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
|
3. Engineers available to service overseas |
Established in 2010, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
