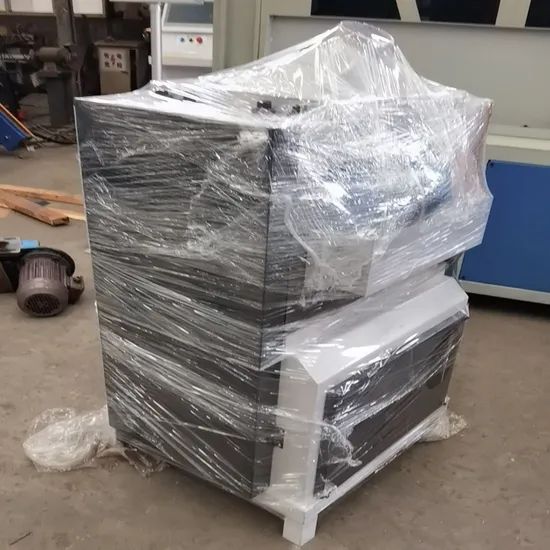

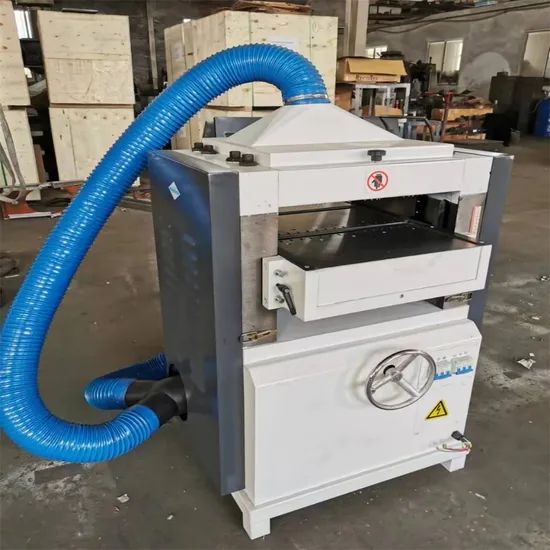

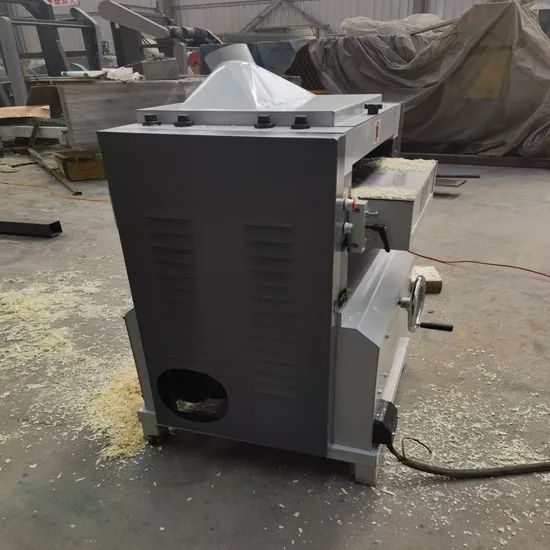

Double Side Wood Thicknesser Planing Planer Machine Model 204 Motor 5.5kw Origin China Voltage 380V Model NO. 204 Cutter Shaft
1 Set
$1,5301 Set
$2,200Product information
High-quality Double Side Wood Thicknesser Planing Planer Machine Model 204 Motor 5.5kw Origin China Voltage 380V Model NO. 204 Cutter Shaft supplied by Zouping Work International Trading Co., Ltd.. Bulk wholesale pricing ranges from $1,530 to $2,200 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Working Depth:
100-200mm
After Sales Service:
12 Month
Max Press Thickness:
130mm
Package Size:
150.00cm * 80.00cm * 18.00cm
Cutter Shaft:
2
Production Capacity:
200 Sets Per Year
Working Width:
200-400mm
Model:
204
Specifications
Working Depth:
100-200mm
After Sales Service:
12 Month
Max Press Thickness:
130mm
Package Size:
150.00cm * 80.00cm * 18.00cm
Cutter Shaft:
2
Production Capacity:
200 Sets Per Year
Working Width:
200-400mm
Model:
204
Model NO.:
204
Voltage:
380V
Max Planing Width:
400mm
Motor Power:
5-10Kw
Motor:
5.5kw
Package Gross Weight:
650.000kg
HS Code:
8465920000
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Customized
Trademark:
Customized
Transport Package:
Customized
Trade Term:
FOB, CFR, CIF, EXW
Certification:
ISO
Process Type:
Light Processing
Enter Method:
Mechanical
Port Of Loading:
Qingdao Ports
Payment Methods:
Support payments in USD
Payment Term:
T/T, LC, D/P, PayPal, Western Union, Small-amount payment
Drivetrain:
Worktable Elevating Drivetrain
Spindle Speed:
＜5000rpm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-10-08
Annual Revenue Amount:
Not specified
Numbers Of Employees:
3
Preferred Payment Term:
T/T, LC, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Qingdao Ports
Product descriptions from the supplier
Double Side Planer Thicknesser
| Model | WS204 | WS206 |
| Max.planing width | 400mm | 600mm |
| Max.press thickness | 130mm | 130mm |
| pressure gauge | 5mm | 5mm |
| Max.cutting length | 200mm | 200mm |
| Max.cut surface knife | 4mm | 4mm |
| Bottom knife cutting quantity | 2mm | 2mm |
| Motor power | 5.5KW 380V | 4KW*2 380V |
Single Side Thickness Planer
| Model | 104 | 106 |
| Max .planning width | 430mm | 630mm |
| Max .pressing thickness | 200mm | 200mm |
| Min. pressing thickness | 5mm | 5mm |
| Min .planing depth | 5mm | 5mm |
| Spindle speed | 5600r /min | 5600r /min |
| Min .planing length | 200mm | 200mm |
| Feeding speed | 9.10m /min | 9.10m /min |
| Motor power | 4kw /380v | 5.5kw /380v |
| Overall Dimensions | 900*930*1300mm | 900*1130*1300mm |
Belt Feeding Single Side Planer
| Model | 104A |
| Max .planning width | 430mm |
| Max .pressing thickness | 200mm |
| Min. pressing thickness | 5mm |
| Min .planing depth | 5mm |
| Spindle speed | 5600r /min |
| Min .planing length | 200mm |
| Feeding speed | 9.10m /min |
| Motor power | 3kw /380v |
Single Side Heavy Duty Thicknesser Planer
| Model | 1013 | 1016 | 1020 |
| Max.sawing width (MM) | 1300 | 1600 | 2000 |
| Max.sawing thickness (MM) | 200 | 200 | 180 |
| Max.planing quantity (MM) | 5 | 5 | |
| Min.planing length (MM) | 270 | 270 | |
| Saw shaft diameter (MM) | 140 | 140 | |
| Spindle speed R/Min | 3500 | 3500 | |
| Main Motor KW | 13 | 15 | 13 |
| Feeding motor KW | 3 | 1.5 | |
| Lifting motor KW | 0.75 |
Four Side Planer
| Max.working width | 400mm |
| Max.working thickness | 20-120mm |
| Max.planing depth | 5mm/3mm/5mm/5mm |
| Arbor speed | 8000r/min |
| Arbor motor power | 5.5KW 380V |
| L&R spindle speed | 7000r/min |
| L&R spindle motor | 3KW/3KW |
| Feeding speed | 9.2m/min/7.5m/min |
4023 Four side moulder
6023 Four side moulder
| Number of spindles | 4 |
| Processing width | 20-230mm |
| Processing thickness | 10-125mm |
| Feeding speed | 5-20m/min |
| Feeding power | 2.2kw |
| Bottom knife motor power | 4kw, |
| Power of the left and right spindles | 5.5kw, 5.5kw |
| Total weight | 2500kg |
| Upper knife motor power | 7.5kw |
| Cross beam lifting and lowering power | 0.75kw |
| Total power | 25.45kw |
| Air pressure | 0.3-0.4mpa |
6023 Four side moulder
| Min processing length(continuously feeding) | 500mm |
| planing width 120MM | 20-230mm |
| Planing thickness | 10-150mm |
| Feeding speed | 5-30m/min |
| Max Up/Down (Front table) | 5mm |
| Max Moving Amount (Front table guider) | 5mm |
| Feeding Wheel Diameter | 140MM |
| Spindle speed | 6000RPM |
| Spindle Movement(Front Bottom 40mm) | 10MM |
| Vertical Spindle Movement(Left/Right 40MM) | 30MM |
| Spindle Movement(Top 40MM) | 20mm |
| Knife Diameter(Top spindle) | 145MM |
| Knife Diameter (Front Bottom) | 120MM |
| Knife Diameter (Left/right Vertical) | 145MM |
| Motor Power (First Top Spindle) | 11KW |
| Motor Power(First Bottom Spindle) | 7.5KW |
| Motor Power(Left Vertical Spindle) | 7.5KW |
| Motor Power(Right Vertical Spindle) | 7.5KW |
| Motor Power(Second Top Spindle) | 11KW |
| Motor Power(Second Bottom Spindle) | 11KW |
| Feeding power | 5.5kw |
| UP/down motor | 0.75KW |
| Total power | 61.75kw |
| Air pressure | 0.25-0.3mpa |
| Pressure Air Demand | 0.1M3/Min |
