Drilling and Milling Machine for Aluminum/PVC Profile Door and Window Making
Piece
Negotiable
Product information
High-quality Drilling and Milling Machine for Aluminum/PVC Profile Door and Window Making supplied by Jinan Seth Intelligent Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Air Pressure:
0.6-0.8MPa
X Asis Longitudinal Travel:
1200mm
Z Axis Speed:
15m/Min
Y Axis Speed:
15m/Min
Max Rotary Speed:
18000r/Min
Overall Dimension:
2200*1600*1950
Package Size:
2200.00cm * 1600.00cm * 1950.00cm
Z Axis Vertical Travel:
280mm
Specifications
Air Pressure:
0.6-0.8MPa
X Asis Longitudinal Travel:
1200mm
Z Axis Speed:
15m/Min
Y Axis Speed:
15m/Min
Max Rotary Speed:
18000r/Min
Overall Dimension:
2200*1600*1950
Package Size:
2200.00cm * 1600.00cm * 1950.00cm
Z Axis Vertical Travel:
280mm
Y Axis Vertical Travel:
300mm
Voltage:
380V
Power Supply:
380V/50Hz
Package Gross Weight:
500.000kg
Weight:
500kg
X Asis Speed:
50m/Min
Main Axis Power:
8.5kw
Total Power:
9kw
Automatic Grade:
Automatic
CNC Or Not:
CNC
Trade Term:
FOB
Certification:
ISO, CE
Origin:
Jinan China
Condition:
New
Model NO.:
SKX-CNC-1200
Trademark:
Seth
Payment Term:
To be discussed
Transport Package:
Wooden Packing
Specification:
customized
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2021-10-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
AAA, AAA+, CE, CE CERTIFICATE, Credit enterprise, Industry members, ISO9001, ONE GRADE, Schneider partner, SGS, SGS certificate, top one grade
Product descriptions from the supplier
Length can be customized

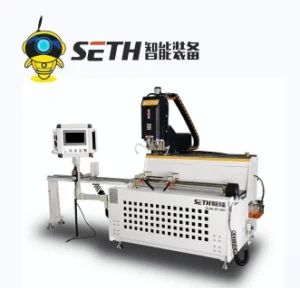

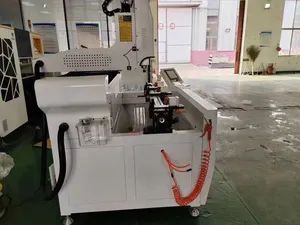

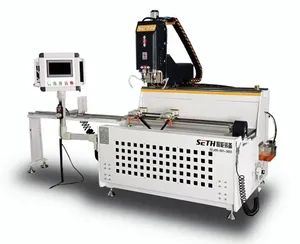

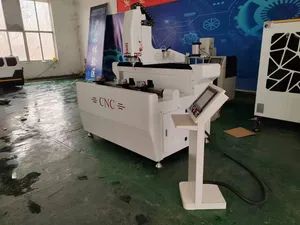

1.This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry,
it is also suitable for processing milling, chamfering,engraving plane surface and other procedure.

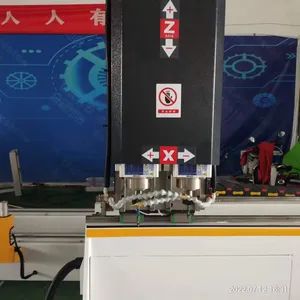

2.Main spindle adopt air-cooling electric main axis, 3kW power, O~18000r/ min , have the function of high precision, high safety and
high reliable.
3.Adopt Taiwan SYNTEC CNC control system. Have professional CADCAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.
4.Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball
screw drive.
5.The drive is stable, so can improve the precision of whole machine.

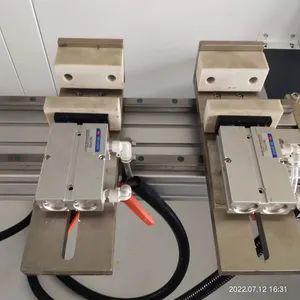

6.The worktable can overturn 180°-90°~0°~+90°, Clamping one time profile can realize three faces processing, When processing
deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing
efficiency.
7.Electric pump oil supply system is adopted, and spray cooling device controlled by system is adopted for cutting tools.
8.The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.
9.The main components adopt steel structure and they are all through aging treatment.
| Power Supply | 380V/50Hz |
| Air Pressure | 0.6-0.8MPa |
| Total Power | 9kw |
| Main Axis Power | 8.5kw |
| Max Rotary Speed | 18000r/Min |
| X-Asis Longitudinal Travel | 1200mm |
| Y-Axis Vertical Travel | 300mm |
| Z-Axis Vertical Travel | 280mm |
| X-Asis Speed | 50m/Min |
| Y-Axis Speed | 15m/Min |
| Z-Axis Speed | 15m/Min |
| Overall Dimension | 2200*1600*1950 |
| Weight | 2000kg |
| CNC system | Hanslaser |
| electric parts | Schneider |
| air cylinder | AirTAC |
| solenid valve | AirTAC |
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL
window machine company in china.
Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine,
CNC milling machine, aluminum punching machine, end milling machine, copy router and
corner connector saw, etc; Wood window machines: wood saw, wood window frame machine,
vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making
machine, etc.
Q: SETH's after-service?
A: 1option:
we have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during
testing and teaching, subsidy USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.
(For Optional)
Q.:What's your main products?
A.:CNC double-head precision cutting saw for aluminum profile, aluminium window cutting machine ,
double head cutting saw for sale, 45° Double-Head Saw blade CNC Cutting Machine for Aluminum,
90°aluminium window cutting machine Double-Head CNC cutting saw,Aluminium machinery of CNC,Aluminium,precision,Cutting,Saw Machine with Double Heads ,CNC heavy-duty double-head
cutting saw for aluminum Alloy Window Materials with Hard Alloy Saw Blades.Double miter saw,Precision
miter saw ,Window frame saw
window and door manufacturing equipment CNC Aluminum Window Door CNC Aluminum Window Door Double Head Aluminium CNC Cutting Saw Machine Window Door Making Machine CNC Aluminium Corner Connector Cutting Saw Cnc corner connector cutting saw for aluminum profile Aluminum Window Corner Connector CNC Automatic Cutting Saw milling Aluminum Precision CNC Machining Parts CNC MachineCNC Router Machine for Aluminum Copperwindow corner machine
UPVC windows and doors making machine
1. Welding Machine
2. Cutting Machine
3. Lock Machine
4. Waterhole Machine
5. Corner Machine
- upvc window machine
- window machine
- windows machinery
- upvc machine
- upvc profile window welding machine
- upvc profile cutting machine
- upvc window machine
- pvc window manufacturing machine
- pvc window profile cutting machine
- pvc window profile welding machine
- pvc window profile copy router machine
- pvc window profile end milling machine
