Dry Mortar Paper Bag Making Machine 380V Hot Sealing 130-150Pm Double Layer 1Y MOQ1 Set
Set
Negotiable
Product information
High-quality Dry Mortar Paper Bag Making Machine 380V Hot Sealing 130-150Pm Double Layer 1Y MOQ1 Set supplied by Enping Desheng Intelligent Technology Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
MOQ:
1 Set
Capacity:
130-150 Pieces/Minute
Production Capacity:
32 Million to 35 Million Yuan Per Year
Voltage:
380V
Lines:
4
Delivery Time:
60 Days
HS Code:
8441200000
Machine Type:
Bag Forming Machine
Specifications
MOQ:
1 Set
Capacity:
130-150 Pieces/Minute
Production Capacity:
32 Million to 35 Million Yuan Per Year
Voltage:
380V
Lines:
4
Delivery Time:
60 Days
HS Code:
8441200000
Machine Type:
Bag Forming Machine
Product Line:
Bag Making Machine
Computerized:
Computerized
Voltage And Frequency:
Customized
Trademark:
DeSheng
Layer:
Double
Trade Term:
EXW, FOB, CIF
Origin:
Guangdong China
Sealing & Cutting:
Heat-Sealing Cold-Cutting
Speed:
High
Seals Mode:
Hot Sealing
Specification:
ISO9001. CE
Port Of Loading:
Jiangmen Port
Bag Body Size:
L:370-900mm,W:320-600mm
Payment Term:
LC, T/T
Type:
Paper Bag Making Machine
Product Type:
Valve Bagsfor Cement;Dry Mortar;Chemical
Bag Valve Size:
W:90-200mm, L:100-250mm
Transport Package:
Wooden Box /Pallet
Continuous Rolled:
Yes
Bag Size Tolerance:
±3 mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2021-03-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
22
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
EXW, FOB, CIF
Port Of Loading:
Jiangmen Port
Certificates:
A bottom forming mechanism for paper bags, A bottom imprinting mechanism for paper bags, A defective paper bag rejection mechanism, A differential adjustment mechanism for inserting paper tape into valve opening, A differential-speed creasing and cutting mechanism for paper bags, A gear box with planetary differential adjustment, A glue application and conveying mechanism for paper bag bottoms, A roller structure for conveyor belt, A switching structure for positive/negative paper clamping at valve opening, Adhesive Application Structure for Bottom of Paper Bag, Adjustable Creasing Depth Mechanism, Adjustable Differential Gear Mechanism for Transmission System, Air Distribution Structure for Paper Feeding Component, An automatic alignment adjustment structure for cutting edge, Automatic Gluing Device for Bottom of Paper Bags, Paper Feeding Unit for Loading Mechanism, Reinforcement Strip Insertion and Conveyance System for Internal/External Use, Suction Opening Mechanism for Paper Bag Production Equipment, Valve mouth paper bag paper tape insertion transmission device, Valve port double-layer paper bag composite forming mechanism
Product descriptions from the supplier
| Product Description |
Multi-Layers Cement Valve Pocket Sack Kraft Paper Bag Paste Bottom Making Machine
This Bottomer machine is designed for the production of industrial-grade multi-layer kraft paper valve bags. It is mainly used to produce cement bags, mortar bags, chemical bags and food-grade paper bags. It is suitable for high-strength packaging needs in industries such as cement, dry-mixed building materials, and chemicals.
Equipped with PLC-based smart control and servo motor drive, it handles 2 to 5-layer material bonding (such as kraft paper combined with PE film), combines tube formation, printing, and bottom sealing, and delivers fast output at 120–150 bags per minute.
| Detailed Photos and Machine Process |
| 1.Eight groups of suction and discharge high-speed rotating vaccum adsorbent materials
The large disc roller consists of eight sets of suction rows, each rotating opposite the vacuum air feed. After suction, the bag tube moves to the sealed air position alongside the large disc roller, and the paper bag is discharged at the point where the upper and lower conveyors meet, moving in reverse direction. The sealed vacuum system uses positive pressure airflow and mechanical cam-based release techniques to ensure rapid and seamless feeding performance. |
2.Steps arrangement (with abnormal rejection function) Once the bag tube arrives from the prior stage, both the lower and upper conveyors—responsible for acceleration and sorting—are engaged and routed to the step synchronous belt. As the right vertical belt operates, it shifts left and right to position each bag tube precisely until the paper bag's edge firmly contacts the step synchronous belt block. During this phase, the acceleration and sorting belt slips, yet the bag tube remains in place and is not advanced. |
| 3.Center distance direct imprinting, 45° diagonal imprinting(with piercing mechanism) The bag body is transported via upper and lower auxiliary conveyors and primary upper and lower main conveyors to a central positioning stage (adjustable range: 260–700mm), followed by front and rear 45-degree imprinting to enable pre-formation of fold lines for the bag's opening. |
4.Extra removement Two cuts are made on the left and right edges of the bagmouth, with the cut length set manually, and the straight edge of the bagmouth modified based on the required width of the tube and the bottom (servodata can be adjusted) |
| 5.Suck open & spread, smoothwith the horns Following direct imprinting, 45° imprinting, and a straight cut on the bag tube's ear, the suction system simultaneously expands the tube to create a conical end. This suction action is achieved through the coordinated rotation of the vacuum distribution plate and the upper and lower suction arms, Once the bag tube is elevated to 80mm, the upper and lower horn components are guided into the tube. Following calibration of the horn’s delay setting, the horn pick’s end is pulled out through the back cut and the back portion of the horn is gently aligned and advanced onto the forming pressure roller. |
6.First valve insertion (Optional) The bag barrel is unfolded and transported to the zero detection arealor anomaly detection. Once the valve port paper strip is fully extended, it is securely bonded and directed to the pre-unfolded bag barrel's designated spot to finalize the insertion process; If the unfolded valve port paper strip fails to be securely clamped during inspection, the system shifts to rejection mode, and the bag barrel exhibiting abnormal expansion is ejected via the rear rejection mechanism. |
| 7.Secondary valve insertion (Additional option) 1)The length of the paper strip is fixed by servo data; 2.)Clamping length adjustment is controlled via servo input; if clamping position moves forward, the cutter must shift ahead, and if it moves backward, the cutter should be retracted; 3)The insertion position (front and back) of the walve portpaper is adjusted by servo data. 4)The offset plate can be replaced with a vertical hanging type; 5)Adjustable function of glue supply. |
8.Valve end single-sided internal enhanced insertion (optional) Once the bag tube is unfolded, it moves to the zero detection zone; if expansion is within specs, the reinforcing paper band is securely fastened and bonded, then advanced to its designated spot to finalize the insertion procedure; If expansion is irregular, the inner reinforcing paper band fails to secure the sheet and shifts into rejection and dispatch mode, then being ejected via the fault rejection mechanism subsequently. |
| 9.Bottom stamped & bottom smeared The bag tube proceeds through the bottom embossing and bottom glue sealing stage, wherein the initial embossing step sets the stage for the bottom fold formation. Once bottom embossing is finished, the bottom bonding stage begins. The bonding pattern is tailored to the production needs and secured onto the mounting frame, if required. The custom offset template is then manually attached to the already bonded aluminum drum, with a pair moving vertically along it, and the drum rotates in a circular motion to bond two bags at a time. |
10.Bottom closure & molding The bag tube undergoes sequential folding, bonding, and shaping. Once it enters the molding station, the forming heartplate remains stable vertically, with its anchor point located on the inner edge of the bottom embossing line. The top and bottom edges of the tube are initially bent to 90 degrees due to conveyor motion, then guided by upper and lower vertical conveyors for support. The upper edge is subsequently folded downward to 180 degrees using an upward-facing forming plate, while the lower edge is lifted to 180 degrees via the same plate (with a 300mm delay between top and bottom actions). Upon full folding, the creased edges are secured, pressed, pre-bonded, and moved to the next stage via a tapered roller. |
| 11.External enchanced insertion (optional) QR code wirtual incision, ordinary reinforcing paper, hot meltadhesive reinforcing paper. 1) The length of the paper strip is fixed by servo data, and thecolor mark is tracked; 2) Servo input allows modification of clamping length; if clamping moves forward, the cutter must shift ahead, and if clamping moves backward, the cutter must retreat. 3) The insertion position (front and back} of the valve portpaper is adjusted by servo data. 4) Installation of the dislocation groove between the gluingroller and the sticker tube; 5) There is no need to replace the glue plate; |
12.Flip bottom & compaction (with anomalous rejection) Process: Once the treated base is introduced, the central guide rail and upper and lower support frames advance steadily in a straight path. Following the coordinated movement of the upper and lower pivot arms—adjustable for either downward or upward rotation based on process needs—the bag’s base starts a horizontal turn from internal to external orientation, then proceeds to the compaction belt section for reformation and adhesive fusion. |
| 13.Small Scompaction mechanism/simple compaction mechanism (optional) There are two main types of compaction mechanisms: The small S compaction system features an S-curved compression path, a lengthy stroke, delivers a seamless and crease-free result, offers broader and stronger adhesive coverage, and provides superior sealing during filling. In contrast, the basic compaction setup is straightforward, uses a sloped compression profile with a moderate stroke length, produces a slightly less effective compression than the small S model, yet maintains identical adhesive performance. |

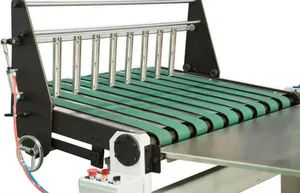

14.Counting, stacking & output After the compacting output, the mechanicalcounting is stacked and fed. The number of stackscan be set according to production needs. |
| Sample Product |
| Product Parameters |
| Model | Name | Bag Types Capable of Production | Specifications | Normal Production Speed | ||
| 1 | BM2022-1F | Standard Bottom Gluing Machine | Standard Cement Bags | Finished Bag Length: 370-900 mm | Bag Tube Width: 320-600 mm | 130-150 bags/min |
| Bottom Width Dimension: 90-200 mm | Valve Mouth Length: 100-250 mm | |||||
| Bottom Width Tolerance: ≤3 mm | Finished Product Tolerance: ±3 mm | |||||
| Valve Type: Single Paper Inlay Valve, Film Laminated Inlay Valve. | ||||||
| 2 | BM2022-1F-2D | Standard Type Bottom Gluing Machine | Standard Cement Bags | Finished Bag Length: 370-900 mm | Bag Tube Width: 320-600 mm | 130-150 bags/min |
| Bottom Width Dimension: 90-200 mm | Valve Mouth Length: 100-250 mm | |||||
| Mortar Bags | Outer Reinforcement Length: 100-520 mm | |||||
| Bottom Width Tolerance: ≤3 mm | Finished Product Tolerance: ±3 mm | |||||
| Valve types include single paper inlets, film laminated inlets, ultrasonic sealed valves and heat sealed valves | ||||||
| 3 | BM2022-1F-1B-2D | Enhanced Type Bottom Gluing Machine | Standard Cement Bags | Finished Bag Length: 370-900 mm | Bag Tube Width: 320-600 mm | 130-150 bags/min |
| Mortar Bags | Bottom Width Dimension: 90-200 mm | Valve Mouth Length: 100-250 mm | ||||
| Outer Reinforcement Length: 100-520 mm | Inner Reinforcement Length: 100-520 mm | |||||
| Standard Chemical Bags | Bottom Width Tolerance: ≤3 mm | Finished Product Tolerance: ±3 mm | ||||
| Valve options feature single paper feeds, film bonded entries, ultrasonic closure mechanisms, thermally sealed units, left-hand external models with snap closures, and dual-layer ultrasonic sealed designs. | ||||||
| 4 | BM2022-1F-2B-2D | Grade B Reinforced Bottom Gluing Machine | Standard Cement Bags | Finished Bag Length: 370-900 mm | Bag Tube Width: 320-600 mm | 130-150 bags/min |
| Mortar Bags | Bottom Width Dimension: 90-200 mm | Valve Mouth Length: 100-250 mm | ||||
| Reinforced Chemical Bags | Outer Reinforcement Length: 100-520 mm | Outer Reinforcement Length: 100-520 mm | ||||
| Standard Food-Grade Paper Bag | Bottom Width Tolerance: ≤3 mm | Finished Product Tolerance: ±3 mm | ||||
| Valve options feature single paper feeds, film bonded entries, ultrasonic closure mechanisms, thermally sealed units, left-hand external models with snap closures, and dual-layer ultrasonic sealed designs. | ||||||
| 5 | BM2022-2F-2B-2D | Grade A Reinforced Bottom Gluing Machine | Standard Cement Bags | Finished Bag Length: 370-900 mm | Bag Tube Width: 320-600 mm | 130-150 bags/min |
| Mortar Bags | Bottom Width Dimension: 90-200 mm | Valve Mouth Length: 100-250 mm | ||||
| Reinforced Chemical Bags | Outer Reinforcement Length: 100-520 mm | Inner Reinforcement Length: 100-520 mm | ||||
| Reinforced Food Grade Bags | Bottom Width Tolerance: ≤3 mm | Finished Product Tolerance: ±3 mm | ||||
| Valve options feature single paper entries, film-laminated openings, ultrasonic closure mechanisms, thermally bonded seals, left-hand external models with snap closures, dual-layer ultrasonic closures, and spacious base designs with narrow entry ports. | ||||||
| In the machine model, "F" stands for the valve, "B" for internal support, and "D" for external support. The figure before each letter shows how many of that component are included. | ||||||
1) What is the suitable material for your machines? Kraft paper , and PE film . 2~4 layer papers , 1 film, up to 5 layers
2) How many years of your factory?
Starting from 2021, our factory has specialized in producing kraft paper cement bags, featuring Tubmer and Botttomer machinery. We hold over 114 machine-related patents.Export business is 70%,More than 20 countries
3)Lead times and shipment :
3~4months for standard machines. Tuber machine 2*40HQ, Bottomer machine 3*40HQ , Total: 5*40HQ
4)Install and Trainning :
2~4 Enginners 7-15days , and trainning 15-20days.
5) Where is your factory? How can i visit your company?
Our factory is located in Jiangmen City, Guangdong Province, China. Warmly welcomed to visit us.
