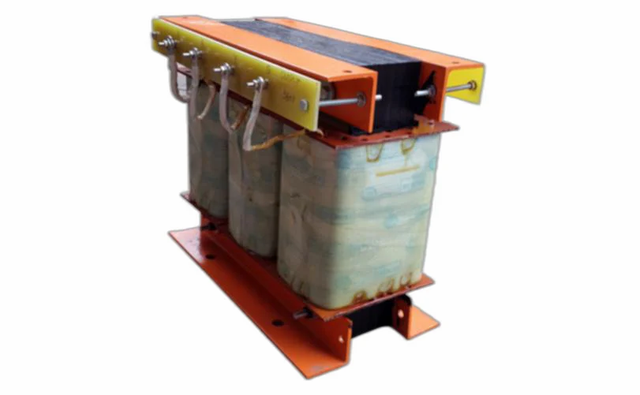

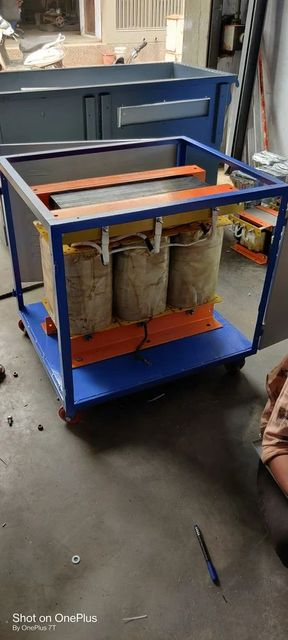

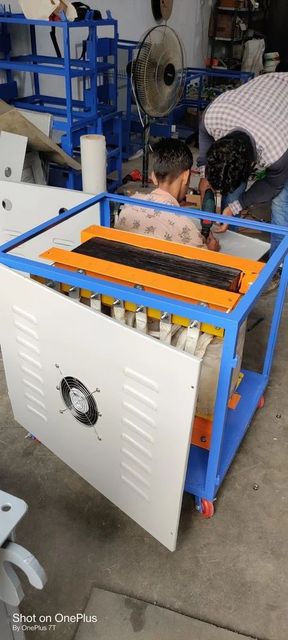

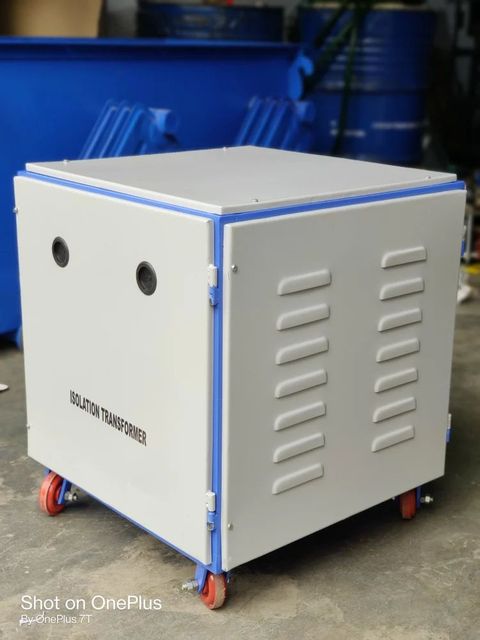

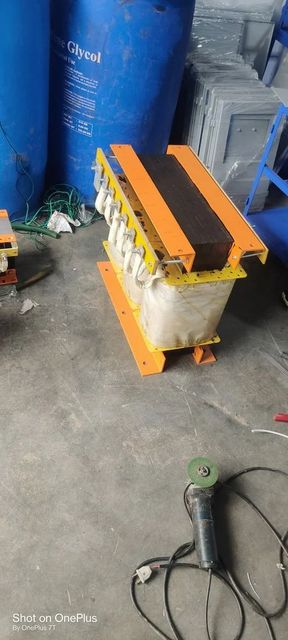

Dry Type Step Down Transformer Warranty 1 Year Brand/Make AMTAC Cooling Type Dry Type Current As per requirement Cooling Method Air Oil

Noise Cut-off (Ultra Isolation) Transformer cuts off noise, so your machine can perform with musical perfection.

Applications:
All the types of electrical noises, predominantly common mode noises can be eliminated by Ultra Isolation Transformers. Since it isolates primary and secondary or separates neutral to ground bond on the secondary side, can be used to create separately derived source to combat current loops.

The Ultra Isolation Transformers are available in different levels of noise attenuation capabilities. The most commonly used are 100 & 120 dB. The coupling capacitance between primary and secondary is direct 1:1 relationship with dB levels. Some of the graphs herewith indicate different types of electrical noises observed in typical Engineering Industries & successfully eliminated.

·        Up to 2000 KVA

·        High Galvik isolation

·        Delta star Collection

·        Air Oil Cooled

·        Up to 2000 KVA

·        High Galvik isolation

·        Delta star Collection

·        Air Oil Cooled

            Advantages:

• Protect Computers, CNC Machines and Telecommunication equipment’s from damage due to electrical noises, spikes etc
• If ground potential of system unit is different from each other and are exposed to the effects of instability at high frequencies.
• If ground of the equipment cannot be earthed.
• To shield large number of electronic equipment’s which individually are producing different types of electrical noise at a common busbar typically CNC machines, Drives, Hardening equipment etc. The use of NCT, being bidirectional, prevents
