Dual-Channel Temperature Monitoring High-Protection Handheld Pulse Laser Cleaning Machine
Piece
Negotiable
Product information
High-quality Dual-Channel Temperature Monitoring High-Protection Handheld Pulse Laser Cleaning Machine supplied by SHENZHEN HS TECHNOLOGY CO., LTD. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
1 Year
Laser Power:
200 Watts
Package Gross Weight:
56.000kg
Specification:
680*610*360mm
Package Size:
80.00cm * 38.00cm * 68.00cm
Output Power Is Unstable:
<5%
Average Output Power:
>200
Cooling System:
Air Cooled
Specifications
Warranty:
1 Year
Laser Power:
200 Watts
Package Gross Weight:
56.000kg
Specification:
680*610*360mm
Package Size:
80.00cm * 38.00cm * 68.00cm
Output Power Is Unstable:
<5%
Average Output Power:
>200
Cooling System:
Air Cooled
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
HS LASER
Model NO.:
HS-LC200
Model No.:
HS-LC200
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Shenzhen Port
Power Supply:
Single Phase 100V-240V 50/60Hz
Payment Methods:
Support payments in USD
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-11-16
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
Certificate, Certificates
Product descriptions from the supplier
SONA2024 2.2.1
2. HS LASER pulse laser head
3. 5m fiber cable length
4. New Trolley-type cabinet design
5. Focus Lens options: F160 F210 F254 F300
6. OD8+ Laser Safety Glasses
7. 2 pcs free protective lens
8. Power cable
9. Key switch
2.Tri-Color Warning Light Strip:Equipped with a tri-color warning light strip for obvious and clear alerts.
3.Safety Interlock Device:Comes with a safety interlock that can immediately cut off laser emission in emergencies, ensuring personnel safety.
4.Larger Wheels:Larger wheels make movement easier.
5.OD8+ Protective Goggles:Includes OD8+ protective goggles.
6.Voltage Compatibility:Supports 110V-240V single phase 50Hz/60Hz.
7.Gradient Body Design:Adopts a gradient body design; the standard color is black and gray, which is layered. Customization of body color, logo, and embedded system logo is supported.
8.Fiber Optic Cable Storage:Fiber optic cables are stored in the cabinet with a PVC bracket, eliminating the traditional design of coiling cables outside the body, saving space and protecting the cables from damage.
9.Trolley-Style Design:Uses a trolley-style design for convenient mobile operation, and the body is lightweight.
10.Powerful Air-Cooling System:Has a powerful air-cooling system that effectively cools the laser and cleaning head, extending the duration of a single cleaning operation. It also features a high-temperature alarm for added safety.
Product Description

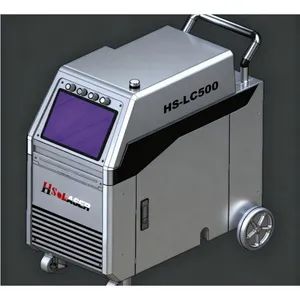

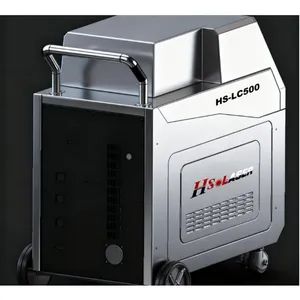

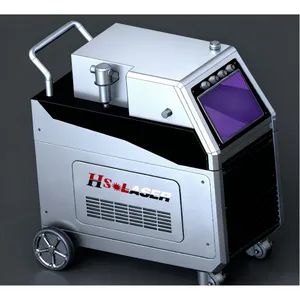

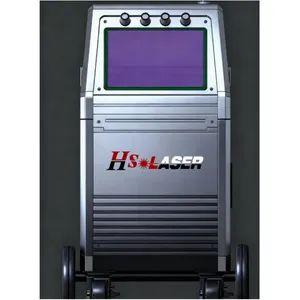

New trolley-type 200W pulse laser cleaning machine with air-cooled
Configuration
1. 200W JPT CL2 pulse laser source
2. HS LASER pulse laser head
3. 5m fiber cable length
4. New Trolley-type cabinet design
5. Focus Lens options: F160 F210 F254 F300
6. OD8+ Laser Safety Glasses
7. 2 pcs free protective lens
8. Power cable
9. Key switch
The advantages of the cleaning head
1.Next-Generation Capability- It has a power of 300W, dual red light focusing, an optional adjustable fixed-focus bracket, and dual-channel temperature monitoring.
2.Rich Configuration Options- Supports multiple fiber interfaces (QCS-D17/D20) and offers multiple touch screen size options (4.3-inch/7-inch).
3.Air-Cooled Air Path System- Built-in air-cooled air path and dust-proof air knife ensure reliable operation and effective dust resistance.
4.Powerful Functionalities- Includes temperature monitoring, motor disconnection alarm, real-time laser alarm signal monitoring, support for external axis control, a simple programmable PLC (non-standard), and a customizable UI operation interface.
5.Excellent Parameter Matching- Features a 10mm clear aperture, is compatible with QCSD17/D20 fiber interfaces, has a collimated/incident spot of ≤8mm, and a scanning range of 170x140mm @F254, providing great adaptability and cleaning coverage.
The characteristics of this pulse laser cleaning machine
1.European Standard Electronic Components:Utilizes components such as Electric contactors, Electric circuit breakers, and Mean Well or Huawei switching power supplies.
2.Tri-Color Warning Light Strip:Equipped with a tri-color warning light strip for obvious and clear alerts.
3.Safety Interlock Device:Comes with a safety interlock that can immediately cut off laser emission in emergencies, ensuring personnel safety.
4.Larger Wheels:Larger wheels make movement easier.
5.OD8+ Protective Goggles:Includes OD8+ protective goggles.
6.Voltage Compatibility:Supports 110V-240V single phase 50Hz/60Hz.
7.Gradient Body Design:Adopts a gradient body design; the standard color is black and gray, which is layered. Customization of body color, logo, and embedded system logo is supported.
8.Fiber Optic Cable Storage:Fiber optic cables are stored in the cabinet with a PVC bracket, eliminating the traditional design of coiling cables outside the body, saving space and protecting the cables from damage.
9.Trolley-Style Design:Uses a trolley-style design for convenient mobile operation, and the body is lightweight.
10.Powerful Air-Cooling System:Has a powerful air-cooling system that effectively cools the laser and cleaning head, extending the duration of a single cleaning operation. It also features a high-temperature alarm for added safety.
Specification
200W pulse laser cleaning machine technical | |
Laser power | 200 watts |
M² Typical Value | <1.5 |
Beam diameter (typical value)(mm) | 6±1 |
Average output power (W) | >200 |
Model No. | HS-LC200 |
Wavelength(nm) | 1064 |
Frequency adjustment (kHz) | 1-3000 |
Pulse Width(ns) | 13-500 |
Power adjustment range | 0-100% |
Output power is unstable(%) | <5% |
Single pulse energy(mJ) | 2 |
Fiber cable length (m) | 5 |
Cooling system | Air cooled |
9 different scan shape | |
Power supply | Single phase 100V-240V 50/60Hz |
Range of working temperature (℃) | 0~40 |
Storage temperature range (℃) | -10~60 |
Machine dimension | 680*610*360mm |
Machine weight | 75kg |
Package size | 820x710x1150mm |
Package weight | 95kg |
Main Products
Company Profile
Certifications
Customers & Exhibition
Packaging & Shipping
FAQ
Lead time
The machine installation and testing will take 14 working days, after arrange the shipment.
The machine installation and testing will take 14 working days, after arrange the shipment.
Manual and manual video
We will send you manual and manual video with the machine, we saved them to U disk. Most our customers learned the laser cleaning machine with 1 to 2 hours.
We will send you manual and manual video with the machine, we saved them to U disk. Most our customers learned the laser cleaning machine with 1 to 2 hours.
Warranty period
The complete pulse laser cleaning machine come with 12 months warranty period. If any partgoes wrong during the warranty period, we are free to replace new part to broken one. The warranty does not include round-trip express shipping costs. After the warranty period, we will charge corresponding fees based on the actual purchase costof accessories.
The complete pulse laser cleaning machine come with 12 months warranty period. If any partgoes wrong during the warranty period, we are free to replace new part to broken one. The warranty does not include round-trip express shipping costs. After the warranty period, we will charge corresponding fees based on the actual purchase costof accessories.
Technical support and service
When the machine has any problem or issue, please take whole video of trouble, after we willconnect your Whatsapp and our engineer will help you to do it step by step.
Payment item
When you confirm the order, we will send you proforma invoice, once we received 50%deposit, we will start to produce your laser cleaning machine immediately, when we finishedinstallation and test, we will send you complete video of the machine for your inspection, whenyou inspect no problem, you will arrange the final payment and we can arrange shipment for you.
