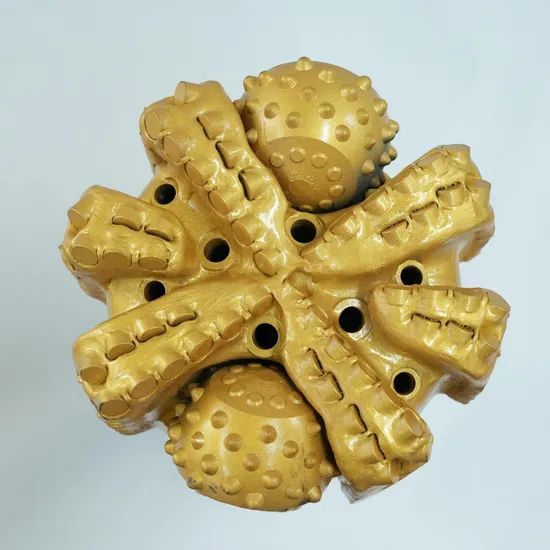

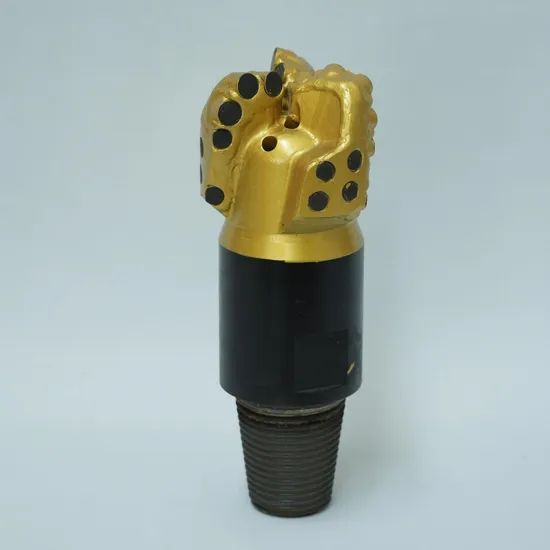

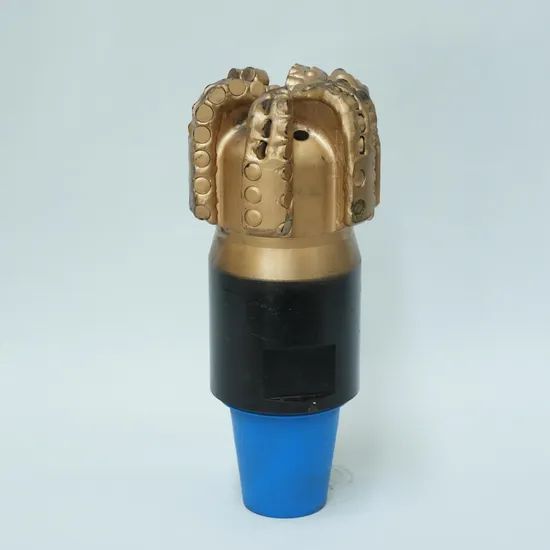

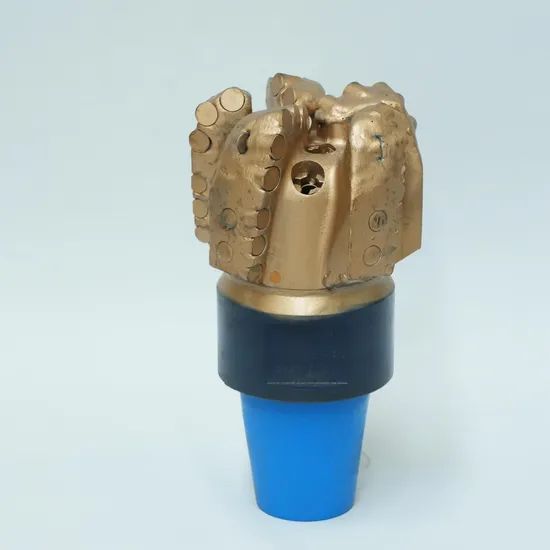

Dual Purpose Core Sampling and Production Drill Bit for Integrated Workflow Optimization Price Cheap
1 Piece
$1,1301 Piece
$1,700Product information
High-quality Dual Purpose Core Sampling and Production Drill Bit for Integrated Workflow Optimization Price Cheap supplied by Orient Energy & Technologies Co., Ltd.. Bulk wholesale pricing ranges from $1,130 to $1,700 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Specification:
118-444mm
Production Capacity:
4000
HS Code:
8431439000
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Color:
Golden
Transport Package:
Iron Box
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Specifications
Specification:
118-444mm
Production Capacity:
4000
HS Code:
8431439000
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Color:
Golden
Transport Package:
Iron Box
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Trademark:
Orient Energy
Suitable Formation:
Soft, Medium Soft, Hard, Medium Hard, Very Hard
Port Of Loading:
Tianjin Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2002-05-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
248
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
CE
Product descriptions from the supplier
| Drill Bit Catalogue | ||||||
| Drill diameter code | Drill series Code | Blade Qty | Main cutter Qty | Additional features code | ||
| 3 1/4" - 26" | S Steel PDC drill bit M matrix PDC drill bit D Directional PDC drill bit B Bicenter PDCdrill bit P cone PDC bits |
3~12 | 25~Φ25.40mm | B: Double row tooth | ||
| 19~Φ19.05mm | A: Damping tooth | |||||
| 16~Φ15.875mm | R: back reaming | |||||
| 13~Φ13.44mm | G: improved gauge | |||||
| 10~Φ10.00mm | Y: Sharp teeth | |||||
| 8~Φ8.00mm | S: Spiral blade | |||||
| S series PDC drill bit selection guide (Steel PDC Bits | 3-1/4" ~ 26") | ||||||
| Formations | IADC | Lithology | Type selection | |||
| extremely soft | S123 | Clay, mudstone, marl | S316 \ S319 \ S419 \ S416 \ S519 | |||
| soft | S223 S222 |
Marl, mudstone, shale | S416 \ S519 \ S516 | |||
| Medium | S323 S333 S322 |
Shale, limestone and sandstone | S516 \ S513 \ S616 \ S613 | |||
| Hard Medium |
S433 S423 S432 |
Sandstone, gravel, dolomite, anhydrite | S516 \ S616 \ S716 \ S513 \ S613 \ S713 \ S813 \ S510 \ S610 \ S410 |
|||
| M series PDC drill bit selection guide (Matrix PDC Bits | 3-1/4" ~ 17-1/2") | ||||||
| Formations | IADC | Lithology | Type selection | |||
| extremely soft | M123 | Clay, mudstone, marl | M316 \ M319 \ M419 \ M416 \ M519 | |||
| soft | M223 M222 |
Marl, mudstone, shale | M416 \ M519 \ M516 | |||
| Medium | M323 M333 M322 |
Shale, limestone and sandstone | M516 \ M513 \ M616 \ M613 | |||
| Hard Medium |
M433 M423 M432 |
Sandstone, gravel, dolomite, anhydrite | M516 \ M616 \ M716 \ M513 \ M613 \ M713 \ M813 \ M510 \ M610 \ M410 |
|||
| D series PDC drill bit selection guide (Directional PDC Bits | 3-1/4" ~ 17-1/2") | ||||||
| Formations | IADC | Lithology | Type selection | |||
| extremely soft | M/S123 | Clay, mudstone, marl | D316 \ D319 \ D419 \ D416 \ D519 | |||
| soft | M/S223 M/S222 |
Marl, mudstone, shale | D416 \ D519 \ D516 | |||
| Medium | M/S323 M/S333 M/S322 |
Shale, limestone and sandstone | D516 \ D513 \ D616 \ D613 | |||
| Hard Medium |
M/S433 M/S423 M432 |
Sandstone, gravel, dolomite, anhydrite | D516 \ D616 \ D716 \ D513 \ D613 \ D713 \ D813 \ D510 \ D610 \ D410 | |||
| Hybrid Bits | ||||||
| Diameter NO. | Drill bit series code | Cone QTY | Blade NO. | PDC cutter code | ||
| 8-3/8" ~ 26" | H: PDC-cone hybrid bit HD: Directional hybrid bits |
2-4 | 3-8 | 19-Φ19.05mm | ||
| 16-Φ15.875mm | ||||||
| 13-Φ13.44mm | ||||||
| Size | Type | Applied formation or technique | ||||
| 8-3/8" \ 8-1/2" \ 8-3/4" \ 9-1/2" | H2416 \ H2413 | Hard strata, abrasive strata, heterogeneous formations (such as gravel strata), soft hard interlacing and other complex hard drilling strata | ||||
| 12-1/4" \ 13-1/8" \ 13-3/8" \ 16" \ 17-1/2" | H3316 \ H3319 | Hard strata, abrasive strata \ Multiple layers of soft and hard frequent transformation strata and giant boulder strata | ||||
| 22" \ 26" | H4416 \ H4419 | Hard strata \ Complex interlaced strata, Adapt to small torque and low torsional vibration drilling | ||||
| 8-3/8" \ 8-1/2" \ 8-3/4" \ 9-1/2" | HD2416 HD2413 |
Drilling operations in variable rock layers, long-reach wells, horizontal completions, shale gas laterals, wear-prone zones, complex layered structures (like sand layers), alternating strata, and multi-zone soft-to-hard transition sequences. | ||||
| 12-1/4" \ 13-1/8" \ 13-3/8" \ 16" \ 17-1/2" | HD3316 HD3319 |
|||||
| Engineering PDC Bits | ||||||
| OD NO. | Drill bit series No. | Blade NO. | Main cutter No. | |||
| 3 7/8"-12 1/4" | ES STEEL BODY PDC engineering bits EM Matrix PDC engineering bits EP Conical tooth PDC engineering bits |
1-9 | 25~Φ25.40mm | |||
| 19~Φ19.05mm | ||||||
| 16~Φ15.875mm | ||||||
| 13~Φ13.44mm | ||||||
| 10~Φ10.00mm | ||||||
| 8~Φ8.00mm | ||||||
FAQ
To assist our customers, we've compiled answers to common questions regarding the Drill Bit operation, purchase, and support. If you have additional questions, please contact us - we are ready to help.
Q: What payment terms do you accept?
A: We accept a variety of international payment terms to facilitate smooth transactions.Typical payment methods involve Telegraphic Transfer (T/T), Letter of Credit (L/C), or alternatives such as D/P and D/A. Usually, we require a 30% T/T upfront and the remaining 70% prior to dispatch, though this can be adjusted depending on the order volume and the buyer’s creditworthiness. We can also accommodate Western Union or other e-payment for smaller orders if needed. All payment terms will be clearly agreed upon in the contract and proforma invoice. Our goal is to provide flexible terms while ensuring security for both parties.
Q: What shipping and customs documentation do you provide?
A: We handle all logistics to ensure the product reaches you hassle-free. Each mud motor is packaged in a sturdy export crate or reinforced iron frame to protect it during transit. We provide a full set of shipping documents, including the Commercial Invoice, Packing List, and Bill of Lading (or Air Waybill) as standard. Additionally, we can supply a Certificate of Origin and any required customs clearance documents (e.g. CNPC approval letter, embassy certifications) if your country or project needs them. The product's HS code is 8431439000, which we will note in the invoice for smooth customs processing. We also include copies of all relevant certificates and a factory inspection/test report with the shipment, so you have verification of quality for customs and your records. Our logistics team will keep you updated with tracking and assist with any shipping inquiries until you receive the motor.
