Durable Diffused Pressure Transmitter for Harsh Industrial Applications
Piece
Negotiable
Product information
High-quality Durable Diffused Pressure Transmitter for Harsh Industrial Applications supplied by Cheemi Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Accuracy Grade:
0.2%Fs; 0.5%Fs
Range:
0~50kpa~35MPa
Pressure Range:
0~50kpa~35MPa
Package Gross Weight:
1.000kg
Production Capacity:
10000PCS/Month
Lead Time:
15 days (1 - 1 Pieces)To be negotiated ( > 1 Pieces)
Over Pressure:
150%Fs
Package Size:
21.00cm * 15.00cm * 17.00cm
Specifications
Accuracy Grade:
0.2%Fs; 0.5%Fs
Range:
0~50kpa~35MPa
Pressure Range:
0~50kpa~35MPa
Package Gross Weight:
1.000kg
Production Capacity:
10000PCS/Month
Lead Time:
15 days (1 - 1 Pieces)To be negotiated ( > 1 Pieces)
Over Pressure:
150%Fs
Package Size:
21.00cm * 15.00cm * 17.00cm
Burst Pressure:
300%Fs
Response Time:
<5ms
Certification:
CE RoHS ISO
Model NO.:
CMPT124B-2088
Trademark:
Cheemi
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
IP Rating:
IP65
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Measuring Medium:
Liquid;Gas
Port Of Loading:
Shanghai Port
Specification:
Standard
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-02-28
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO14001, Others, ISO9001:2015
Product descriptions from the supplier

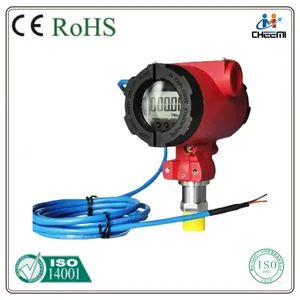

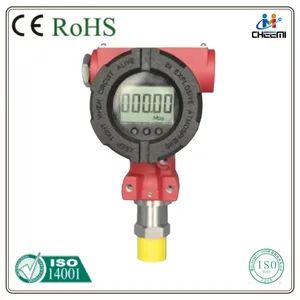

The CMPT124B-2088 gauge and absolute pressure transmitter has a compact and lightweight design that makes it extra user-friendly. The transmitter features Local Operator Interface (LOI), which has in-built configuration buttons, as well as easy-to-use menus that facilitate easy commissioning on the spot. The pressure transmitter is provided in protocols 1-5 V DC and 4-20 mA HART, which allows flexibility for low power applications. The transmitter can be availed with remote seals, and manifolds.
| Technical Characteristics | |||||||
| Range | 0~50KPa~35MPa | ||||||
| Accuracy | 0.2%FS; 0.5%FS | ||||||
| Output signal | 4-20mA, HART, RS232, RS485 optional with external supply | ||||||
| Response time | <5ms | ||||||
| Over pressure | 150%FS | ||||||
| Burst pressure | 300%FS | ||||||
| Input voltage | Battery or external supply 24VDC 2 wire | ||||||
| Current | 10uA~15uA | ||||||
| Operating temperature | -20ºC~80ºC | ||||||
| Temperature compensation | 0ºC~65ºC | ||||||
| Explosion class | ExibII CT4 | ||||||
| Life of the battery | 2 year | ||||||
| Electric connector | Terminal Block | ||||||
| Process connector | G1/2, M12, M20x1.5 (optional) | ||||||
| Dimensions(mm): | |||||||
 Remark: Remarks: Above dimension only for reference, we can tailor the product as you required. |
|||||||
| Wring Code | |||||||
 |
Button Function: There are 3 button on the panel, "<", "Δ"," >". Press "<" and ">" at same time to the calibration. Press "Δ" for confirmation. Single press" >" for zero. Wiring connector: 1, Terminal "CK+": Power supply 2, Terminal " CK- ": Signal output 3, Terminal "-" and "CK-" for short contact Button |
||||||
| Ordering Guide | |||||||
| Model | Range(bar) | Output | Screw Thread |
Electnc connecton |
Accuracy | Diameter (mm) |
Other requirement |
| CMPT124B-2088 | * | * | * | * | * | * | * |
| Example:CMPT124B-2088-100bar-4/20Ma-G1/2-Direct shield cable | |||||||
Cheemi Technology Co., Ltd specializes in development and commercialization of monitoring & measuring solution innovation, is a leading manufacturer of electrical sensors in china, with more than 80 workers, 2200m2 workshop, 20 years experience in current measurement. There are total 4 production lines, with an annual output of 8 million pieces. Its main products include hall effect current transducers, proximity switches, temperature sensors, current transformers, ISO, CE & RoSH certificated.
Package
All our sensors will be well packed with bubble & carton. (Bubble packing→4 small carton→1 big carton)
You can choose your own label(Screen Print or Laser Engraving).
Can be netural packing or OEM.
Shipping
Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
All our sensors will be well packed with bubble & carton. (Bubble packing→4 small carton→1 big carton)
You can choose your own label(Screen Print or Laser Engraving).
Can be netural packing or OEM.
Shipping
Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Q1:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
Q2:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
Q3:Can you provide help for technical issues?
A:Yes,we have more than 10 years of research and development in the electronic industry. If you need technical help in the purchase process, please feel free to contact us.
Q4 : Can I get a lower price if I order large quantities?
A : Yes,it's negotiable.
Q5: How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q6: Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
