Durable Polymer Concrete Trench Drain for Customizable Load Classes
Pieces
Negotiable
Product information
High-quality Durable Polymer Concrete Trench Drain for Customizable Load Classes supplied by Anhui Yaquan Plastic Inductry Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
200mm/300mm/400mm(Customized)
Production Capacity:
50000m/Month
Load Class:
A15/B125/C250/D400/E600 (Customizable)
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Material:
Galvanized Steel
Installation:
Modular System
Materials:
Polymer Concrete
Specifications
Specification:
200mm/300mm/400mm(Customized)
Production Capacity:
50000m/Month
Load Class:
A15/B125/C250/D400/E600 (Customizable)
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Material:
Galvanized Steel
Installation:
Modular System
Materials:
Polymer Concrete
Application:
Roads/Parks/Industrial
Transport Package:
Seaworthy Packing with Pallet
Port Of Loading:
Shanghai Port, Ningbo Port, Nanjing Port
Surface Type:
Slotted/Grated (Optional)
Installation Environment:
Surface
Payment Term:
T/T, LC, D/P, PayPal, Western Union
Trademark:
YAJING
Model NO.:
YJU200-20220CI
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, LC, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port, Ningbo Port, Nanjing Port
Certificates:
ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier
Product Description

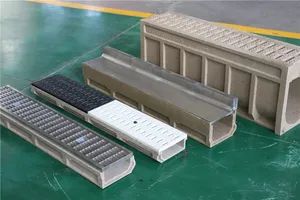

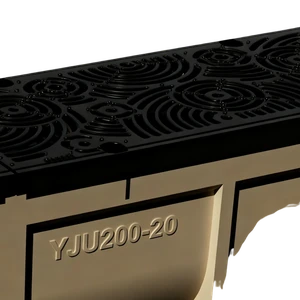

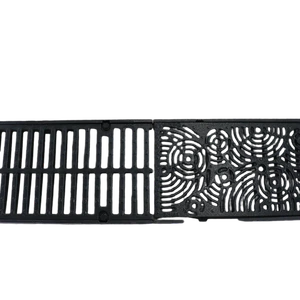

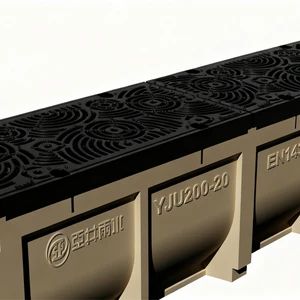

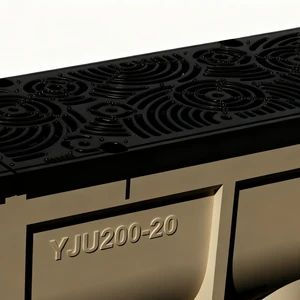

Resin Concrete Surface Drainage Ditch
Drainage channels were made of resin concrete, and the system includes channels, covers, sump pits, end baffles, and outlets. They have the advantages of high drainage efficiency, strong impact resistance, smoothness, impermeability, frost resistance, and corrosion resistance, etc.Compared with traditional drainage systems, resin concrete drainage systems have the following characteristics: easier to install, more convenient for maintenance, much safer, and more environmentally friendly. It is an ideal choice. According to their load-bearing levels, they can be used in pedestrian areas, non-motorized lanes, parking lots, public commercial areas, residential quarters, traffic arteries, etc.
Why Choose Our Resin Concrete Surface Drainage Ditch?
Move beyond traditional, cumbersome drainage solutions. Our system is engineered for superior performance, remarkable durability, and unparalleled installation efficiency. Here's what sets it apart:
1. Unmatched Durability & Long-Term Performance
Constructed from high-strength resin concrete, our channels offer exceptional impact resistance, corrosion resistance, and frost resistance. Unlike traditional materials like standard concrete or metal, they will not crack, spall, or corrode, ensuring a smooth, impermeable surface and a vastly longer service life, even in the harshest environments.
Constructed from high-strength resin concrete, our channels offer exceptional impact resistance, corrosion resistance, and frost resistance. Unlike traditional materials like standard concrete or metal, they will not crack, spall, or corrode, ensuring a smooth, impermeable surface and a vastly longer service life, even in the harshest environments.
2. Superior Hydraulic Efficiency for Maximum Flow
The smooth, non-porous interior surface of our channels significantly reduces friction, allowing water to flow more freely and efficiently. This high drainage efficiency means you can often specify a smaller profile system than with traditional alternatives, achieving equal or better performance while optimizing project costs and space.
The smooth, non-porous interior surface of our channels significantly reduces friction, allowing water to flow more freely and efficiently. This high drainage efficiency means you can often specify a smaller profile system than with traditional alternatives, achieving equal or better performance while optimizing project costs and space.
3. Effortless, Cost-Saving Installation
Forget the delays and high labor costs of cast-in-place concrete. Our prefabricated, modular drainage system—including channels, grates, sump pits, and accessories—is designed for rapid, simple installation. This plug-and-play approach drastically reduces on-site construction time, leading to significant savings and faster project completion.
Forget the delays and high labor costs of cast-in-place concrete. Our prefabricated, modular drainage system—including channels, grates, sump pits, and accessories—is designed for rapid, simple installation. This plug-and-play approach drastically reduces on-site construction time, leading to significant savings and faster project completion.
4. Proven Versatility for Any Application
With a range of load classes from pedestrian areas to heavy traffic arteries, our system is the ideal choice for a vast array of projects. It is perfectly suited for industrial plants, commercial parking lots, public squares, residential quarters, and major roadways, providing a unified, high-performance solution across your entire portfolio.
With a range of load classes from pedestrian areas to heavy traffic arteries, our system is the ideal choice for a vast array of projects. It is perfectly suited for industrial plants, commercial parking lots, public squares, residential quarters, and major roadways, providing a unified, high-performance solution across your entire portfolio.
5. An Eco-Conscious Choice for Modern Construction
Resin concrete is a more environmentally friendly material with a lower carbon footprint compared to traditional concrete production. Its durability and long lifecycle further contribute to sustainable development goals by reducing the need for frequent replacements and repairs.
Resin concrete is a more environmentally friendly material with a lower carbon footprint compared to traditional concrete production. Its durability and long lifecycle further contribute to sustainable development goals by reducing the need for frequent replacements and repairs.
Model | Overall Width (mm) | Overall Height (mm) | Net Width (mm) | Clear Height (mm) | Length (mm) | Thickness (mm) | Weight (kg) |
YJU200-20180CI | 240 | 200 | 200 | 180 | 1000 | 20 | 33.3 |
YJU200-20190CI | 240 | 210 | 200 | 190 | 1000 | 20 | 34.3 |
YJU200-20200CI | 240 | 220 | 200 | 200 | 1000 | 20 | 35.3 |
YJU200-20210CI | 240 | 230 | 200 | 210 | 1000 | 20 | 36.3 |
YJU200-20220CI | 240 | 240 | 200 | 220 | 1000 | 20 | 37.1 |
YJU200-20230CI | 240 | 250 | 200 | 230 | 1000 | 20 | 36.3 |
YJU200-20240CI | 240 | 260 | 200 | 240 | 1000 | 20 | 37.2 |
YJU200-20250CI | 240 | 270 | 200 | 250 | 1000 | 20 | 38.1 |
YJU200-20260CI | 240 | 280 | 200 | 260 | 1000 | 20 | 39 |
YJU200-20270CI | 240 | 290 | 200 | 270 | 1000 | 20 | 39.9 |
YJU200-20280CI | 240 | 300 | 200 | 280 | 1000 | 20 | 39.3 |
YJU200-20290CI | 240 | 310 | 200 | 290 | 1000 | 20 | 40.2 |
YJU200-20300CI | 240 | 320 | 200 | 300 | 1000 | 20 | 41.1 |
YJU200-20330CI | 240 | 350 | 200 | 330 | 1000 | 20 | 42.3 |
Model | Overall Width (mm) | Overall Height (mm) | Net Width (mm) | Clear Height (mm) | Length (mm) | Thickness (mm) | Weight (kg) |
YJU300-35300C1 | 370 | 320 | 300 | 300 | 1000 | 35 | 71.6 |
YJU300-35310C1 | 370 | 330 | 300 | 310 | 1000 | 35 | 73.2 |
YJU300-35320C1 | 370 | 340 | 300 | 320 | 1000 | 35 | 74.85 |
YJU300-35330C1 | 370 | 350 | 300 | 330 | 1000 | 35 | 73.3 |
YJU300-35340C1 | 370 | 360 | 300 | 340 | 1000 | 35 | 75.0 |
YJU300-35350C1 | 370 | 370 | 300 | 350 | 1000 | 35 | 76.6 |
YJU300-35360C1 | 370 | 380 | 300 | 360 | 1000 | 35 | 78.3 |
YJU300-35370C1 | 370 | 390 | 300 | 370 | 1000 | 35 | 79.9 |
YJU300-35380C1 | 370 | 400 | 300 | 380 | 1000 | 35 | 76.6 |
YJU300-35390C1 | 370 | 410 | 300 | 390 | 1000 | 35 | 78.3 |
YJU300-35400C1 | 370 | 420 | 300 | 400 | 1000 | 35 | 79.9 |
Model | Overall Width (mm) | Overall Height (mm) | Net Width (mm) | Clear Height (mm) | Length (mm) | Thickness (mm) | Weight (kg) |
YJU400-47325CI | 496 | 350 | 400 | 325 | 1000 | 47 | 116.6 |
YJU400-47350CI | 496 | 375 | 400 | 350 | 1000 | 47 | 117.1 |
YJU400-47400CI | 496 | 425 | 400 | 400 | 1000 | 47 | 127.1 |
YJU400-47450CI | 496 | 475 | 400 | 450 | 1000 | 47 | 126.6 |
YJU400-47500CI | 496 | 525 | 400 | 500 | 1000 | 47 | 137.6 |
YJU400-47550CI | 496 | 575 | 400 | 550 | 1000 | 47 | 137.6 |
YJU400-47600CI | 496 | 625 | 400 | 600 | 1000 | 47 | 147.6 |
Product Application
Company Profile
Established in 2009, Yajing Environment is headquartered in Hefei, China. With 30+ branches across China and 4 manufacturing bases, the company utilizes automated production lines for resin concrete and plastic injection molding. A comprehensive quality control system ensures product reliability from raw materials to final output.
Yajing has a professional R&D team of over 40 staff and holds more than 150 patents. We have participated in compiling 30+ industry and provincial standards. The company is recognized as a National High-tech Enterprise and a Provincial Specialized, Refined, Distinctive, and Innovative SME.
