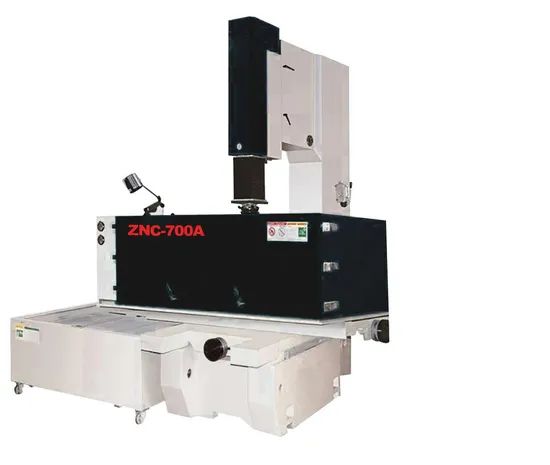

EDM Machine Die Sinker Znc-700 Origin China Weight 3500kg Power(W) 7.5kw Model NO. ZNC-700 Trademark LINGFENG HS Code
1-2 PC
$18,0003 PC
$17,000Product information
High-quality EDM Machine Die Sinker Znc-700 Origin China Weight 3500kg Power(W) 7.5kw Model NO. ZNC-700 Trademark LINGFENG HS Code supplied by Taizhou Lingfeng Cnc Technology Co., Ltd.. Bulk wholesale pricing ranges from $17,000 to $18,000 per PC with a minimum order of 1 PC. Inquiry for latest prices.
Production Capacity:
300 Sets/Per Month
Weight:
3500kg
Power(W):
7.5kw
Specification:
700*600*300
HS Code:
8456309090
Core Components:
Casting,Motor, Pump, Control System
Key Selling Points:
Cheap Price
Origin:
China
Specifications
Production Capacity:
300 Sets/Per Month
Weight:
3500kg
Power(W):
7.5kw
Specification:
700*600*300
HS Code:
8456309090
Core Components:
Casting,Motor, Pump, Control System
Key Selling Points:
Cheap Price
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF, CIP, CPT, FCA
Payment Term:
LC, T/T, PayPal, Western Union
Trademark:
LINGFENG
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Transport Package:
Standard Export Packing, with Wooden Box
Local Service Location:
Turkey, Viet Nam, Philippines, Peru, India, Mexico
After Warranty Service:
Video Technical Support, Online Support, Spare PAR
Showroom Location:
Viet Nam, Philippines, Peru, India, Russia, Uzbeki
Model NO.:
ZNC-700
Port Of Loading:
shanghai, ningbo
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-03-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF, CIP, CPT, FCA
Port Of Loading:
shanghai, ningbo
Product descriptions from the supplier
|
1.Depth design for Positive and Negative processing;
2.Special circuit for deep hole processing;
3.Superfine processing circuit;
4.Large area electrode servo stabilization circuit;
5.Electrode protection circuit;
6.Separate circuit design for high and low clearance;
7.PWM servo system, DC servo motor (AC servo optional);
8.Two stage travel for high product.
9.High voltage overlap synchronous discharge system;
10.Square wave and equal energy posterior output;
11.Moisture-proof and Anti-rust PCB board design;
12.Automatic program discharge parameters;
13.Different processing conditions can be selected;
14.DRO for XYZ;
15.Auto Fire detection with extinguisher;
16.Insufficient liquid level protection;
Specification:
| Model | Unit | ZNC-350 | ZNC-450 | ZNC500 | |
| Working table | Mm | 600*350 | 700*420 | 800*500 | |
| Oil groove size( Inside) | Mm | 870*550*350 | 1165*625*450 | 1200*725*500 | |
| Oil groove size( Outside) | Mm | 1080*590*350 | 1370*670*450 | 1470*780*500 | |
| Max. height of oil level | Mm | 240 | 300 | 320 | |
| X travel | Mm | 350 | 450 | 500 | |
| Y travel | Mm | 250 | 350 | 400 | |
| Z travel | Spindle travel | Mm | 200 | 200 | 220 |
| 2nd stage travel | Mm | 200 | 200 | 250 | |
| Distance from spindle to working table | Mm | 350 | 520 | 540 | |
| Maximum working current | A | 50A (Built-in) | 75A | 75A | |
| Max. Processing speed | mm3/min | 300mm3/min | 500mm3/min | ||
| Min. electrode consumption | ≤0.2% | ≤0.2% | ≤0.2% | ||
| Best Roughness, Ra | Ra | Ra0.4 | Ra0.4 | Ra0.4 | |
| Max.Electrode weight | Kgs | 50 | 80 | 100 | |
| Max. load on working table | Kgs | 700 | 1000 | 1200 | |
| Machine weight | Kgs | 1600 | 1850 | 2000 | |
| Dimension | Mm | 1460*1490*2400 | 1900*1500*2500 | 2100*1500*2600 | |
| Model | Unit | ZNC550 | ZNC650 | ZNC700 | |
| Working table | Mm | 900*500 | 1000*600 | 1200*650 | |
| Oil groove size ( Inside) | Mm | 1410*800*550 | 1700*1000*620 | 1900*1060*650 | |
| Oil groove size ( Outside) | Mm | 1680*880*550 | 1930*1080*620 | 2140*1150*650 | |
| Height from working table after filled oil | Mm | 400 | 470 | 490 | |
| X travel | Mm | 550 | 650 | 700 | |
| Y travel | Mm | 450 | 550 | 600 | |
| Z travel | Spindle travel | Mm | 250 | 300 | 300 |
| 2nd stage travel | Mm | 250 | 300 | 300 | |
| Distance from spindle to working table | Mm | 640 | 700 | 950 | |
| Maximum working current | A | 75 | 75 | 75 | |
| Max. Processing speed | mm3/min | ≥500mm3/min | |||
| Min. electrode consumption | ≤0.2% | ≤0.2% | ≤0.2% | ||
| Best Roughness, Ra | Ra | Ra0.4 | Ra0.4 | Ra0.4 | |
| Max.Electrode weight | Kgs | 100 | 150 | 200 | |
| Max. load on working table | Kgs | 1500 | 2000 | 2000 | |
| Machine weight | Kgs | 2150 | 3000 | 3500 | |
| Dimension | Mm | 1690*1560*2600 | 2200*1850*2650 | 2400*2010*2700 | |
LINFENG CNC Technology Co., Ltd, one of the professional EDM machine manufacture, specialized in developing and producing from 2002, start exporting from 2008. We have exported to more than 50 countries so far.
Our development is originated from untiring pursuit and unceasing innovation, always adhere to the operation philosophy: Quality Priority, Innovative development, customer oriented, sustainable management. Also never stop to working with university, Institute to develop and improve discharge system and control system.
With about 20 years developing, LINGFENG can supply full range of EDM including:
- High speed economy WEDM ( EDM wire cut machine)
- Multi-cut precise WEDM ( EDM wire cut machine)
- Special WEDM, such as Bid WEDM with Separated bed, Multi head WEDM
- Sand wire cutting machine
- EDM Die Sinking machine ( ZNC and CNC)
- EDM drilling machine ( ZNC and CNC)
FAQ:
Q1 Are you a manufacturer?
Q1 Are you a manufacturer?
A: Yes, LINFENG CNC Technology Co., Ltd, one of the professional EDM machine manufacture, specialized in developing and producing from 2002, start exporting from 2008. We have exported to more than 50 countries so far.
Q2: What are your main products?
A: With about 20 years developing, LINGFENG can supply full range of EDM including:
High speed economy WEDM ( EDM wire cut machine)
Multi-cut precise WEDM ( EDM wire cut machine)
Special WEDM, such as Bid WEDM with Separated bed, Multi head WEDM
EDM Die Sinking machine ( ZNC,PNC and CNC)
EDM drilling machine ( ZNC and CNC)
Q3: How to place an order?
A: Please send us an inquiry or contact us with online service; after receiving your inquiry, we will reply to you with our
catalogue, quotation and other information you need.
Q4. How about the delivery time?
For Standard model, we can make delivery in 15 days after payment. For special model, we can make delivery in 25 days.
Q5. What service we can offer?
A:1). 12 months warranty;
2).Technical support online sevice;
3).Technical files serice;
4).On-site traning service;
5).Spare parts replacement and repair service;
6).All of the questions will be replied within 24 hours.
