Easy-Programming Desktop PCB Soldering Robort Selective Wave Soldering Machine (FS-250C)
1 Piece
$18,0001 Piece
$15,000Product information
High-quality Easy-Programming Desktop PCB Soldering Robort Selective Wave Soldering Machine (FS-250C) supplied by Dongguan Sundarc Automation Technology Co., Ltd. Bulk wholesale pricing ranges from $15,000 to $18,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Specification:
1050L*1050W*1400H (mm)
Package Size:
119.00cm * 99.00cm * 120.00cm
Production Capacity:
200set/Mouth
Package Gross Weight:
300.000kg
Startup Power:
5.5kw
HS Code:
8515190010
Operating Height:
900±20mm
PCB Process Edge:
>3mm
Specifications
Specification:
1050L*1050W*1400H (mm)
Package Size:
119.00cm * 99.00cm * 120.00cm
Production Capacity:
200set/Mouth
Package Gross Weight:
300.000kg
Startup Power:
5.5kw
HS Code:
8515190010
Operating Height:
900±20mm
PCB Process Edge:
>3mm
Air Pressure:
About 5m³/H
Weight:
Approx.250kg
Warm Up Time:
Approx.30min(Setting300ºC)
Certification:
CE, ISO, PSE, CCC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Application:
Electrical & Electronics Industry, Lighting Industry, Auto Industry, Communication Industry
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
FS-250C
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
PCB Top Clearance:
Max180mm
PCB Bottom Clearance:
Max30mm
Temperature Accuracy:
Max400ºC
PCB Weight:
Max:5kg
PCB Size:
Min:60(L)*40(W) Max:330(L)*250(W)(mm)
Control System:
PC+PLC
Trademark:
SDC
Product Name:
Selective Wave Soldering Machine
Control:
Semi-Automatic
Port Of Loading:
Shenzhen Port, Guangzhou Port
Payment Methods:
Support payments in USD
Transport Package:
Wooden Box, Vacuum-Packed
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port, Guangzhou Port
Certificates:
CE, RoHS, ISO9001:2015
Product descriptions from the supplier

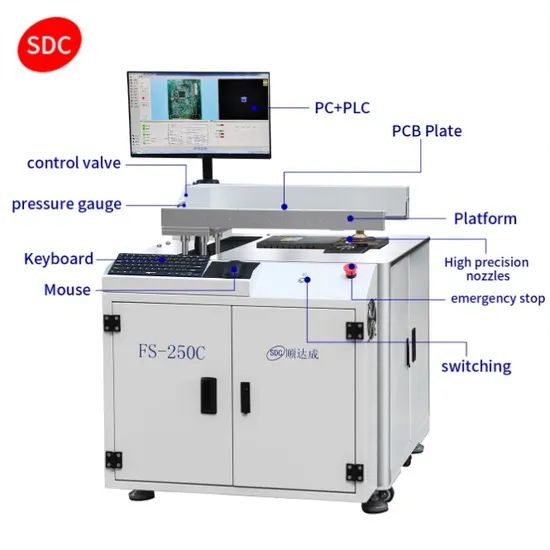

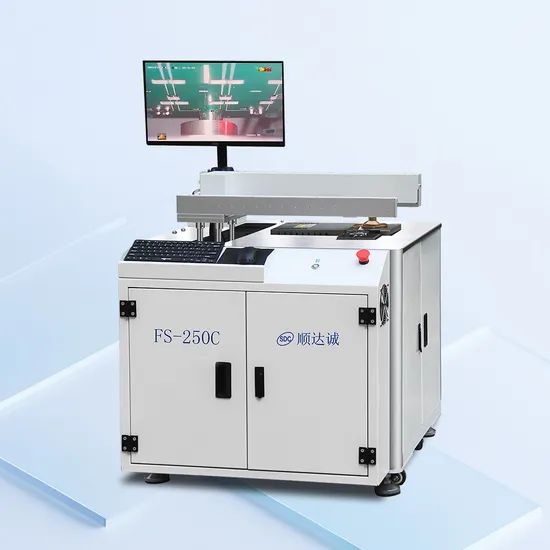

Economical and practical type semi-automatic selective wave soldering machine FS-250C.
1.The machine integrates flux spraying,and soldering;The solder pot is fixed,and the PCB board moves to realize soldering;
2.Maximum PCB dimensions:300X300mm.Small in occupation space and low in energy consumption;
3.Manual placement and removal of boards.It is particularly suitable the products of NPI.
4.Preheating function and size can be added according to different needs of customers.
5.Advantages between selective wave soldering and other soldering technologies.
6.It has High soldering yield and through rate.Good quality consistence.Low operation cost and low tooling cost and flexible process.
7.Certification: CE,Rohs,ISO.
8.Control method: Semi-Automatic.
9.Application: Electrical & Electronics Industry/Communication Industry.

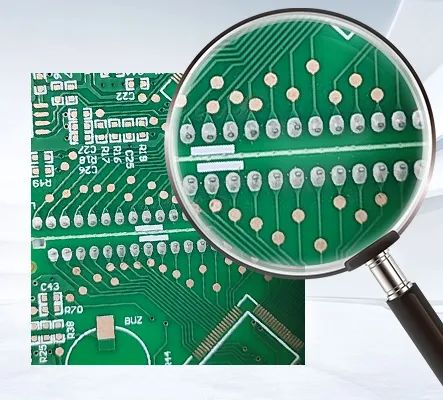

Stable soldering quality with no voids and bridges
The soldering program can be set according to your desired soldering criteria.such as tin transmission, soldering joint fullness, and exposure of component feet.
Nozzles can also be customized for your PCB.
| specifications | Parameter |

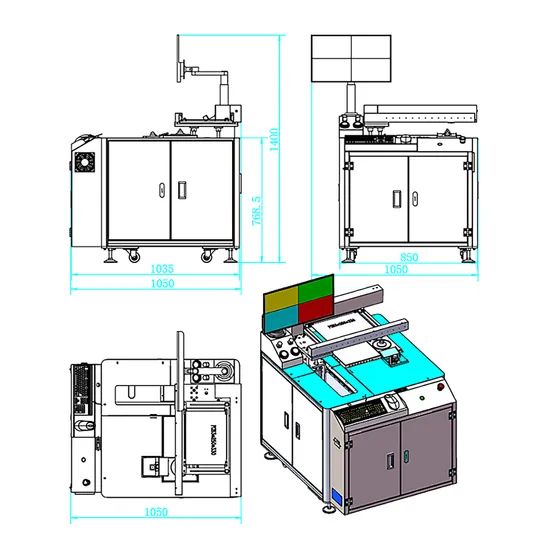

| Overall Dimensions | 1050L*1050W*1400H (mm) |
| Operating height | 900±20mm |
| Weight | Approx.280KG |
| Power supply | 1φ 220V 50/60HZ |
| Total power | 5.5KW |
| PCB PCB parameter | |
| PCB PCB size | Min:60(L)*40(W); Max:330(L)*250(W)(mm) |
| Top component height | Max180mm |
| Bottom component height | Max30mm |
| PCB PCB Weight | Max5Kg |
| PCB PCB Process Edge | >3mm |
| N2 protection system | |
| N2 protection mode | Nozzle and solder pot |
| N2 flow control | Digital flow control |
| Exhaust system | |
Top cover exhaust |
Customer supply |
Exhaust quantity |
1 1 PCS |
Exhaust volume |
5m³/h() About 5m³/h |
| Control system | |
Control mode |
PC+ PC+ motion control card |
| PCB PCB Process parameter |
PC,, Setting, save , open in the PC screen |
Other |
PCB,,PC PCB counting, message, alarm can be read in the PC |
| Option | |
| Top safe cover | |
| Welding real-time monitoring | |
| Common Wear & Tear Parts | |
| Spray flux nozzle, Soldering nozzle | |

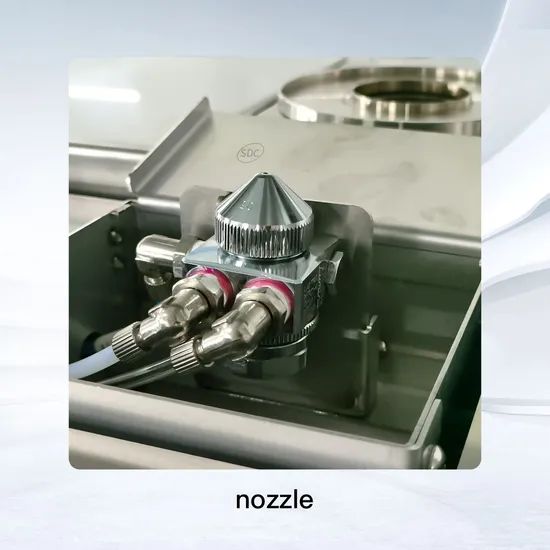

1,FLUX SPRAY MODULE
Spray characteristics
Selective sprayer,saves at least 90% flux than traditional spray.Ionic contamination is dramatically reduced.
Spray width can be as small as 2mm to significantly reduce ionic contamination.Needn't clean PCBA.
Two axes servo motor control, high positioning accuracy.
2,PER-HEATING MODULE
Nowadays' soldering processes, especially in the face of lead-free soldering, multilayer boards, and the soldering of large hot-melt components, also place high demands on preheating capabilities.
Sundarc selective wave soldering machine preheating module adopts short-wave infrared preheating at the bottom and hot air convection preheating at the top to ensure full and balanced preheating.

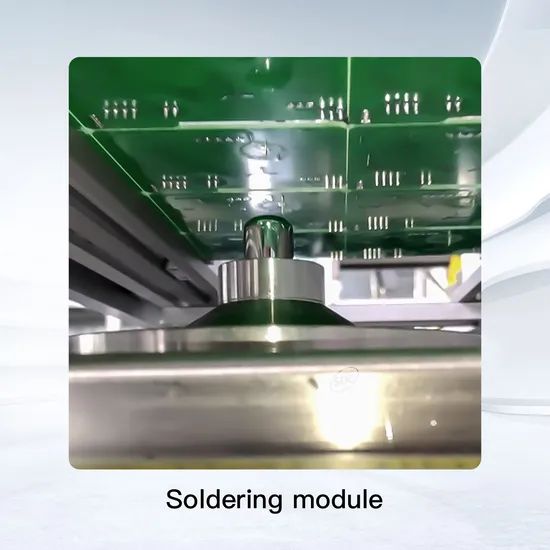

3,SOLDERING MODULE
PCB plate fixed, spray and soldering X/Y/Z axis platform moving for soldering joints.
Different soldering speeds and times can be set for different soldering joints on the same circuit board;
Nitrogen heating of the tin pot ensures good wetting of the nozzles and reduces the tin dross;
Wave height monitoring online;
Real-time monitoring of tin pot high and low levels;
4,THE SOFTWARE FEATURES
(1).Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type ,n2 temperature etc, best trace-ability and easy to get repeat soldering quality.
(2).Simple programming method, using the picture as a base, just draw lines on the picture to program. Parameters can be optimized for each soldering joint position, such as Z-axis soldering height, crest height, soldering travel speed, tin shrinking speed and time, etc. After the path editing is completed, the program can simulate the time needed for the required soldering. It is convenient for engineers to account for the beats.
(3).Path, temperature, speed, solder material and other data are all saved in one file, which can be exported as an EXCEL file. Parameters can be optimized for each soldering position, such as Z-axis soldering height, wave height, soldering movement speed, shrinking speed and time, and so on. After the path is edited, the program can simulate the time required for soldering.
(4).Soldering coordinate point visual positioning, The whole soldering CCD image visualization to facilitate the whole soldering quality tracking.
We are a factory with 24 years of industry experience, independent R&D, production and sales.
CE, RoHS compliant, and backed by 36 patented technologies.
We can provide customers with professional service and the most suitable soldering machine
Contact us to discuss soldering techniques.
Standard export-grade wooden case with vacuum-sealed packaging
Shipping methods:
▸Sea freight (cost efficiency)
▸Air express ( urgent small shipments)
▸Custom logistics solutions (door-to-door service available upon request)
Production Cycle
Standard delivery: 15 working days after order confirmation
Payment-to-Shipment
Ships within 5 business days
Service,maintenance&repair
Here you can expect the service and sales network in electronics manufacturing.Operated by competent service technicians with years of experience.
24/7 availability
For our customers,our global service and sales network is permanently in operation.So that we can always respond and react immediately to increasing demands on the electronics industry.
Remote service
On-site deployment is often not even necessary.Intelligently networked machines allow our technicians to become active remotely.Remotely connected,problems can be detected and rectified directly.Uncomplicated and efficient.
Dongguan Sundarc Automation Technology Co., Ltd. is a leading expert in the field of selective wave soldering, dedicated to delivering innovative solutions for precision electronics manufacturing. With over 24 years of experience in R&D, production, and after-sales service, we have solidified our reputation as a trusted partner for global enterprises.
Since our establishment, our soldering equipment has been exported to 16 countries worldwide, empowering industries across Asia, Europe, North America, and beyond. To date, we have proudly collaborated with more than 100 listed companies, providing them with reliable, high-performance soldering technologies tailored to their unique production needs.
Driven by innovation, we hold 36 self-developed patent certificates, underscoring our commitment to technological advancement. Our products and processes meet the highest international standards, certified by CE, Rohs, and ISO accreditations. At Sundarc, we combine decades of expertise with forward-thinking engineering to redefine excellence in automation soldering solutions.
