Eco-Friendly Grass Carp Feed Making Machine Fish Feed Pellet Processing Line Sinking Fish Feed Making Machine

Brief Introduction:

1.1 Fish feed processing machine/fish feed making machine/pet food making machine Introduction

dry floating fish feed machine sinking fish feed processing machines is used to produce different kinds of pet food, floating fish feed, and sinking feed. Fish feed production line works with simple operation, accurate parameter control. The products can be finished in the stipulated temperature, pressure, humidity and time. Owing to the reasonable design, special materials, stability, repairs can be guaranteed and ensured. The various shape and taste must meet the different requirements of fish feed.

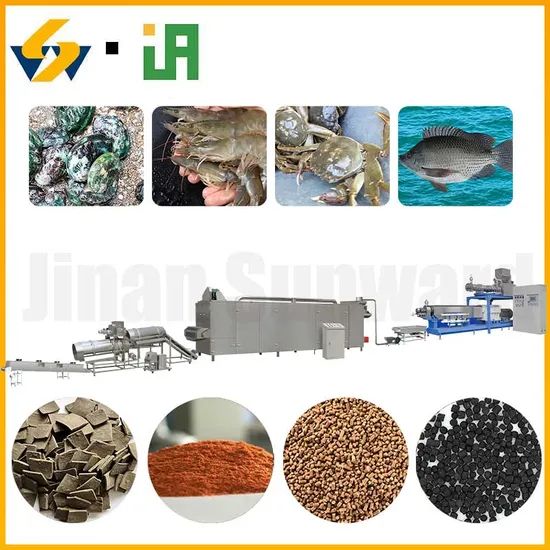

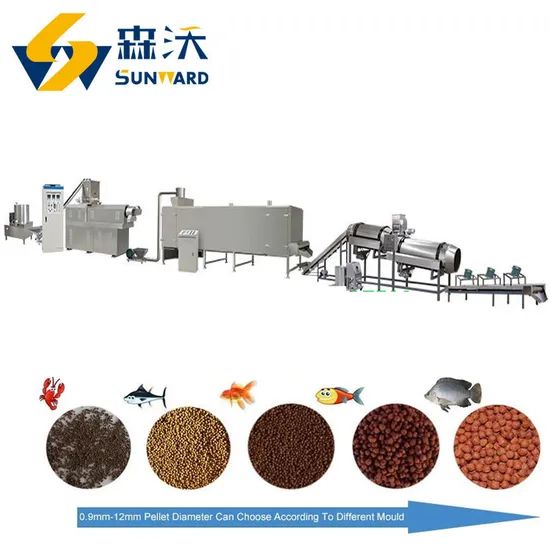

1.2 Processing Line Description of sinking fish feed processing machines

Mixer---Screw Conveyor---Twin-screw Extruder---Air conveyor---Dryer---Flavoring line---Cooling machine

1.3 Voltage of sinking fish feed processing machines

Three phases: 380V/50Hz, Single phase: 220V/50Hz. we can make it according to customers' Local voltage according to different countries.

1.4 Raw Material of sinking fish feed processing machines

Adopts corn powder/rice powder/wheat flour/meat with water and oil.

1.5 Capacity of sinking fish feed processing machines

100-150 kg/h; 200-250 kg/h; 300-500kg/h; 800-1000kg/h; 1-2ton/h etc

1.6 Samples of sinking fish feed processing machines



Technical Parameter:

Details of machine:

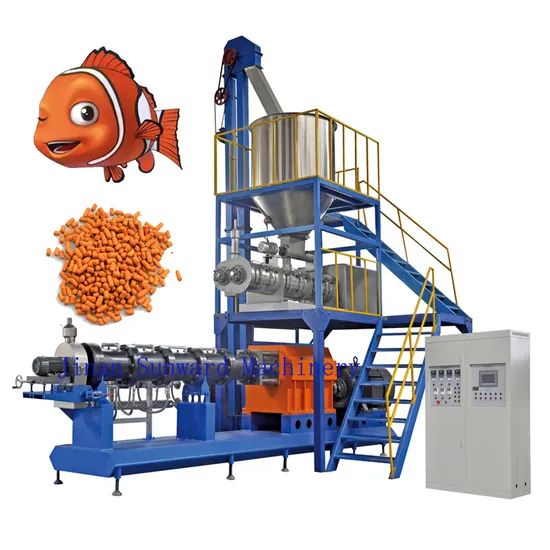

 2.1 Twin screw extruder

1. The main extruder adopts frequency speed controlling with high automation.
2. The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure, and longer life.
3.The forced lubrication system, which can guarantee the equipment transmission life longer.
4.Auto-temperature control system and self-cleaning, which makes it more convenient.
5. It has the widest range of applications and can produce different products with different equipment and models.

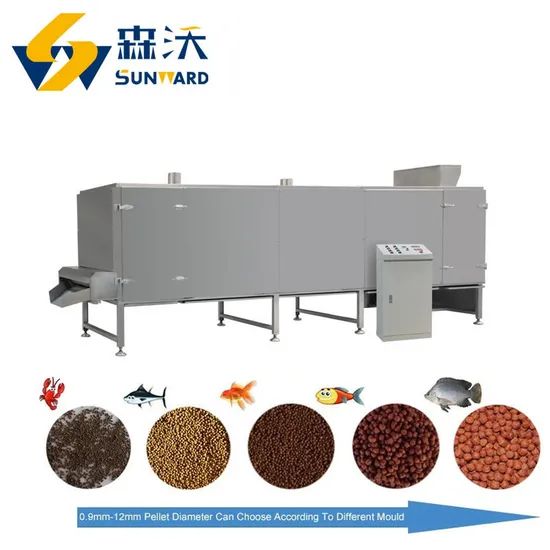

2.2  Multi-layer dryer

1. We have four types of dryers, which includes fuel ovens, gas ovens, electric ovens, and high temperature inflated ovens (used to produce corn flakes).
2. The electric oven has three layers of five meters / five layers of five meters / five layers of eight meters / seven layers of eight meters / seven layers of eleven meters, etc., each layer has electric heating tubes, the purpose is to be more evenly heated.
3. The dryer is compact, has a small dry area and a large superficial area. It also features a small scale of heat elimination and high thermal efficiency.
4. Mesh belt conveyors and thermal insulation boards all use stainless steel material, making the equipment clean and sanitary.
5. The speed of the mesh belt conveyor is adjustable, the drying period for food in the oven can be adjusted.
6. The automatic temperature control system makes it possible to set the temperature according to your needs.

2.3 Flavoring line



1. Spraying the oil in the roller.
2. The inside turning container is very sanitary because of adopting the stainless steel material.
3. Material touching food is stainless steel.
4. The inside of the roller is also uneven, the main purpose is to more evenly season.

2.4 Other fittings

Company Information:


                                     Jinan Sunward Machinery Co., Ltd

Jinan Sunward Machinery Co., Ltd is an industry and trade integrated enterprise. The company is committed to R & D extrusion machinery and related ancillary equipment. It is covering mainly machinery and equipment for corn meal milling system, corn flakes/breakfast cereal system, baby food system, corn puff snacks system, pellets system, artificial rice system, soy nuggets system; as well as pet food/fish food system.

Jinan Sunward Machinery Company is founded in 2008. For supplying the best service, technology department, Sales department, producing department, after-sales department is always available for you. Sales department includes two international sales department and two domestic sales department. One sale department is located in Wu Jia Pu Industrial Park, Jinan. The other sale department is located in No 130 Wu Ying Shan Middle Road, Jinan.



We have professional technical personnel to help our customers draw CAD and arrange the whole line of machines better in your factory.




Packing and shipping:


1. Testing Machine before package.

2. Packaging: inside is covered in plastic film, outside is a wooden case.

3. Shipping: 15-35 working days after receiving deposit.

FAQ:

1. What's the pre-sale service of your company?
Related machines' technical parameter will be supplied to the customer.
1. According to the customer's factory size, factory layout can be provided in advance.
2. According to the customer's material cost, general formulation can be prepared well.
3. Special machine can be supplied as customer's request.
4. Professional Advice about Market, machines, processing, materials, packing can be supplied.
5. Suggesting professional ship agent or helping book ship as customer request.

2. What's the after-sale service of your company?
1. Allocation chart as the buyer's request will be supplied.
2. Operation manual will be supplied after shipment.
3. One year warranty, lifetime maintenance with cost price.
4. Free easy broken spare parts will be sent with container.
5. First installation can be done by the engineer.
6. Training workers in the customer's factory.

3. If machines wearing parts need changing, what should we do?
We can offer the wearing parts all the time, and offer video.

4. What's the payment terms if we want to buy the machines?
L/C, T/T 30% down payment, 70% balance before delivery.

5. What is the minimum order?
Yes, our company mainly deals with wholesale deals, but if you insist buying one set, or you just need one set, we would be very likely to make the MOQ as 1 set for you though.

6. How long is the warranty time for your products?
Our officially promised warranty time is one whole year after delivery at best.

7. I haven't done business with you guys before, how can I trust your company?
Our company has been in sunward.en.made-in-china.com for 9, almost 10 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years.what's more, we've got quite a lot of authority certificates, for example, CE, ISO9001, onsite check certificate. If you also have some questions, welcome to visit our factory, we will provide the best service and machines for you. I hope those above will be persuasive enough.

8. Do you give any discount?
I'll surely try my best to help you get those by the best price and good service at the same time.
