Economical Car Bench Auto Body Collision Repair Device & Vehicle Body Repair Equipment
set
Negotiable
Product information
High-quality Economical Car Bench Auto Body Collision Repair Device & Vehicle Body Repair Equipment supplied by Yantai Winner Electronic & Mechanical Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
MOQ:
1 Unit
Package Gross Weight:
2100.000kg
Measurement System:
2D Measuring System
Max. Lifting Capacity:
3.5T
Gross Weight:
3000kg
Maximum Load Capacity:
3500kg
Post Working Range:
360 Degree
Production Capacity:
500per Year
Specifications
MOQ:
1 Unit
Package Gross Weight:
2100.000kg
Measurement System:
2D Measuring System
Max. Lifting Capacity:
3.5T
Gross Weight:
3000kg
Maximum Load Capacity:
3500kg
Post Working Range:
360 Degree
Production Capacity:
500per Year
Package Size:
560.00cm * 220.00cm * 12.00cm
Worktable Length:
5800mm
HS Code:
8479819000
Power:
Air Foot Pump/Electric Hydraulic Unit
ODM:
Available
OEM:
Available
Certification:
CE
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB
Type:
Frame-type
Model NO.:
M30
Condition:
New
Color:
Optional
Place Of Origin:
Shandong, China
Standard:
Standard
Transport Package:
Starndard
Material:
Steel
Payment Methods:
Support payments in USD
Payment Term:
To be discussed
Brand Name:
Winner
Trademark:
Winner
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
CE Certificate for Spray booth, CE certification for tube bundle extractor, CE for ELECTRIC HYDRAULIC PUMP&BOLTING TOOLS
Product descriptions from the supplier

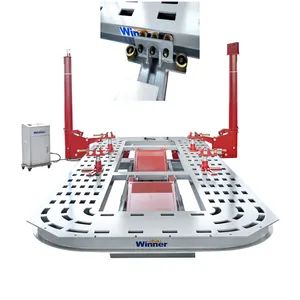

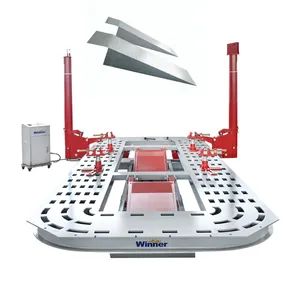

M30 auto body collision car bench car chassis straightening machine
Product Description
Feature:
Double tilt, Box structure with steel plate 10mm+10mm
Platform Length: 5800mm
Platform Width: 2200mm
Tower Pulling Capacity: 95 KN/10 Tons
Max. Lifting Capacity: 3500KG
Specification
Model | M-30 | ||
Type | Double Tilt | ||
Deck Structure | Box structure with complete steel plate 10mm+10mm | ||
A: Deck Length | 5800mm/19'' | ||
B: Deck Width | 2200mm/7'2.6'' | ||
Deck Working Height | 30mm/11.8''-1050mm/3'5.3' | ||
C:Maximum Length | 8075mm/26'5.9'' | ||
D:Maximum Width | 2675mm/8'9.3'' | ||
E:Width of Tradeway | 625mm/2'0.6'' | ||
F:Width between Tradeways | 950mm/3'0.4'' | ||
Standard Tower Quantity | 2 | ||
Weight | 2800kg/3307lbs | ||
Life Capacity | 3500kg/6614 lbs | ||
Hydraulic Tower per Tower | 10ton | ||
Tower Working Range | 360° | ||
Hydraulic Pressure | 70Mpa(10000psi) | ||
Pneumatic Pressure | 0.8Mpa | ||
Optional Towers Configurations | 2,3 or 4 towers | ||
Optional Deck Length | 6100mm/20' or 6700mm/22' | ||
Optional Lifting Capacity | 4500kg/10000 lbs, 5500kg/12000 lbs or 6000kg/13500 lbs | ||
Details Images
Related Products
Feature
Why choose winner car body collision bench?
The stretching stroke of 650mm is three times that of a regular round Lata,which improves work efficiency.In a major accident.
01. Pullrod typesecondary lifting
Replaced the traditional roof lifting tower with multiple functions, saving time and effort
01. Pullrod typesecondary lifting
Replaced the traditional roof lifting tower with multiple functions, saving time and effort
02.High end vise fixture
The main desk body of the vise is made of 45 manganese steel plate, and the high-frequel quenching process provides strong clamping force and high safety factor.
The vise holder can be adjusted:
Thickened and raised seat tube, 28-40mm, suitable for 95% of vehicle models, avoiding the problem of mismatched vehicle chassis height.
03.Eagle beak guide ring design
Compared with the old-fashioned guide ring,the eaglebeak guidering hasa larger load-bearing capacity and is designed with 16 thick manganese steel plates, which are closelyattached to the tower column,effectivelypreventing the situation ofupward force.
Compared with the old-fashioned guide ring,the eaglebeak guidering hasa larger load-bearing capacity and is designed with 16 thick manganese steel plates, which are closelyattached to the tower column,effectivelypreventing the situation ofupward force.
04.Embedded LataTop Rod
The top pole is made of seamless steel pipe integrated molding, which is sturdy and durable, ensuring a long service life.
The top pole is made of seamless steel pipe integrated molding, which is sturdy and durable, ensuring a long service life.
05.Lata roller moves flexibly
Lata has smooth pushing and 360 degree no dead corners, making it easy to use and operate. The Lata base is reinforced with steel plates inside and outside, making it more solid and sturdy.
Lata has smooth pushing and 360 degree no dead corners, making it easy to use and operate. The Lata base is reinforced with steel plates inside and outside, making it more solid and sturdy.
06.Q345 manganese steel integral plate
High strength and is not easily deformed can provide a sturdy working platform for tower columns and main fixtures, meeting the maintenance needs of vehicles of various sizes.
Packaging & Shipping
Company Profile
Why choose China Winner?
Yantai Winner Electronic&Mechanical Technology, Co., Ltd, located on Shandong, Yantai. focus on providing complete equipment solution for car maintenance and repairing workshop. Now our main products are car body collision bench, truck/cab repair bench, spray/paint booth, car lift, wheel alignment, welding machine, hose reels, etc. Our products are used in many 4S workshop all over the world.
With over 10 years' rich experience, we manufacture, we select, we collect. We always are ready to listen, to make solution according to our client's special requirements and supply equipment with good quality but reasonable prices.
Winner could supply the a complete station for your auto body repair shop. We provide services for the entire chain, from precision production, strict quality control, sturdy packaging, LCL and FCL sea freight, DAP door to door service, making you Spares you worries and guarantees your confidence.
