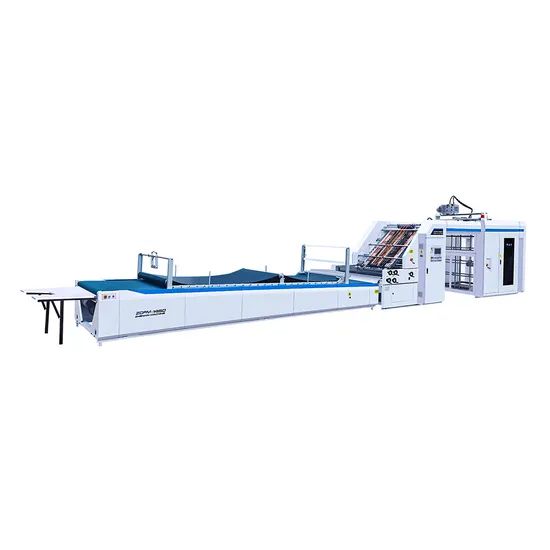

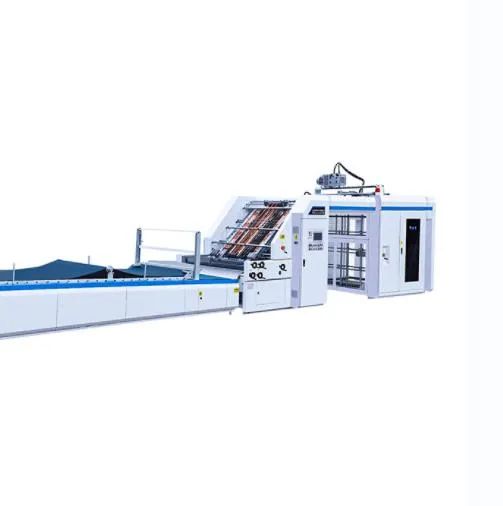

Economy Higher Speed Flute Laminating Machine Litho-Laminator
1 Piece
$65,000Product information
High-quality Economy Higher Speed Flute Laminating Machine Litho-Laminator supplied by Anhui Innovo Bochen Machinery Manufacturing Co., Ltd.. Bulk wholesale pricing is $65,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
10sets/Momth
Model NO.:
1450
Specification:
40HQ
HS Code:
8441809000
Origin:
Anhui
Automatic Grade:
Automatic
Classification:
Cold Laminating Machine
Performance:
Dust
Specifications
Production Capacity:
10sets/Momth
Model NO.:
1450
Specification:
40HQ
HS Code:
8441809000
Origin:
Anhui
Automatic Grade:
Automatic
Classification:
Cold Laminating Machine
Performance:
Dust
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Transport Package:
Film
Plastic Film Mulching Modes:
Hot Laminating
Trademark:
Innovo
Payment Term:
LC, T/T
Membrane Material:
Paper
Application:
Plywood, Aluminium Plate, Packaging Paper, Film Material
Port Of Loading:
Shanghai Port, Ningbo Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-11-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
89
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port, Ningbo Port
Certificates:
CE, ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier
Product description
1.1 Function:
The paper can be laminated with paperboard to increase the strength and thickness of the material or special effects. After the die-cutting, it can be used for packaging boxes, billboards and other purposes.
1.2 Structure:
A. Upper Paper Feeder: It can send stacks of 150-800gsm paper from above.
B. Bottom feed: It can send 0.5~1Omm paperboard from below.
C. Gluing mechanism: The glued water can be applied to the fed paper.
D. Regulatory organization - Fits the two papers according to the set tolerances.
E. Pressurizing Conveyor... Presses the attached paper and conveys it to the delivery section.
1.3 Principles:
The top paper is sent out by the upper paper feeder and sent to the start detector of the positioning mechanism for detection. Then the bottom paper is sent out; after the bottom paper is coated with glue on the glue wheel, the top paper and the bottom paper are respectively conveyed to the paper Synchronous detectors on both sides, after the detection, the controller calculates the error value of the paper and the bottom paper, and the servo compensation device on both sides of the paper compensates the paper to a predetermined position for splicing, and then pressurizes the conveying. The machine presses the paper and conveys it to the delivery machine to collect the finished product.
1.4 applicable materials:
Paste paper --- 150 ~ 800g/m thin paper, cardboard.
Bottom paper---0.5~10m/m paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board.
Glue - resin, etc., PH value between 6 ~ 8, can be applied to the glue.
Structural features:
Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.
Computerized high-speed fitting, up to 12,000 pieces per hour.

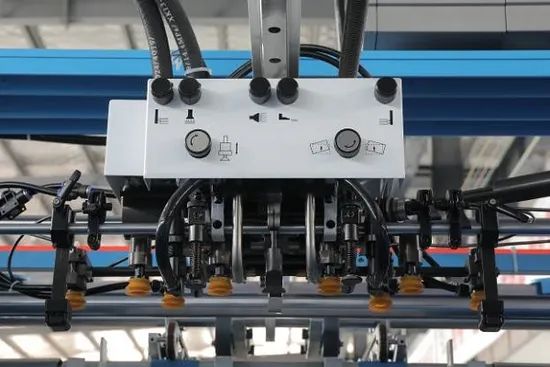

Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.
Feed Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker
Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.
Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.
utomatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling.
Parameters:
| Model | ZGFM1450 | ZGFM1650 |
| Max size | 1450*1450mm | 1650*1650mm |
| Min size | 450*450mm | 450*450mm |
| Paper | 150-800g | 150-800g |
| Bottom paper | ≤10mm ABCDEF corrugated board | ≤10mm ABCDEF corrugated board |
| Max speed | 12000pcs/h | 12000pcs/h |
| Power | 25kw | 27kw |
| Stick accuracy | ±1.5mm | ±1.5mm |
TRANSMISSION:
With imported double teeth belt drive and Switzerland ROSTA tension device ensure the drive accurate, stable and low noisy.
,.

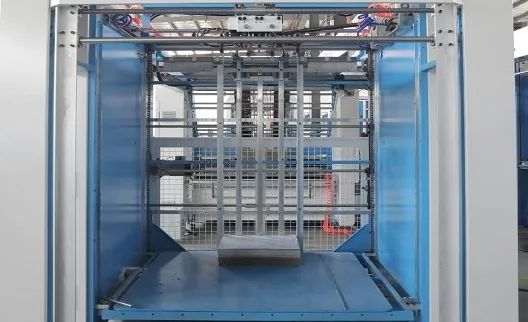

PRE-STACK PART:
Pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of the pre stack paper frame, save time and effort.
CE,,,.PLC,,,,.
ELECTRICAL SYSTEM:
Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.
Some parts list
| Name | Picture | Origin | Brand |
Touch screen |
China |
Wei Luntong |
|
Servo motor |
Japan |
Yaskawa |
|
Main motor |
Germany |
Siemens |
|
Linear Guide Slides and Guides |
Taiwan |
HIWIN |
|
Paper feeder Reducer |
Germany |
Siemens |
|
Air-controlled electromagnetic reversing valve |
Japan |
SMC |
|
Before-after Press motor |
China |
Shanteng |
|
Press motor |
Germany |
Siemens |
|
Main machine width adjustment motor |
China |
Lide |
|
Feeder widened motor |
China |
Lide |
|
Feeder motor |
China |
Lide |
|
Vacuum pressure pump |
China |
Tongyou |
|
Chain |
Japan |
TSUBAKI |
|
Relay |
Japan |
Omron |
|
Photoelectric switch |
Taiwan |
Yangming |
|
Solid-state relay |
Taiwan |
yangming |
|
SQP |
Japan |
Omron |
|
| Water level relay |
Taiwan |
Yangming |
|
Contactor |
France |
Schneider |
|
PLC |
Germany |
Siemens |
|
Servo drivers |
Japan |
Yaskawa |
|
| Frequency convertor |
Japan |
Yaskawa |
|
Potentiometer |
Japan |
TOCOS |
|
Rotary encoder |
Japan |
Omron |
|
Button |
France |
Schnerider |
|
Brake resistor |
Taiwan |
Tianyi |
|
Motion controller |
USA |
Parker |
