Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming

Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming - Image 1
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming - Image 2
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming - Image 3
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming - Image 4
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming - Image 5
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming - Image 6
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming - Image 1
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming - Image 2
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming - Image 3
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming - Image 4
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming - Image 5
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming - Image 6
Share on

1-4 Piece

$4,999

5 Piece

$3,999

Product information

High-quality Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming supplied by Samet Intelligent Manufacturing Co., Ltd.. Bulk wholesale pricing ranges from $3,999 to $4,999 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.

Edging Thickness:

0.4-3mm

Panel Thinkness:

10-60mm

Panel Feeding Speed:

20m/min

Production Capacity:

300 Sets Per Month

Min.Length Panel:

300mm

Min.Width Panel:

50mm

Transport Package:

5900X1000X1700mm

HS Code:

8465940000

Specifications

Edging Thickness:

0.4-3mm

Panel Thinkness:

10-60mm

Panel Feeding Speed:

20m/min

Production Capacity:

300 Sets Per Month

Min.Length Panel:

300mm

Min.Width Panel:

50mm

Transport Package:

5900X1000X1700mm

HS Code:

8465940000

Automatic Grade:

Automatic

Certification:

CE, ISO, FDA

Customized:

Customized

After Sales Service:

Engineer Online Service and Learning Video

Trade Term:

FOB, CIF, CFR, EXW

Manufacturing Principles:

Glue Tank Underneath

Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Origin:

Made in China

Port Of Loading:

Qingdao Port

Type:

Straight Line

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Not specified

Year Established:

2015-01-28

Annual Revenue Amount:

Not specified

Numbers Of Employees:

270

Preferred Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Preferred Trade Term:

FOB, CIF, CFR, EXW

Port Of Loading:

Qingdao Port

Certificates:

CE-CNC Router, Patent - Edge Banding Machine, Patent - Multi Head CNC Router, Patent - Stone CNC Router, Patent - Vacuum Membrane Press Machine, Patent 1 - CNC Cutting Machine, Patent 2 - CNC Cutting Machine, Patent 2 - CNC Router, Patent1-CNC Router

Product descriptions from the supplier

Product DescriptionEdge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner TrimmingEdge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming
Functions:
Pre-milling, gluing, edge cutting, end trimming, rough trimming, fine trimming, corner trimming, scraping, buffing, slotting and so on.

Advantages:
1.Adopt domestic famous motor and high quality electrical components.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.
8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and clean.
9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operation.

Application:
The machine is suitable for such plates: MDF, block board, solid wood board, particle board, polymer door plates, plywood etc, straight line edging and trimming. Function: pre-milling, gluing, edge cutting,end trimming, rough trimming, fine rimming, corner trimming, scraping, buffing, slotting and so on. Edging smoothly and edging line is straight. The machine is stable, reliable and durable, with favorable price. It is especially suitable for large and medium-sized furniture manufacturers.
Specification



Model
GD-2400
Panel Feed Speed(m/min)
13m/min
Edge Thickness
0.4-3mm
Edge Width
15-55mm
Edge banding height
12-60mm
Panel thickness
8-30mm
Mini work Panel Width
> 80mm
Mini work Panel Length
>120 Mm
Heating power of plastic box
1.5kw
Plate preheating power
0.3KW
End cutting motor power
0.55kw * 2 1200r / min200HZ
Transmission motor power
2.2KW
Polishing motor power
0.2kw*2 1400r / min 300Hz
Fine trimming motor power
0.75kw*2 1800r / min 300Hz
Total power
10kw
Air pressure
0.9MPA
Machine weight
1500KG
Machine size
7200*1000*1800mm
Detailed Photos



Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming

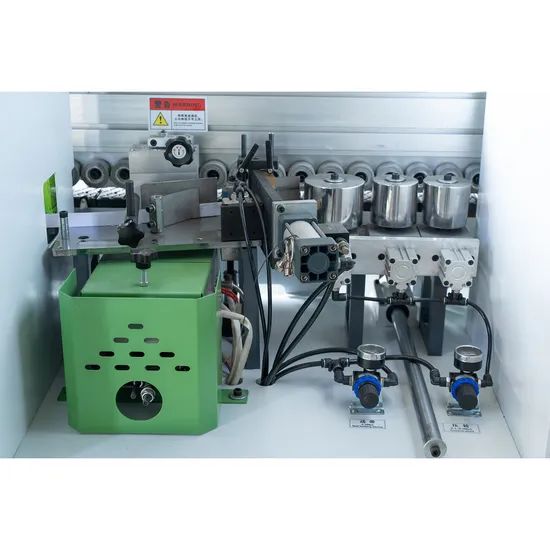

Pre-milling
There are two counter rotating shape cutters and control by independent air cylinders, allow milling front edge and back edge without tear out. Ensure right angled and chip free work piece edges.
Pressing and gluing
The glue mechanism adopts a special structure togelatinizethe plates and the costing materials uniformly, and that ensures a more solid conglutination
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming

Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming
End Trimming
The end trimming is through a precise guide track movement, and it adopts the automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
Rough trimming and fine trimming
The rough and fine trimming is use for trim the extra edge tape, and it adopts automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming

uct Detai
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming







Corner Roundingdevice
Can shaped the panel then looks more beautiful. The function is a necessary step for cabinet door
Edge scraping device
The cutting process of trimming and straight line movement should be eliminated by profiling and scraping. The secondary wave
trace caused by the cutting shall make the upper and lower parts of the plate more smooth and tidy.
Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming

Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming
Polishing
The high-grade cotton polishing wheel is used to polish and polish the plate after trimming, to remove the redundant glue stains and burrs, so that the edge sealing effect of the plate is more natural, and the edge sealing strip and the plate are integrated.



Applications

Edge Banding Machine is mainly used for straight edge banding of solid wood, chipboard, laminated wood board, medium density fiberboard, etc. It can make the side of the work piece more smooth, durable and beautiful.



Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming
After Sales Service


1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.2.We will provide free training, free maintenance, free technical upgrading,
3.We accept the ODM, OEM
4.Oversea agents wanted, if any interest, pls let me know

Packaging & Shipping

Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming

Edge Banding Machine for 8 Functions Auto Edge Banding Machine Pre-Milling Corner Trimming
FAQ

1. who are we?We are based in Shandong, China, start from 2016,sell to Africa(10.00%),Domestic Market(10.00%),Western Europe(8.00%),South Asia(8.00%),Mid East(8.00%),Southern Europe(8.00%),South America(8.00%),Southeast Asia(8.00%),Northern Europe(8.00%),Eastern Asia(5.00%),Oceania(5.00%),North America(5.00%),Eastern Europe(5.00%),Central America(4.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
woodworking cnc machine,CNC router,Vacuum membrane press machine,3D scanner,laser cutting and engraving machine


4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
