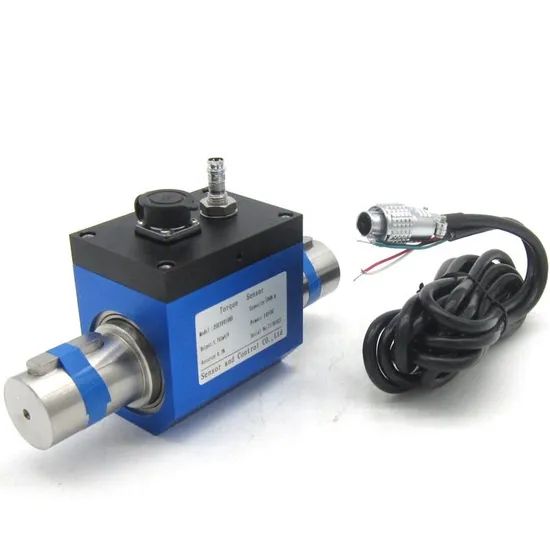

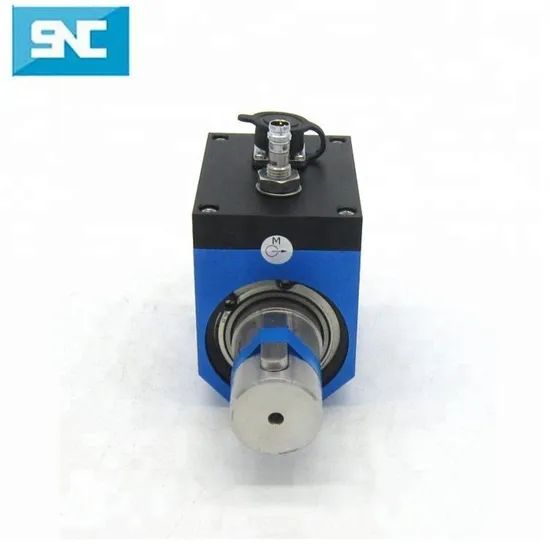

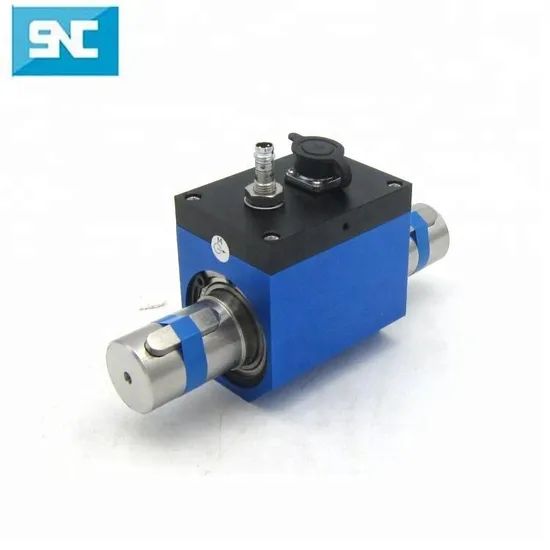

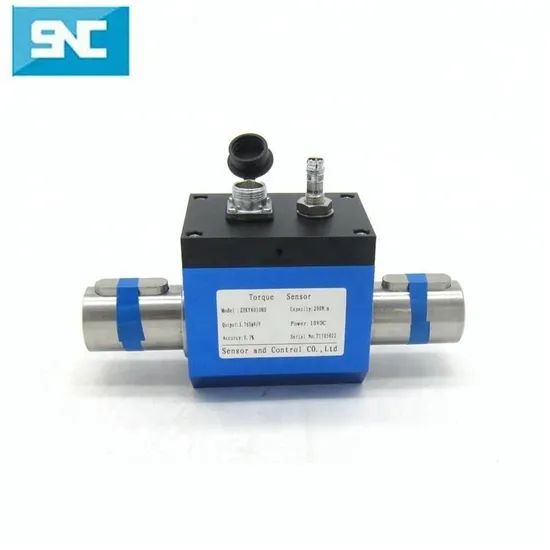

Educational Dynamic Shaft Type Rotary Torque Sensor Meter 200 N. M 300 N. M 500 N. M
1 Piece
$7001 Piece
$400Product information
High-quality Educational Dynamic Shaft Type Rotary Torque Sensor Meter 200 N. M 300 N. M 500 N. M supplied by Shenzhen Sensor and Control Company Limited. Bulk wholesale pricing ranges from $400 to $700 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Torque Accuracy:
0.1%F.S
Accuracy Grade:
0.1G
Output:
1.0~1.5.0 Mv/V, 4-20mA, 0-5/ 0-10VDC
Transport Package:
1unit / Carton
Capacity:
200nm-500n.M
Package Gross Weight:
3.000kg
Package Size:
30.00cm * 20.00cm * 10.00cm
Production Capacity:
50 Piece/Pieces Per
Specifications
Torque Accuracy:
0.1%F.S
Accuracy Grade:
0.1G
Output:
1.0~1.5.0 Mv/V, 4-20mA, 0-5/ 0-10VDC
Transport Package:
1unit / Carton
Capacity:
200nm-500n.M
Package Gross Weight:
3.000kg
Package Size:
30.00cm * 20.00cm * 10.00cm
Production Capacity:
50 Piece/Pieces Per
Speed Measurement:
60 or 120 Pulses
HS Code:
9031809090
Output Signal Type:
Analog Type
Certification:
CE/RoHS
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Contact:
Contactless
Specification:
Custom size
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Fuzhou Port
Origin:
Guangdong, China
Production Process:
High Accuracy
IP Rating:
IP65
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Application:
Motor, Dymometer, Torque Measuring Devices
Trademark:
SNC
Theory:
Strain Gauge Sensor
State:
Strain Gauge Type Torque Sensor
Payment Methods:
Support payments in USD
Usage:
Torque Detection
Accessories:

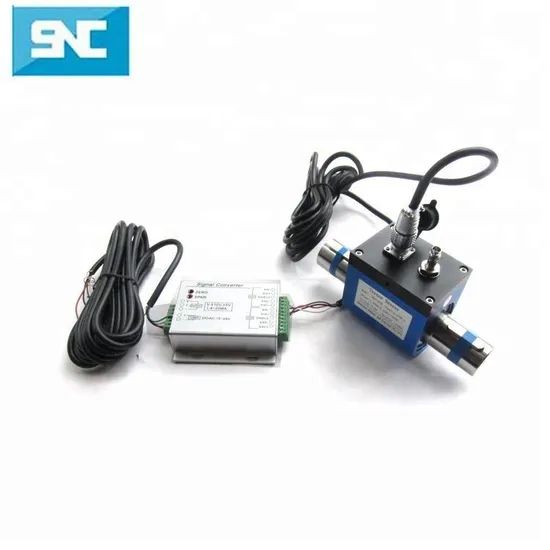

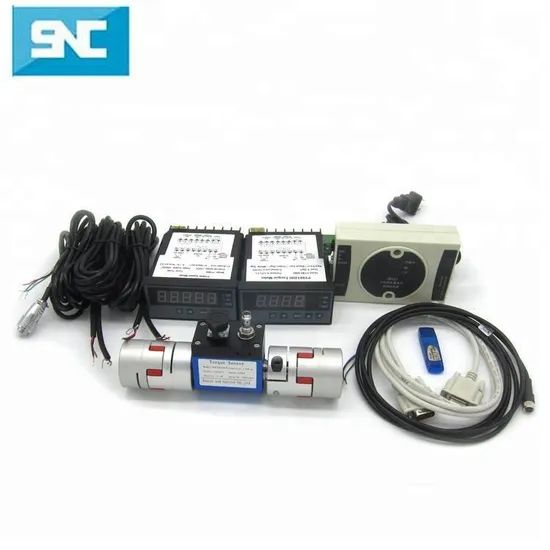

Torque Meter, Speed Meter, Software
Speed:
Yes, Max 4000rpm
Model NO.:
ZHKY8050BS
Description:
Zhky8050BS
Power Supply:
±12 VDC / 24VDC (Option)
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-06-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
9
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Fuzhou Port
Certificates:
CE, Patent, Rohs
Product descriptions from the supplier
Educational dynamic shaft type rotary torque sensor meter 200 N.m 300 N.m 500 N.m
Features:
Model:ZHKY8050BS
Capacity:200N.m , 300N.m 500N.m
Precision:±0.1%F.S
Output sensitivity:1.0~1.5.0 mV/V (Default), 4-20mA, 0-5/ 0-10VDC
Type:Slip ring torque sensor
Speed measure:YES ( If NO need speed measure, please refer toZHKY8050B )
Parameters:
|
Working Temperature: |
-10~+80 |
|
Temperature compensated range: |
room temperature ~+60 |
|
Temperature effect on zero: |
±0.1 %F.S/10 |
|
Excitation voltage : |
12 VDC |
|
Insulted resistance: |
2000 MΩ/100VDC |
|
Input resistance: |
700±10/350±10 Ω |
|
Output resistance: |
700±5/350±5 Ω |
|
Zero output: |
0~±1 %F.S |
|
Safety overload: |
120 %F.S |
|
Cable length: |
3 m |
|
Cable connection: |
Red:output (signal+)Yellow:Output (signal-) White:Input (Excitation-)Green:Input (Excitation+) |
Nm
Accessories
Product Uses
Company Information
Sensor and Control Co., Ltd.was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
Packaging & Shipping
FAQ
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
Educational dynamic shaft type rotary torque sensor meter 200 N.m 300 N.m 500 N.m
Educational dynamic shaft type rotary torque sensor meter 200 N.m 300 N.m 500 N.m
Educational dynamic shaft type rotary torque sensor meter 200 N.m 300 N.m 500 N.m
