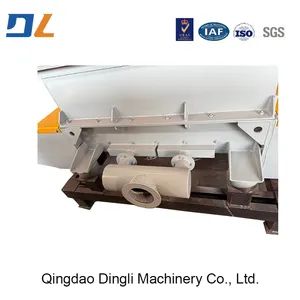

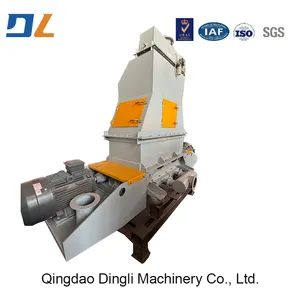

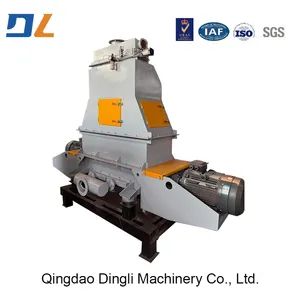

Efficient Sand Regeneration Machine for Metal Foundries

The Attrition Scrubber Regenerator is an advanced sand recovery unit operating on mechanical wear and friction-based separation, engineered to eliminate leftover binder coatings (such as resins, silicates, or surface treatments) from spent foundry sand. It is commonly integrated into reclamation setups for no-bake resin sand, CO-silicate mixtures, and shell molds. By subjecting sand grains to vigorous rubbing, collisions, and shear forces between a rapidly spinning rotor and durable internal linings, particles undergo mechanical degradation, removing surface deposits. This process reactivates the quartz sand’s natural properties and ensures a clean surface, bringing Loss on Ignition (LOI) down to 0.5% or less—fully satisfying stringent demands of precision mixing operations.

This unit handles 3–30 tons per hour and is ideal for eco-friendly foundries, modernizing existing sand systems, or upgrading old reclamation setups. It connects seamlessly with crushers, coolers, screens, magnetic filters, and dust removal units to create a full sand recovery system, ensuring no waste is released and recycling efficiency reaches at least 95%—dramatically cutting down on virgin sand use and landfill expenses, enabling environmentally responsible production.

1.  Feeding Stage

Waste sand (commonly following shakeout or initial crushing) is evenly introduced into the regenerator using either a belt conveyor or bucket elevator. The sand must not exceed 60°C to prevent damage to machinery and improve recovery performance.

2. Attrition Regeneration Stage (Core Process)

Sand flows into a regeneration chamber built around a fast-spinning rotor and durable inner walls. The rotor boosts sand speed, leading to strong collisions and friction with the walls. At the same time, grains experience high-stress interactions—cutting, scraping, and rolling—removing layers from the sintered outer coatings. This method is entirely dry—no water or additives involved—resulting in low energy use and minimal environmental impact.

3.  Discharge & Dust Control

Regenerated sand flows steadily from the lower discharge point into subsequent stages involving cooling, sieving, and magnetic separation. The sealed system features a pulse jet cartridge filter that effectively traps particulates, achieving emission levels of no more than 5 mg/m³—meeting national regulatory requirements.

4. Intelligent Monitoring System

Optional vibration sensors, temperature sensors, and current monitoring enable real-time equipment status tracking, preventing overload or abnormal wear for long-term reliability.

High Reclamation Rate, Superior Sand Quality
Regenerated sand LOI ≤0.5%, low gas evolution, excellent flowability—can replace 90–95% of new sand, significantly reducing raw material costs.

Dry Reclamation, Energy-Saving & Eco-Friendly
No water or chemicals required—zero wastewater; energy consumption 40–60% lower than wet reclamation—ideal for green foundries.

Robust Structure, Wear-Resistant & Durable
Rotor blades, liners, and housing use NM400 steel, ceramic composite, or tungsten carbide cladding—critical components last 1–3 years depending on conditions.

Easy Maintenance, Long Service Intervals
Features quick-opening inspection doors and modular liners—wear parts can be replaced without disassembling the entire machine, minimizing downtime.

Intelligent Control, Stable Operation
Optional PLC + HMI touchscreen enables start/stop, fault alarms, data logging, and remote monitoring—supports MES integration.

Versatile & Widely Applicable
Suitable for furan, alkaline phenolic, silicate, and shell sands—adaptable to various grain sizes and binder systems.

High-efficiency reclamation of used sand after shakeout in resin sand lines

Core equipment in spent sand recycling systems for silicate sand foundries

Sand reclamation and purification in shell core-making lines

Integrated with crushers, fluidized bed coolers, screens, and magnetic separators for full reclamation

Core environmental equipment for new green smart foundries

Qingdao Dingli Machinery Co., Ltd. focuses on developing and producing specialized casting machinery. The company produces a wide range of equipment used in clay sand, resin sand, coated sand, wet sand drying, lost foam casting, and sodium silicate sand processes. It delivers full-service solutions covering project planning, equipment fabrication, on-site setup, and system activation for mechanical sand handling systems. Equipped with cutting-edge technology and skilled engineering resources, the facility maintains strong collaborative ties with leading academics and researchers from major domestic universities and research centers. This partnership enables us to offer users durable, efficient solutions and consistently high levels of service.
We commit to advancing business growth via innovation, focusing on excellence, steady progress, and meeting customer needs. We embrace genuine collaboration with individuals across diverse fields to foster shared success.
Our company mainly undertakes the following projects:
20-180t/h mechanized clay sand processing production line and single machine equipment turnkey project.
Annual production of 1000 to 20,000 tons of consolidated resin sand casting mechanized production line and single machine equipment turnkey project.
Annual production of 3,000 to 10,000 tons of hot processing coated sand complete equipment and single machine equipment turnkey project.
Annual production of 3,000 to 7,000 tons of hot coating sand regeneration complete equipment and single machine equipment turnkey project.
5-15t/h sodium silicate mechanical production line and single machine equipment turnkey project.
5-30t/h three-stage sand drying equipment and single machine equipment turnkey project.
5-40t/h lost foam casting integrated system and standalone machinery for turnkey installations along with various shot blasting, lifting, transport, cooling, magnetic sorting, and environmental dust control solutions
Welcome to contact us~
