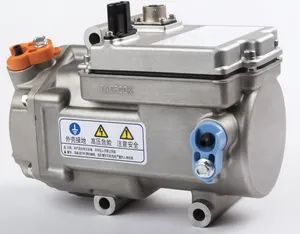

Electric Bus Air Conditioning Compressor with Refrigeration Cycle
Piece
Negotiable
Product information
High-quality Electric Bus Air Conditioning Compressor with Refrigeration Cycle supplied by Kepler(Putian)Import&Export Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Speed:
1000-6000rpm
Input Voltage For Control:
12VDC
Production Capacity:
200000PCS/Year
Specification:
27cc
Rated Working Current:
30AMP
Cooling Capacity:
4.5kw
Working Voltage Range:
60-120VDC
HS Code:
8414301300
Specifications
Speed:
1000-6000rpm
Input Voltage For Control:
12VDC
Production Capacity:
200000PCS/Year
Specification:
27cc
Rated Working Current:
30AMP
Cooling Capacity:
4.5kw
Working Voltage Range:
60-120VDC
HS Code:
8414301300
Input Voltage:
96VDC
Transport Package:
Carton
Origin:
China
Trade Term:
FOB, CIF, EXW
IP Grade:
IP67
Payment Term:
LC, T/T, PayPal, Western Union
Speed Regulation:
PWM
Port Of Loading:
SHANGHAI, NINGBO
Trademark:
kepler
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-06-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
SHANGHAI, NINGBO
Certificates:
CE, IATF16949, RoHS
Product descriptions from the supplier
KEPLER INTEGRATED TYPE 27CC DC COMPRESSOR with 96VDC input voltage
Standard:
GB/T22068-2008 Electric compressor assembly used for vehicle air conditioner
GB/T21360-2008 Cooling compressor for vehicle air conditioner
GB/T 5773-2004 Positive displacement refrigerant compressor performance test method.
QC/T 660-2000 Vehicle air conditioner (HFC-134a) use compressor testing method.
JB/T 4330-1999 Refrigeration and air conditioner device noise determination.
GB/T 2423.5-1995 Electric and electronic product environment test (the second part) test Ea and guidance: Impact
GB/T 2423.10-2008 Electric and electronic product environment test (the second part) test Fc: Vibration (Sine)
GB/T 2423.17-2008 Electric and electronic product environment test (the second part) test Ka: salt mist
GB/T 4942.1-2006 Rotating motor extensional organization protection level (IP code) rate.
JB/T 9058-1999 Cooling device cleanliness determination method.
GB/T 18488.1-2015 EV use drive motor system first part: Technical specifications.
GB/T 18488.2-2015EV use drive motor system second part: test method
QC/T 413-2002 car electrical devices basic technical specifications
GB/T 17619-1998 Vehicle electronic component's electromagnetic radiation immunity limit and test method
GB/T 4208-2008 Protection level (IP code)
ISO 7637-2-2004 Rode vehicles-comes from electric effect of transmission and coupling-The second part
ISO7637-3:2007Rode vehicles-comes from electric effect of transmission and coupling-The third part: wires except for power line, emission by capacitive and sensibility coupling.
Basic Technical Parameters
Compressor Drawing
Performance Curve for 27cc Compressor
Wire Diagrammed
Style No.: KP-DC27966000-12/P
Standard:
GB/T22068-2008 Electric compressor assembly used for vehicle air conditioner
GB/T21360-2008 Cooling compressor for vehicle air conditioner
GB/T 5773-2004 Positive displacement refrigerant compressor performance test method.
QC/T 660-2000 Vehicle air conditioner (HFC-134a) use compressor testing method.
JB/T 4330-1999 Refrigeration and air conditioner device noise determination.
GB/T 2423.5-1995 Electric and electronic product environment test (the second part) test Ea and guidance: Impact
GB/T 2423.10-2008 Electric and electronic product environment test (the second part) test Fc: Vibration (Sine)
GB/T 2423.17-2008 Electric and electronic product environment test (the second part) test Ka: salt mist
GB/T 4942.1-2006 Rotating motor extensional organization protection level (IP code) rate.
JB/T 9058-1999 Cooling device cleanliness determination method.
GB/T 18488.1-2015 EV use drive motor system first part: Technical specifications.
GB/T 18488.2-2015EV use drive motor system second part: test method
QC/T 413-2002 car electrical devices basic technical specifications
GB/T 17619-1998 Vehicle electronic component's electromagnetic radiation immunity limit and test method
GB/T 4208-2008 Protection level (IP code)
ISO 7637-2-2004 Rode vehicles-comes from electric effect of transmission and coupling-The second part
ISO7637-3:2007Rode vehicles-comes from electric effect of transmission and coupling-The third part: wires except for power line, emission by capacitive and sensibility coupling.
Basic Technical Parameters
| No. | Item | Data |
| 1 | Displacement | 27cc/rev |
| 2 | Max cooling capacity | 4.5kw |
| 3 | Max power consumption | 2.0KW |
| 4 | Speed | 1000-6000rpm |
| 5 | Refrigerant | R134a |
| 6 | Oil | RL68H(POE) |
| 7 | Rated input voltage | 96VDC |
| 8 | Speed Regulation | PWM(400hz) |
| 9 | Net Weight | 6kg |
| 10 | Suction Pressure | 0.20-0.45Mpa |
| 11 | Discharge Pressure | ≤2.5Mpa |
| 12 | Protection Classic | IP67 |
| 13 | Soft Start | 15 second |
| 14 | Control Logic | Sine Wave |
| 15 | Noise | ≤ 70dB |
Compressor Drawing
Performance Curve for 27cc Compressor
Wire Diagrammed
| Item | No. | Definition | |
| Main Power End | A | 96VDC+ | Main power positive |
| B | 96VDC- | Main power negative | |
SIGNAL End |
1 | 12VDC + | Input voltage for control |
| 2 | ON/OFF | GND to start | |
| 3 | Speed regulation | PWM signal | |
| 4 | GND | ||
| 5 | Null | ||
| 6 | Null |
