Electric Controlled Fire Truck Fire Fighting Extender Equipment for Fire Protection
1 Piece
$6501 Piece
$850Product information
High-quality Electric Controlled Fire Truck Fire Fighting Extender Equipment for Fire Protection supplied by NINGBO PLENT MACHINERY CO., LTD.. Bulk wholesale pricing ranges from $650 to $850 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Specification:
12 inch extension
Water Way:
3''
Inlet:
3'' Bsp Male
Production Capacity:
5000/Year
HS Code:
7610900000
Origin:
China
Package:
Crate
Color:
Customized
Specifications
Specification:
12 inch extension
Water Way:
3''
Inlet:
3'' Bsp Male
Production Capacity:
5000/Year
HS Code:
7610900000
Origin:
China
Package:
Crate
Color:
Customized
Casepack:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Factory Audit:
ISO 9001
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Ningbo Port
Model NO.:
SX-EG-E
Trademark:
SXFIREPRO
Transport Package:
Wooden Case for Export
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-02-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
4
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port
Certificates:
Audited Supplier 1, Audited Supplier 2, CCC certificate for Fire Monitor PSKD20, CCC Certificate for Fire Monitor PSKD30EX-SX, CCC certificate for Fire Nozzle, CCC Certificate for Fire Nozzle QLD6.0/8III, CCC Certificate for Foam Monitor PLKD64, ISO 9001 Certificate
Product descriptions from the supplier
Description:

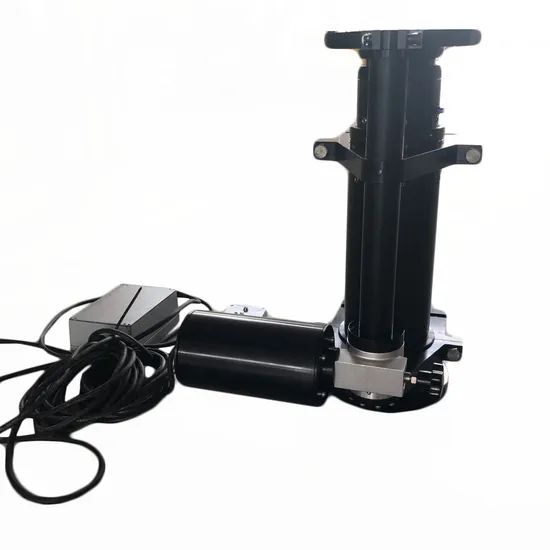

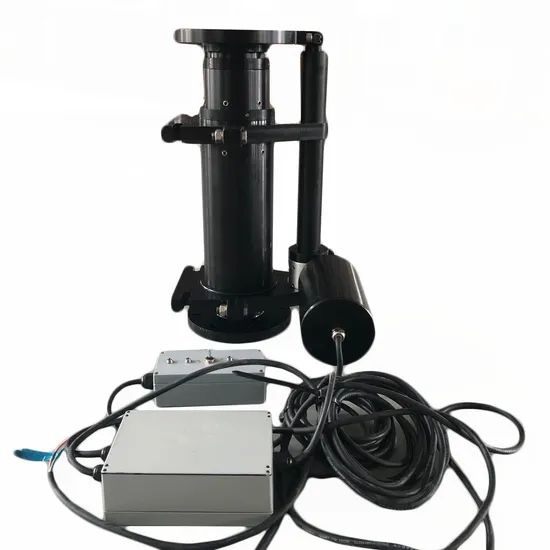

The Extender is an electric operated telescoping waterway. It is designed to elevate a
deck monitor 18 inches so the stream path can clear obstructions like truck cab, lights,
hose bed, etc. It is designed to be used in full up position, but can be used in the full
down position. The water supply connection is 3 inch Victaulic (optional 3 inch NPT
male thread). The discharge connection is 3 inch 150 lb. ANSI pattern flange (optional 3
inch NPT male threads).
The maximum flow capacity is 1250 gallons per minute. The maximum inlet pressure is
200 psi. A pressure switch prevents the Extender from moving when internal pressure
exceeds 10 psi to prevent damage to equipment or injury to personnel caused by
unexpected changes in stream elevation.
Feautres:
1.Good Control system and there is screen in the control room to monitor the performance.
2. Parking function is available. The monitor nozzle and the extender will park at the same time.
3. Presentable surface.
4. Three sections achieve more accurate height and distance.

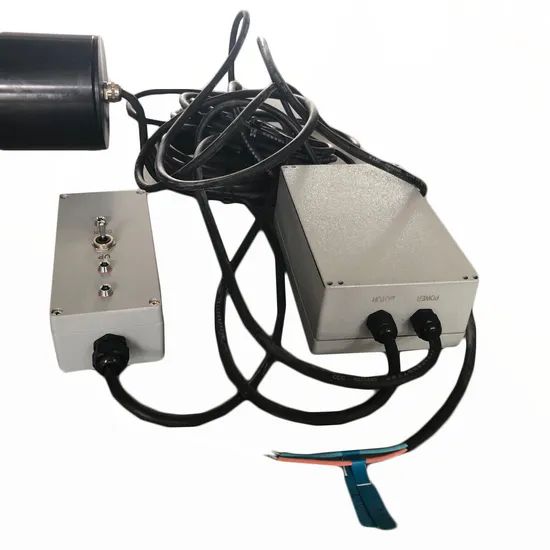

Control System Specification:
Truck Voltage:
Minimum 11 VDC to Maximum 15 VDC
Recommended Ratings:
Operating voltage - 13.8 VDC
Primary fuse rating - 10A
Position warning output fuse rating - 125mA
Extender
Maximum flow capacity is 1250 gpm
Maximum inlet pressure rating is 200 psi
Maximum moment is 9,480 in/lbs at the outlet connection
Moment
Extenstion: 12 inch
Inlet: 3'' BSP Male (customized)
Waterway Size: 3 inch
More Photos:
Warehouse and Testing Building:
Fire fighting Exhibition in Beijing
Our Company
The Extender is an electric operated telescoping waterway. It is designed to elevate a
deck monitor 18 inches so the stream path can clear obstructions like truck cab, lights,
hose bed, etc. It is designed to be used in full up position, but can be used in the full
down position. The water supply connection is 3 inch Victaulic (optional 3 inch NPT
male thread). The discharge connection is 3 inch 150 lb. ANSI pattern flange (optional 3
inch NPT male threads).
The maximum flow capacity is 1250 gallons per minute. The maximum inlet pressure is
200 psi. A pressure switch prevents the Extender from moving when internal pressure
exceeds 10 psi to prevent damage to equipment or injury to personnel caused by
unexpected changes in stream elevation.
Feautres:
1.Good Control system and there is screen in the control room to monitor the performance.
2. Parking function is available. The monitor nozzle and the extender will park at the same time.
3. Presentable surface.
4. Three sections achieve more accurate height and distance.
Control System Specification:
Truck Voltage:
Minimum 11 VDC to Maximum 15 VDC
Recommended Ratings:
Operating voltage - 13.8 VDC
Primary fuse rating - 10A
Position warning output fuse rating - 125mA
Extender
Maximum flow capacity is 1250 gpm
Maximum inlet pressure rating is 200 psi
Maximum moment is 9,480 in/lbs at the outlet connection
Moment
Extenstion: 12 inch
Inlet: 3'' BSP Male (customized)
Waterway Size: 3 inch
More Photos:
Warehouse and Testing Building:
Fire fighting Exhibition in Beijing
Our Company
Since the company was founded in 1996, SXFIREPRO has evolved and grown from a small factory in the yard with the limited capacity to only make couplings, to a sophisticated and leading factory, that now spans over 35000 square meters and employs over 60 skilled engineers, craftsmen, and mechanics - a figure that continues to grow. As one of the family-owned fire equipment manufacturers in China, SXFIREPRO continues to instill the tradition of product excellence, acute customer care, and superior service.
Over the past few years, SXFIREPRO has pushed and expanded its product line to fire monitors, fire nozzles, bladder foam tanks,foam concentrate,fire robots, etc., Unlike most fire equipment manufacturers, sxfirepro also delivers on the meaning of custom-crafted appatatus. Working side-by-side with each customer, sxfirepro will construct your vehicle based on your specific department's needs, The Shengxin team - from the best engineers and draftsmen to highly skilled mechanics and craftsmen will always give you a surprise on the quality. An sxfirepro product is as unique as our customers.
