Electric Intelligent Motorized Actuator 24V DC Energy Recovery System for Building Automation
Piece
Negotiable
Product information
High-quality Electric Intelligent Motorized Actuator 24V DC Energy Recovery System for Building Automation supplied by Wuhan Grat Control Valve Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Valve Adaptable:
0~90°,Ball Valve,Butterfly Valve
Package Gross Weight:
2.000kg
Torque Range:
20~2000nm
Input/Output:
4-20mA, 0-10V, Modbus
Package Size:
44.00cm * 21.00cm * 25.00cm
Production Capacity:
50000pieces/Year
HS Code:
8481804090
Hysteresis:
<0.5%
Specifications
Valve Adaptable:
0~90°,Ball Valve,Butterfly Valve
Package Gross Weight:
2.000kg
Torque Range:
20~2000nm
Input/Output:
4-20mA, 0-10V, Modbus
Package Size:
44.00cm * 21.00cm * 25.00cm
Production Capacity:
50000pieces/Year
HS Code:
8481804090
Hysteresis:
<0.5%
Dead Zone:
<0.5%
Feedback Error:
<0.5%
Specification:
<20KG
Power:
AC 24V/110V/220V/380V, DC 24V
Material:
Alloy
Transport Package:
Carton/Wooden Box
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Model NO.:
EA-series
Power Source:
Electric Power
Limit Components:
Electrical Operation
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
Grat
Protection Class:
IP68
Valve Connection:
ISO5211, DIN3337, Vdi/VDE 3845,Flanged, Wafer
Testing Standard:
Jb/T 8219-2016
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Temperature:
Ordinary Temperature
Protection Device:
Overheat Protector
Operating Pressure:
Pn1.0-32.0 MPa (10 to 320 Bar)
Position Feedback:
Potentiometer, 4-20mA, 0-10V,PLC, Pcu,Ms,S
Port Of Loading:
Shenzhen Port. Shanghai Port.
Connection:
Standard/Stem Direct-Connected
Payment Methods:
Support payments in USD
Control Mode:
Switch (on/off),Modulating
Origin:
Wuhan, Hubei, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-04-24
Annual Revenue Amount:
Not specified
Numbers Of Employees:
22
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port. Shanghai Port.
Certificates:
CCC, CE, ISO14001, ISO45001:2018, Others, ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1
Product About

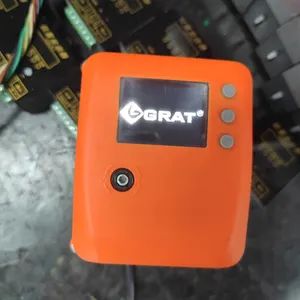

20nm IoT Miniature Electric Actuator
The 20NM IoT Mini Electric Actuator (EA-20) by GRAT is suitable for quarter-turn valves and has functions such as real-time display and manual operation.
The EA-20 Electric Actuator is the latest ultra-compact electric actuator developed for angle-travel valves such as butterfly valves, ball valves, and air valves.
It controls valve opening/closing or regulates valve position, making it ideal for industrial automation systems in food processing, environmental protection, paper manufacturing, chemical engineering, power generation, and related industries.
It controls valve opening/closing or regulates valve position, making it ideal for industrial automation systems in food processing, environmental protection, paper manufacturing, chemical engineering, power generation, and related industries.
Specification
20Nm IoT mini Electric Actuator | |
Parameter | Specification |
Rated Voltage | AC220V/DC24V |
Rated Power | 10W |
Rated Torque | 20N·m |
Compatible Valves | 20N·m (DN25 and smaller ball valves) |
Speed Control | PWM stepless speed regulation, smooth operation |
Adjustable Range | 30%-100% |
Control Method | Regulation (Encoder) |
Communication Protocol | Modbus-compatible |
Control Precision | 0.5%, high-performance brushless motor with built-in overload protection |
Travel Time | 15s-25s (0-90°) |
Position Display | OLED real-time display showing current status and parameter info |
Manual Operation | Hex key operation |
Housing Material | ABS housing + TPE buttons + integrated PC lens upper case |
Output Shaft | Recessed octagonal (11×11mm) |
Technical Drawings
Installation Diagram
Control Diagram
Customized Packaging & Logistics Solutions
Package Size | Customizable (Base: 433*204*250mm) |
Package Gross Weight | 2kg-15kg (Standard:5kg) |
Packaging Material | Carton / Custom Fumigation-Free Wooden Case |
Certifications
DDS Quick-Debug & PPD Precision Tech | ±0.5% Accuracy, IP67 Sealed
100,000+ Cycles Validated | National High-Tech Enterprise Certified
57+ Global Patents | 4 Design Patents & Annual Innovations, 3+ New Patents granted annually
