Electric Iron Solder Wire Automatic Welding Machine
1-4 Set
$3,5505 Set
$8,900Product information
High-quality Electric Iron Solder Wire Automatic Welding Machine supplied by Guangzhou Minder-Hightech co.,Ltd. Bulk wholesale pricing ranges from $3,550 to $8,900 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
1000 Set/Month
Specification:
160KG
HS Code:
8468200090
Control:
Automatic
Certification:
CE
Origin:
China
Trade Term:
EXW
Application:
Electrical & Electronics Industry, Lighting Industry, Auto Industry, Communication Industry
Specifications
Production Capacity:
1000 Set/Month
Specification:
160KG
HS Code:
8468200090
Control:
Automatic
Certification:
CE
Origin:
China
Trade Term:
EXW
Application:
Electrical & Electronics Industry, Lighting Industry, Auto Industry, Communication Industry
Model NO.:
MD-HX-5331S
Trademark:
MINDERHIGHTECH
Port Of Loading:
Shenzhen Port
Payment Term:
T/T
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-12-30
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T
Preferred Trade Term:
EXW
Port Of Loading:
Shenzhen Port
Certificates:
Automatic battery sorting machine Certificate, Automatic Stripping&Cuttig Machine Certificate, Battery Spot Welding Machine Certificate, Lithium-lon Battery Testing System Certificate, Soldering Robot Certificate, Trademark, Ultrasonic Welding Machine Certificatev, WIRE BONDER Certificate
Product descriptions from the supplier
Assembly solution
----Soldering robot
----Desktop Robotic Screw Fastening& Dispenser Robot

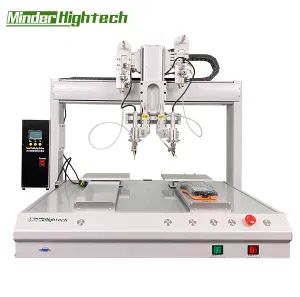

Soldering robot can soldering tin full automatically and better soldering quality than manual soldering.

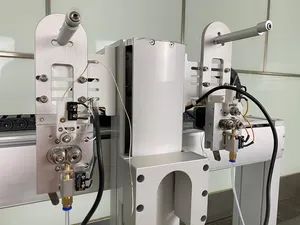

This fully automatic rotating soldering system offers versatile functionality, enabling precise adjustments to welding angles, movement paths, and solder joint configuration. It allows fine-tuned control over tin supply and joint dimensions, ensuring strict adherence to customer-specific welding standards. Beyond standard XYZ motion capabilities, the system features a dedicated stepper-driven tin feed axis and a full 360-degree rotating arm—referred to as the R-axis. This rotating mechanism successfully minimizes interference from tall components or delicate parts like chips, wires, and terminals located on PCBs, allowing flexible tuning of welding angles, tin tube positioning, and tip orientation. The tin is precisely guided to the soldering tip to align with the customer’s design, and the melting process is carefully managed to prevent tin blockage caused by operational or environmental factors.
Applications
Automatically soldering for Auto Electronics, digital electronics, LCD, PCB, connector, RJ/45, FFC, FPCB, computer board, cable, speaker, wires, HDMI, LED, toy etc.
Feature

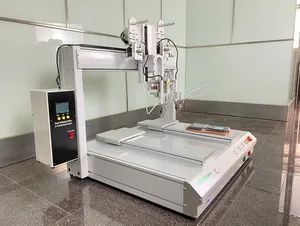

Desktop type, can be placed on the production line.
----Soldering robot
----Desktop Robotic Screw Fastening& Dispenser Robot
Soldering robot can soldering tin full automatically and better soldering quality than manual soldering.
This fully automatic rotating soldering system offers versatile functionality, enabling precise adjustments to welding angles, movement paths, and solder joint configuration. It allows fine-tuned control over tin supply and joint dimensions, ensuring strict adherence to customer-specific welding standards. Beyond standard XYZ motion capabilities, the system features a dedicated stepper-driven tin feed axis and a full 360-degree rotating arm—referred to as the R-axis. This rotating mechanism successfully minimizes interference from tall components or delicate parts like chips, wires, and terminals located on PCBs, allowing flexible tuning of welding angles, tin tube positioning, and tip orientation. The tin is precisely guided to the soldering tip to align with the customer’s design, and the melting process is carefully managed to prevent tin blockage caused by operational or environmental factors.
Applications
Automatically soldering for Auto Electronics, digital electronics, LCD, PCB, connector, RJ/45, FFC, FPCB, computer board, cable, speaker, wires, HDMI, LED, toy etc.
Feature
Desktop type, can be placed on the production line.
- Optional Full english marked machine body, to be international application.
- Double Y axis type, automatic working alternatively, saving the time of placing object.
- Perfect soldering program, with spot/line/circle soldering function.
- Can set the length of the Tin, pre-heat time, soldering time, height of backward.etc parameter.
- With auto cleaning soldering tip function.
- Interface both English and Chinese available.
- Fixture and tooling available.
| Model | MD-DH-T3311 | MD-DH-T4411 | MD-DH-T5511 | MD-DH-T43311 | MD-DH-T44411 | MD-DH-T53311 | MD-DH-T54411 | MD-DH-T64411 |
| Stroke X | 300mm | 400mm | 500mm | 400mm | 400mm | 500mm | 500mm | 600mm |
| Stroke Y1 | 300mm | 400mm | 500mm | 300mm | 400mm | 300mm | 400mm | 400mm |
| Stroke Y2 | no | no | no | 300mm | 400mm | 300mm | 400mm | 400mm |
| Stroke Z | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Rotary R axis | with R axis (optional no R axis) | |||||||
| Rated speed | 500mm/s (X-Y-Z) ,Max:1000mm/s | |||||||
| Soldering Tip | Default 1 PC (optional 2 PCS) | |||||||
| Tin thickness | 0.3-1.6mm | |||||||
| Temperature | normal-500ºC | |||||||
| Heating | 150w, 5 second to 300ºC | |||||||
| Drive | Precision stepping motor/servo motor+synchronous belt/ball screw | |||||||
| Motion mode | Point to point; line; circle | |||||||
| Positioning Accuracy | +- 0.02(mm) | |||||||
| Program | Control Teaching Box/PC | |||||||
| External | RS232 | |||||||
| Program storage | 100groups/1000points per group | |||||||
| Power | 2*220V50Hz | |||||||
| Air | 0.5Mpa | |||||||
| Dimension L | 580mm | 580mm | 780mm | 580mm | 680mm | 580mm | 680mm | 780mm |
| Dimension W | 520mm | 620mm | 720mm | 520mm | 620mm | 720mm | 720mm | 820mm |
| Dimension H | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm |
| Weight | 60kg | 70kg | 80kg | 75kg | 80kg | 80kg | 85kg | 90kg |
