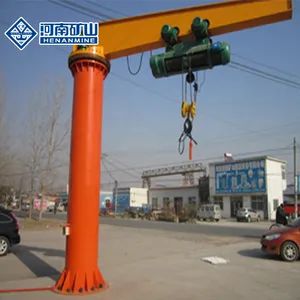

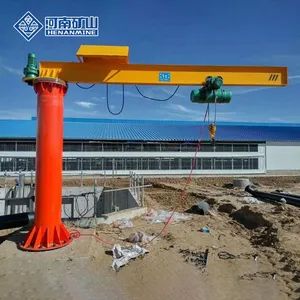

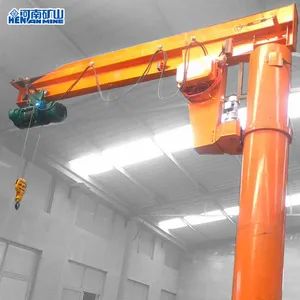

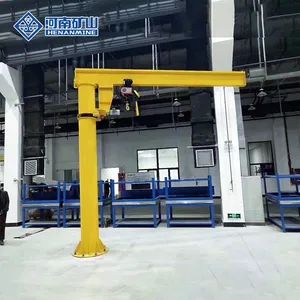

Electric Slewing Column Jib Crane
Set
Negotiable
Product information
High-quality Electric Slewing Column Jib Crane supplied by Henan Kuangshan Crane Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Lifting Capacity:
0.25~5tons
Slewing Angle:
180/270/360 Degree
Production Capacity:
50000 Sets/Year
HS Code:
8431420000
Model NO.:
BZD
Type:
Cantilever
Specification:
China National Standard
Trade Term:
FOB, CIF, CFR
Specifications
Lifting Capacity:
0.25~5tons
Slewing Angle:
180/270/360 Degree
Production Capacity:
50000 Sets/Year
HS Code:
8431420000
Model NO.:
BZD
Type:
Cantilever
Specification:
China National Standard
Trade Term:
FOB, CIF, CFR
Feature:
Flexible and More Usage
Certification:
GS, CE, ISO9001
Origin:
Henan, China
Trademark:
KUANGYUAN
Payment Term:
LC, T/T, PayPal, Western Union
Working Duty:
Light Class
Lifting Mechanism:
Manual or Electric Hoist
Condition:
New
Port Of Loading:
Qingdao Port
Structure:
Solid Web
Material:
Steel
Power Source:
Three Phase 380 V 50Hz,AC
Anchor:
Whole-Buried
Application:
Workshop, Warehouse, Port, Construction Site, Mine
Transport Package:
by Sea Standrad Packing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2002-09-30
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
Advanced Science and Technology Enterprise, CE FOR ELECTRIC HOIST, CE FOR GANTRY CRANE, CE FOR OVERHEAD CRANE.jpg, GBT 19001-2000, idt ISO 9001 2000, GBT 19001-2008 ISO 90012008, GBT 24001-2004 ISO 140012004, GBT 24001-2004, idt ISO 14001 2004, GBT 28001-2001, Gost certificates of Crane, Gost Certificates of Hoist, ISO 140012004 Standard, Kuangyuan brand, Manufacture license of special equipment-gantry crane, Manufacture license of special equipment-overhead crane, OHSAS 180011999 Standard, Quality Management Qualified Enterprise, Quality Reliable Company
Product descriptions from the supplier
Product Series:
Henan Mine Crane Co.,Ltd started in 2002,and have developed an leading industrial crane manufacturer in China.There are many types cranes and crane spareparts.
single girder bridge crane
double girder bridge crane
single girder gantry crane
double girder gantry crane
semi gantry crane
mini portable gantry crane
rail mounted gantry crane
container gantry crane
hydraulic lifting platform
column-type/wall-hanging jib crane
various lifting mechanism:wire rope hoist, chain hoist, winch, grab, magnet, hang beam...
Henan Mine Crane Co.,Ltd started in 2002,and have developed an leading industrial crane manufacturer in China.There are many types cranes and crane spareparts.
single girder bridge crane
double girder bridge crane
single girder gantry crane
double girder gantry crane
semi gantry crane
mini portable gantry crane
rail mounted gantry crane
container gantry crane
hydraulic lifting platform
column-type/wall-hanging jib crane
various lifting mechanism:wire rope hoist, chain hoist, winch, grab, magnet, hang beam...
Product Introduction:
The swing arm jib crane represents a recent advancement in mid-range lifting solutions, offering superior benefits over conventional lifting systems. Featuring a unique design, it delivers enhanced safety, operational efficiency, reduced energy consumption, faster task completion, and high adaptability. Additionally, it enables seamless movement across all three dimensions.
It outperforms traditional lifting systems in compact, high-volume operations and is commonly deployed across diverse industrial sectors.
Product configuration:
1. Column
The column supports and fixes the rotating arm of the jib crane, and its upper and lower supports are composed of single-row tapered roller bearings that bear radial and axial forces.
2. Swing arm
The rotating arm is constructed using an I-beam and a supporting frame. It enables the trolley—whether electric or manually operated—to move horizontally and the hoist to lift or lower. This structure rotates about the vertical post. Standard rotation ranges include 360°, 270°, and 180°. (Can be customized according to customer needs).
3. Support arm and reducer
The supporting arm holds the rotating arm and enhances its ability to resist bending and improves structural integrity. The roller is powered by the reducer to enable electric rotational movement of thejib crane.
4. Lifting hoist
The hoisting mechanism of the jib crane can be equipped with a manualhoist, featuring an electric chain type and an electric wire rope model. This system raises heavy loads and travels horizontally on the jib crane via a manual or electric trolley, thereby expanding the crane’s operational reach.
5. Electrical part
The electrical system uses a C-rail combined with flat cable for power, operates on low-voltage indirect safety control, and is managed via a flashlight door switch;
The control methods of this type of crane are generally divided into pendant line button controland wireless remote operation. Various switches on the unit manage the quick ascent, quick descent, gradual ascent, and gradual descent of the electric winch, along with themoving of the hoist trolley and the rotation of the jib crane. , the collector ring in the column provides the power supply when the cantilever rotates arbitrarily.
>Capacities from 250kgs to 5Tons
>Standard span upto 20 feet
>360 degree rotation is able
>Designed for permanent concrete foundation
>The base plate assembly is fastened using anchor bolts to a specified reinforced concrete base, and the bolt count adjusts according to the tadano crane’s lifting capacity.
>The pipe or colomn is designed to give maximum strength and minimum
deflection to resist bending, buckling and crushing
>The top bearing assembly utilizes a tapered roller bearing provided with
grease fitting for proper lubrication.
Basic parameters:
(Noted:Double speed ; single speed ; and manual hoist are also selected.)
| Technical Parameters | ||||||||
| Type | Lifting capacity | Up and down speed(normal;slow)(m/min) | Rotation speed(r/min) | L(mm) | R2(mm) | R1(mm) | H(mm) | h(mm) |
| BZD0.25 | 0.25t | 4/1 ; 8/2 | 0.92 | 5425 | 5000 | 1000 | 5100 | 4000 |
| BZD0.5 | 0.5t | 4/1 ; 8 ; 8/0.8 | ||||||
| BZD1 | 1t | 8/2 ; 8 ; 8/0.8 | 0.76 | 5500 | ||||
| BZD2 | 2t | 4/1 ; 8 ; 8/0.8 | 0.76 ; 0.59 ; 0.51 | 3765;5565;6525 | 3300;5000;6000 | 1300;1300;1500 | 4350;5400;4660 | 3000;4000;3500 |
| BZD3 | 3t | 8 ; 8/0.8 | 0.51 | 5560 | 5000 | 1500 | 3150 | 3500 |
| BZD5 | 5t | 4680 | 4000 | 1800 | 4770 | 3000 | ||
Packing And Delivery:
Company Profile:
FAQ & Contact us:
1Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams.
You are also warmly welcomed to our factory to make the inspections.
Meanwhile, also support live factory view & crane inspection.
2Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.
3Q: What's your warranty period?
A: 18 months for cranes accepted.
4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.And this service is recommended by clients' requirements.
5Q: What kinds of products do you have?
A: Various types of industrial cranes (notably custom designs); Overhead cranes; Gantry cranes, Jib cranes, Wire Rope Hoists; Electric winches, and more. Additionally, our product range can be tailored to meet specific customer needs.
6Q: Could we buy spare parts in local once they are out of work?
Our primary electrical components come from a well-known global brand, widely available worldwide. However, should you encounter any issues, we can ship them to you via express courier services like DHL, UPS, FEDEX, or Aramex, among others.
7Q: Do you provide lift tools or crane parts?
Absolutely, we offer a wide range of complementary components including hoists, motors, wheels, hanging beams, travel beams, enclosed bus bars, lift clamps, grabs, magnets, pulley assemblies, C hooks, wire ropes, drums, and more.
