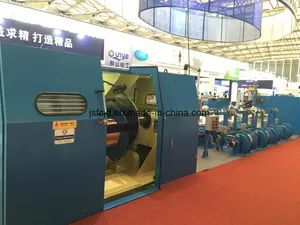

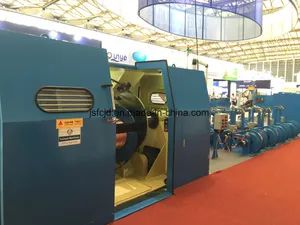

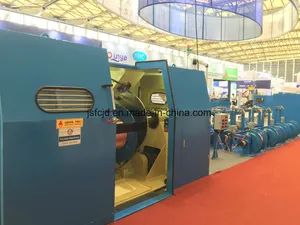

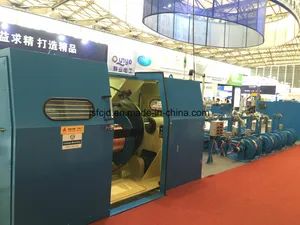

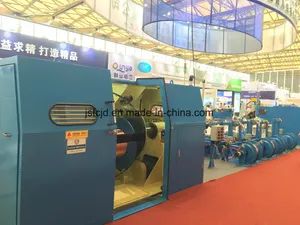

Electrical Copper Cable Wire 0.05-2.52mm Winding Making Machine, Conductor Wire Twisting Extrusion Extruder Drawing Machine
Piece
Negotiable
Product information
High-quality Electrical Copper Cable Wire 0.05-2.52mm Winding Making Machine, Conductor Wire Twisting Extrusion Extruder Drawing Machine supplied by Kunshan Fuchuan Electrical and Mechanical Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Single Wire Diameter:
0.12mm-0.52mm
Stranding Section Area:
0.30mm2-4.0mm2
Core Wire Single Wire Dia:
0.5mm-2.0mm
Core Wire Stranding Outer Dia:
1.0mm-4.0mm
Production Capacity:
100sets/Month
Pitch:
11.6-100mm(34zones)
Warranty:
24 Months
Max Rotating Speed:
2400rpm(4800twist)
Specifications
Single Wire Diameter:
0.12mm-0.52mm
Stranding Section Area:
0.30mm2-4.0mm2
Core Wire Single Wire Dia:
0.5mm-2.0mm
Core Wire Stranding Outer Dia:
1.0mm-4.0mm
Production Capacity:
100sets/Month
Pitch:
11.6-100mm(34zones)
Warranty:
24 Months
Max Rotating Speed:
2400rpm(4800twist)
HS Code:
8479811000
Mould Life:
>1,000,000 Shots
Automatic Grade:
Automatic
Usage:
Bare Copper Wire, Tinned Wire, Silver Jacketd Wire
Origin:
China
Brake Mode:
Electromagnetic Break
Trademark:
FC
Model NO.:
FC-300B/400B/450B/500B/650B/800B1000B/1250B
Trade Term:
FOB, CIF, CFR
Type:
High-speed Stranding Machine
Certification:
ISO, CE
Specification:
ISO9001
Payment Term:
LC, T/T
Protection:
Machine Will Automaticlly Brake When Wire Inside
Transport Package:
Simply Packed
Color:
Sky Blue or Apple Green
Port Of Loading:
shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-06-21
Annual Revenue Amount:
Not specified
Numbers Of Employees:
112
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
shanghai
Certificates:
cerfificates06, certificate credits, certificate of safety production, Certificate-1, Certificate-2, Certificate-3, Certificate-4, Certificate-5, Certificate-6, company certificate, corporation certificate, Corporation Quality, ISO Certification, tax certification
Product descriptions from the supplier

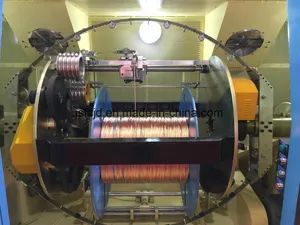

B type high speed twisting machine and double twist machine
1. Characters:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.
2. Usage:
It is applied to the twisting of above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.
| Equipment model | FC-500B | FC-650B | FC-650C | FC-800B | |||||||
| Twisting usage | Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires. | ||||||||||
| Single wire diaφ(mm) | 0.08-0.45 | 0.15-1.04 | 0.37-1.7 | 0.37-1.7 | |||||||
| Stranding section area | 0.05-2.5 | 0.35-6.0 | 1.0-16 | 1.0-16 | |||||||
| Core wire single wire diaφ(mm) | 0.5-1.5 | 0.5-3.0 | 1.0-4.0 | 1.0-4.0 | |||||||
| Core wire stranding outer dia(mm) | 1.0-3.0 | 1.0-6.0 | 2.0-8.0 | 2.0-8.0 | |||||||
| Pitch(mm) | 6.3-52.3 | 11.6-100 | 20-160 | 23-147 | |||||||
| Direction of lay | Optional for right or left | ||||||||||
| Take up bobbin(mm) | Dia500 | Dia630 | Dia630 | Dia800 | |||||||
| Max rotating speed | 3000rpm(6000TPM) | 2000rpm(4000TPM) | 1600rpm(3200TPM) | 1600rpm(3200TPM) | |||||||
| Main motor power | 5.5kw | 7.5kw | 11kw | 15kw | |||||||
| Inverter power | 5.5kw | 7.5kw | 11kw | 15kw | |||||||
| Tension control method | Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin | ||||||||||
| Magnetic powder clutch | 1.2kgf | 5kgf | 10kgf | 10kgf | |||||||
| Protection | 1.wire inside and outside is broken,automatically brake/stop 2.The preset length is arrived |
||||||||||
| Brake mode | Electromagnetic brake | ||||||||||
| Traversing method | Rolling wire with ring drive units,winding pitch and breadth are adjustable | ||||||||||
| Operation mode | Touchscreen operation | ||||||||||
| Dimension(mm) | 2680L*1250W*1500H | 3300L*1550W*1800H | 3400L*1600W*1800H | 4600L*2000W*2000H | |||||||
For more details, please feel free to contact me.
