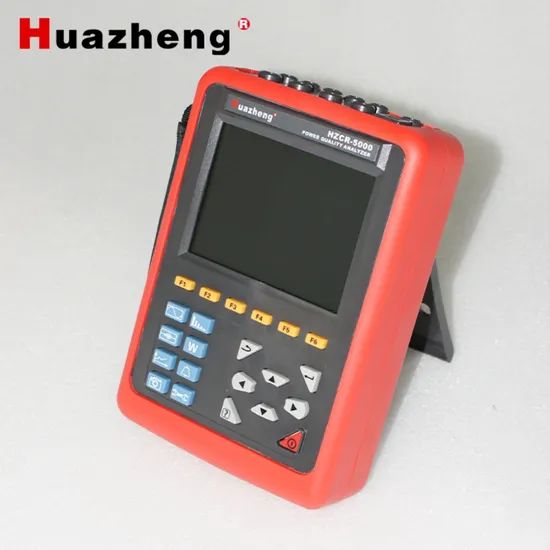

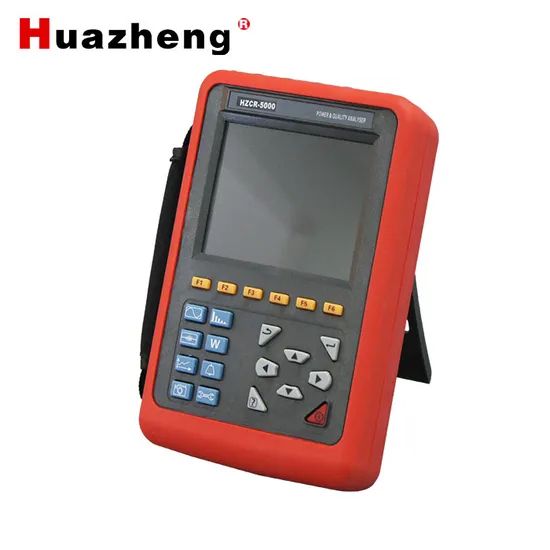

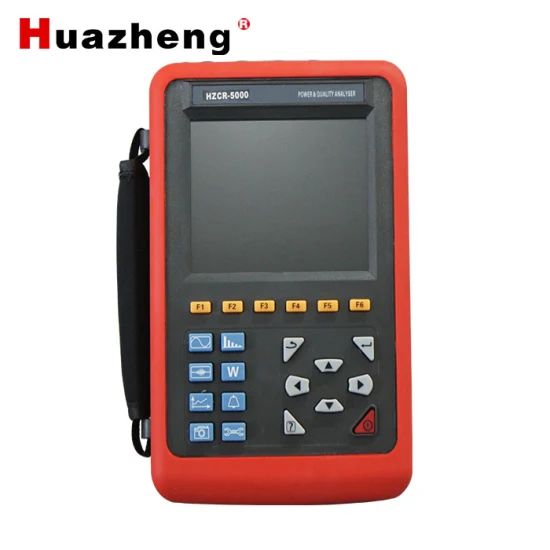

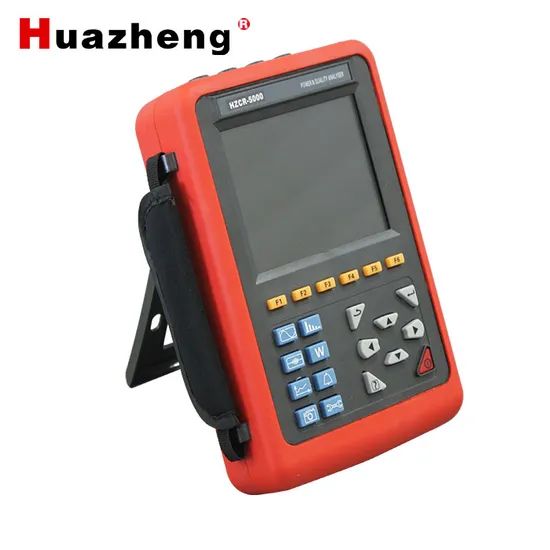

Electrical Measuring Tools Digital 3 Phase Power Analyzer Meter
1 Piece
$2,0481 Piece
$1,300Product information
High-quality Electrical Measuring Tools Digital 3 Phase Power Analyzer Meter supplied by Huazheng Electric Manufacturing (Baoding) Co., Ltd.. Bulk wholesale pricing ranges from $1,300 to $2,048 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Current:
(Clamp Type) 5A/25A 100A/500A
Weight:
0-100Kg
Voltage:
0-400V(Auto)
Accuracy Class:
0.2
Package Gross Weight:
10.000kg
Production Capacity:
100 PCS/Month
Feature:
3 Phase Handheld
Type:
3 Phase Power Analyzer Meter
Specifications
Current:
(Clamp Type) 5A/25A 100A/500A
Weight:
0-100Kg
Voltage:
0-400V(Auto)
Accuracy Class:
0.2
Package Gross Weight:
10.000kg
Production Capacity:
100 PCS/Month
Feature:
3 Phase Handheld
Type:
3 Phase Power Analyzer Meter
Size:
320mmx240mmx130mm
Package Size:
44.00cm * 34.00cm * 32.00cm
Frequency Testing Range:
45~55Hz
HS Code:
9028309000
Mass Scope Of Workpiece:
<900kg
Power Source:
AC220V
Specification:
CE/ISO/IEC
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Control:
Computer Control
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Display:
Digital
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
HZCR-5000
Origin:
Hebei, China
Trademark:
HuaZheng
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Name:
Power Quality Analyzer
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port
Transport Package:
Wooden Box with Foam Inside
Harmonic Voltage Measurement:
≤0.1%
Three Phase Voltage Unbalance:
≤0.2%
Fundamental Voltage Error:
≤0.5%F.S
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-03-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
24
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
CE, ISO9001:2015
Product descriptions from the supplier
electrical measuring tools digital 3 phase power analyzer meter
In the current power applications, more and more large power equipment, power grid fault have become more and more complex, with development of the industry, it put forward high request more and more to quality that electric energy. We provide this power quality analyzer for that, which you can troubleshoot of complex power system more quickly and accurate, and monitoring and maintenance of power quality parameters more comprehensive and systemic.
HZCR5000Power quality analyser adopt DSP + ARM double processor architecture, DSP is use for data collection and the processing of algorithm, the ARM is use for the communication protocol and the man-machine interface processing; Analog signal acquisition is by 2 pieces AD7655 of ADI company. Resolution for AD7655 is 16 bit and it is 4 channel synchronous sampling. The highest sampling rate can reach 1 MSPS, to ensure the accuracy of the channel and the information integrity, and wouldn't miss any transient changes in the grid, can more accurate to detect the transient waveform rising and dropping drastically, and waveform instantaneous interrupt; DSP working frequency is over 200 MHZ, to be able to timely monitoring of the power grid and dynamically adjust the sampling frequency to realize synchronization of power frequency and sampling frequency; Using a 5.6 -inch LCD color screen display, a resolution of 640 dots x 480 dots, with different display color difference between the parameters of phase, waveform, vector diagram, harmonic ratio, the user can be more efficient and more intuitive understand the state of power grid parameters. Built-in flash memory can store 60 group of screenshots at the same time, 150 groups of capture transient voltage/current waveform figure, and 12800 groups of alarm list. Starting current detection model can continuously capture starting current waveform for 100 s. Built-in 2G memory card to store the trend curve record, simultaneous recording20 parameters (can choose according to need)collect data for once every five seconds, trend curve records can be stored for 300 days.
Power Quality Analyser also named: IntelligentThreePhase Power Quality Analyser, Multifunctional Power Quality Analyser, which simultaneous with the functions of harmonic analyser, phase volt-ampere meter, electric parameter tester. It apply to electricity industry, petrochemical, metallurgy, railway, mining enterprises, scientific research institution, metrological department.Especially suitable for comprehensive analysis and diagnosis on all the voltage, current, power, power, harmonic, phase electric parameters.
★ Waveform real-time display (4 channels voltage/4 channels current).
★ True RMS values of voltages and currents.
★ The DC components of voltages.
★ Peak current and voltage values.
★ Minimum and maximum half-cycle RMS current and voltage values.
★ Phasor diagram display.
★ Measurement of each harmonic up to order 50.
★ Bar charts show harmonic ratios of current and voltage of each phase.
★ Total harmonic distortion (THD).
★ Active, reactive, apparent power, by phase and cumulative.
★ Active, reactive, apparent energy, by phase and cumulative.
★ Transformer K factor.
★ Power factors (PF) and displacement factors (DPF or COSΦ).
★ Short-term voltage flicker (PST).
★ Three phase unbalance(current and voltage).
IV.Photo
HuaZheng Electric Manufacturing (Baoding) Co.,Ltdis the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
Customer Visit
Exhibition
Similar Recommendation
I.Introduction
HZCR5000Power Quality Analyzeris a comprehensive test instrument carefully developed by our company and specially designed for field test of three phases, multi-functional and intelligent, concise man-machine operation. It is easy to use, large LCD screen display, high resolution, interface in both Chinese and English,shock-proofshell structure and so on. Can simultaneously measure the 4-channel current (ABC three phase and neutral wire current), 4-channel voltage (ABC three-phase voltage and neutral line voltage to ground), the peak value of current voltage, maximum/minimum value over a period, three-phase imbalance factor, short-time voltage flicker, transformer K factor, active power, reactive power, apparent power, power factor and displacement power factor, active power, reactive power, apparent power, total harmonic distortion and harmonic, etc; Display real-time waveform, harmonic ratio bar charts of current voltage; Dynamically capture instantaneous change of voltage current, monitoring starting current, monitoring the power parameters and generate the alarm list, generate the trend chart for a long time record test data.In the current power applications, more and more large power equipment, power grid fault have become more and more complex, with development of the industry, it put forward high request more and more to quality that electric energy. We provide this power quality analyzer for that, which you can troubleshoot of complex power system more quickly and accurate, and monitoring and maintenance of power quality parameters more comprehensive and systemic.
HZCR5000Power quality analyser adopt DSP + ARM double processor architecture, DSP is use for data collection and the processing of algorithm, the ARM is use for the communication protocol and the man-machine interface processing; Analog signal acquisition is by 2 pieces AD7655 of ADI company. Resolution for AD7655 is 16 bit and it is 4 channel synchronous sampling. The highest sampling rate can reach 1 MSPS, to ensure the accuracy of the channel and the information integrity, and wouldn't miss any transient changes in the grid, can more accurate to detect the transient waveform rising and dropping drastically, and waveform instantaneous interrupt; DSP working frequency is over 200 MHZ, to be able to timely monitoring of the power grid and dynamically adjust the sampling frequency to realize synchronization of power frequency and sampling frequency; Using a 5.6 -inch LCD color screen display, a resolution of 640 dots x 480 dots, with different display color difference between the parameters of phase, waveform, vector diagram, harmonic ratio, the user can be more efficient and more intuitive understand the state of power grid parameters. Built-in flash memory can store 60 group of screenshots at the same time, 150 groups of capture transient voltage/current waveform figure, and 12800 groups of alarm list. Starting current detection model can continuously capture starting current waveform for 100 s. Built-in 2G memory card to store the trend curve record, simultaneous recording20 parameters (can choose according to need)collect data for once every five seconds, trend curve records can be stored for 300 days.
Power Quality Analyser also named: IntelligentThreePhase Power Quality Analyser, Multifunctional Power Quality Analyser, which simultaneous with the functions of harmonic analyser, phase volt-ampere meter, electric parameter tester. It apply to electricity industry, petrochemical, metallurgy, railway, mining enterprises, scientific research institution, metrological department.Especially suitable for comprehensive analysis and diagnosis on all the voltage, current, power, power, harmonic, phase electric parameters.
II. Function
★ Waveform real-time display (4 channels voltage/4 channels current).
★ True RMS values of voltages and currents.
★ The DC components of voltages.
★ Peak current and voltage values.
★ Minimum and maximum half-cycle RMS current and voltage values.
★ Phasor diagram display.
★ Measurement of each harmonic up to order 50.
★ Bar charts show harmonic ratios of current and voltage of each phase.
★ Total harmonic distortion (THD).
★ Active, reactive, apparent power, by phase and cumulative.
★ Active, reactive, apparent energy, by phase and cumulative.
★ Transformer K factor.
★ Power factors (PF) and displacement factors (DPF or COSΦ).
★ Short-term voltage flicker (PST).
★ Three phase unbalance(current and voltage).
III. Technicalspecification
Basecondition andworkingcondition
| Influence factor | Test item | Base condition | Working condition |
| Environment temperature | All parameters | (23±2)°C | -10°C~ 40°C |
| Relative humidity | All parameters | 40%~60% | <80% |
| Phase-to-neutral voltage | All parameters | (100±1%)V | 1.0V~ 1000V |
| Phase-to-phase voltage | True RMS phase-to-phase voltage | (200±1%)V | 1.0V~ 2000V |
| Current | True RMS current | (5±1%)A | 10mA~ 1000A |
| Network frequency | All parameters | 50Hz±0.1Hz | 40Hz~70Hz |
| Phase shift | Active power and active energy | Cosφ=1 | Cosφ: 0.2~ 1.0 |
| Reactive power and reactive energy | Sinφ=1 | Sinφ: 0.2~ 1.0 | |
| Harmonic | All parameters | <0.1% | 0.0%~ 100% |
| Voltage unbalance | All parameters | <10% | 0.0%~ 100% |
| Working voltage of device | All parameters | DC9.8V±0.1V | DC9.5V~ 10.5V |
| External electric field, magnetic field |
All parameters | Should be avoided | |
| Test position | Measured related parameters of current | Tested wire at the center of clamp. | |
Generalspecification
| Power supply | Rechargeable lithium-ion battery pack 9.6V, backup charger. |
| Battery indicator | Battery symbol shows dump energy.When the voltage is too low, automatic shutdown after the 1 minute. |
| Power consumption | Current consumption of normal test 490 mA, continuous working for 8 hours. |
| Display mode | LCD color screen, 640dots×480dots, 5.6 inches, display domain: 116mm×88mm. |

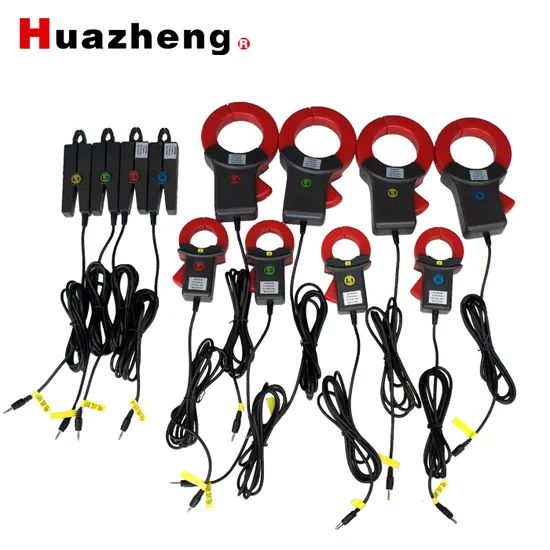

| Size of clamp | 10Asmall sharpcurrent clamp: 7.5mm×13mm; 100A circle current clamp: 35mm×40mm; 1000Acircle current clamp: 68mm×68mm. |
| Instrument dimensions | L×W×H: 240mm×170mm×68 mm. |

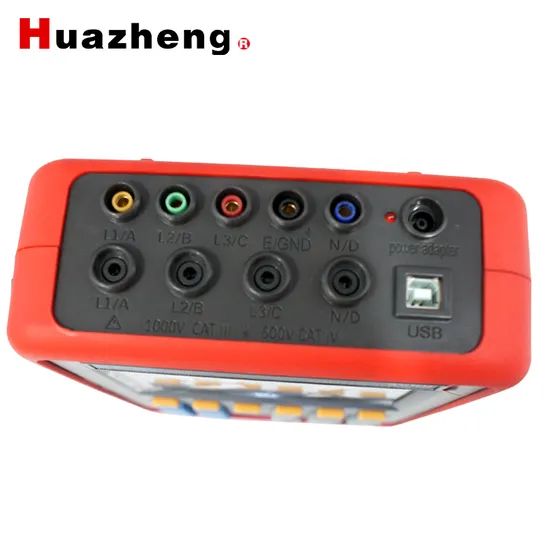

| Number of channels | 4U/4I. |
| Phase-to phase voltage | 1.0V~2000V. |
| Phase-to-neutral voltage | 1.0V~1000V. |
| Current | 10Acurrent clamp: 10mA~10.0A; 100Acurrent clamp: 0.10A~100A; 1000Acurrent clamp: 1.0A~1000A; Optional current transformer: instrument input current 1mA~500mA. |
| Frequency | 40Hz~70Hz. |
| Parameters of electricity | W, VA, Var, PF, DPF, cosφ, tanφ. |
| Energy parameters | Wh, Varh, Vah. |
| Harmonic | Order 0~50. |
| Total harmonic distortion | Order 0~50, each phase. |
| Expert mode | Yes. |
| Number of Transient records | 150 sets. |
| Voltage flicker | Yes. |
| Starting current mode | Yes, 100 seconds. |
| 3 phases unbalance | Yes. |
| Record | 300 days(simultaneous recording 20 parameters, record one point every 5 seconds). |
| Min/Max recorded value | Measurement ofmaximum and minimum values over a period of time. |
| Alarm | 40 different types of parameter selections, 12,800 sets alarm logs. |
| Peak | Yes. |
| Phasor diagram display | Automatically. |
| Capacity of snapshots | 60. |
| Menu language | English/Chinese. |
| Communication | USB. |
| Automatic switching off | When an alarm campaign is initiated or a search for transients, an inrush current capture, or a trend recording is pending or in progress, the device is not automaticswitching off. |
| In other test mode, 15 minutes without keystrokes, automatic shutdown after prompt 1 minute. | |
| Backlight function | Yes, suitable for use at night and dark place. |
| Weight | Host: 1.6kg (with battery). |
| 10Asmall sharpcurrent clamp: 170g×4; | |
| 100A circle current clamp: 190g×4; | |
| 1000Acircle current clamp: 510g×4; | |
| Test wires and power adapter: 900g; | |
| Total weight: about7.8kg (with packaging). | |
| Length of voltage test wire | 3m. |
| Length of current sensor wire | 2m. |
| Working temperatureand humidity | -10°C~40°C; below 80%Rh. |
| Storage temperature and humidity | -10°C~60°C; below 70%Rh. |
| Input impedance | Input impedance of test voltage: 1MΩ. |
| Withstand voltage | Withstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell. |
| Insulation | Between instrument wiring and shell ≥10MΩ. |
| Structure | Double insulation, with insulation vibration-proof sheath. |
| Safely rules | IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2. |
