Energy Saving 5HP Water Cooled Cabinet Air Conditioner 60Hz Option Condition New Power Type AC Trademark ESACIR Certification CE
Piece
Negotiable
Product information
High-quality Energy Saving 5HP Water Cooled Cabinet Air Conditioner 60Hz Option Condition New Power Type AC Trademark ESACIR Certification CE supplied by Shenzhen Eurostars Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
30~100units/Month
Indoor Machine Noise:
36-49dB
HS Code:
841861209
Power Type:
AC
Certification:
CE
Specification:
CE Approval
Usage:
Commerical and Industrial Area
Cooling/Heating:
Cooling/Heating
Specifications
Production Capacity:
30~100units/Month
Indoor Machine Noise:
36-49dB
HS Code:
841861209
Power Type:
AC
Certification:
CE
Specification:
CE Approval
Usage:
Commerical and Industrial Area
Cooling/Heating:
Cooling/Heating
Compressor Brand:
Danfoss/Copeland/SANYO/Dakin
Controller Type:
Ddc/PLC
Trademark:
ESACIR
Model NO.:
ESSW-05SC
Power Source:
Electrical
Trade Term:
FOB, CIF, CFR
Evaporator:
Finned Tube Type
Structure:
Galvanized Steel Sheet/PU Panel
Origin:
Guangdong, China
Payment Term:
LC, T/T
Safety Protection:
Multi Protections
Condition:
New
Electrical Heating:
Option
60Hz:
Option
Refrigerant:
R22, R407c, R410A, R134A
Compressor Type:
Scroll
Condenser:
Shell and Tube Type
Port Of Loading:
Shenzhen Port
Transport Package:
Standard Export Packing, Such as Wooden Case.
Cooling Mode:
Water Cooling
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-06-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
45
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shenzhen Port
Certificates:
CE
Product descriptions from the supplier
1. Eurostars Water Cooling Packaged Air Conditioner/Air Conditioning Features
1) Structure specifically designed and built to guarantee total resistance to atmospheric agents and corrosion.
△ Base made of galvanized steel sheet,ovenpainted with polyurethane powders. Paneling made of galvanized
steel,externally coated with with polyurethane powders.
△ Base made of hot dip coating box iron,frame made of anodized aluminum profiles, Paneling made of double-layer
steel plate,sandwiched with polyurethane insulation. 25mm/ 50mm/ 75mm Double Skin Construction; Aluminum Framework; Painted Steel, GI, SS Panels; PU Foam Insulation 43-48kg/m3;
All possible areas of condensation shall be insulated by PE,Polyethylene.
2) Modular Sections Configuration is option;
3) Cold Bridge Free Design;
4) Pre-Filter, Bag Filter(option), HEPA Filter(option);
5) Side Sliding Filter with Tracks;
6) Multi-coils Design(option);
7) Double Seal Inspection Doors;
8) Quiet Belt Drive Centrifugal Fans or Hygiene Plug Fan;
9) Option for PLC, DDC control;
10) C-Channel Base;
11) Option for VSD,heat recovery wheel, EP, Chemical filter, Plasma Sterilizer, AK.
2.Eurostars Water Cooling Packaged Air Conditioner/Air Conditioning Application
EUROSTARS unitary packaged air conditioners is used for purpose of air conditioning and ventilation for shops, banks, laboratories, computing centers, hotels, etc. places. Because of the package type air conditioner , it is provided ease of installation and maintenance. It has been the preferred device with the quiet and safe operation.
3.Eurostars Packaged Air Conditioning Technical Data and Photo
4. Eurostars Packaged Air Conditioning Product Range or Series
-Ordinary floor standing type(supply air from side or supply air from top)
-Ceiling ducted type(ceiling suspended ducted)
-Purified type
-Constant temperature and humidity type(Precision air conditioner)
-Purified-constant temperature and humidity type
5. Components- Packaged Air Conditioning
FRAME
--It is painted galvanized sheet steel and has very solid skeleton. Skeleton can be opened easily with double-walled, glass wool insulation fitted caps. It is painted with Stained electrostatic powder in order to be protected against foreign influences and It has a decorative appearance.
--Base made of hot dip coating box iron, frame made of anodized aluminum profiles, Paneling made of double-layer
steel plate, sandwiched with polyurethane insulation.
COMPRESSOR
R407C(R410A,R134A or R22) gas hermetic scroll has compressors cooling with a very quiet and safe working. It is used for 1 , 2 or more compressors according to the capacity value. There are inlet - outlet valves and crankcase heater on the compressor.
EVAPORATOR BATTERY
Direct expansion of copper pipe and aluminum fins, the surface has a high heat transmission and to provide the necessary capacity.
EVAPORATOR FAN-MOTOR GRUP
Quiet and low-speed running with a galvanized body and the rotor used in double inlet(DIDW) centrifugal belt-pulley-driven fan. Fan pressure can be adjusted .
HEATING MIXER (OPTIONAL)
Copper tubes are produced in aluminum fins. As a heater, hot water and steam can be used. In addition to battery electric resistance and heat-pump system also be preferred.
AIR FILTER
It is located at the front or back. It is washable same as EU3-quality type and easily demountable. It allows to give clean air environment. It is a special filter systems for clean room applications.

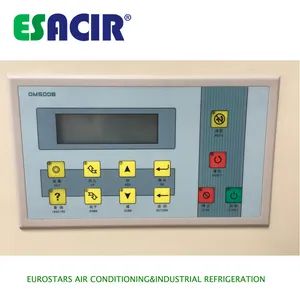

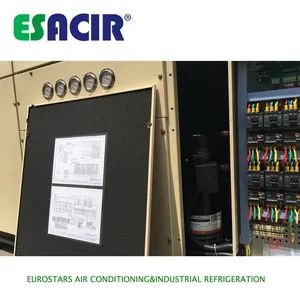

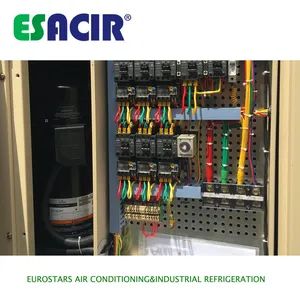

ELECTRICAL PANEL
Electrical panels are composed of element contactors , thermals, auto fuses, switches, signal lamps and equipped with power and control circuit. The control system is with a standard digital thermostat. Optionally ,RS 485 modem, the microprocessor control system can be selected with the building automation connectivity.
COOLING CIRCUIT ELEMENTS
DRIER : Moisture in the refrigerant circuit is Humidity is taken by cooler.
SIGHT GLASS : Fluid can be seen from the pipe.(option)
EXPANSION VAVE : Sets the cooling capacity of the evaporator
SOLENOID VAVE : Room thermostat admini 's notification system provides regular work by cutting off the path of refrigerant.
LOW HIGH PRESSURE PROSESTAD : It ensures that the suction and discharge pressures within certain limits. Prostatic control is available for winter work.
DIFFERENTIAL PRESSURE SWITCH : The warning lamps get on if the belts break or filter blockage(option)
FREEZE THERMOSTAT : It protects to compressor against low evaporation temperature of the system which may occur(option)
4 WAY SOLENOID VALVE : It is used for Heat-Pump applications.
AUTOMATIC CONTROL ELEMENTS : It is placed as an option.
With Temperature and humidity panels can be made precision air-conditioning.
6.Why Choose Us?
EUROSTARS Advantages:
1) The Proof of Quality: Now we have customers in different countries and places, such as Mexico, Australia, New Zealand, Singapore, Argentina, Middle- East, Africa…
2) The Guarantee of Quality: Reasonable design, Professional technicians, Stable production workers, Full-scale
Equipments, Strict QA & QC system…
3) Custom-made Design: We supply our design drawing according to customer practical situation
4) Technique Support:
Walk in cold room: we supply our diagrammatic drawing, feel easier for installation.
Cold storage warehouse: We have professional engineers who can go aboard to supply technology support and direction, until turn key for our customers.
5)International Trade Operation: We have concentrated on international trade of cold storage room line for many years, accumulated various experience from different customers of different countries. So we can update our operation in time according to our customers and new rules. It is helpful to clear custom and save cost and time for our customers.
7.FAQ
Q:What is packaged air conditioner?
A: A packaged air conditioner is a cooling system that has all the components covered inside one unit. Similar to a central system, the package system also connects to ductwork to distribute the chilled air to every room in the property.
Q: What information do you need to provide in order to get a quotation?
A: Generally, we need to know following items:
--Cooling Capacity in KW or RT or Btu
--Air cooling mode or water cooling mode
- -Local ambient temperature conditions
--Application
--If there are temperature and humidity requires??
--If there is filer class requires??
--Electrical power supply, such as 380V-3Phase-50HZ or 440V-3Phase-60HZ or others.
--Refrigerant:R22,R407C,R410A or R134A
If can not give full answers for above items, we can guide you through emails.
8.Customer Visit Us
9.Packaged Air Conditioning Delivery or Container Loading
10.Installation Instruction ,Installation Diagram or Installation Photo, Project Photos
1)Preparations
--Check construction documents related with installation; and read the installation and maintenance manual in full;
--Check if the delivered chiller is compliant with design requirements;
--Check whether all accessories are complete for field installation.
2)Limited matters
--The product should not be installed outdoor.
--The product should not be directly installed in an office space where the noise is strictly controlled; noise-proof measures should be taken.
--The AC should not be exposed under direct sunlight, or placed in a moist, corrosive, and explosive environment.
--The AC should be installed in a ventilated environment, to protect its performance and normal running.
--If the product or cooling tower is installed in low temperature environment, the company shall not be liable for any antifreeze protection.
3)Installation Location
--Check whether enough space is reserved for product maintenance is enough or not, please contact related engineers for discussion when problem is found.
--The product must be installed on concrete foundation that can bear the product operating weight, check and insure --The product foundation with sufficient strength, rigidity, levelness and stability, can not be sinking or deflecting.
Please carefully check if the actual size of the product is matched with the reserved foot hole size on foundation.
4)Water and power supply
--The installation place of product should be provided with water source available for operating requirements.
When the product is supplied with industrial water or well water, river water and other water sources, which contains a lot of HCO3-, HSO4- and other acidic salt, and may cause condenser and pipes scaling, and affect the refrigeration effects during seriously running, the water system should be designed as a circulatory system, and the water should be softened. The following water quality characteristics are applicable to the condenser hereto (Table ):
Note: in the table, "+" indicates that over-standard values may result in corrosion and scaling.
--The installation site should be provide with power that meets the requirements on operation
Except above information, users can refer our manual for more information, such as installation steps, commissioning and operating, maintenance.
1) Structure specifically designed and built to guarantee total resistance to atmospheric agents and corrosion.
△ Base made of galvanized steel sheet,ovenpainted with polyurethane powders. Paneling made of galvanized
steel,externally coated with with polyurethane powders.
△ Base made of hot dip coating box iron,frame made of anodized aluminum profiles, Paneling made of double-layer
steel plate,sandwiched with polyurethane insulation. 25mm/ 50mm/ 75mm Double Skin Construction; Aluminum Framework; Painted Steel, GI, SS Panels; PU Foam Insulation 43-48kg/m3;
All possible areas of condensation shall be insulated by PE,Polyethylene.
2) Modular Sections Configuration is option;
3) Cold Bridge Free Design;
4) Pre-Filter, Bag Filter(option), HEPA Filter(option);
5) Side Sliding Filter with Tracks;
6) Multi-coils Design(option);
7) Double Seal Inspection Doors;
8) Quiet Belt Drive Centrifugal Fans or Hygiene Plug Fan;
9) Option for PLC, DDC control;
10) C-Channel Base;
11) Option for VSD,heat recovery wheel, EP, Chemical filter, Plasma Sterilizer, AK.
2.Eurostars Water Cooling Packaged Air Conditioner/Air Conditioning Application
EUROSTARS unitary packaged air conditioners is used for purpose of air conditioning and ventilation for shops, banks, laboratories, computing centers, hotels, etc. places. Because of the package type air conditioner , it is provided ease of installation and maintenance. It has been the preferred device with the quiet and safe operation.
3.Eurostars Packaged Air Conditioning Technical Data and Photo
| Model ESSW- | 03SC | 05SC | 08DC | 10DC | 12SC | 15TC | 20DC | 25DC | 30TC | 36TC | 40QC | 50QC | 60FC | ||
| Technical Parameters |
Cooling Capacity | KW | 9.2 | 16.2 | 25.4 | 32.4 | 38.7 | 48.6 | 66.2 | 77.4 | 99.3 | 116.1 | 132.4 | 154.8 | 193.5 |
| TR | 2.6 | 4.6 | 7.2 | 9.2 | 11.0 | 13.8 | 18.8 | 22.0 | 28.2 | 33.0 | 37.7 | 44.0 | 55.0 | ||
| Rated Air Flow | m3/h | 1500 | 2500 | 4000 | 5100 | 6200 | 7800 | 10200 | 12600 | 15300 | 18000 | 20400 | 25500 | 30000 | |
| External Static Pressure | Pa | 100 | 100 | 150 | 150 | 150 | 150 | 200 | 250 | 300 | 300 | 350 | 400 | 400 | |
| Power Supply | 380/400/415V-3PH-50Hz | ||||||||||||||
| Running Power | KW | 2.24 | 3.58 | 5.93 | 7.36 | 9.51 | 10.89 | 15.34 | 19.02 | 23.71 | 28.03 | 31.78 | 39.54 | 51.05 | |
| Noise | dB(A) | ≤60 | ≤62 | ≤62 | ≤65 | ≤66 | ≤67 | ≤68 | ≤70 | ≤70 | ≤73 | ≤74 | ≤76 | ≤78 | |
4. Eurostars Packaged Air Conditioning Product Range or Series
-Ordinary floor standing type(supply air from side or supply air from top)
-Ceiling ducted type(ceiling suspended ducted)
-Purified type
-Constant temperature and humidity type(Precision air conditioner)
-Purified-constant temperature and humidity type
5. Components- Packaged Air Conditioning
FRAME
--It is painted galvanized sheet steel and has very solid skeleton. Skeleton can be opened easily with double-walled, glass wool insulation fitted caps. It is painted with Stained electrostatic powder in order to be protected against foreign influences and It has a decorative appearance.
--Base made of hot dip coating box iron, frame made of anodized aluminum profiles, Paneling made of double-layer
steel plate, sandwiched with polyurethane insulation.
COMPRESSOR
R407C(R410A,R134A or R22) gas hermetic scroll has compressors cooling with a very quiet and safe working. It is used for 1 , 2 or more compressors according to the capacity value. There are inlet - outlet valves and crankcase heater on the compressor.
EVAPORATOR BATTERY
Direct expansion of copper pipe and aluminum fins, the surface has a high heat transmission and to provide the necessary capacity.
EVAPORATOR FAN-MOTOR GRUP
Quiet and low-speed running with a galvanized body and the rotor used in double inlet(DIDW) centrifugal belt-pulley-driven fan. Fan pressure can be adjusted .
HEATING MIXER (OPTIONAL)
Copper tubes are produced in aluminum fins. As a heater, hot water and steam can be used. In addition to battery electric resistance and heat-pump system also be preferred.
AIR FILTER
It is located at the front or back. It is washable same as EU3-quality type and easily demountable. It allows to give clean air environment. It is a special filter systems for clean room applications.
ELECTRICAL PANEL
Electrical panels are composed of element contactors , thermals, auto fuses, switches, signal lamps and equipped with power and control circuit. The control system is with a standard digital thermostat. Optionally ,RS 485 modem, the microprocessor control system can be selected with the building automation connectivity.
COOLING CIRCUIT ELEMENTS
DRIER : Moisture in the refrigerant circuit is Humidity is taken by cooler.
SIGHT GLASS : Fluid can be seen from the pipe.(option)
EXPANSION VAVE : Sets the cooling capacity of the evaporator
SOLENOID VAVE : Room thermostat admini 's notification system provides regular work by cutting off the path of refrigerant.
LOW HIGH PRESSURE PROSESTAD : It ensures that the suction and discharge pressures within certain limits. Prostatic control is available for winter work.
DIFFERENTIAL PRESSURE SWITCH : The warning lamps get on if the belts break or filter blockage(option)
FREEZE THERMOSTAT : It protects to compressor against low evaporation temperature of the system which may occur(option)
4 WAY SOLENOID VALVE : It is used for Heat-Pump applications.
AUTOMATIC CONTROL ELEMENTS : It is placed as an option.
With Temperature and humidity panels can be made precision air-conditioning.
6.Why Choose Us?
EUROSTARS Advantages:
1) The Proof of Quality: Now we have customers in different countries and places, such as Mexico, Australia, New Zealand, Singapore, Argentina, Middle- East, Africa…
2) The Guarantee of Quality: Reasonable design, Professional technicians, Stable production workers, Full-scale
Equipments, Strict QA & QC system…
3) Custom-made Design: We supply our design drawing according to customer practical situation
4) Technique Support:
Walk in cold room: we supply our diagrammatic drawing, feel easier for installation.
Cold storage warehouse: We have professional engineers who can go aboard to supply technology support and direction, until turn key for our customers.
5)International Trade Operation: We have concentrated on international trade of cold storage room line for many years, accumulated various experience from different customers of different countries. So we can update our operation in time according to our customers and new rules. It is helpful to clear custom and save cost and time for our customers.
7.FAQ
Q:What is packaged air conditioner?
A: A packaged air conditioner is a cooling system that has all the components covered inside one unit. Similar to a central system, the package system also connects to ductwork to distribute the chilled air to every room in the property.
Q: What information do you need to provide in order to get a quotation?
A: Generally, we need to know following items:
--Cooling Capacity in KW or RT or Btu
--Air cooling mode or water cooling mode
- -Local ambient temperature conditions
--Application
--If there are temperature and humidity requires??
--If there is filer class requires??
--Electrical power supply, such as 380V-3Phase-50HZ or 440V-3Phase-60HZ or others.
--Refrigerant:R22,R407C,R410A or R134A
If can not give full answers for above items, we can guide you through emails.
8.Customer Visit Us
9.Packaged Air Conditioning Delivery or Container Loading
10.Installation Instruction ,Installation Diagram or Installation Photo, Project Photos
1)Preparations
--Check construction documents related with installation; and read the installation and maintenance manual in full;
--Check if the delivered chiller is compliant with design requirements;
--Check whether all accessories are complete for field installation.
2)Limited matters
--The product should not be installed outdoor.
--The product should not be directly installed in an office space where the noise is strictly controlled; noise-proof measures should be taken.
--The AC should not be exposed under direct sunlight, or placed in a moist, corrosive, and explosive environment.
--The AC should be installed in a ventilated environment, to protect its performance and normal running.
--If the product or cooling tower is installed in low temperature environment, the company shall not be liable for any antifreeze protection.
3)Installation Location
--Check whether enough space is reserved for product maintenance is enough or not, please contact related engineers for discussion when problem is found.
--The product must be installed on concrete foundation that can bear the product operating weight, check and insure --The product foundation with sufficient strength, rigidity, levelness and stability, can not be sinking or deflecting.
Please carefully check if the actual size of the product is matched with the reserved foot hole size on foundation.
4)Water and power supply
--The installation place of product should be provided with water source available for operating requirements.
When the product is supplied with industrial water or well water, river water and other water sources, which contains a lot of HCO3-, HSO4- and other acidic salt, and may cause condenser and pipes scaling, and affect the refrigeration effects during seriously running, the water system should be designed as a circulatory system, and the water should be softened. The following water quality characteristics are applicable to the condenser hereto (Table ):
| Items |
Unit | Water circulating quality | Supplementary water quality standard | ||
| Standard values | Trend | ||||
| Corrosion | Scaling | ||||
| PH (25 ºC) | 6.5~8.0 | + | + | 6.0~8.0 | |
| Electrical conductivity (25 ºC) | μS/cm | <800 | + | + | <200 |
| Chloride ion Cl- | mg/L | <200 | + | <50 | |
| Sulfate ions SO42- | mg/L | <200 | + | <50 | |
| Acid consumption (PH4.8) | mg/L | <100 | + | <50 | |
| Full hardness (CaCO3) | mg/L | <200 | + | <50 | |
| Total iron (Fe) | mg/L | <1.0 | + | + | <0.3 |
| Sulfide ion S2- | mg/L | Undetectable | + | Undetectable | |
| Ammonium ion NH4 + | mg/L | <1.0 | + | <0.2 | |
| Silicon dioxide SiO2 | mg/L | <50 | + | <30 | |
Note: in the table, "+" indicates that over-standard values may result in corrosion and scaling.
--The installation site should be provide with power that meets the requirements on operation
Except above information, users can refer our manual for more information, such as installation steps, commissioning and operating, maintenance.
User Reviews
Write a review
File a complaint
Supplier Review
Summary by Vivian
TRUST STARS
3.0/5
0 Reviews
Company Verification
0/4
Profile Completeness
67%
Avg. Product Score
0/5
Responsiveness
0%
Certification
CE
Related searches
Frequently Asked Questions (FAQs)
How can I buy & import Solar Air Conditioner from China?
You can contact verified China supplier Shenzhen Eurostars Technology Co., Ltd. through platforms like Freshdi.com to purchase Energy Saving 5HP Water Cooled Cabinet Air Conditioner 60Hz Option Condition New Power Type AC Trademark ESACIR Certification CE. For direct inquiries, please contact Mr. Alex, the company’s representative. The supplier has a 3.0-star rating on Freshdi and has verified. You’ll receive product details, pricing, and shipping terms directly from supplier.
What are the payments and trade terms for Energy Saving 5HP Water Cooled Cabinet Air Conditioner 60Hz Option Condition New Power Type AC Trademark ESACIR Certification CE?
For Energy Saving 5HP Water Cooled Cabinet Air Conditioner 60Hz Option Condition New Power Type AC Trademark ESACIR Certification CE, Shenzhen Eurostars Technology Co., Ltd. accepts LC, T/T as the preferred payment method, the trade term is FOB, CIF, CFR, and shipments are typically arranged from port Shenzhen Port, ensuring secure and timely international delivery.
What is the current price of Energy Saving 5HP Water Cooled Cabinet Air Conditioner 60Hz Option Condition New Power Type AC Trademark ESACIR Certification CE?
The supplier Shenzhen Eurostars Technology Co., Ltd. offers Energy Saving 5HP Water Cooled Cabinet Air Conditioner 60Hz Option Condition New Power Type AC Trademark ESACIR Certification CE at negotiation.
What are the specifications of Energy Saving 5HP Water Cooled Cabinet Air Conditioner 60Hz Option Condition New Power Type AC Trademark ESACIR Certification CE from China?
Energy Saving 5HP Water Cooled Cabinet Air Conditioner 60Hz Option Condition New Power Type AC Trademark ESACIR Certification CE is sourced from China and meets international export standards. Key specifications include: Evaporator: Finned Tube Type, Compressor Type: Scroll, Certification: CE, Condition: New, Power Type: AC, HS Code: 841861209, Trade Term: FOB, CIF, CFR, Payment Term: LC, T/T
You are viewing details for Energy Saving 5HP Water Cooled Cabinet Air Conditioner 60Hz Option Condition New Power Type AC Trademark ESACIR Certification CE. The information provided here is either posted directly by the supplier, who is responsible for its accuracy, or collected by Freshdi AI from publicly available sources. Freshdi strives to make product information as useful and reliable as possible, but we do not guarantee complete accuracy. If you notice any incorrect or misleading details, please use the Report Product option so our team can review and address it quickly.
Negotiable
Min. order: Negotiable
Mr. Alex
Year Established: 2013-06-03
Visit Store
