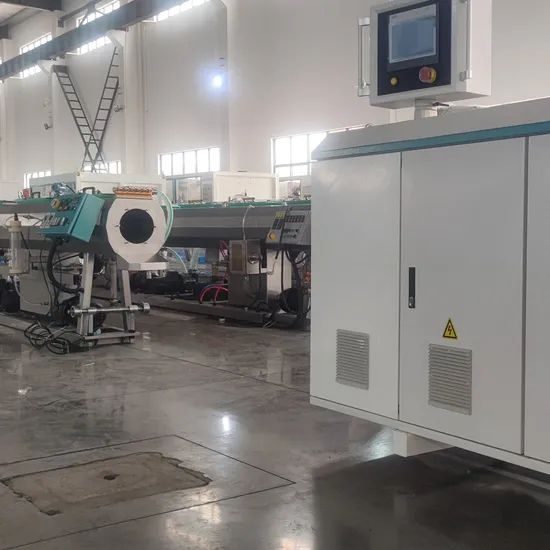

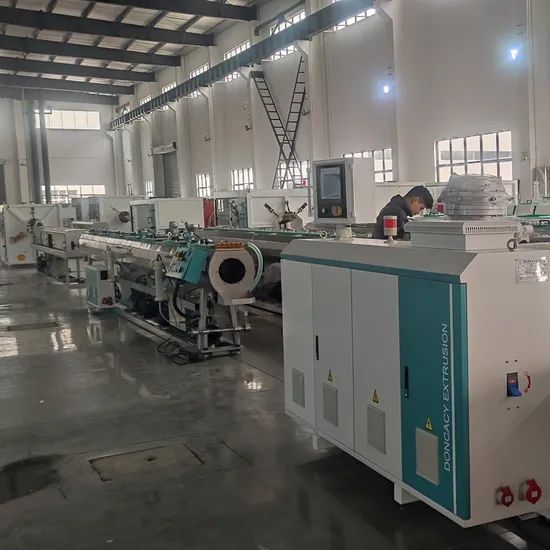

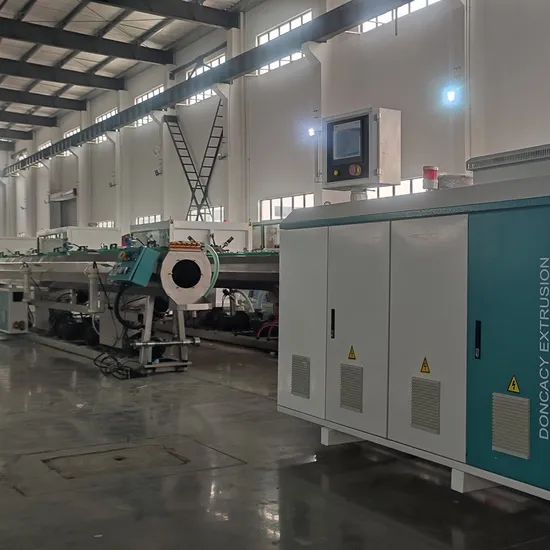

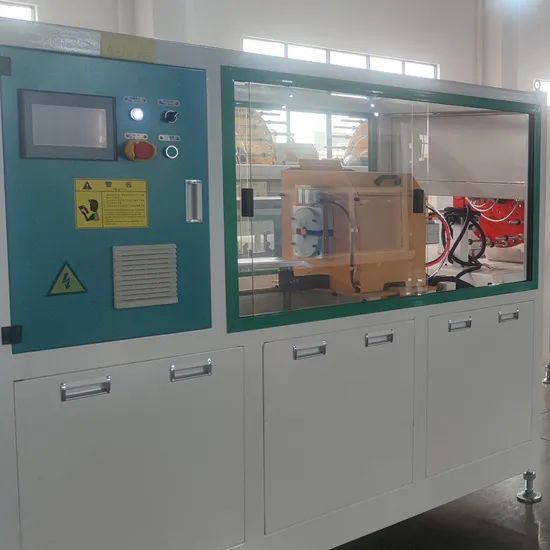

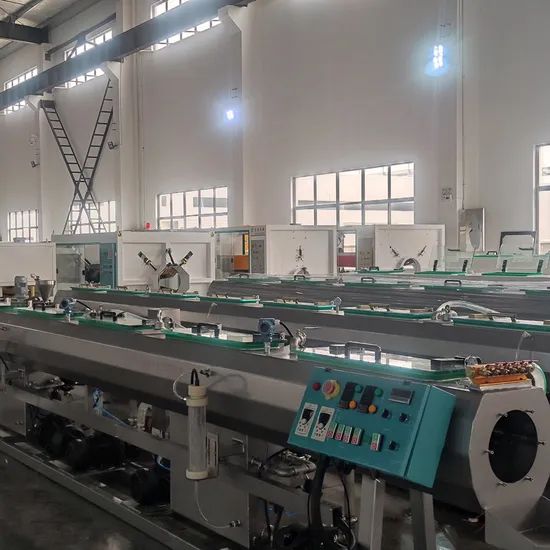

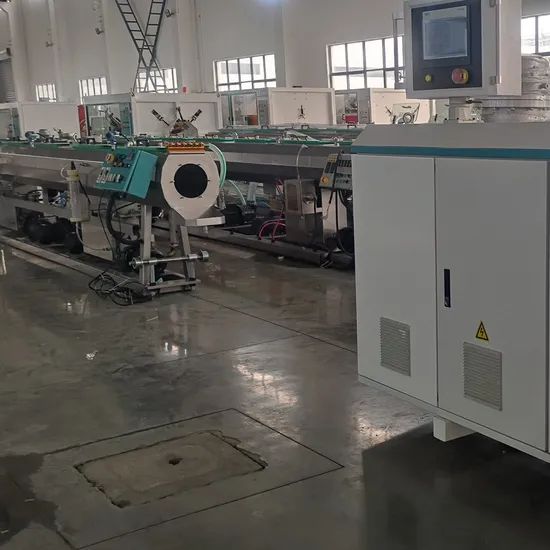

Energy Saving Extruded Large Diameter HDPE Pipe Making Machine
1 Set
$50,0001 Set
$20,000Product information
High-quality Energy Saving Extruded Large Diameter HDPE Pipe Making Machine supplied by Anhui Dongcai Machinery Technology Co., Ltd.. Bulk wholesale pricing ranges from $20,000 to $50,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Maximum Cutting Wall Thickness:
200mm
Energy Consumption:
240 Kwh/1 Ton of Output
Specification:
28*4.5
After Sales Service:
2year
Package Gross Weight:
3000.000kg
Package Size:
3000.00cm * 200.00cm * 200.00cm
HS Code:
8477209000
Automation:
Automatic
Specifications
Maximum Cutting Wall Thickness:
200mm
Energy Consumption:
240 Kwh/1 Ton of Output
Specification:
28*4.5
After Sales Service:
2year
Package Gross Weight:
3000.000kg
Package Size:
3000.00cm * 200.00cm * 200.00cm
HS Code:
8477209000
Automation:
Automatic
Certification:
CE, ISO9001:2008
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trademark:
DONCACY
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Compressive Strength:
More Than 70MPa
Condition:
New
Port Of Loading:
Shanghai Port
Screw No.:
Single-screw
Payment Methods:
Support payments in USD
Transport Package:
Wooden Box
Applicable Pipe Diameter:
ф250-ф3300mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2025
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
Product Description
Dongcai Machinery's production line has high production efficiency,continuous and stable production of prod-ucts,and can accurately control the size and wall thickness of pipes.
The pipes manufactured using Dongcai Machinery's state-of-the-art production system exhibit excellent quality and outstanding material characteristics, including high strength, durability, resistance to high pressure and impacts, corrosion protection, and strong chemical inertness. These pipes are suitable for conveying a wide range of chemicals.
This high-capacity HDPE/PP piping system boasts an innovative design, intuitive operation, advanced automation, and consistent reliability. The pipes it manufactures offer balanced stiffness and durability, superior flexibility, strong resistance to corrosion and stress cracking, and outstanding heat welding characteristics, positioning them as the ideal solution for city-wide water and gas distribution networks.
Performance and Features
• Efficient and high-yield double helix design
• The advanced design of the sizing sleeve ensures that the diameter and roundness of the pipe remain stable duringhigh-speed production of thick walls
• Equipped with an internal cooling device to suppress sagging and achieve high efficiency and energy conservation>Uniform traction force and precise control
• Adopting advanced chip free precision cutting technology
• Centralized control and coordination to achieve automated production
• Compared to traditional production lines,energy savings can reach 35%
• Low noise during equipment operation,with minimal impact on the production environment
Dongcai Machinery's production line has high production efficiency,continuous and stable production of prod-ucts,and can accurately control the size and wall thickness of pipes.
The pipes manufactured using Dongcai Machinery's state-of-the-art production system exhibit excellent quality and outstanding material characteristics, including high durability, superior pressure tolerance, resilience against impacts, resistance to corrosion, and strong chemical inertness. These pipes are suitable for conveying a wide range of chemical substances
Specification
Model Host Model | Pipe Spec(mm)Production pipe specifications | Extruder model | Main motor power (kw) Main motor power | Output(kg/h) Production extrusion volume |
JWEG-800 | 400-800 | JWS-H 90/42 | 315 | 1000-1200 |
JWEG-1000 | 500-1000 | JWS-H 120/38 | 355 | 1200-1400 |
JWEG-1200 | 630-1200 | JWS-H 120/38 | 355 | 1200-1400 |
JWEG-1600 | 1000-1600 | JWS-H 150/38 | 450 | 1800-2000 |
JWEG-2500 | 1400-2500 | JWS-H 120/38+120/38 | 355+355 | 2200-2500 |
Company Profile
Anhui Dongcai Mechanical Technology Co., Ltd. (hereinafter referred to as "Dongcai Machinery") occupies a strategic position near the renowned city of Nanjing. Based in the Chuzhou Economic Development Zone, Anhui Province, the company operates two manufacturing facilities—one in Chuzhou, Anhui and another in Changzhou, Jiangsu—with a combined footprint of 40,000 square meters. The facility employs around 100 key staff members, featuring a state-of-the-art CNC machining center for precision component fabrication and a fully standardized assembly space. Complementing this is a skilled research and development group and a seasoned team of electrical system testers. Dongcai Machinery is a technology-driven enterprise focused on the design and production of plastic extrusion forming machinery.
Dongcai Machinery has engineered and introduced innovative high-speed, energy-efficient pipe extrusion and plastic composite pipe manufacturing systems. The technology delivers superior throughput, reduced power use, consistent melt distribution, and reliable long-term performance. Its modular architecture enables scalable deployment and broad applicability across various applications. The complete solution optimizes material usage, boosts automation, maintains high production speeds, ensures precise and consistent extrusion, and enables the creation of tailored, market-leading products. From hardware design to software integration, including real-time production monitoring and data-driven insights, it offers full visibility into operations, delivering clear advantages and ease of use for end users. It actively supports environmental sustainability through tangible measures, including energy efficiency, lower emissions, and carbon footprint reduction, driven by advanced technological implementation.
Dongcai Machinery has engineered and introduced innovative high-speed, energy-efficient pipe extrusion and plastic composite pipe manufacturing systems. The technology delivers superior throughput, reduced power use, consistent melt distribution, and reliable long-term performance. Its modular architecture enables scalable deployment and broad applicability across various applications. The complete solution optimizes material usage, boosts automation, maintains high production speeds, ensures precise and consistent extrusion, and enables the creation of tailored, market-leading products. From hardware design to software integration, including real-time production monitoring and data-driven insights, it offers full visibility into operations, delivering clear advantages and ease of use for end users. It actively supports environmental sustainability through tangible measures, including energy efficiency, lower emissions, and carbon footprint reduction, driven by advanced technological implementation.
Our advantages
Certifications
Exhibition
Packing & Delivery
FAQ
1.Why is the steel wire mesh reinforced pipe more advantageous than ordinary pipes?
Wire mesh reinforced piping offers superior resistance to crushing forces, extended service life, optimized use of raw materials, and broader usability than standard piping solutions. Overall, these advanced pipes represent a modern innovation fully aligned with current industry demands.
2. Can we conduct quality inspections and test runs before the shipment?
Of course, no problem, it is necessary to run and test the machine to ensure the quality before shipment.
3. How do you guarantee the quality of your equipment and services?
All our processes adhere strictly to the 2008 ISO 9001 quality standards and CE marking. We include a 12-month warranty on every unit. Performance checks are conducted on every machine before shipment. Should you require support, our DONCACY technical team is on standby.
4.How long is the delivery date?
Depending on the machinery, it typically takes one to four months after the order upfront payment is received.
5. Is there any pre-after sale service?
Our business partners receive comprehensive pre-sale and post-sale assistance. DONCACY employs more than 200 global technical testing specialists. We deliver prompt responses to every situation. We provide ongoing education, evaluation, usage, and support throughout the product lifecycle.
6. What's your minimum order quantity?
Min order quantity:1 set or by negotiate with each other.
7. What package do you use for the product?
Be wrapped with plastic film, coated with anti-corrosion oil, and then placed inside a wooden box.
Wire mesh reinforced piping offers superior resistance to crushing forces, extended service life, optimized use of raw materials, and broader usability than standard piping solutions. Overall, these advanced pipes represent a modern innovation fully aligned with current industry demands.
2. Can we conduct quality inspections and test runs before the shipment?
Of course, no problem, it is necessary to run and test the machine to ensure the quality before shipment.
3. How do you guarantee the quality of your equipment and services?
All our processes adhere strictly to the 2008 ISO 9001 quality standards and CE marking. We include a 12-month warranty on every unit. Performance checks are conducted on every machine before shipment. Should you require support, our DONCACY technical team is on standby.
4.How long is the delivery date?
Depending on the machinery, it typically takes one to four months after the order upfront payment is received.
5. Is there any pre-after sale service?
Our business partners receive comprehensive pre-sale and post-sale assistance. DONCACY employs more than 200 global technical testing specialists. We deliver prompt responses to every situation. We provide ongoing education, evaluation, usage, and support throughout the product lifecycle.
6. What's your minimum order quantity?
Min order quantity:1 set or by negotiate with each other.
7. What package do you use for the product?
Be wrapped with plastic film, coated with anti-corrosion oil, and then placed inside a wooden box.
8. What are your terms of payment?
We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram,etc.
9. Are you trading company or manufacturer ?
DONCACY is a factory-outlet platform exclusively for top-notch manufacturers.
10. Where is your factory located? How can I visit there?
We're based in ChuZhou, China, and would be pleased to host you for an in-person discussion prior to placing our order.
We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram,etc.
9. Are you trading company or manufacturer ?
DONCACY is a factory-outlet platform exclusively for top-notch manufacturers.
10. Where is your factory located? How can I visit there?
We're based in ChuZhou, China, and would be pleased to host you for an in-person discussion prior to placing our order.
