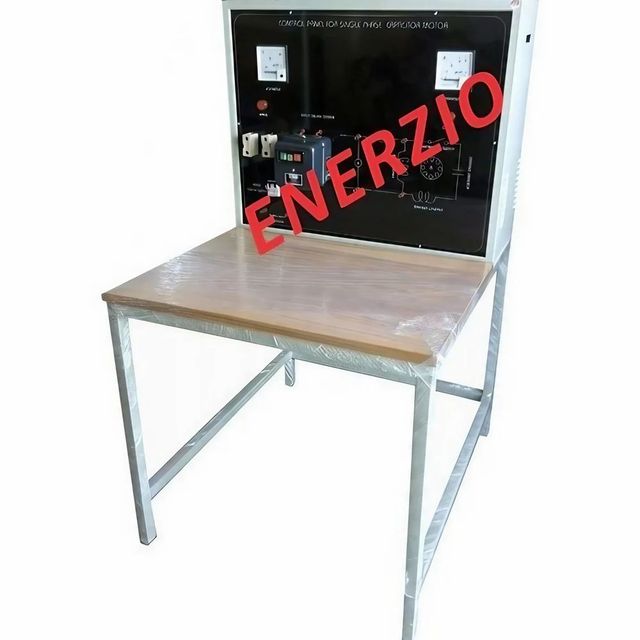

Enerzio Control Panel For Single Phase Capacitor Motor Phase Single Brand Enerzio Voltage Type AC Voltage 220-240 V Color Siemens
1 Piece
$247.5Product information
High-quality Enerzio Control Panel For Single Phase Capacitor Motor Phase Single Brand Enerzio Voltage Type AC Voltage 220-240 V Color Siemens supplied by Enerzio. Bulk wholesale pricing is $247.5 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Power Supply:
1 Hp Single Phase Capacitor Motor
Working Area Top Material:
19mm Marine Plywood With 3mm Ivory Color Sheet
Voltage:
220-240 V
Working Area Lipping:
22mm X 6mm Teakwood Lipping Patti
Terminal Rating:
30 A
Frequency:
50-60 Hz
Working Area Height:
600 Mm From Bottom
Front Panel Material:
6mm Thick Bakelite, Brown Color
Specifications
Power Supply:
1 Hp Single Phase Capacitor Motor
Working Area Top Material:
19mm Marine Plywood With 3mm Ivory Color Sheet
Voltage:
220-240 V
Working Area Lipping:
22mm X 6mm Teakwood Lipping Patti
Terminal Rating:
30 A
Frequency:
50-60 Hz
Working Area Height:
600 Mm From Bottom
Front Panel Material:
6mm Thick Bakelite, Brown Color
Working Area Top Dimensions:
900 Mm (w) X 210 Mm (d)
Instrument Panel Dimensions:
900 Mm (w) X 210 Mm (d) X 600 Mm (h)
Overall Dimensions:
900 Mm (w) X 625 Mm (d) X 1500 Mm (h)
Voltage Type:
AC
Terminal Type:
Educational Type Bakelite Insulated Banana Terminals
Power Source:
Electric
Brand:
Enerzio
Back Panel:
Hinged Door With Locking Arrangement
Indicating Lamp Type:
Led Type, Red Color, 22mm Size
Ammeter Type:
M.c. Type, 0-15 Amp, 96 X 96 Mm
Voltmeter Type:
M.c. Type, 0-300 Volts, 96 X 96 Mm
Panel Side Construction:
Ms Sheet With Two Sides Perforated For Air Ventilation
Color:
Siemens Grey
Phase:
Single
Trade Term:
To be discussed
Payment Term:
To be discussed
Included Accessories:
Voltmeter, Ammeter, Indicating Lamp, Dol Starter, Circuit Diagram
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2018
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
Being one of the renowned firms in the industry, we are involved in providing a high-quality array of Control Panel For Single Phase Capacitor Motor.
Details:
Technical Specification:
The Control desk consist of an Instrument panel and working area. The control desk made of 30mm x 30mm x 1.6mm tubular mild steel and MS sheet of 1 mm thickness, Siemens Grey colour powder coated with wooden top on the working area. The overall dimensions W = 900 mm ; D = 625 mm ; H = 1500 mm. The Box type Instrument Panel above the working area and of size W = 900 mm ; D = 210 mm ; H = 600 mm & Front side of 6mm thick bakelite sheet of brown colour and fitted at inside of the tube structure. All other sides made of MS sheet, Two sides of the panel are to be perforated for air ventilation. Back side in the form of hinged door with suitable locking arrangement. The working area top fitted in front of the Instrument Panel at a height of 600 mm from bottom. The top of W = 900 mm x D =210 mm and made of 19mm marine plywood fitted with 3 mm Ivory colour sheet on top. The three sides of the working top lipped using 22mm x 6mm teakwood lipping patti. 30 A. Educational type backelite insulated banana terminals provided for supply and generator connection. Circuit diagram of panel provided inside the panel. All accessories connected with internal wiring ferrules etc.
The Instrument Panel consist of following accessories :
Details:
- To study the starting of single phase capacitor motor & working of centrifugal switch
Technical Specification:
The Control desk consist of an Instrument panel and working area. The control desk made of 30mm x 30mm x 1.6mm tubular mild steel and MS sheet of 1 mm thickness, Siemens Grey colour powder coated with wooden top on the working area. The overall dimensions W = 900 mm ; D = 625 mm ; H = 1500 mm. The Box type Instrument Panel above the working area and of size W = 900 mm ; D = 210 mm ; H = 600 mm & Front side of 6mm thick bakelite sheet of brown colour and fitted at inside of the tube structure. All other sides made of MS sheet, Two sides of the panel are to be perforated for air ventilation. Back side in the form of hinged door with suitable locking arrangement. The working area top fitted in front of the Instrument Panel at a height of 600 mm from bottom. The top of W = 900 mm x D =210 mm and made of 19mm marine plywood fitted with 3 mm Ivory colour sheet on top. The three sides of the working top lipped using 22mm x 6mm teakwood lipping patti. 30 A. Educational type backelite insulated banana terminals provided for supply and generator connection. Circuit diagram of panel provided inside the panel. All accessories connected with internal wiring ferrules etc.
The Instrument Panel consist of following accessories :
- Voltmeter M.C. type 0-300 volts, 96 x 96 mm : 1 no.
- Ammeter M.C. type 0-15 Amp., 96 x 96 mm : 1 DOL starter it mounted on the Panel Board : 1 no.
- Indicating lamp LED type Red, colour 22mm size : 1 no. supply with 1 hp single phase capacitor motor
