Engraving and Milling Machine Center CNC Machining Center Ys-870A
Set
Negotiable
Product information
High-quality Engraving and Milling Machine Center CNC Machining Center Ys-870A supplied by Great Magtech (Xiamen) Electric Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Processing Precision:
0.01~0.02(mm)
Production Capacity:
1000sets
Max. Z Axis Travel:
300mm
Max Workpieces Weight:
400kg
Max. Y Axis Travel:
700mm
Max. X Axis Travel:
800mm
HS Code:
8457101000
Specification:
As per client's demand
Specifications
Processing Precision:
0.01~0.02(mm)
Production Capacity:
1000sets
Max. Z Axis Travel:
300mm
Max Workpieces Weight:
400kg
Max. Y Axis Travel:
700mm
Max. X Axis Travel:
800mm
HS Code:
8457101000
Specification:
As per client's demand
Numerical Control:
CNC/MNC
Origin:
China
Control Method:
Closed-Loop Control
Processing:
Drilling, Milling, Tapping, Engraving
Trade Term:
FOB, CIF, CFR, EXW
Certification:
GS, CE, RoHS, ISO 9001
Performance Classification:
High-End CNC Machine Tools
Payment Term:
LC, T/T, PayPal, Western Union
Movement Method:
Linear Control
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Condition:
New
Port Of Loading:
Ningbo Port, Xiamen Port, Shanghai Port
Transport Package:
Seawothy Package
Model NO.:
YS-870A
Trademark:
Yangsen
Type:
Ys-870A
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-03-31
Annual Revenue Amount:
Not specified
Numbers Of Employees:
14
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Xiamen Port, Shanghai Port
Certificates:
CE, Others, RoHS
Product descriptions from the supplier
Structural Characteristics of Engraving and Milling Machine
CNC Engraving machine is the art of cutting or carving grooves or characters into a surface. It is mainly used for the fine machining of small molds. It is widely used in precision molds, copper electrodes, shoe mold manufacturing, batch processing of clocks, watches and glasses products, etc. Ideal for 3D molds & stamps, coining dies, roll dies, hot stamping & combination dies, steel dies, steel molds, embossing dies, etc. Free Training and Unlimited Support. Feel free to contact us.
Engraving and Milling Machine Features
CNC Engraving machine is the art of cutting or carving grooves or characters into a surface. It is mainly used for the fine machining of small molds. It is widely used in precision molds, copper electrodes, shoe mold manufacturing, batch processing of clocks, watches and glasses products, etc. Ideal for 3D molds & stamps, coining dies, roll dies, hot stamping & combination dies, steel dies, steel molds, embossing dies, etc. Free Training and Unlimited Support. Feel free to contact us.

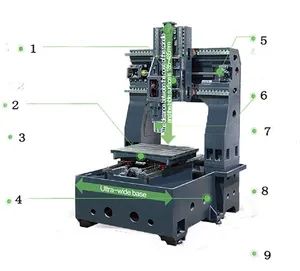

Engraving and Milling Machine Features
1. A patented spindle box of engraving and milling machine
There is a stepped hole inside the spindle box; the electric spindle is installed in the stepped hole, and a flange is used to fix the spindle box
2. Worktable
Box structure and ballscrew are integrally formed.
3. Optical linear scales
Optional Heidenhain, Fagor optical linear scales with an accuracy of under ±5um
4. Base
Multi-layer wall box structure, rear chip extractions
5. A triangular rib structure of the bridge column
The utility model of the triangular rib structure of the door bridge improves the dynamic and static rigidity of the machine tool and enhances processing accuracy.
6. Optional Direct-Driven BBT40 spindle
7. Upgrade Configuration
Standard servo carousel tool magazine; HSK-E40 motor spindle; graphite protection package; laser tool probe; oil mist collector system, and more
8. Stable Accuracy
The closed loop optical linear scales with high positioning accuracy can effectively suppress the positioning error caused by the thermal extension of the lead ballscrew.
9. System Stability
Equipped with Siemens 828D system.
Engraving and Milling Machining Center Parameters
|
Model |
YS-870A |
||
|
Subject |
Specifications |
Units |
|
|
Travel |
X/Y/Z axis |
mm |
800/700/300 |
|
Spindle Nose to Worktable |
mm |
130-430 |
|
|
Three-Axis Guideway |
/ |
Linear Guideway |
|
|
Door Width |
/ |
810 |
|
|
Worktable |
Worktable Size (L*W) |
mm |
720*640 |
|
Maximum Table Load |
kg |
400 |
|
|
T-Slot |
mm |
5-16x120 |
|
|
Spindle |
Spindle taper |
type |
BT-30 |
|
Spindle speed |
rpm |
24000 |
|
|
Spindle Drive Type |
/ |
Built-In |
|
|
Feedrate |
Rapid Traverse (X/Y/Z) |
m/min |
15/15/12 |
|
Cutting Feedrate (X/Y/Z) |
m/min |
12 |
|
|
Tool Changer |
Tool Changer |
/ |
Carousel Servo ATC |
|
Motor |
Spindle Motor |
kw |
7.5 |
|
Three-Axis Servo Motor |
kw |
0.85/0.85/1.3 |
|
|
Accuracy |
Accuracy |
mm |
±0.005 |
|
Repeatability |
mm |
±0.003 |
|
|
Power Required |
Power Requirement |
kva |
10 |
|
Air Pressure Requirement |
kg/crrf |
6^8 |
|
|
Others |
External Dimensions (L*W*H) |
mm |
2100x2700x2550 |
|
Gross Weight |
t |
4.7 |
|
Standard Accessories
|
7.5KW-ER32-24000 Auto Tool Length Measurement Spindle Oil Cooler Fully Enclosure Guard |
Coolant Tank & Oil Skimmer Hand Wheel (MPG) Leveling Bolts and Pads Tool Box |
Automatic Lubricating System Transformer LED Work Light Spindle Air & Coolant Blast |
Transmission Software and Cables 20m LED 3 Color Warning Light Maintenance and Operational Manual Heat Exchange for Electric Cabinet |
Options
|
Oil Mist Collector ATC |
7.5KW-BT30-24000
|
BBT40-15000
|
Rotary Table
|
About Yangsen
You should be amazed by The story of Yangsen about machine tools.
In 2003, Mr. Lin Yangbo (the founder of Yangsen) sold his first Milling machine in Fujian province when he served his former company Nuoxin as a provincial distributor. After more than 3 years of hard work and professional service, he has won the recognition of most customers in the Fujian market, and the annual sales exceed 100 million Yuan.
Unfortunately, due to poor management and management changes, Nuoxin was abruptly disbanded in 2006. Affected by this blow, Mr. Lin almost left the machine tool industry.
Inspired by the old customers who trust him consistently, Mr. Lin finally decided to transform from sales to factory production. He set up his first production lines in 2007 and recruited the first batch of workers and technicians. Most of them become the backbone of the company. And the story of Yangsen started from here.
With gratitude to customers and enthusiasm for machine tools, Yangsen was born from a vision to provide affordable and high-quality CNC equipment to those who ever supported and trust him and who entered and experienced the world of CNC, in 2007.
Through deep digging into customer needs and continuous exploration of cutting-edge technology, from a small factory, Yangsen become more professional in the design and manufacture of state-of-the-art CNC machines, enjoyed by those with a passion for CNC.
Perfect for workshops and industry use, you can find Yangsen products across the globe and in the hands of people creating inspiring and durable work.
YANGSEN takes science and technology as the driving force and insists on product quality. Our machine tool parts adopt well-known brand accessories, and advocate high-standard lean production, creating a quality reputation.
Precision assembly is the most important part of the machining center, in order to ensure the accuracy and quality of products, all assembly was completed by Yangsen CNC. As for the accuracy of each machine, we grasp every detail and every step and refine the assembly. Every procedure is strictly checked and recorded before moving to the next process.
Quality Control:
Yangsen Machine Tools are built to the highest standards and we have over 500 employees who are committed to providing the best level of service.
You should be amazed by The story of Yangsen about machine tools.
In 2003, Mr. Lin Yangbo (the founder of Yangsen) sold his first Milling machine in Fujian province when he served his former company Nuoxin as a provincial distributor. After more than 3 years of hard work and professional service, he has won the recognition of most customers in the Fujian market, and the annual sales exceed 100 million Yuan.
Unfortunately, due to poor management and management changes, Nuoxin was abruptly disbanded in 2006. Affected by this blow, Mr. Lin almost left the machine tool industry.
Inspired by the old customers who trust him consistently, Mr. Lin finally decided to transform from sales to factory production. He set up his first production lines in 2007 and recruited the first batch of workers and technicians. Most of them become the backbone of the company. And the story of Yangsen started from here.
With gratitude to customers and enthusiasm for machine tools, Yangsen was born from a vision to provide affordable and high-quality CNC equipment to those who ever supported and trust him and who entered and experienced the world of CNC, in 2007.
Through deep digging into customer needs and continuous exploration of cutting-edge technology, from a small factory, Yangsen become more professional in the design and manufacture of state-of-the-art CNC machines, enjoyed by those with a passion for CNC.
Perfect for workshops and industry use, you can find Yangsen products across the globe and in the hands of people creating inspiring and durable work.
YANGSEN takes science and technology as the driving force and insists on product quality. Our machine tool parts adopt well-known brand accessories, and advocate high-standard lean production, creating a quality reputation.
Precision assembly is the most important part of the machining center, in order to ensure the accuracy and quality of products, all assembly was completed by Yangsen CNC. As for the accuracy of each machine, we grasp every detail and every step and refine the assembly. Every procedure is strictly checked and recorded before moving to the next process.Quality Control:
- More than 20 years of experience
- Over 57,000 square meters of factory and over 500 employees
- Over 5000 sets of annual production capacity
- Strict quality control system
- Professional production management system ISO9001
- On-time delivery
- Excellent quality and reasonable price
- Strict confidentiality for clients
- Complete after-sales service
- Exporting to 20+ countries
