Epoxy Coated Steel Screening Support Layer for Air Filters Origin China Style Filter Trademark MAISHI Type Support Mesh Hole Shape Square
10 Roll
$105Product information
High-quality Epoxy Coated Steel Screening Support Layer for Air Filters Origin China Style Filter Trademark MAISHI Type Support Mesh Hole Shape Square supplied by Hebei Meshtech Technology Co.,LTD. Bulk wholesale pricing is $105 per Roll with a minimum order of 10 Roll. Inquiry for latest prices.
Wire Diameter:
0.2mm
Mesh Count:
18X14mesh, 24X22mesh, 28X24mesh
Specification:
18x14mesh, 24x22mesh, 28x24mesh
Production Capacity:
3000 Rolls Per Month
Length:
30m(100FT)-700m(2000FT)
Width:
50mm(2inches)-1500mm(60inches)
HS Code:
7314490000
Material:
Black Wire Mesh
Specifications
Wire Diameter:
0.2mm
Mesh Count:
18X14mesh, 24X22mesh, 28X24mesh
Specification:
18x14mesh, 24x22mesh, 28x24mesh
Production Capacity:
3000 Rolls Per Month
Length:
30m(100FT)-700m(2000FT)
Width:
50mm(2inches)-1500mm(60inches)
HS Code:
7314490000
Material:
Black Wire Mesh
Origin:
China
Model NO.:
Epoxy Coated Mesh
Product Name:
Epoxy Coated Mesh
Trade Term:
FOB, CFR, CIF, DDP, FCA, EXW
Style:
Filter
Payment Term:
LC, T/T, PayPal, Western Union
Application:
Liquid Filtration, Screening, Solid-Liquid Separation, Support Mesh
Trademark:
MAISHI
Hole Shape:
Square
Type:
Support Mesh
Port Of Loading:
Tianjin Xingang, Shanghai, Beijing
Transport Package:
Waterproof Paper, Plywood Pallets
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
1995-08-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, CIF, DDP, FCA, EXW
Port Of Loading:
Tianjin Xingang, Shanghai, Beijing
Certificates:
CQC, FDA, SCAN ISO2008, SGS, SON
Product descriptions from the supplier

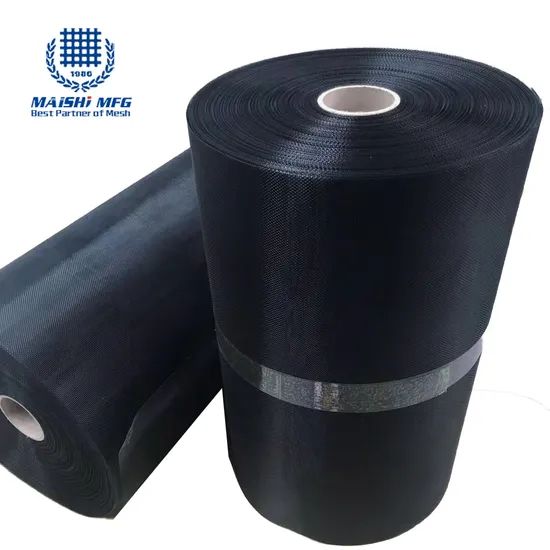

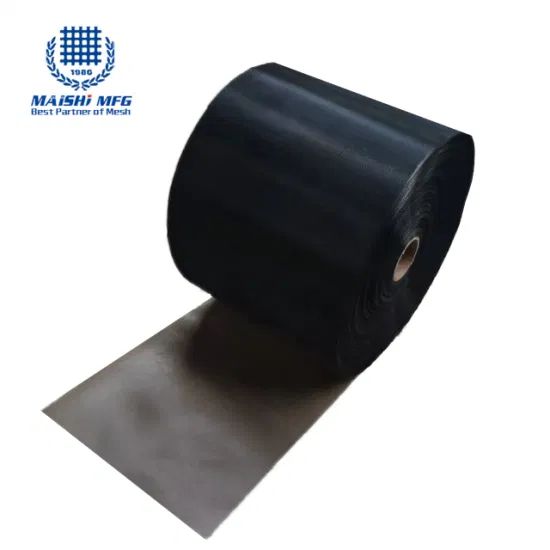

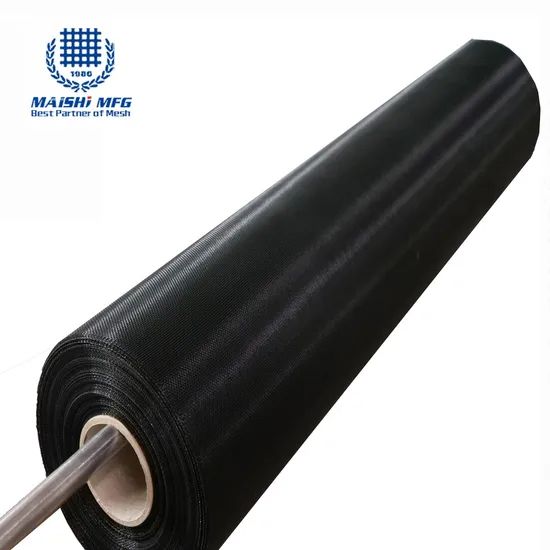

Epoxy Coated Steel Screening Support layer for air filters
Industrial Epoxy Mesh
Epoxy Coated Aluminum Wire Mesh
Epoxy Coating Steel Screening Support layer in hydraulic/air filters.

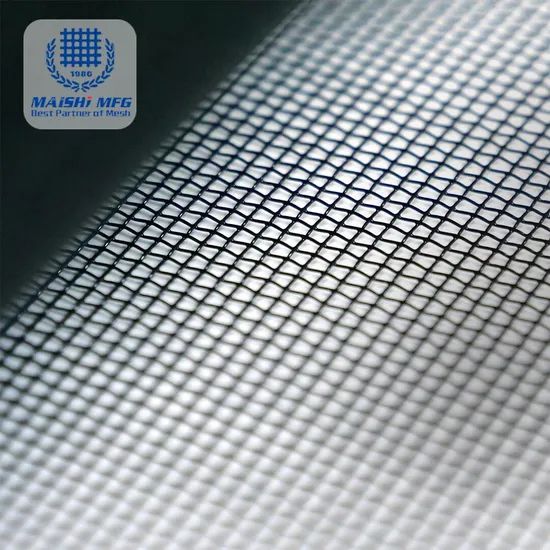

Epoxy coated filter wire mesh is mainly composed of plain steel wires woven together and coated with quality epoxy resin powder
through the electrostatic spraying process to make this material resistant to corrosion and acids. The epoxy-coated wire mesh is usually
used as a support layer for the filtering which replacing galvanized wire mesh and is ideal due to the stability of the structure as well as
its affordability, it's the main part of filters.
Production Description
The specifications of MAISHI frequently produced and stocked products are as follows:
Quality standard: ASTM
Material: CCL epoxy annealed 1006 alloy, Stainless steel, Aluminum 5052 etc.
Color: Black/charcoal epoxy
Mesh size:18x14mesh(hole size 1.4mmx1.8mm), 24x22mesh(hole size 0.8mmx1.0mm),28x24mesh(hole size 0.7mmx0.8mm)
Wire diameter: 0.008inch(0.20mm)
Width: 50mm(2inches)-1500mm(60inches)
Length: 30m(100ft)-700m(2000ft)
MAISHI can also produce other materials (such as stainless steel, aluminum) and other colors (such as dark gray) epoxy coated steel screening according to customer requirements.
Below mesh size for your reference. If you need other sizes, please contact us.
| Material | Color | Mesh | Wire Dia. | Width | Length |
|
Plain steel wire mesh
Stainless steel wire mesh
Aluminum wire mesh
|
Normally dark grey and black, other color can be ordered. |
14 x 14 | BWG 31/32 | 0.6 - 1.5 m | 100- 500 feet |
| 16 x 14 | BWG 31/32 | 0.6 - 1.5 m | 100 - 500 feet | ||
| 16 x 16 | BWG 31/32 | 0.6 - 1.5 m | 100- 500 feet | ||
| 18 x 14 | BWG 33/34 | 0.6 - 1.5 m | 100 - 500 feet | ||
| 18 x 16 | BWG 31/32 | 0.6 - 1.5 m | 100 - 500 feet | ||
| 18 x 18 | BWG 31/32 | 0.6 - 1.5 m | 100 - 500 feet | ||
| 20 x 20 | BWG 32/33 | 0.6 - 1.5 m | 100 - 500 feet | ||
| 22 x 22 | BWG 32/33 | 0.6 - 1.5 m | 100 - 500 feet | ||
| 24 x 24 | BWG 33/34 | 0.6 - 1.5 m | 100 - 500 feet | ||
| 28 x 28 | BWG 33/34 | 0.6 - 1.5 m | 100 - 500 feet | ||
| 30 x 30 | BWG 33/34 | 0.6 - 1.5 m | 100 - 500 feet |
Characteristics
1. Even and square hole
2. Not easy to loosen and deform, the supporting force is strengthened
3. Soft mesh surface and easy to be shaped.
4. Different colors of powder can be coated.
5. Even and consistent color.
Application
This product can be used for pleated filter element supports, which can be used in hydraulic systems as well as in the automotive industry, such as hydraulic filters, air filters, etc.
Package

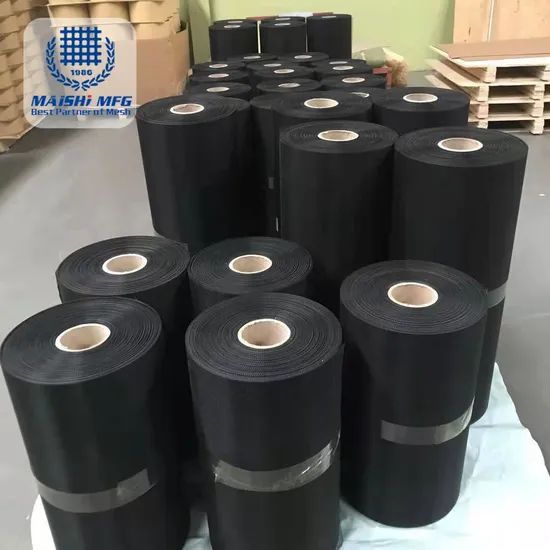

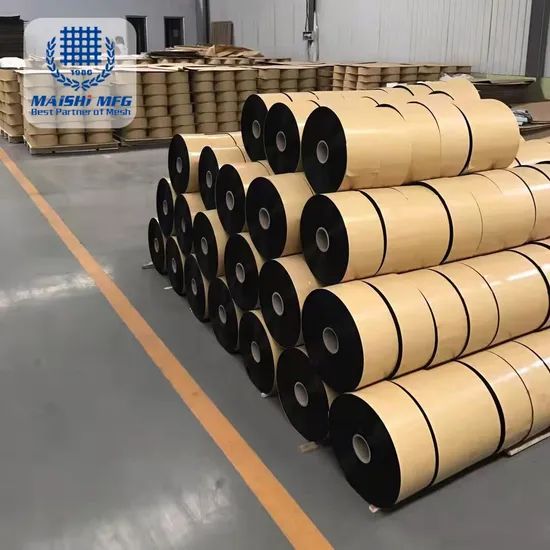

We normally pack this mesh with waterproof paper, then in plywood pallets.
Company profile
MAISHI is a wire mesh manufacturer in China with more than 30 years' experience, and we started production of epoxy coated screening in 2017. After more than 3 years of continuous improvement of the production process, from the beginning of the longest 100 meters (about 100yards) per roll, we can achieve 700 meters (about770yards) per roll till Apr 2022. It helps all of our partners improve the production efficiency of hydraulic or air filters. MAISHI wire mesh has been continuously developing, and our next goal is to increase the roll length to 1000 meters (about 1000yards).
Any need for Black Epoxy Coated Mesh, welcome to contact MAISHI
