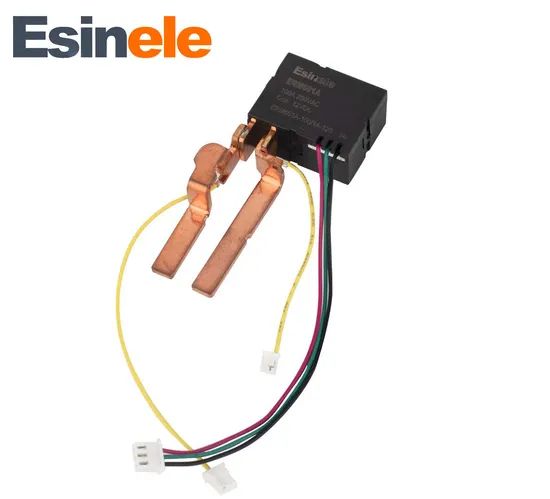

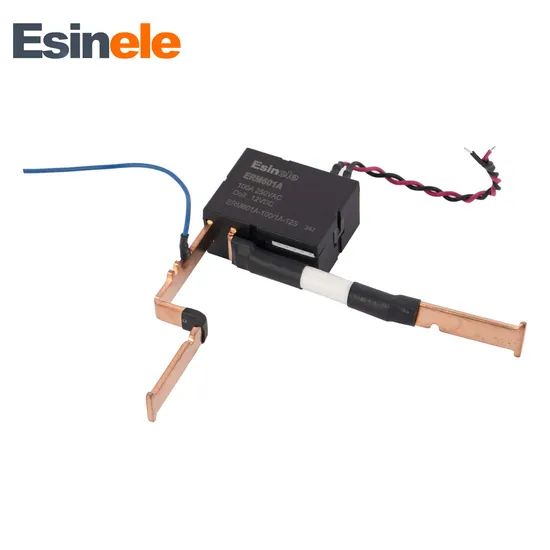

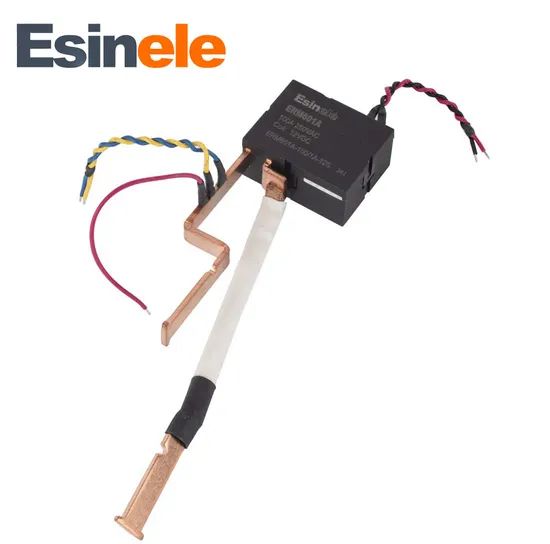

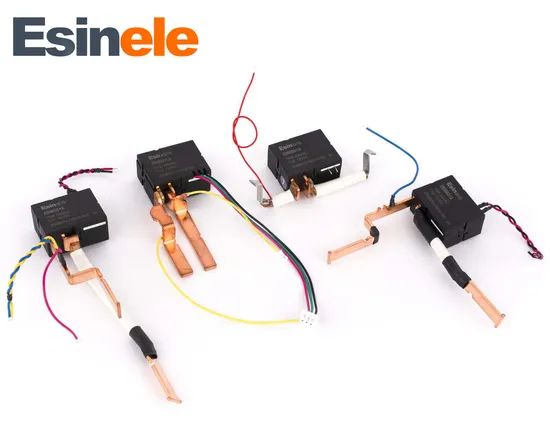

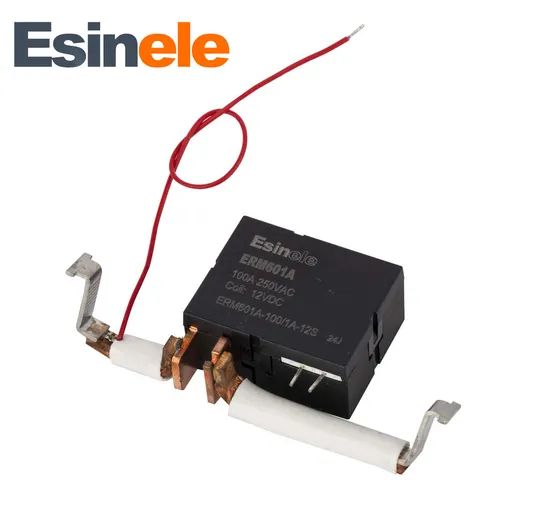

Esinele General Purpose Miniature Auto 120A Latching Electromagnetic Relay
50 Piece
$450 Piece
$2Product information
High-quality Esinele General Purpose Miniature Auto 120A Latching Electromagnetic Relay supplied by YUEQING EASTING TRADING CO.,LTD.. Bulk wholesale pricing ranges from $2 to $4 per Piece with a minimum order of 50 Piece. Inquiry for latest prices.
Phase:
1
Package Gross Weight:
1.000kg
Package Size:
10.00cm * 10.00cm * 10.00cm
Production Capacity:
1000000/Year
Switching Current:
100A
Contact Form:
1A/1b
Number Of Pole:
2
Specification:
38*30*18.5 mm
Specifications
Phase:
1
Package Gross Weight:
1.000kg
Package Size:
10.00cm * 10.00cm * 10.00cm
Production Capacity:
1000000/Year
Switching Current:
100A
Contact Form:
1A/1b
Number Of Pole:
2
Specification:
38*30*18.5 mm
HS Code:
8536411090
Coil Voltage:
9-48VDC
Electricity Type:
Ac
Contact Material:
Agsno2
Transport Package:
Box, Carton
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Model NO.:
ERM601A
Type:
Electric Parameter Relay
Action Principle:
Electromagnetic Type
Trademark:
Esinele
Trade Term:
FOB, CFR, EXW, CIF
Load:
High Power Relay
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Size:
Miniature
Port Of Loading:
Ningbo Port, Shanghai Port
Protective Characteristics:
Sealed Relay
Coil Type:
Single Coil and Double Coil Optional
Payment Methods:
Support payments in USD
Origin:
Zhejiang, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, EXW, CIF
Port Of Loading:
Ningbo Port, Shanghai Port
Product descriptions from the supplier
ERM601A
Characteristic:
4000VAC dielectric strength between coil and contacts
Switching capability up to 100A
Single coil/ Dual coils
Low power consumption
Outline size: 38×30×18.5mm
RoHS Compliance.
Characteristic:
4000VAC dielectric strength between coil and contacts
Switching capability up to 100A
Single coil/ Dual coils
Low power consumption
Outline size: 38×30×18.5mm
RoHS Compliance.
ERM601A
Characteristic:
4000VAC dielectric strength between coil and contacts
Switching capability up to 100A
Single coil/ Dual coils
Low power consumption
Outline size: 38×30×18.5mm
RoHS Compliance.
Characteristic:
4000VAC dielectric strength between coil and contacts
Switching capability up to 100A
Single coil/ Dual coils
Low power consumption
Outline size: 38×30×18.5mm
RoHS Compliance.
| Contact Specification | |
| Dimensions(mm) | 38×30×18.5mm |
| Contact Form | 1A/1B |
| Contact Material | Silver Alloy |
| Max Switching Current(Anti-load) | 100A |
| Max Switching Voltage | 28VDC/250V AC |
| Max Switching Power | 2800W/25000V A |
| Wight | 45g |
| Coil Specification | |||||
| Rated Coil Voltage | 9VDC | 12VDC | 24VDC | 48VDC | |
| Rated Coil Voltage | Single Coil (±10%Ω) |
40.5 | 72 | 288 | 1152 |
| Double Coil (±10%Ω) |
20.25 | 36 | 144 | 576 | |
| Power Consumption | Single Coil 2.0W;Double Coil 4.0W | ||||
| Pick-up Voltage | ≤75% Rated Coil Voltage | ||||
| Drop-out Voltage | ≤75% Rated Coil Voltage | ||||
| Max. Applicable Voltage | ≤120% Rated Coil Voltage | ||||
| Pick-up Time(At Rated Voltage) | ≤30ms | ||||
| Drop-out Time(At Rated Voltage) | ≤30ms | ||||
| Bounce Time | ≤2ms | ||||
| Characteristics | ||
| Ambient Temp | -40~+70ºC | |
| Ambient Humidity | ≤75% Annually average | |
| Anti-vibration | 10~55Hz, 0.5mm (Double Amplitude) | |
| Anti-shock | 98m/s2 , 11ms | |
| R.H. | 45%~85% | |
| Contact Resistance | ≤2.0mΩ (1A/6VDC) | |
| Insulation Resistance | 1000MΩ (500VDC) | |
| Dielectric Strength | Between Contacts | 2000VAC 50/60Hz(1 Minute) |
| Between Contact & Coil | 4000VAC 50/60Hz(1 Minute) | |
| Life | Electrical Life | ≥1×104 OPS |
| Mechanical Life | ≥5×106 OPS | |
| External Diagram |
 |
| Wiring Diagram |
 |
1. Q: How about the payment terms?
Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 200,000 pcs per month, large capacity. Normally, 15 days.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for quality checking.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Any requirements or question,welcome to "Send" us an e-mail Now!!!
