Eterne Customized River Working Excavator Use Assembly Pontoons Modular Barge
1 Piece
$99,0001 Piece
$30,000Product information
High-quality Eterne Customized River Working Excavator Use Assembly Pontoons Modular Barge supplied by Weifang Chenyao Environmental Protection Technology Co., Ltd.. Bulk wholesale pricing ranges from $30,000 to $99,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Working Depth:
0-8m
Package Gross Weight:
10000.000kg
Specification:
11.5 m or Customized
Package Size:
11500.00cm * 2300.00cm * 2400.00cm
Production Capacity:
50 Sets/Year
HS Code:
8474100000
Bucket:
Backhoe
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Specifications
Working Depth:
0-8m
Package Gross Weight:
10000.000kg
Specification:
11.5 m or Customized
Package Size:
11500.00cm * 2300.00cm * 2400.00cm
Production Capacity:
50 Sets/Year
HS Code:
8474100000
Bucket:
Backhoe
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Transport Package:
Container
Type:
Crawler Excavator
Bucket Capacity:
Customized
Model NO.:
ET20EP
Trademark:
Eterne
Trade Term:
FOB, CIF, CFR, EXW
Positioning Piles:
Hydraulic Spuds
Transmission:
Hydraulic Transmission
Certification:
ISO9001: 2000
Drive Type:
Internal Combustion Drive
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Condition:
New
Port Of Loading:
Qingdao Port
Origin:
Shandong
Usage:
Special Excavator, Marine Excavator, Mining Excavator
Payment Methods:
Support payments in USD
Application:
Swamp Excavating
Other Name:
Swan Buggy
Size:
to Model
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-05-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
23
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE, ISO9001:2015
Product descriptions from the supplier
Eterne Customized River Working Excavator Use Assembly Pontoons Modular Barge
We supply different kinds of dredging solutions, welcome for you inquiry.

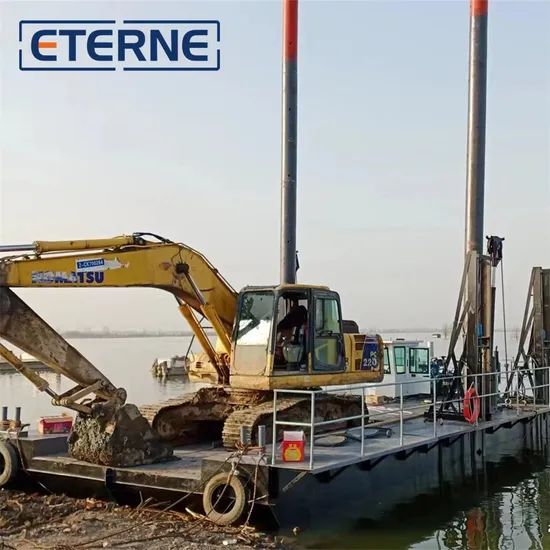

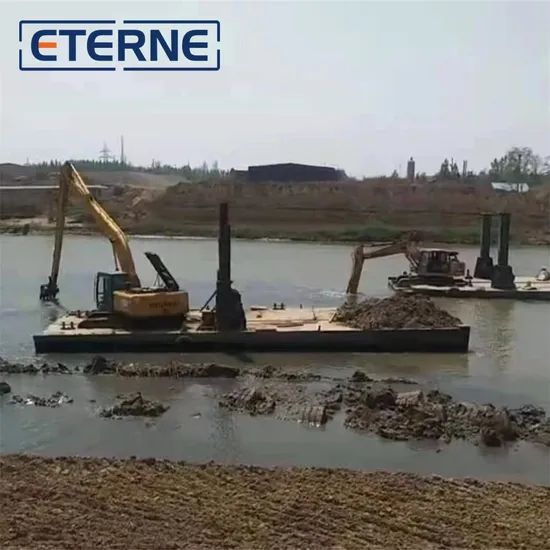

Excavator Floating Platform
 |
 |
 |
 |
Amphibious Excavator with Undercarriage
 |
 |
 |
| Main Pontoons only. 0-1.5 m Water Depth, Such as swamps, and wetlands. |
Main Pontoons with Side Pontoons and 2 Spuds 1.5-4 m Water Depth |
Main Pontoons with Side Pontoons and 4 Spuds 4-8 m Water Depth |
| Pontoon Material Pontoon material could be made ofAH36 vessel special material, 6061T6 aluminum alloy with high strength. The anti-corrosion treatment adopts sandblasting and shot blasting technology, which effectively improves the usage life. Reasonable design of structure and finite element analysis on-site destructive testing ensure the bearing capacity and safety of the pontoon. |
 |
 |
Pontoon Expansion Thepontoon expansionis unique for our company. It means that the device can adjust the distance between two pontoons in a certain range. The beams are equipped with a hydraulic control system, which is easy to operate with high safety. During the construction process, if a narrow working environment is encountered, the distance between two pontoons can be minimized while working. Adjusting the space to a suitable size in a wide area enhances the stability of the chassis and improves work efficiency. |
| Tightening of Chain After the chain is used for a period of time, the pitch will increase due to the wear of the pin bushing, which will make the whole chain become longer and cause the chain to shed or slippery when walking. I will seriously affect the operation. The tensioning device can ensure that the chain pin and the driving gear teeth are properly engaged by adjusting the position of the sprocket. The bolt tightening is standard for our pontoon. However, cylinder tightening is much easier to operate than bolt tightening. Tightening force could realize balance adjustment and make the whole walking system more stable and efficient. |
 |
 |
Hydraulic Spuds The spud and hydraulic mechanism are integrated into the closed vice pontoon, which is installed on both sides of the amphibious excavator. The hydraulic power can be used to control the tilting or up-and-down positioning. Its length is determined by the depth of the working area. The spuds are erected when working, then the hydraulic mechanism is started to insert them into the mud. The use of spud will greatly improve the stability of equipment operation in water. |
| No | Item | Specification | |
| 1 | Main Pontoon | Single Dimensions | L*W*H: 9.5*1.7*1.9m |
| Quantity | 2 pcs | ||
| Material | Q355 (AH36 available for seawater use with additional cost) | ||
| Plate thickness | 4*4*6mm | ||
| Total Weight | 17.5 Tons | ||
| 2 | Slewing Chassis | Model | Customized for HX220 |
| 3 | Hydraulic Motor | Brand | Doosan |
| Model | TM60 | ||
| Quantity | 2 pcs | ||
| 4 | Chain | Chain Material | 40Cr |
| Quantity | 3 pcs per pontoon | ||
| Tensioning Device | Bolt tightening (cylinder tightening is optional with additional cost) | ||
| 5 | Track Shoe | Material | BT700 high-strength steel |
| 6 | Side Pontoon | Size | 7*1.5*1m |
| Quantity | 2 pcs | ||
| 7 | Hydraulic Spuds | Size | Diameter 219mm, length 8m |
| Quantity | 2 or 4 pcs | ||
| 8 | Application | For Excavators | Operating weight 20-26 Tons |
Note: This is one regular model for reference. We supply different models, also customization.
 |
 |
 |
 |
 |
 |
