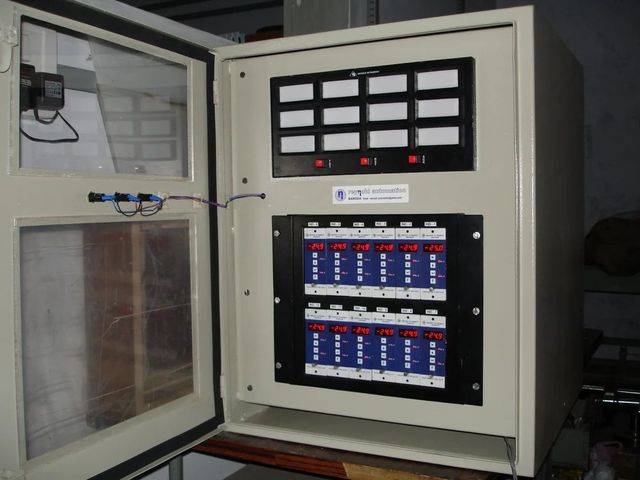

Euro Card Format Universal Indicator & Controller for Industrial
Negotiable
Product information
High-quality Euro Card Format Universal Indicator & Controller for Industrial supplied by Pantech Instruments. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Input Display Range Tc Type E:
(-100 To 1000)
Input Display Range Rtd Cu53:
(-100 To 200 C)
Input Display Range Tc Type T:
(-100 – 400)
Input Display Range Tc Type J:
(-100 – 800)
Input Display Range Tc Type K:
(0 – 1200)
Input Display Range Tc Type S:
(0 – 1700)
Input Display Range Tc Type R:
(0 – 1760)
Input Display Range Tc Type B:
(450 To 1820)
Specifications
Input Display Range Tc Type E:
(-100 To 1000)
Input Display Range Rtd Cu53:
(-100 To 200 C)
Input Display Range Tc Type T:
(-100 – 400)
Input Display Range Tc Type J:
(-100 – 800)
Input Display Range Tc Type K:
(0 – 1200)
Input Display Range Tc Type S:
(0 – 1700)
Input Display Range Tc Type R:
(0 – 1760)
Input Display Range Tc Type B:
(450 To 1820)
Display Accuracy:
+/- 0.1% Of Span
Output Accuracy:
+/- 0.1% of span
Input Display Range Voltage Mv:
-10 To 10 V Dc / -mv To Mv Dc (-1999 To 9999)
Input Display Range Ohms:
0-10k Ohms (-1999 To 9999)
Input Display Range Voltage:
1 – 5v / 0 – 10v (-1999 To 9999)
Transmitter Power Load Cell Proximity:
10/12 V Dc
Universal Input Type 2:
1…13 Of Above
Universal Input Type 1:
1…8 Of Above
Input Impedance Voltage Mv T C:
200 K
Transmitter Power Current Inputs:
24 V Dc
Power Supply Options:
24 V Dc, 110 V Ac, 50 Hz, +/- 10%, 230 V Ac, 50 Hz, +/- 10%, 90-270 V Ac – Smps, Specials On Factory Confirmations
Power Consumption:
3 VA max.
Input Display Range Rtd Pt100:
3 Wire (-100.0 To 600.0 C)
Display Resolution:
4 Digit (-1999 To 9999)
Maximum Number Of Outputs:
4 Nos.
Input Display Range Current:
4 – 20 Ma Dc / 0 – 20 Ma Dc (-1999 To 9999)
Analog Output Load Capability:
800 (maximum For Current Outputs)
Special Input Types:
Any V/current/resistance (however On Factory Confirmation Only)
Cold Junction Compensation:
Built in for T/C input
Output Fine Tune:
By front keys only
Decimal Point Configurability:
Configurable For Linear Inputs
Usage/Application:
Industrial
Analog Output Types:
Isolated / Non Isolated 4 – 20 Ma Dc, Isolated / Non Isolated 0-10 V Dc, Other Types On Factory Confirmations
Input Display Range Mv Dc:
Mv Dc
Pulse Train Input:
Open Collector Type
Mounting Type:
Panel/ Wall/ Field / Dinrail / Eurocard / Specials
Brand:
Pantech
Serial Output Protocol Rs232:
Rs232 With Modbus Rtu Protocol
Serial Output Protocol Rs485:
Rs485 With Modbus Rtu Protocol
Security:
Single level Password protected
Trade Term:
To be discussed
Payment Term:
To be discussed
Input Display Range Tc Type C:
Unknown
Input Impedance Current:
Up To 250 Ohms
Tc Temperature Display Decimal:
Without Decimal Point
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2007
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
Driven with perfection, we are engaged in catering to the variegated requirements of the customers by bringing forth a comprehensive range of Euro Card Format Universal Indicator & Controller. With the aid of our sophisticated infrastructure facility, we manufacture our entire range in adherence with international quality standard using basic raw material and sophisticated technologies. Further, our range is tested on industry defined parameters, before delivering it to the customers' end.
Features:
Specifications:
Features:
- Easy operation
- High functionality
- Superior performance
- Optimum strength
- Low maintenance
Specifications:
| Input (& Display Range) | Current, 4 – 20 mA DC/ 0 – 20 mA DC (-1999 to 9999) Voltage, 1 – 5V/0 – 10V (-1999 to 9999) RTD Pt 100 – 3 wire ( -100.0 to 600.0 C) T/C Type J (-100 – 800) T/C Type K (0 – 1200) T/C Type R (0 – 1760) T/C Type S (0 – 1700) T/C Type T (-100 – 400) T/C Type B (450 to 1820) T/C Type E (-100 to 1000) T/C Type C Ohms-0-10K ohms (-1999 to 9999) mV DC UNIVERSAL type 1– 1…8 of above UNIVERSAL type 2 – 1…13 of above Pulse train input. (open collector type) –10 to 10 V DC / -mV to mV DC (-1999 to 9999) RTD – Cu 53 ( -100 to 200 C ) Special type of inputs of any V/Current/Resistance (However on factory confirmation only) Decimal point configurable for linear inputs T/C temperature displays without decimal point |
| Input Impedance | 200 K(For Voltage, mV & T/C inputs up to 250 ohms For current inputs |
| Display Resolution | 4 digit (-1999 to 9999) Display to show input PV |
| Display Accuracy | +/- 0.1% of span |
| Maximum No. of Outputs | 4 nos. |
| Analog Output | Isolated / Non Isolated 4 – 20 mA DC Isolated / Non Isolated 0-10 V DC Other types on factory confirmations Analog output load capability 800 (maximum for current outputs |
| Serial Output With Open Protocol | RS232 With modbus RTU protocol RS485 with modbus RTU protocol Note: Any other protocol on demand |
| Transmitter Power | 24 V DC for current inputs 10/12 V DC (in case of Load cell / Proximity application) |
| Power Supply | 24 V DC 110 V AC, 50 Hz, +/- 10% 230 V AC, 50 Hz, +/- 10% 90-270 V AC – SMPS Specials on factory confirmations |
