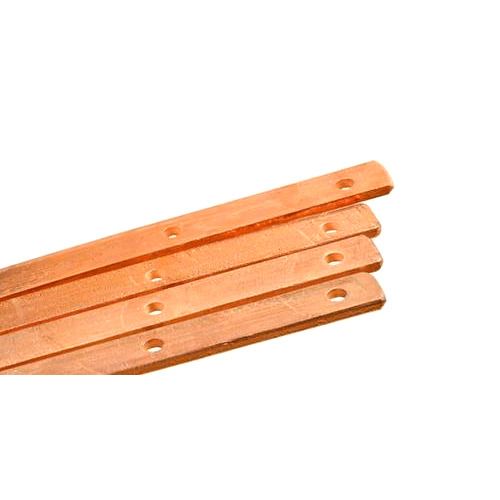

Excel Earthings Polished Copper Earthing Strip, 1m To 50m Width 25-50 mm Finish Polished Length 2.5m To 6m Brand Excel
Negotiable
Product information
High-quality Excel Earthings Polished Copper Earthing Strip, 1m To 50m Width 25-50 mm Finish Polished Length 2.5m To 6m Brand Excel supplied by Excel Earthings. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Copper Coating Thickness:
100 Micron or above
Length Of Rod:
1m to 50m
Length:
2.5m To 6m
Width:
25-50 mm
Coating Thickness:
250/100 Microns (avg.)
Available Strip Dimensions:
25x3mm, 32x3mm, 25x4mm, 25x6mm, 40x5mm, 50x6mm, 75x6mm
Strip Thickness:
3-6 mm
Coating Material:
99.9% Pure Electrolytic Copper
Specifications
Copper Coating Thickness:
100 Micron or above
Length Of Rod:
1m to 50m
Length:
2.5m To 6m
Width:
25-50 mm
Coating Thickness:
250/100 Microns (avg.)
Available Strip Dimensions:
25x3mm, 32x3mm, 25x4mm, 25x6mm, 40x5mm, 50x6mm, 75x6mm
Strip Thickness:
3-6 mm
Coating Material:
99.9% Pure Electrolytic Copper
In House Test Standards:
Coating Thickness Test As Per Clause 9.6.1 Ul 467; Bend Test As Per Clause 9.7.2 Ul 467; Corrosion Resistance Test - Copper Accelerated Acetic Acid Salt Spray Test As Per Clause 4.5 Is 1772:1973; Environmental Test As Per Clause 5.3.5 Iec 62561-2:2018
Base Material:
Cold Rolled Steel (tata/jindal)
Material:
Copper Bonded
Features:
Effectively Substitutes Copper For Electrical Earthing And Lightning Protection Applications; Holes And Other Fabrications Are Done Prior To Copper Bonding And No Part Of Base Metal Will Be Exposed
Usage/Application:
Electrical Earthing
Intended Use:
Electrical Earthing And Lightning Protection Application
Brand:
Excel Earthings
Base Coating Material:
Nickel
Finish:
Polished
Copper Coating Certification:
Tested And Certified (tc No.: Ml/23835/1/20-21, Ml/23835/2/20-21, Ml/23835/3/20-21) As Per Astm B499 From An Nabl Accredited Laboratory
Trade Term:
To be discussed
Payment Term:
To be discussed
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2013
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
Nickel Sealed Copper Bonded Strips are mainly used for Electrical Earthing and Lightning Protection Application, which includes Earthing Conductor, Lightning Down Conductor, Lightning Mesh Formation etc. The combination of steel and copper Provides a Cost-Effective Solution substituting pure copper. They are available in standard Coating Thickness of 100/250microns.
NB: Customised Products are also available at Customer Request. Please be in touch with us for more information.
Features
-
Effectively substitutes Copper for Electrical Earthing and Lightning Protection Applications
-
Holes and other fabrications are done prior to Copper Bonding and no part of base metal will be exposed.
Technical Specifications
|
Specifications |
Details |
|
Base Material |
Cold Rolled Steel (Tata/Jindal) |
|
Base Coating Material |
Nickel |
|
Coating Material |
99.9% Pure Electrolytic Copper |
|
Coating Thickness |
250/100 microns (avg.) |
|
Available Strip Dimension |
25x3mm, 32x3mm,25x4mm, 25x6mm, 40x5mm, 50x6mm, 75x6mm |
|
Length |
2.5m to 6m |
Certifications
-
Thickness of Copper Coating is Tested and Certified (TC No.: ML/23835/1/20-21, ML/23835/2/20-21, ML/23835/3/20-21) as per ASTM B499 from an NABL Accredited Laboratory.
In House Test
-
Coating Thickness Test as per Clause 9.6.1 UL 467
-
Bend Test as per Clause 9.7.2 UL 467
-
Corrosion Resistance Test- Copper Accelerated Acetic Acid Salt Spray Test as per Clause 4.5 IS 1772:1973
-
Environmental Test as per Clause 5.3.5 IEC 62561-2:2018
