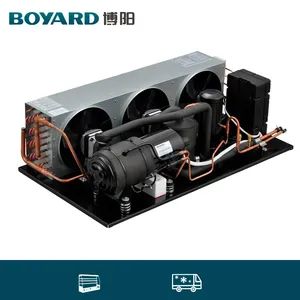

External Condenser Refrigeration Unit with Compressor for Cold Storage Room
1-29 Set
$36030 Set
$345Product information
High-quality External Condenser Refrigeration Unit with Compressor for Cold Storage Room supplied by Boyard Compressor Co., Ltd.. Bulk wholesale pricing ranges from $345 to $360 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Evap Temp:
-40
Power Supply:
380V 50Hz
Horsepower:
4-6HP
Production Capacity:
50000 Sets
Specification:
580*385
HS Code:
841869
Power Source:
AC Power
Condenser Form:
Air Cooling
Specifications
Evap Temp:
-40
Power Supply:
380V 50Hz
Horsepower:
4-6HP
Production Capacity:
50000 Sets
Specification:
580*385
HS Code:
841869
Power Source:
AC Power
Condenser Form:
Air Cooling
Model NO.:
BYGF-040-MLM-SMD-01
Application:
Back Pressure Type, Intermediate Back Pressure Type, High Back Pressure Type, Low Back Pressure Type
Trademark:
Boyard
Certifications:
CE RoHS Reach
Transport Package:
Carton/Pallet
Origin:
China Zhejiang
Material:
Copper
Drive Mode:
Electric
Unit Type:
External Unit
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Performance:
Low Noise, Variable Frequency
Lubrication Style:
Lubricated
Compressor:
Ml Series
Port Of Loading:
Ningbo Port; Shanghai Port
Mute:
Not Mute
Refrigerant:
R404A
Configuration:
Stationary
Pressure Controller:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-05-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
240
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port; Shanghai Port
Certificates:
CE, ISO14001, RoHS, TF16949, TUV, UL
Product descriptions from the supplier
Boyard expertise at manufacturing refrigeration compressor since 2006, condensing unit is an extension of our product line to offer the good quality and convenience.
We invest the best condensing unit production line in the new factory and have the mature technique to produce.
The condensing unit model varies from 1HP to 3HP( 3000-12000btu), you can choose based on below choice:
We have various condensing unit model for your choice.Please contact us to match the model for you.
We invest the best condensing unit production line in the new factory and have the mature technique to produce.
The condensing unit model varies from 1HP to 3HP( 3000-12000btu), you can choose based on below choice:
- DC power: 48V/96V/312V
- AC power: 115V /220V/380V, 50Hz/60 Hz
- Vertical/Horizontal
- Need water pan?
We have various condensing unit model for your choice.Please contact us to match the model for you.
| Technical Data of External Unit | |||||
| Model | BYGF-040-MLM-SMD-01 | BYGF-05-0MLM-SMD-01 | BYGF-060-MLM-SMD-01 | ||
| Power Supply | 3PH 380V/50Hz | ||||
| Horsepower | 4P | 5P | 6P | ||
| Refrigerant | R404A | ||||
| Refrigerant Max.(Kg) | 5.4Kg | ||||
| Start-Up Current (A) | 60A | 70A | 82A | ||
| Max Running Current (A) | 7.5 | 8.5 | 11 | ||
| Evap.Temp(ºC) | -20~10 | ||||
| Ambient Temp(ºC) | -10~43 | ||||
| Compressor(Model) | MLZ030T4 | MLZ038T4 | MLZ045T4 | ||
| Pressure Controller | P830 | ||||
Condenser |
Fam Motor |
(mm)Diameter &Quantity | φ480*1 | φ480*2 | φ480*2 |
| (m3/hr) Air Flow |
3400 | 2*3400 | 2*3400 | ||
| (mm) Pipe |
Gas Inlet Diam | φ15.88(5/8") | φ19.05(3/4") | φ19.05(3/4") | |
| Liquid Outlet | φ9.53(3/8") | φ12.7(1/2") | φ12.7(1/2") | ||
(mm) Out Dimension |
(mm) Length | 950 | 950 | 950 | |
| (mm) Width | 355 | 355 | 355 | ||
| (mm) Height | 940 | 1245 | 1245 | ||
| (mm) Installation Dimension |
580*390 | ||||
| (W) Capacity |
(ºC) Evap Temp | Ambient Temp:32ºC | |||
| -20 | 5000 | 6000 | 6900 | ||
| -15 | 6030 | 7050 | 8650 | ||
| -10 | 7300 | 8500 | 10500 | ||
| -5 | 8700 | 10500 | 12600 | ||
| 0 | 10200 | 12100 | 15100 | ||
| 5 | 11900 | 14000 | 16900 | ||
| 10 | 13500 | 15900 | 19500 | ||
| GB/T 21363-2008)TEST CONDITION: | ||||
| TEST CONDITION |
Evap Temp |
AMBIENT TEMP. |
RETURN GAS TEMP. | TESTING POWER SUPPLY |
OVERLOAD RUNNING |
0ºC | 43ºC | 18ºC | 3PH 380V/50HZ |
Q: Why choose Horizontal condensing unit?
A: Horizontal condensing unit is more compact, providing more effective volume in the showcase.
Q: What's type of compressor of the condensing unit? What's the advantage compared to reciprocating compressors?
A: The compressor is rotary compressor. In the rotary type, noise and vibration is largely reduced compared with the reciprocating compressor. Therefore noise generated by the unit can be reduced. Horizontal design makes the condensing unit more compact
Q: Can we use this condensing unit frozen room -22°ºC?
A: Yes. The evaporating temperature of condensing unit is from -5 degree to -40 degrees. t can use in frozen room also cold storage room.
Q: Are you manufacturer?
A: Yes. We are professional manufacturer of rotary compressor and condensing units for more than 12 years.
Q: Do you have the warranty?
A: we have one year warranty for manufacturers.
Q: Which customers do you cooperated with?
A: We have cooperated with many domestic and international manufacturers, Dometic, Panasonic, Haier-carrier and so on.
Q: What are your payment terms?
A: Prefer T/T
