Extruder Machine for Wire and Cable Power Cable Making Machine PVC PE XLPE Material Extrusion Line
Set
Negotiable
Product information
High-quality Extruder Machine for Wire and Cable Power Cable Making Machine PVC PE XLPE Material Extrusion Line supplied by SWAN Wire Engineering. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Central Height:
1000mm
Rotating Speed Of Screw:
10~110r/Min
Warranty:
12 Months
Production Capacity:
15set/Year
Max. Extrusion Output:
160kg/H(PVC)
L/D Of Screw:
25:1
Certification:
CCC, ISO, CE
Origin:
China
Specifications
Central Height:
1000mm
Rotating Speed Of Screw:
10~110r/Min
Warranty:
12 Months
Production Capacity:
15set/Year
Max. Extrusion Output:
160kg/H(PVC)
L/D Of Screw:
25:1
Certification:
CCC, ISO, CE
Origin:
China
Transport Package:
FCL. Film Wrapping
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T
Designed Speed:
Max 150m/Min(According to The Cable Size)
Condition:
New
Pay Off Bobbin Size:
Pn500 to Pn630
Take Up Bobbin Size:
Pn500 to Pn630
Model NO.:
SW-JC70/90/120
Trademark:
SWAN
Port Of Loading:
Shanghai Port
Screw:
Single-Screw
Diameter Of Cable Core:
φ1.0mm to 2.76mm
Outer Diameter Of Sheath:
φ1.5mm to 5.0mm
Screw Diameter:
φ70mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO, OHSAS, Reach, ROHS, UL
Product descriptions from the supplier

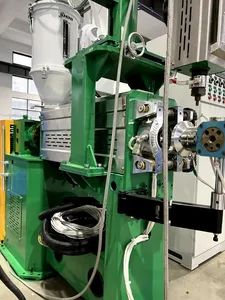

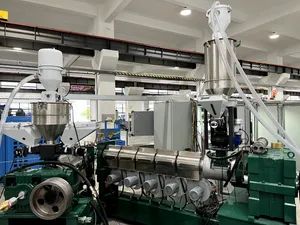

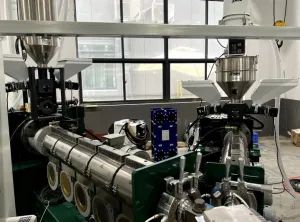

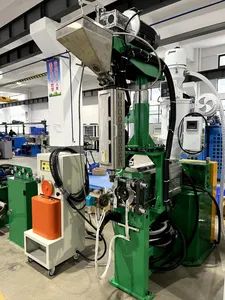

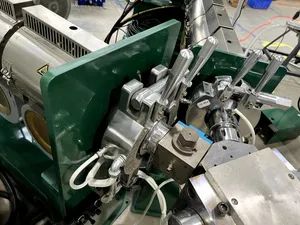

SWAN 70×25 cable extrusion line
The extruder uses a Siemens AC drive motor and is managed by an ABB frequency-controlled drive system, along with an RKC touch-screen microcomputer temperature regulator (PID-adjusted) offering ±2ºC precision.
The extruder housing features electric heating combined with air cooling, controlled via solid-state relays, achieving a maximum barrel temperature of 300ºC. A BM-design screw is employed to optimize internal material handling. Both screw and barrel components are constructed from 38CrMoALA steel, subjected to nitriding for enhanced resistance to corrosion and abrasion. The surface achieves a hardness of at least HV850, with a nitriding layer thickness ranging from 0.5 to 0.7mm. The gearbox incorporates a hardened tooth face reducer. The gearbox casing is fabricated from ductile iron, and the gears are made of 20CrMnTi steel, also treated with nitriding. The transmission shaft is produced from 40Cr steel; its end features a modern three-plate semi-clamping structure, offering ease of assembly and dependable performance.
| Technical Parameters | |
| Diameter of cable core | φ1.0mm to 2.76mm |
| Outer diameter of sheath | φ1.5mm to 5.0mm |
| Designed speed | Max 150m/min(According to cable size) |
| Machine central height | 1000mm |
| Pay-off bobbin size | PN500 to PN630 |
| Take-up bobbin size | PN500 to PN630 |
| Screw diameter | φ70mm |
| L/D of screw | 25:1 |
| Rotating speed of screw | 10r/min to 110r/min |
| Max. extrusion output | 160Kg/h (PVC) |
| Voltage class | Three-phase five-line, 380V/50Hz. |
SWAN INT'L, headquartered in Shanghai, produces and exports wire, cable, and associated manufacturing machinery; it also offers advisory support for international tender processes and Chinese supplier procurement solutions for industrial supply chain growth.
The business has expanded globally, serving over 100 international clients across more than 20 regions including Germany, Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East, and Africa. In the wire and cable sector, the company offers comprehensive factory-level technological solutions for cable manufacturers, covering customized technical planning, machinery technology guidance, equipment selection, and advanced innovation. We deliver wire and cable solutions along with OEM capabilities.
Our machinery covers: complete production system for copper rod up-casting, tandem setup for CAT5/6/7 and coaxial cables, standalone units for drawing, stranding, bunching, and extrusion. Our wire and cable range features: power cables, telecom cables, enameled copper (aluminum) wire, and more.
The Chinese government's latest "Belt and Road" initiative opens a fresh opportunity for industrial manufacturing collaboration across international markets. Under this framework, Shanghai SWAN INT'L warmly extends its invitation to build a sustainable, mutually advantageous partnership with you moving forward.
For extruders , pls inform :
1, Max. section
2, Conductor structure ( single or multi-core , pls inform wire number and single wire size )
3, What is the payoff bobbin size
4, What is take up bobbin size ( or you need auto coiling with film wrapping ) ;
5, If you need the online testing units ( Diameter ; pre-heating unit ; sparkle test) ;
6, If you need the printer ( ink or laser jet printer ) ;
7, For extruding capacity ( kgs/hour) , speed ( meters/minute ), what's requirement ?
8, Pls inform me your budget , we can recommend accordingly .
With above specific information ,we can provide quotation accordingly .Thanks .
