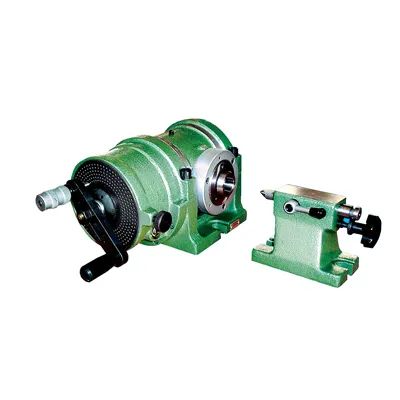

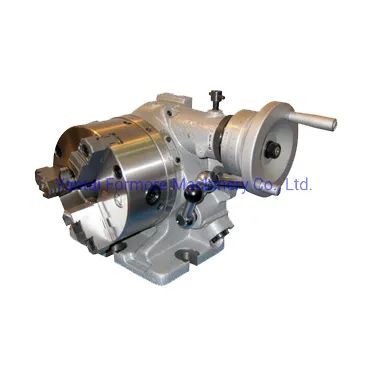

F12 Model Semi Universal Dividing Head
1 Piece
$1,4301 Piece
$430Product information
High-quality F12 Model Semi Universal Dividing Head supplied by Yantai Formore Machinery Co., Ltd.. Bulk wholesale pricing ranges from $430 to $1,430 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
2000/Year
HS Code:
84663000
Material:
Cast Iron
Origin:
China
Specification:
F12
Model NO.:
F12
Trade Term:
FOB, CIF, CFR
Payment Term:
LC, T/T, D/P
Specifications
Production Capacity:
2000/Year
HS Code:
84663000
Material:
Cast Iron
Origin:
China
Specification:
F12
Model NO.:
F12
Trade Term:
FOB, CIF, CFR
Payment Term:
LC, T/T, D/P
Trademark:
Neutral or OEM
Transport Package:
Plywood Case
Type:
Semi-Universal
Function:
Semi-Universal
Structure:
Tilting Type
Dividing Type:
Worm Type
Port Of Loading:
Yantai Port, Qingdao Port, Shanghai Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-09-09
Annual Revenue Amount:
Not specified
Numbers Of Employees:
17
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Yantai Port, Qingdao Port, Shanghai Port
Certificates:
cerficate one, certificate, CERTIFICATE1, License Verified Report
Product descriptions from the supplier
F12 Seires semi-universal dividing heads are for indexing,circular cutting,angle setting,boring,spot facing operations and similar work in conjunction with milling machine.

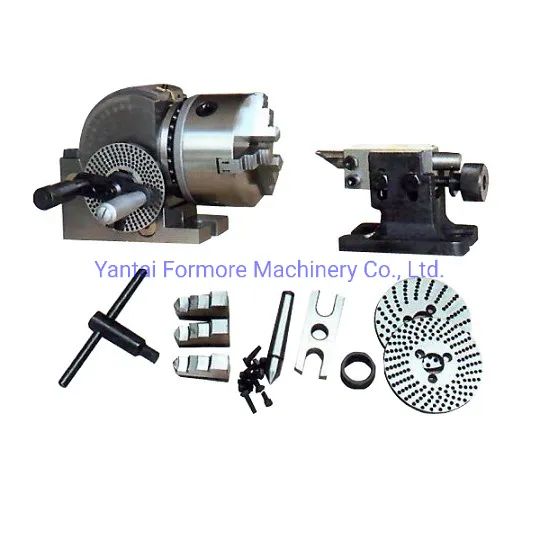

Standard accessories: Tailstock,3-jaw chuck,center,hole plate,flange,carrier,face plate.
| Items | FB80 | F12100 | F12125 | F12160 | F12200 | F12250 | ||
| Center height mm | 80 | 100 | 125 | 160 | 200 | 250 | ||
| Swivel angle of spindle from its horizontal position (upward) | ≤90° | ≤95° | ||||||
| Horizontal position(downward) | ≤6° | ≤5° | ||||||
| Rotating angle of spindle for one complete revolution of dividing handle | 9°(540grad.,1'each) | |||||||
| Min. reading of vernier | 10" | |||||||
| Worm gear ratio | 1:40 | |||||||
| Taper of spindle bore | MT3 | MT4 | MT5 | |||||
| Width of locating key mm | 14 | 18 | 22 | |||||
| Dia.of short taper of spindle nose for mounting flange mm | Φ36.541 | Φ41.275 | Φ53.975 | Φ82.563 | ||||
| Hole numbers on index plate | 1st plate | 24,25,28,30,34,37,38,39,41,42,43 | ||||||
| 2nd plate | 46,47,49,51,53,54,57,58,59,62,66 | |||||||
| Individual indexing error of the spindle for one complete revolution of dividing handle | 60" | ±45" | ||||||
| Cumulate error at any 1/4 periphery of spindle | 70" | ±1' | ||||||
| Max. bearing Kg | 80 | 100 | 130 | 130 | 200 | 200 | ||
| N.W. Kg | 26 | 57 | 83.5 | 100 | ||||
| G.W. Kg | 32 | 69 | 96 | 114 | 325 | 380 | ||
| Case dimensions mm | 480X360X219 | 610X459X255 | 536X460X310 | 710X505X342 | 980X720X530 | 980X720X530 | ||
