FUDA Automatic Fabric Cutting Machine with One Way and Zigzag Spreading Functions
1 Set
$12,888Product information
High-quality FUDA Automatic Fabric Cutting Machine with One Way and Zigzag Spreading Functions supplied by Shanghai Fuda Down Fiber Filling Machine Co., Ltd.. Bulk wholesale pricing is $12,888 per Set with a minimum order of 1 Set. Inquiry for latest prices.
After Sales Service:
1-Year Free Spare Parts and Online Technical
Production Capacity:
100
Power Supply:
1Ph AC220V,2.5kW,50/60Hz
Width Of Fabric:
2100mm
Width Of Table:
2330mm
Dimensions(L*W*H):
2390*2160*1600mm
Package Size:
255.00cm * 232.00cm * 180.00cm
Package Gross Weight:
600.000kg
Specifications
After Sales Service:
1-Year Free Spare Parts and Online Technical
Production Capacity:
100
Power Supply:
1Ph AC220V,2.5kW,50/60Hz
Width Of Fabric:
2100mm
Width Of Table:
2330mm
Dimensions(L*W*H):
2390*2160*1600mm
Package Size:
255.00cm * 232.00cm * 180.00cm
Package Gross Weight:
600.000kg
HS Code:
8479899990
Product Name:
Automatic Fabric Spreading Machine
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF
Trademark:
FUDA
Model NO.:
Fabric Spreader
Specification:
Fabric Spreader
Control System:
HD 10"Touch screen,Remote control
Application Fabric:
Knitted fabric,Woven fabric
Payment Term:
LC, T/T, PayPal, Western Union
Spreading Speed:
Max.110m/min
Layer Height Of Zigzag Way:
Max.160mm
Layer Height Of One Way:
Max.230mm
Roll Diameter Of Fabric:
Max.600mm
Weight Of Fabric:
Max.80Kg
Weight(Kg):
NW:400/GW:600
Condition:
New
Spreading Method:
One-way spreading:face up, Zigzag spreading:face t
Drive Device:
Servo motor, Inverter
Port Of Loading:
Shanghai, tianjin, shenzhen
Payment Methods:
Support payments in USD
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Shanghai, tianjin, shenzhen
Certificates:
Audited Supplier by SGS, CE_Downfillingmachine, CE_Downflappingmachine, Export Declaration, Foreign trade Registration Form, PC_Downflappingmachine
Product descriptions from the supplier
Product Overview

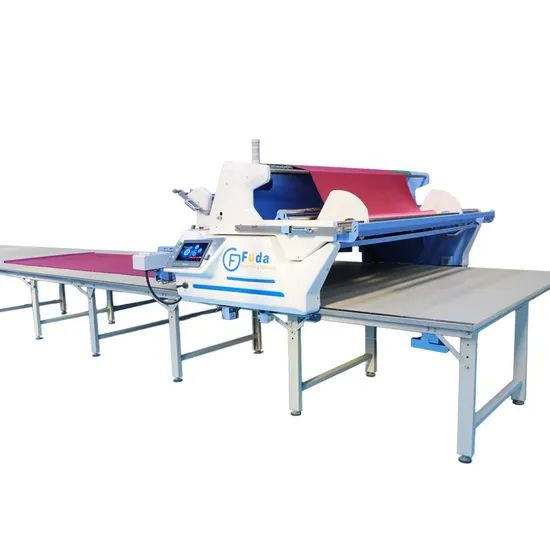

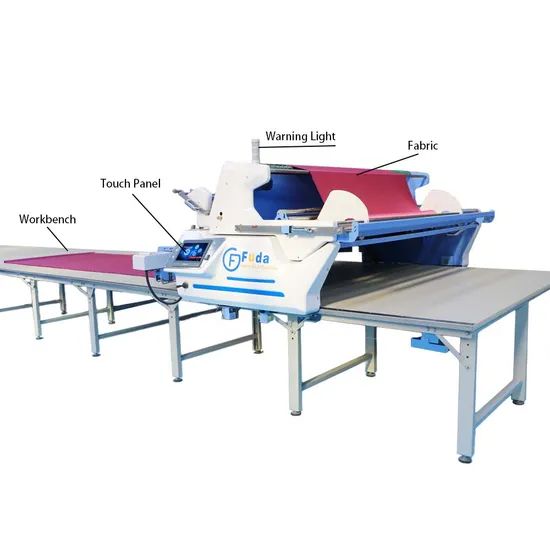

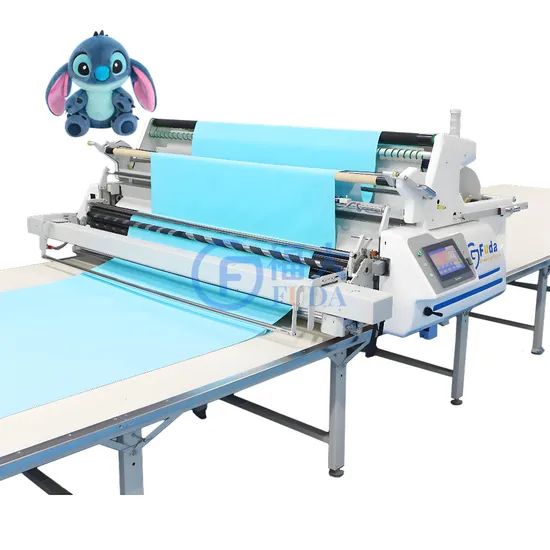

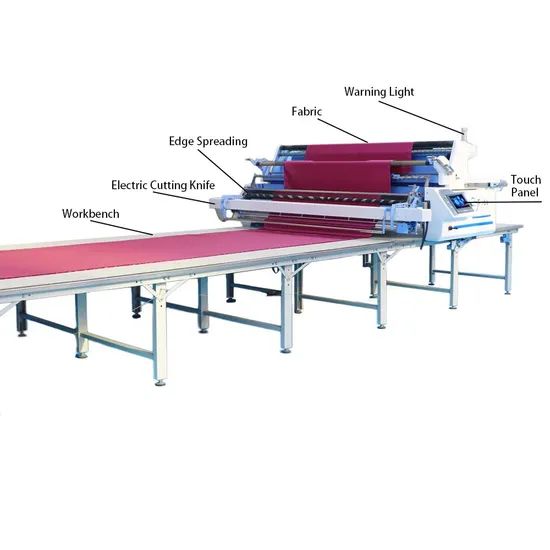

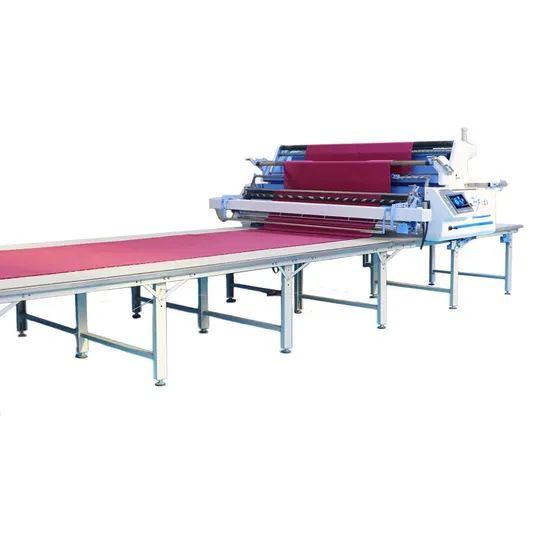

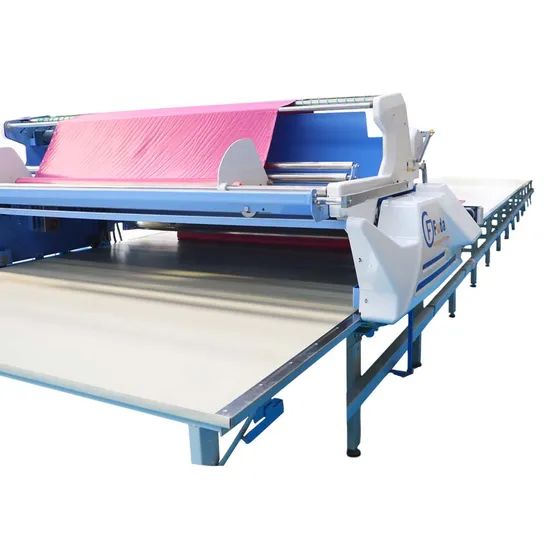

F10-211G Automatic Knitted Woven Fabric Spreading Machine.
Edge alignment device: Automatic edge aligning, No tension of pulling the fabric; Servo motor: Accurate position control, low noise, high torque; The Highest spreading speed can reach 110m/min. FUDA Intelligent device: 10"HD HMI, compiled PLC 0.4ms, remote control.
Product Description
Product Advantages
Product Advantages.
High accuracy: The dynamic error accuracy is ±5mm.
Control system - Compiled PLC: Quickly, the communication speed rate: 0.4ms.
Touch screen - HD HMI: Easy to learn and operate, Multi-language, sensitive touch.
Servo Motor - Accuracy: Accurate position, low noise, high torque, Highest Spreading speed can reach 110 m/min.
Edge alignment device: Automatically Ensure the curling edge is smooth.
Fabric pre-loosening device: Eliminate the tension of pulling fabric, Protect the fabric quality.
Adjustment elastic device: Return to the start position automatically.
Appearence - The Beauty of Simplicity: Compact design, clean white, technology blue..
Product Parameters
Width of fabric | 2100mm |
Width of table | 2330mm |
Weight of fabric | Max.80Kg |
Roll Diameter of fabric | Max.600mm |
Spreading speed | Max.110m/min |
Layer height of one way | Max.230mm |
Layer height of zigzag way | Max.160mm |
Spreading method | One-way spreading: face up. Zigzag spreading: face to face |
Application fabric | Knitted fabric,Woven fabric |
Control system | HD 10"Touch screen,Remote control, Compiled PLC,0.4ms |
Drive device | Servo motor, Inverter |
Power supply | 1 Ph AC220V,2.5kW,50/60Hz |
Dimensions(L*W*H) | 2390*2160*1600mm |
Weight(Kg) | NW:400/GW:600 |
Temperature | -10℃~40℃ |
Applications
Applications.
Apparel Industry
Multi-rods fabric-releasing device, No tension of pulling fabric. Western-style clothes, T-shirts, Jeans, Down jackets, Sweaters.
Home Textile Industry
Servo motor: accurate position, Highest spreading speed 110 m/min.Down Comforter, Feather Pillow Cushion,Sleeping Bag, Hammock.
Toys Pets Industry
Intelligent touch panel: fabric placement, fabric collection, fabric connection: Plush Toys, Pet Cushions.
Detailed Photos
