Factory Direct Sale CNC Machine Tool Setter Z Zero Setter CNC Machine Tool Accessories
Piece
Negotiable
Product information
High-quality Factory Direct Sale CNC Machine Tool Setter Z Zero Setter CNC Machine Tool Accessories supplied by Anhui Snalpo Machinery Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Repeatability:
0.002mm
Contact Surface Diameter:
10mm
Trigger Counter:
3,000,000
Specification:
3.5kg
Package Size:
30.00cm * 20.00cm * 20.00cm
Package Gross Weight:
4.000kg
Production Capacity:
500pieces/Year
Travel:
5mm
Specifications
Repeatability:
0.002mm
Contact Surface Diameter:
10mm
Trigger Counter:
3,000,000
Specification:
3.5kg
Package Size:
30.00cm * 20.00cm * 20.00cm
Package Gross Weight:
4.000kg
Production Capacity:
500pieces/Year
Travel:
5mm
HS Code:
9031809090
Height:
96mm
Material:
Alloy
Model NO.:
CT20D
Contact Surface Material:
Carbide
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Protection Grade:
IP67
Certification:
ISO 9001:2008
Payment Term:
LC, T/T
Trademark:
SNALPO
Port Of Loading:
Shanghai Port
Transport Package:
Ship/Train
Size:
Small
Payment Methods:
Support payments in USD
Type:
Tool Setter
Logo Printing:
with Logo Printing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2024
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
License, SGS, Trademark
Product descriptions from the supplier
Product Applications:

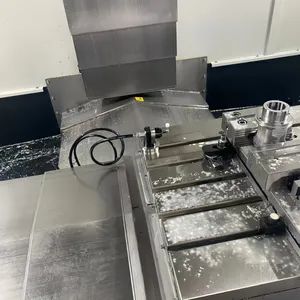

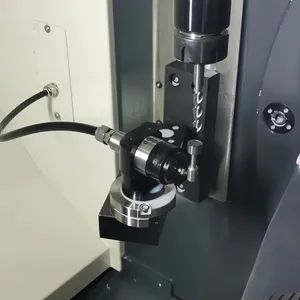

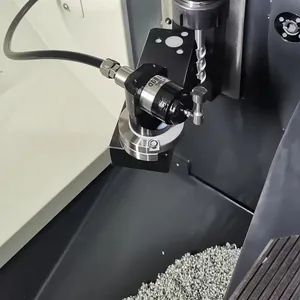

1.CT20D is applied on various sizes of vertical and horizontal machining centers, as well as various gantry machining centers, to help users measure tool length and detect tool damage.
2.The program drives the tool to approach the tool gauge needle along the Z-axis direction.
3.Set the radius of the rotating tool on the X-axis and Y-axis of the machine tool for tool compensation. The product has an adjustment mechanism that can align with the machine tool reference.
1.CT20D is applied on various sizes of vertical and horizontal machining centers, as well as various gantry machining centers, to help users measure tool length and detect tool damage.
2.The program drives the tool to approach the tool gauge needle along the Z-axis direction.
3.Set the radius of the rotating tool on the X-axis and Y-axis of the machine tool for tool compensation. The product has an adjustment mechanism that can align with the machine tool reference.
| Main technical parameters(CT20D) | |
| Travel | 5mm |
| Height | 96mm |
| Repeatability | 0.002mm |
| Trigger Counter | 3,000,000 |
| Protection grade | IP67 |
| Contact surface material | carbide |
| Contact surface diameter | 10mm |
| Surface treatment | mirror grinding |
| contact voltage | DC24V 20mA |
